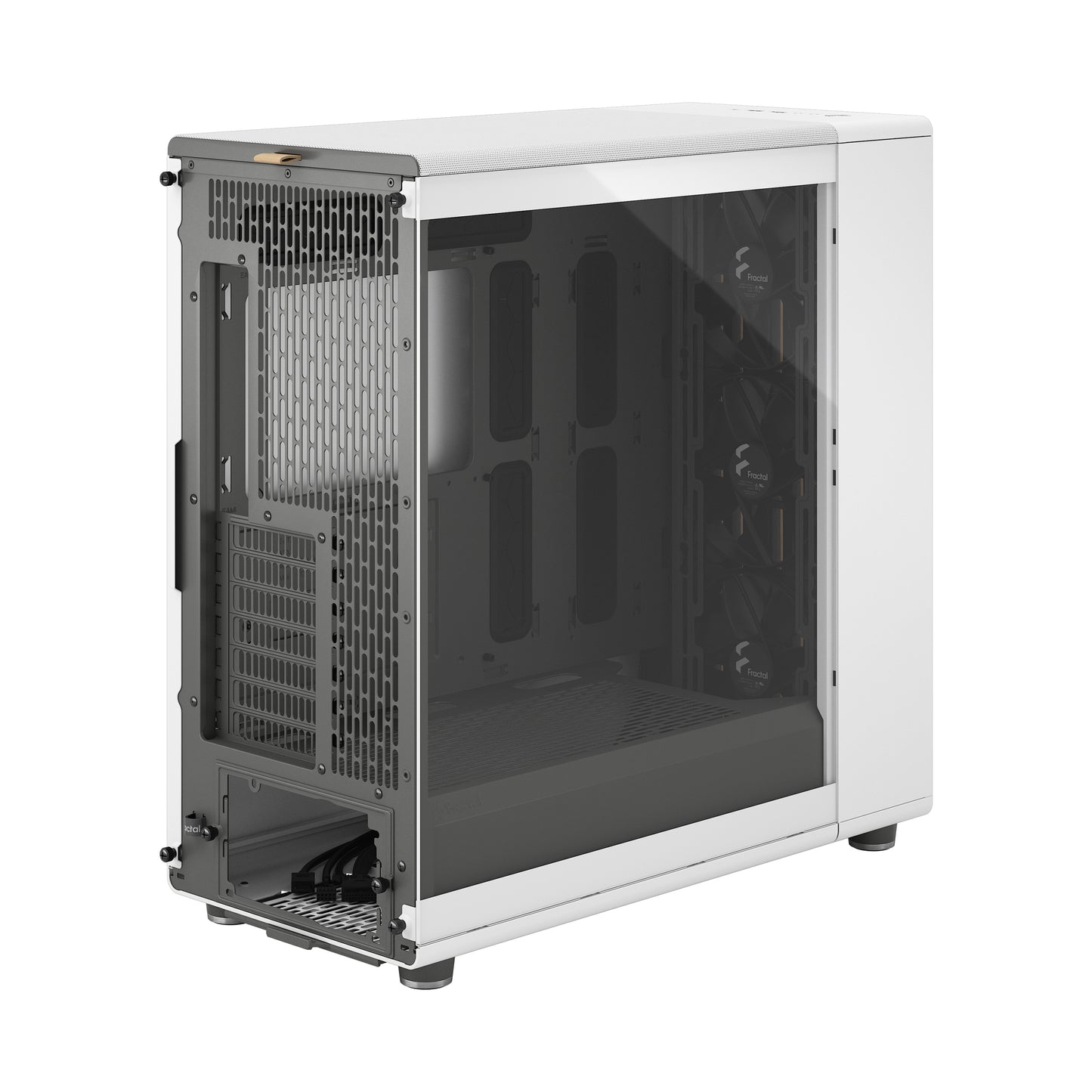

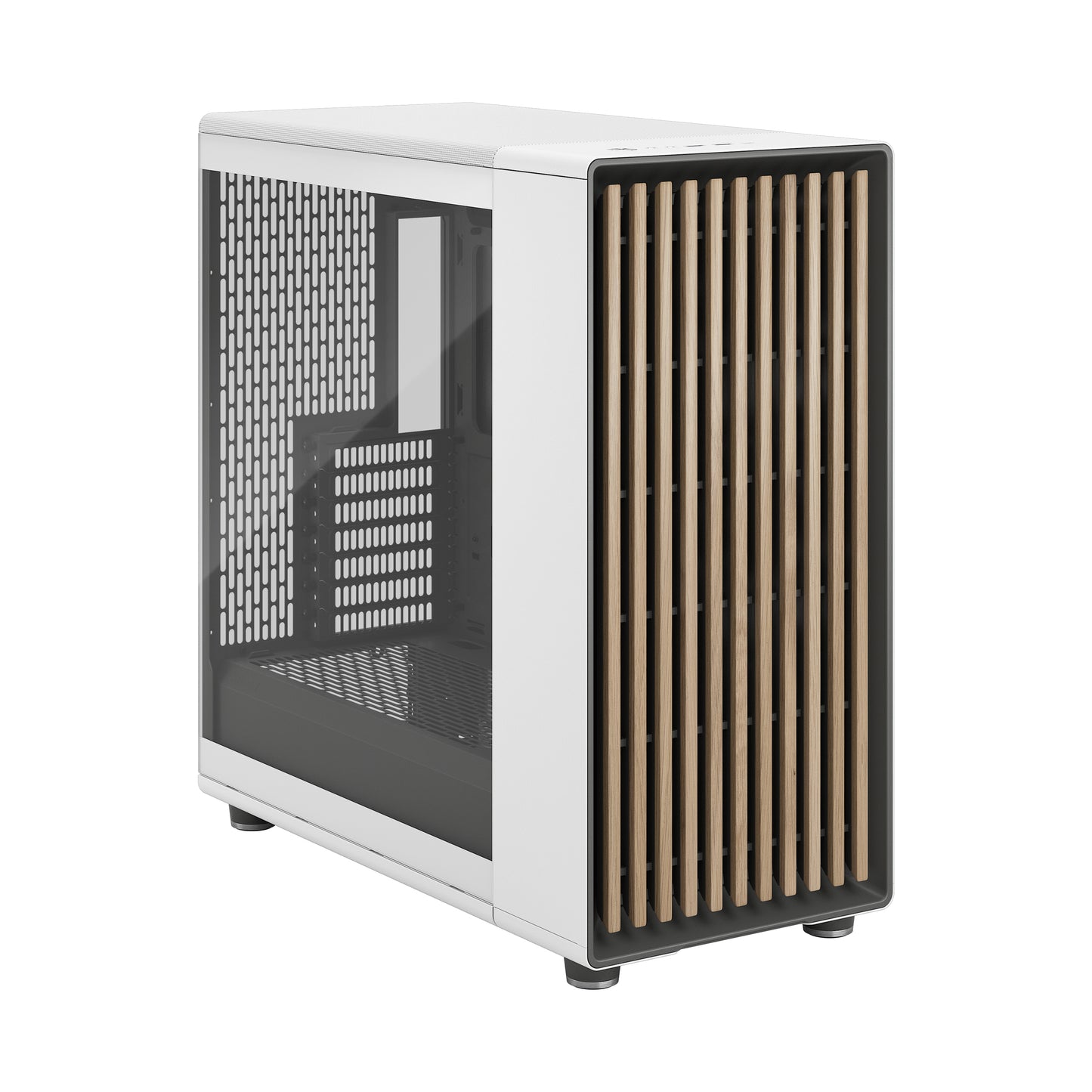

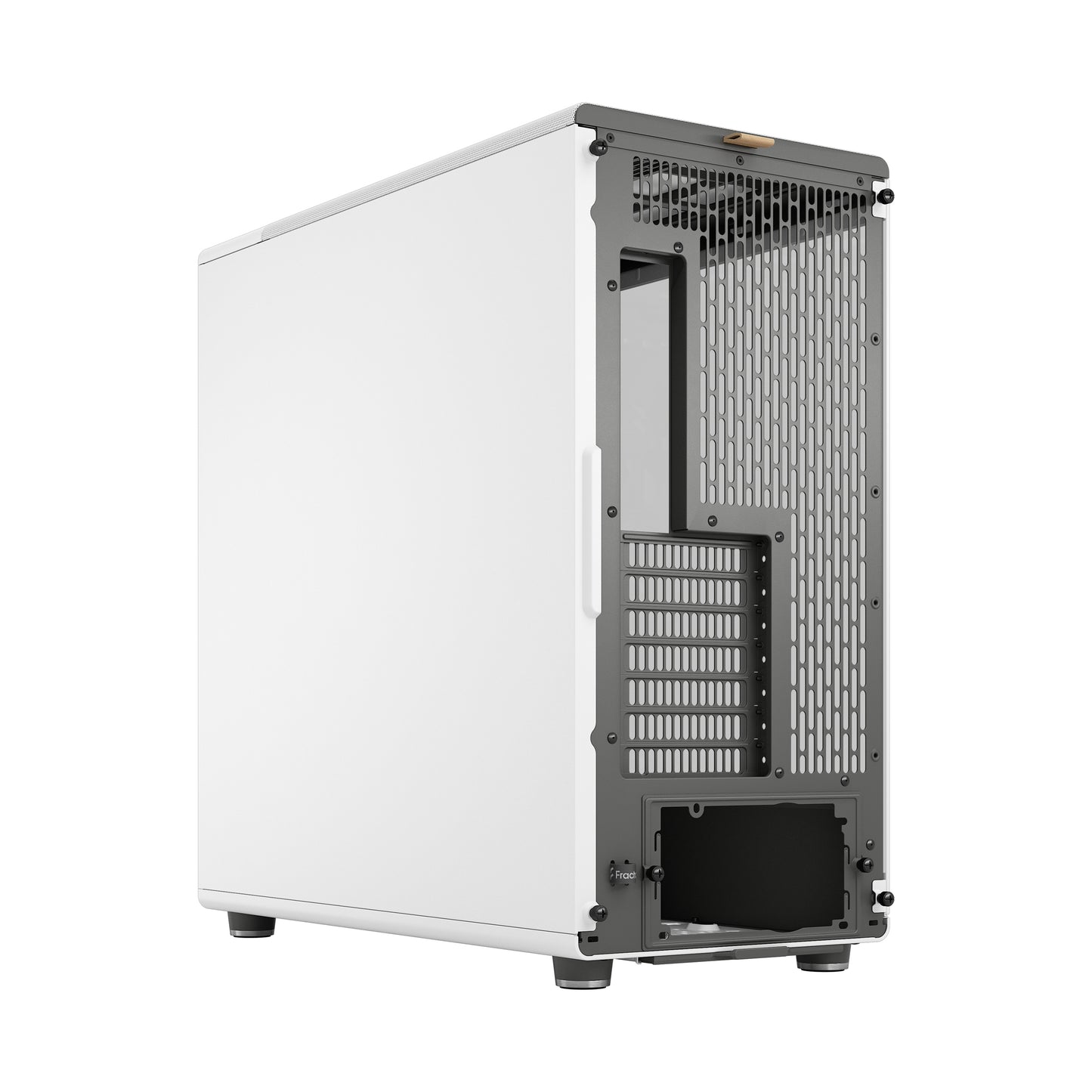

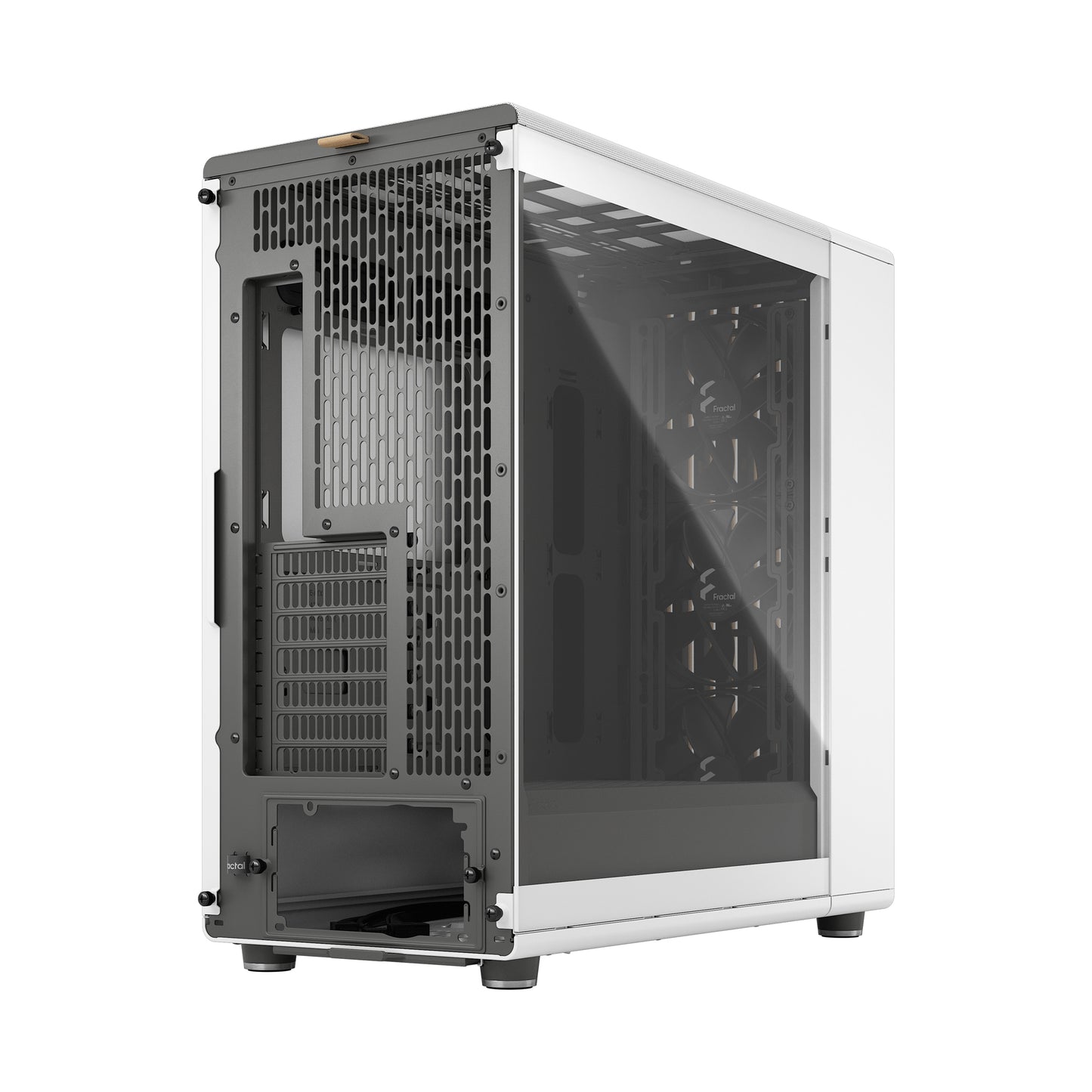

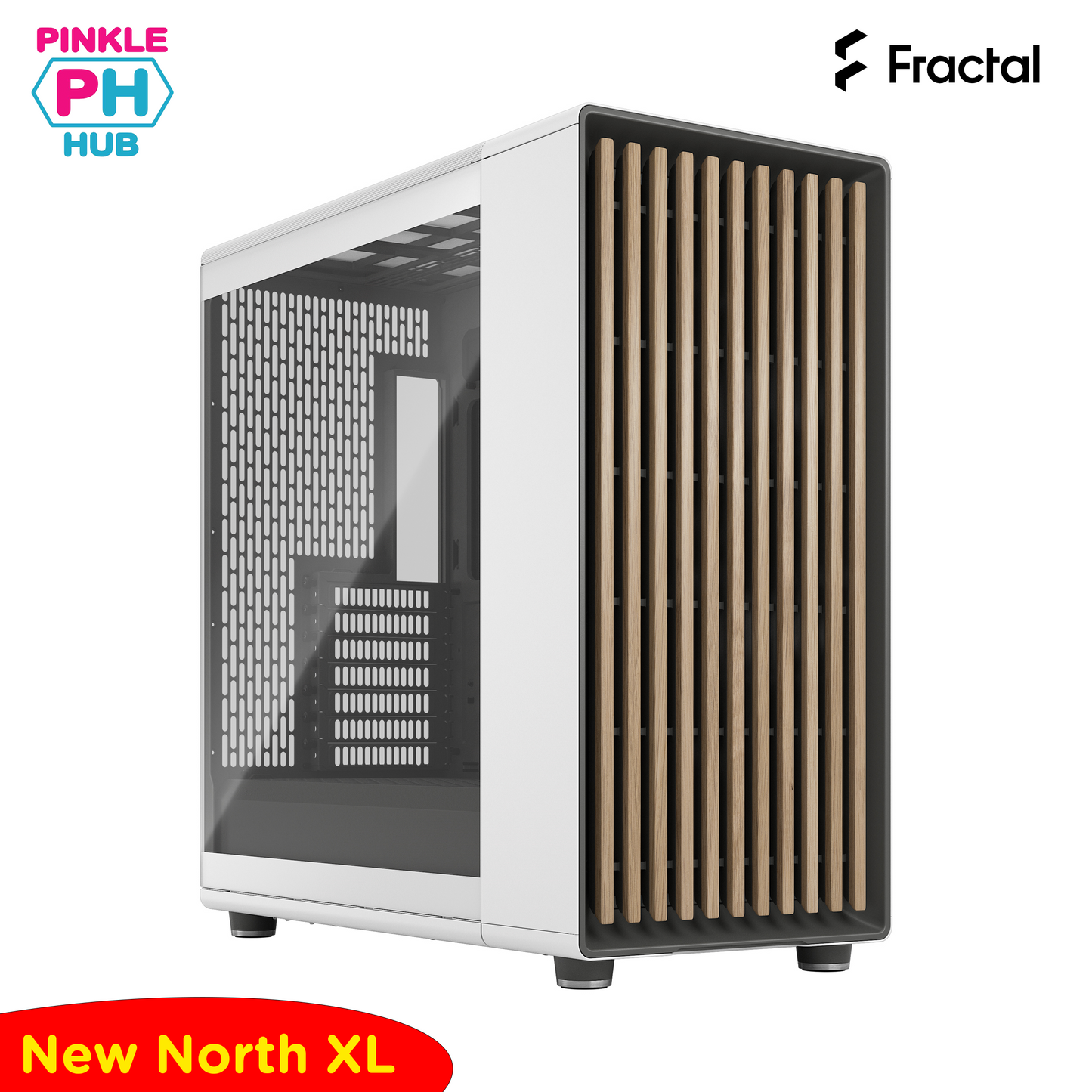

Fractal Design North XL Chalk White TG Clear

Fractal Design North XL Chalk White TG Clear

Brand : Fractal Design

Regular price ₱12,250.00
Sale price ₱12,250.00
Regular price ₱13,500.00 -9%
Sale! Sold out

North XL Chalk White TG Clear
(FD-C-NOR1X-04)

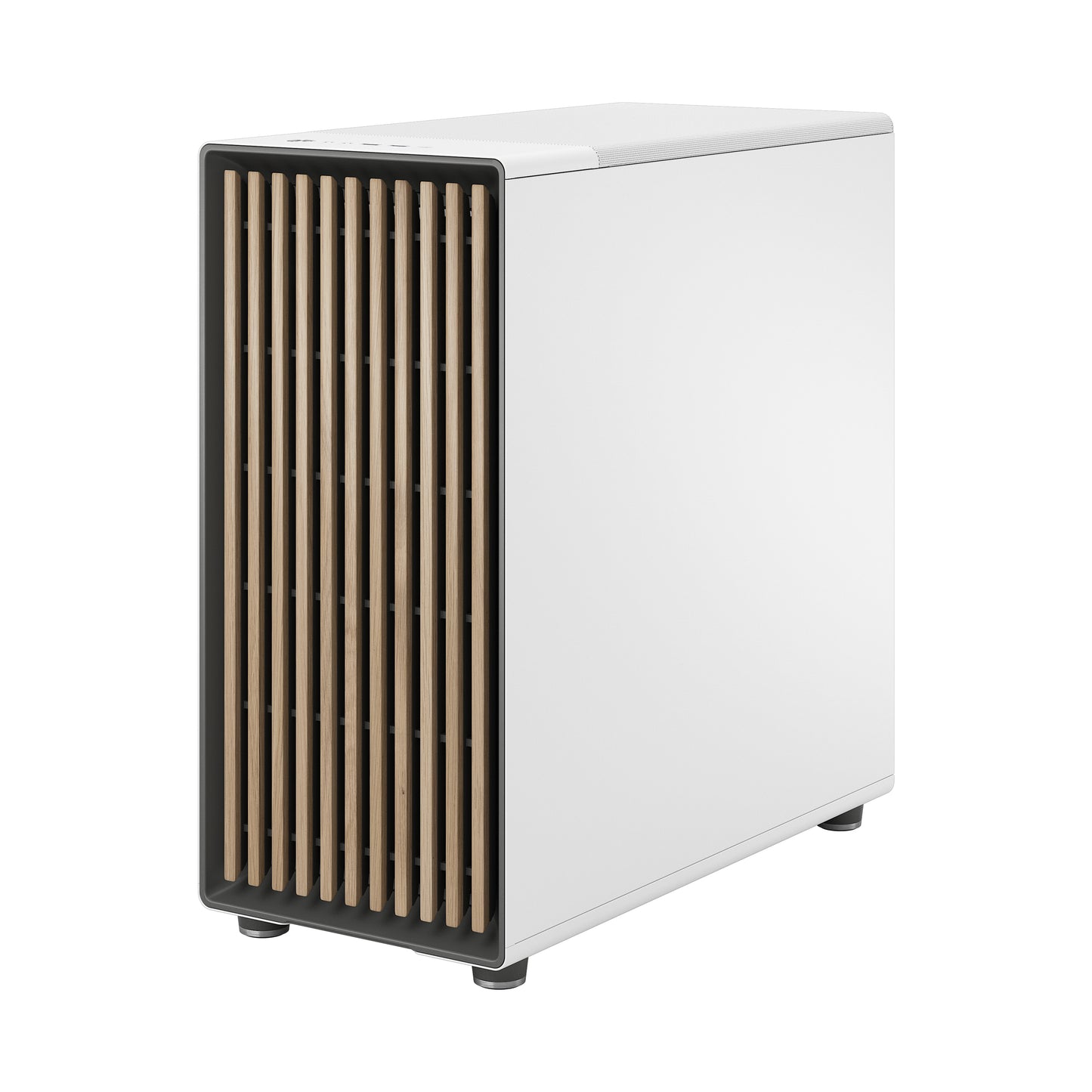

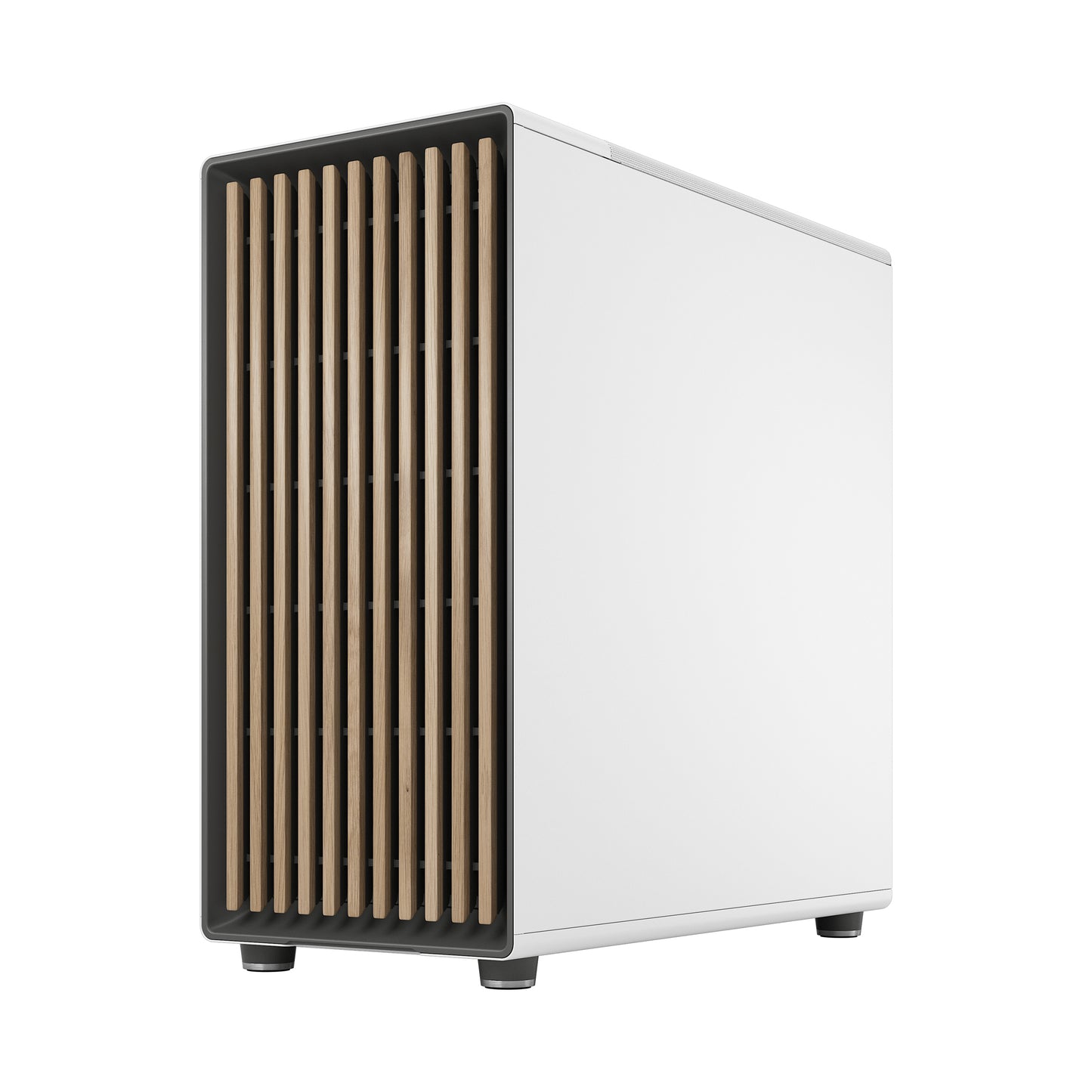

Transformative design in a generous format North XL offers a transformative take on the gaming PC case in a generous form factor. With fine-patterned mesh ventilation and an open front featuring FSC-certified walnut or oak panels, the design of North XL makes it a stylish addition to any living space while helping components stay cool. The design is complemented by sleek brass or steel details and an integrated tab for easy access to the top of the case. Inside, it boasts a spacious, flexible, and intuitive interior layout so you can make the most of your building aspirations and gaming experience.

Key features

  • Enhance the look of your gaming station with sleek wood and alloy details
  • Designed for E-ATX / ATX / mATX / mITX motherboards

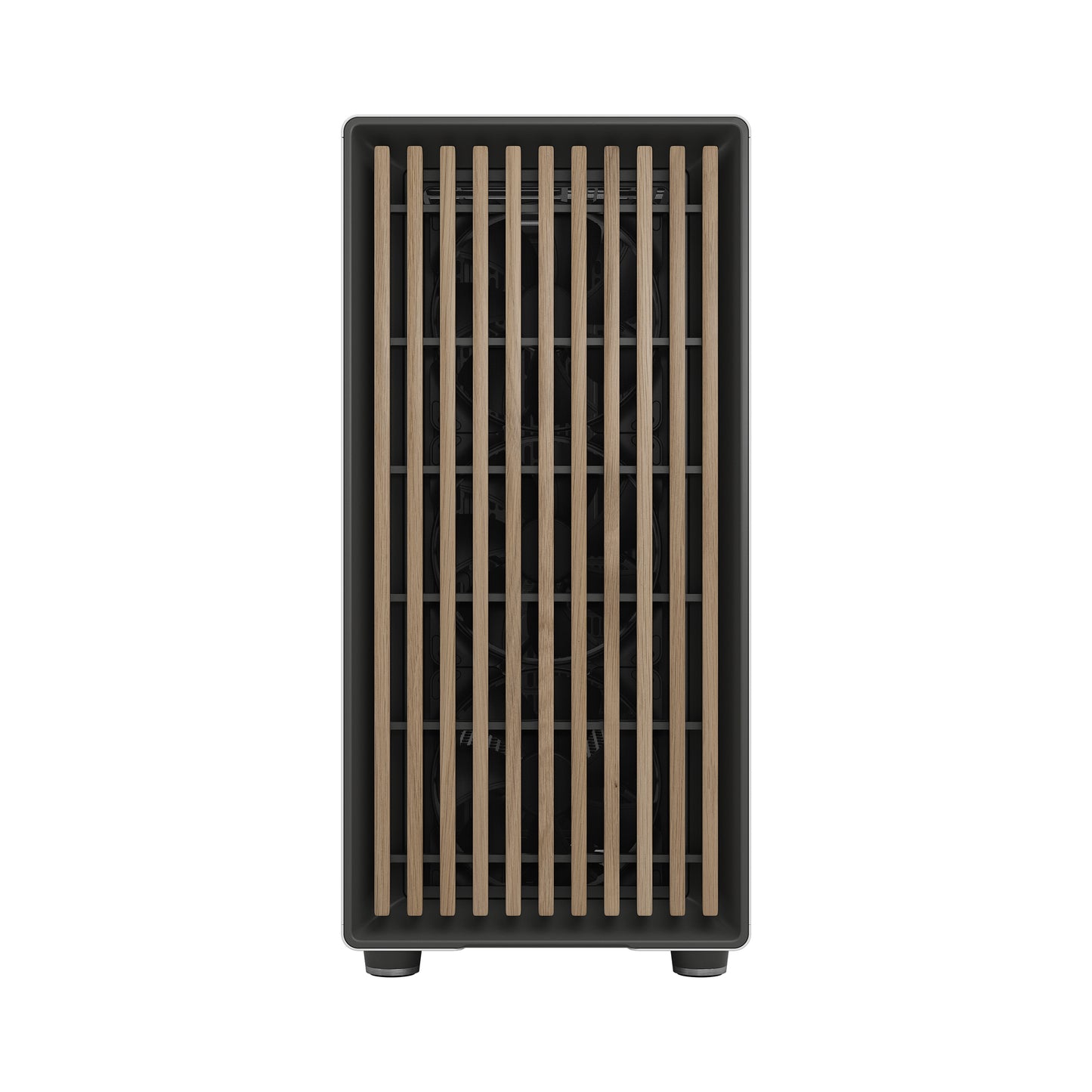

  • Enjoy natural ventilation through an open front and stylishly integrated mesh
  • Choose a GPU up to 413 mm, or up to 380 mm with a 420 mm front radiator
  • Compatible with front radiators up to 420 mm and top radiators up to 360 mm
  • Get a head start on your build with the three included 140 mm Aspect PWM fans

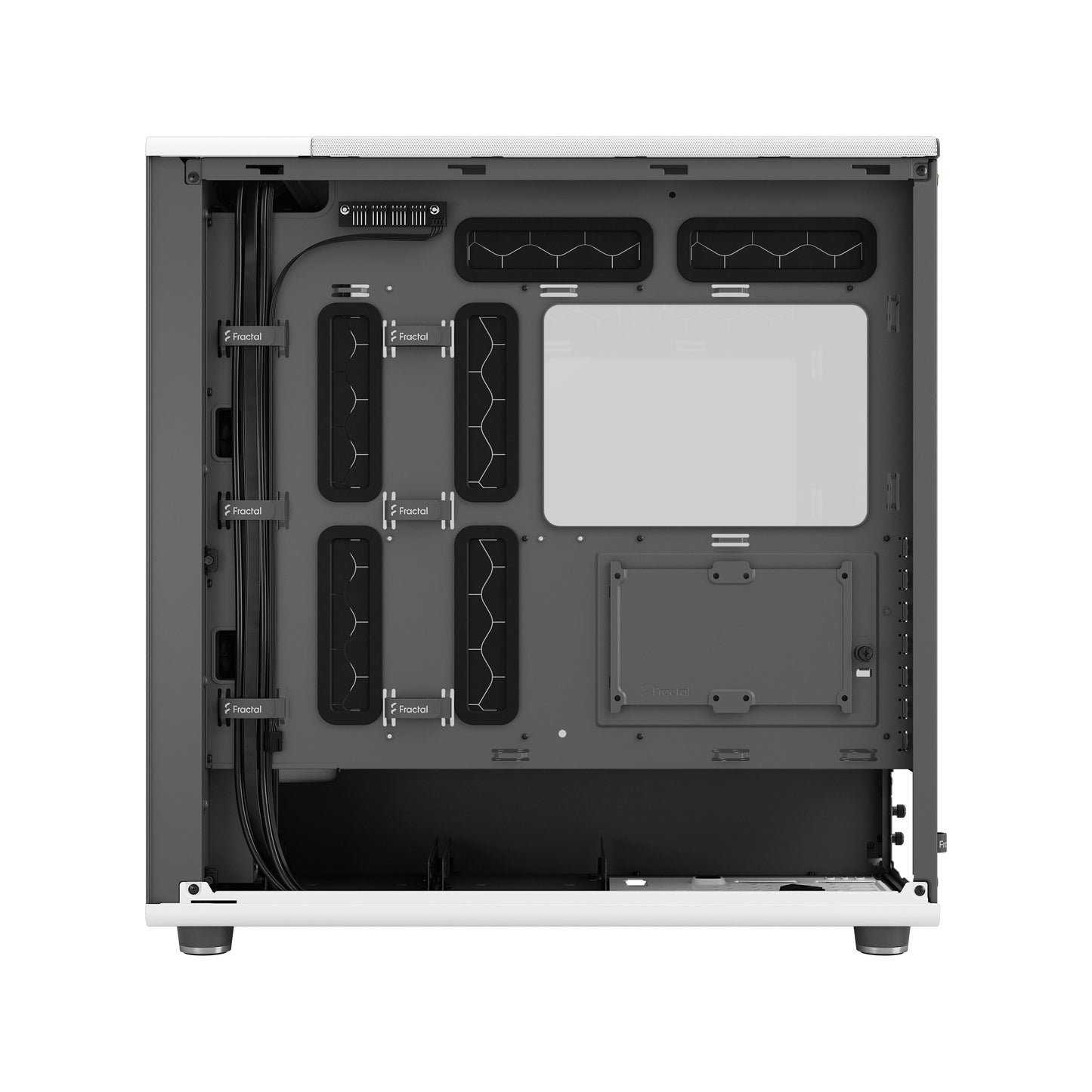

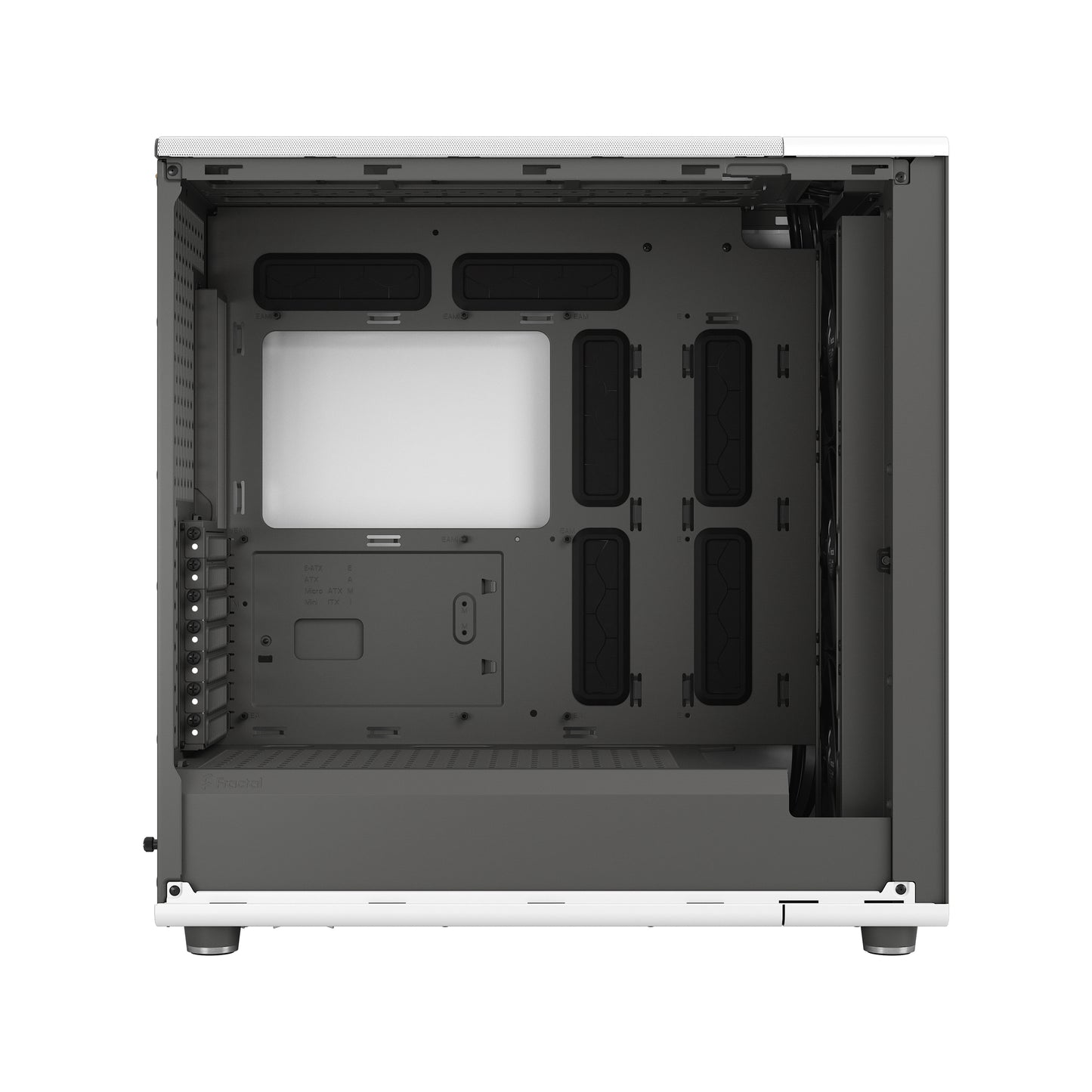

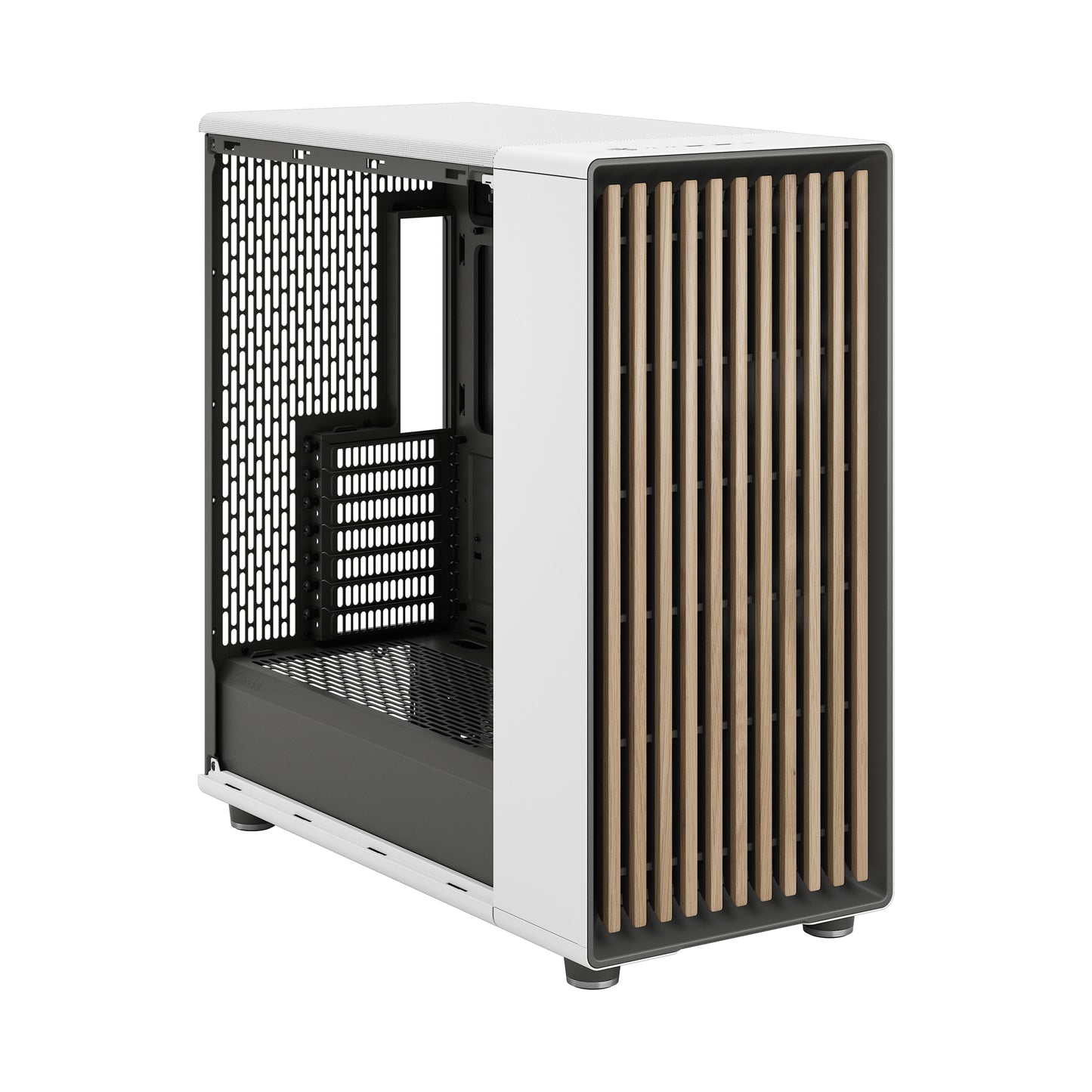

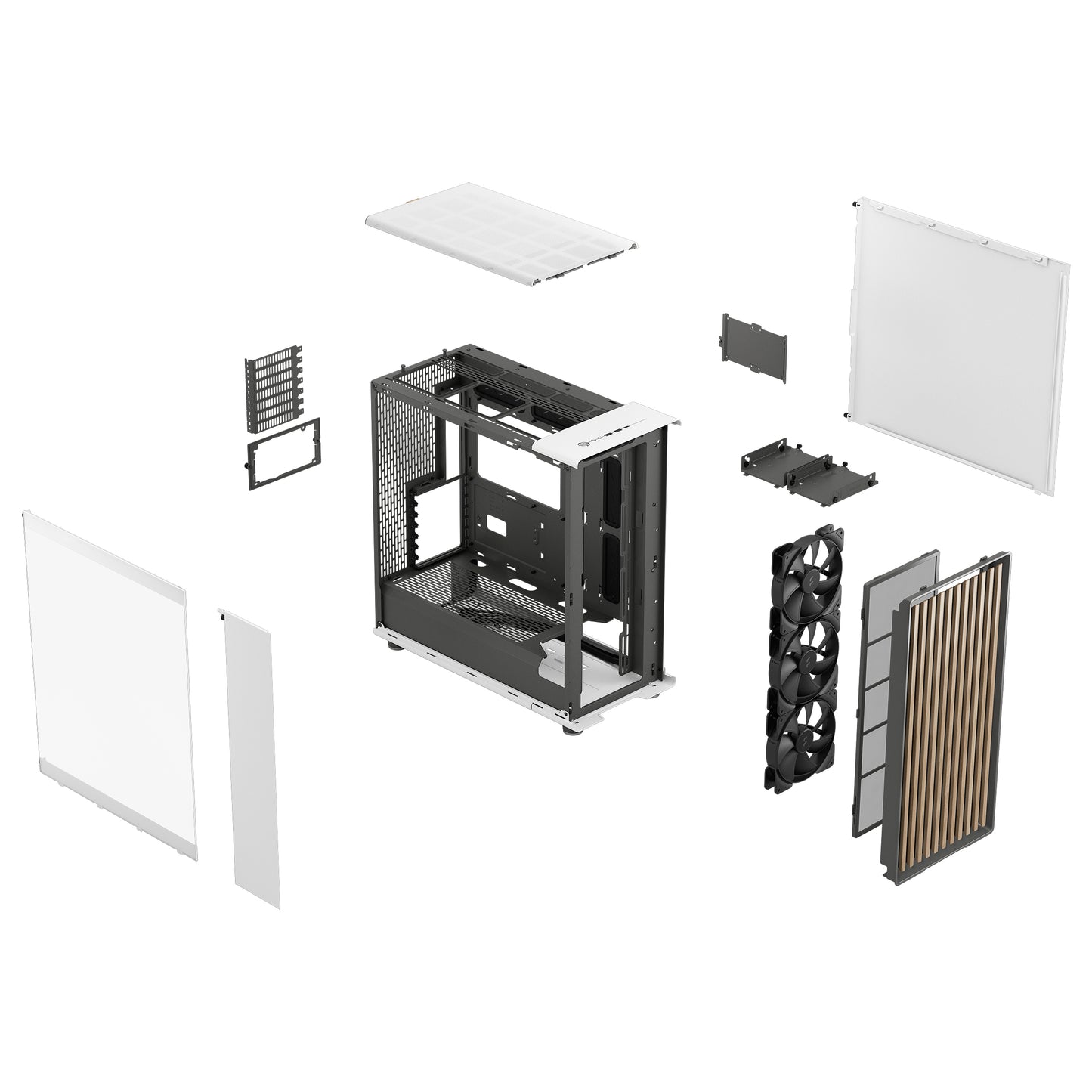

  • Slide open the side panels, unclip the front and use the integrated tab to pop off the top panel
  • Make the most of your building experience with an intuitive interior layout
  • Enjoy a sophisticated looking case which integrates effortlessly into your living space

SPECIFICATIONS

Specification North XL - TG
Dedicated 3.5" drive mounts  0

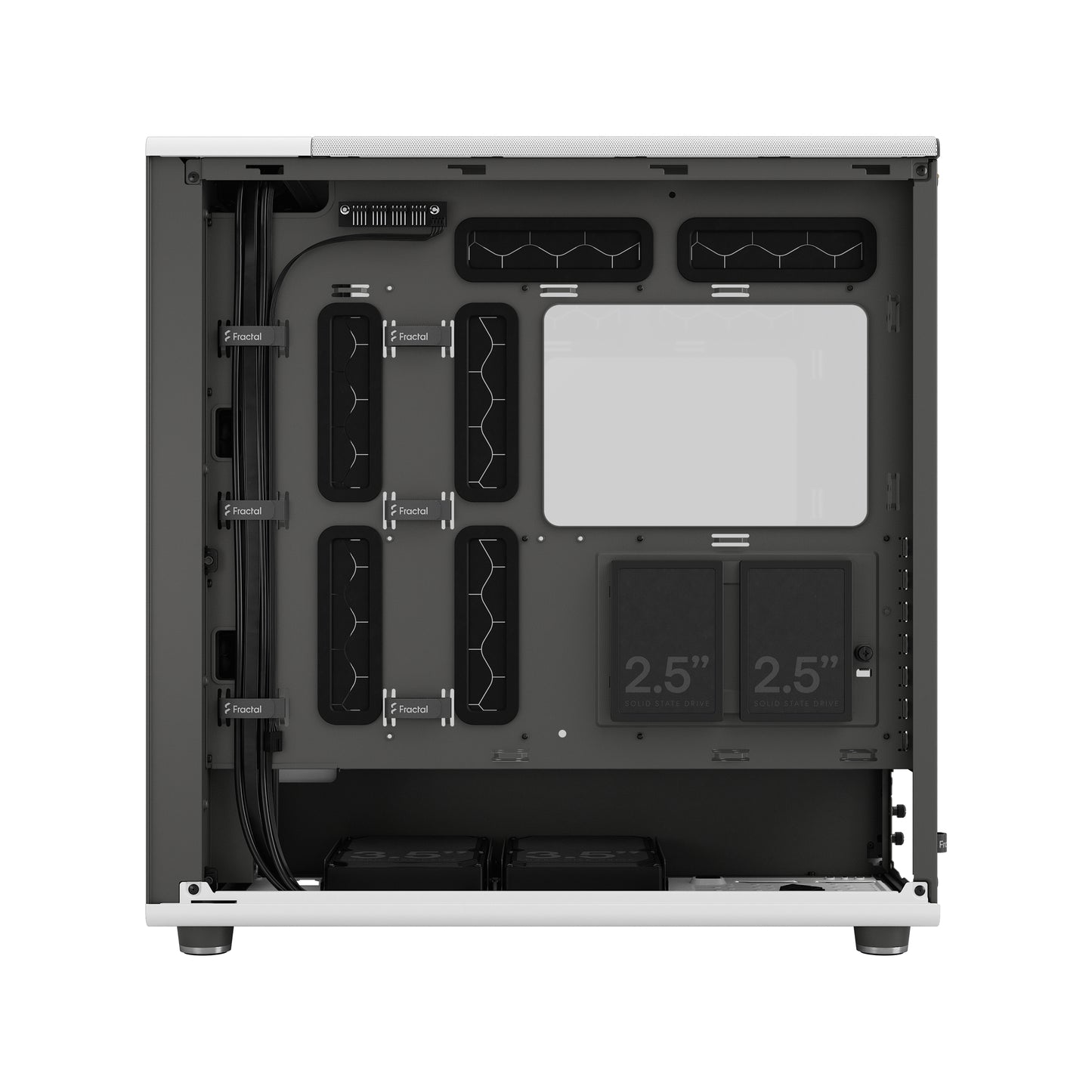

Dedicated 2.5" drive mounts 2
Combined 3.5/2.5” drive mounts 2 (2 included)
5.25” drive mounts 0 0 0

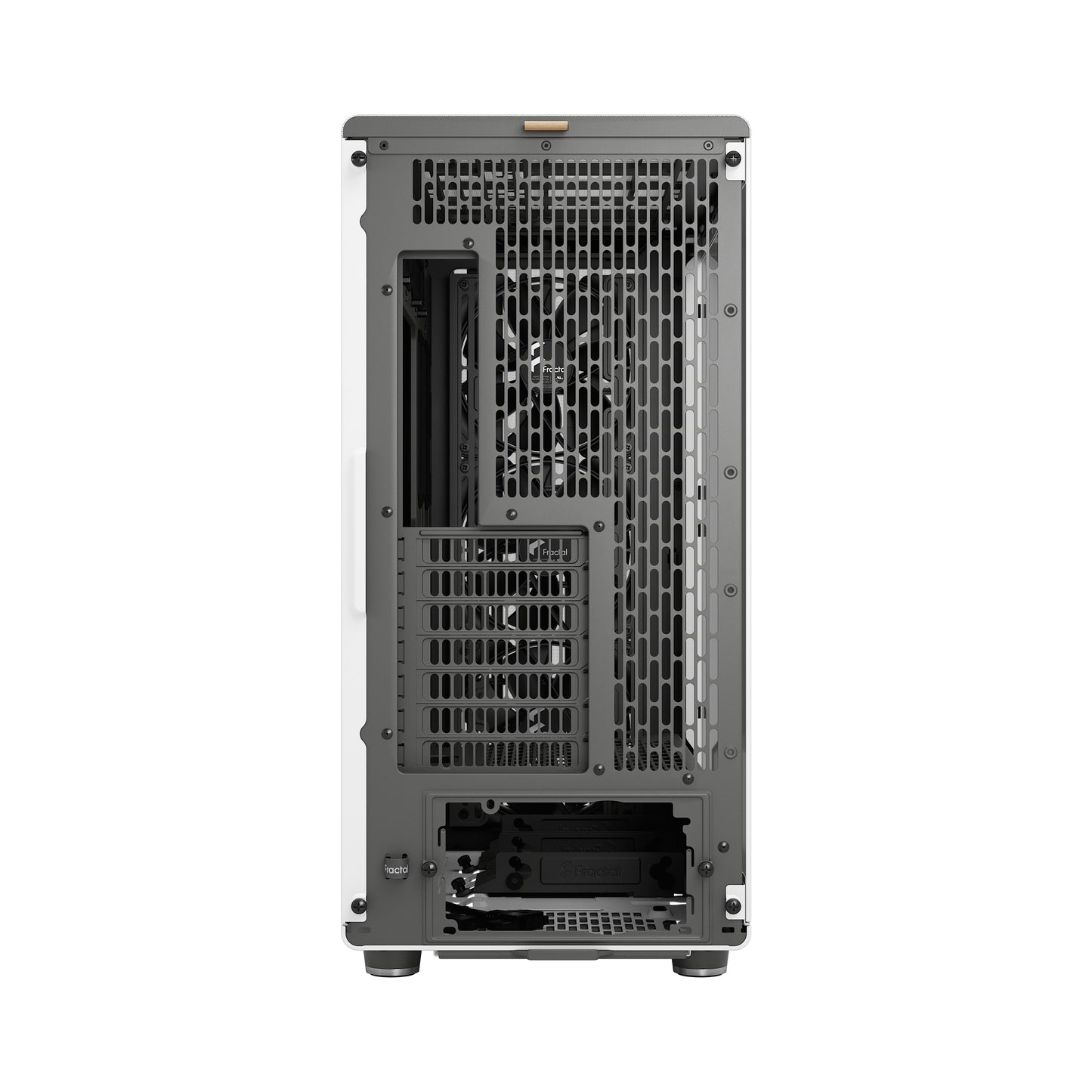

Expansion slots 7
Motherboard compatibility E-ATX (330 mm)/ATX / mATX / Mini-ITX
Power supply type ATX

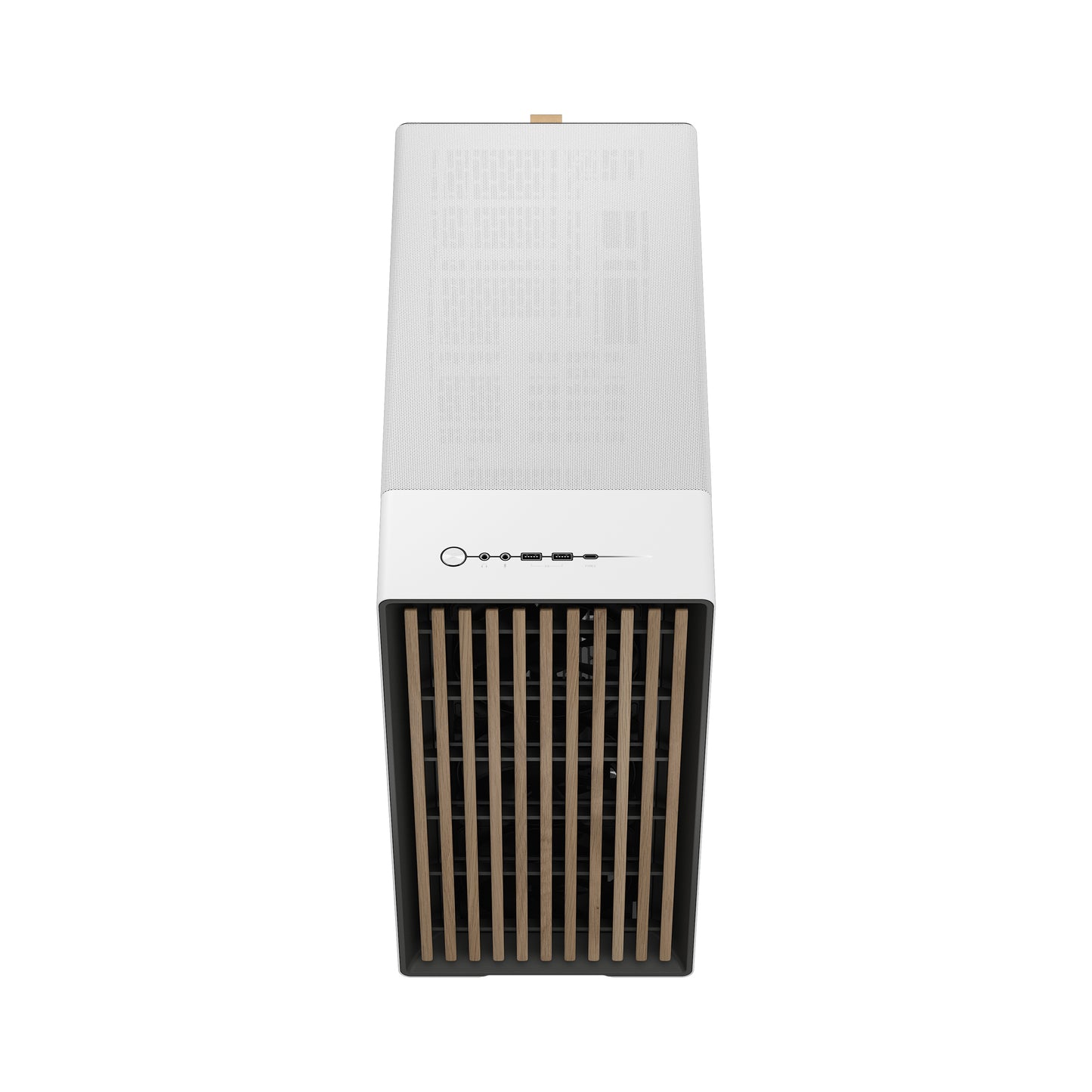

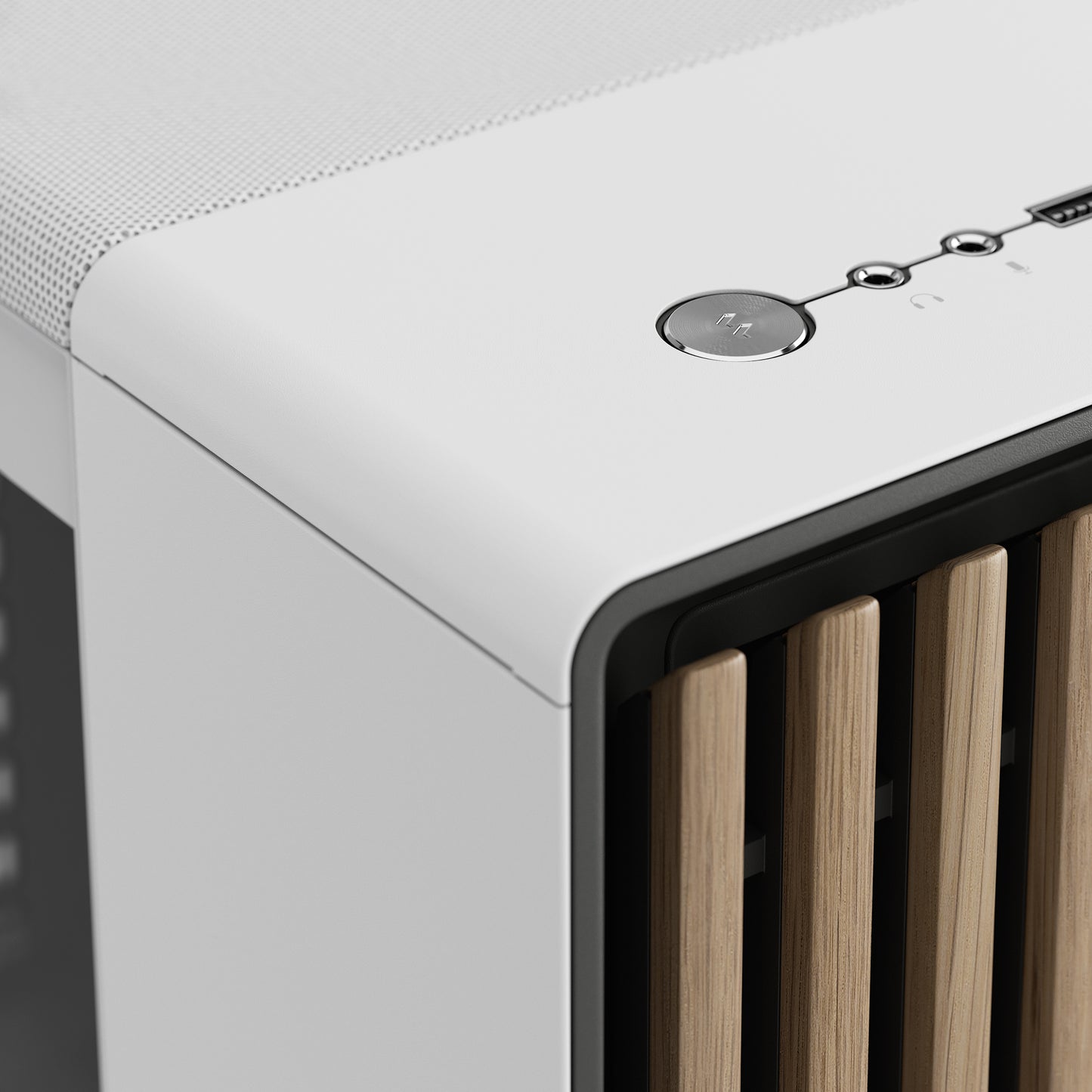

Front interface  1xUSB 3.1 Gen 2 Type-C, 2xUSB 3.0, Audio & Mic
Total fan mounts  7 x 120 mm or 6 x 140 mm
Front fan 3 x 120, 3 x 140 mm
  (3 x Aspect 140 mm PWM Included)
Top fan 3 x 120, 2 x 140 or 2 x 180 mm
Rear fan 1 x 120/140 mm
Side Bracket Fans  N/A
Dust filters   Front, PSU
Front radiator  Up to 420/ 360 mm
Top radiator  Up to 280/ 360 mm
Rear radiator 1 x 120/140 mm
Bottom radiator N/A
* If you’re using a rear radiator the fan bracket can only be slotted into the bottom position

PSU max length 2 HDD Tray: 175 mm max
  2 HDD Tray: 175 mm max
GPU max length  413 mm with front fan mounted / 380 mm with 420/360 mm front mounted radiator
CPU cooler max height  185 mm
Cable routing space 29 mm
Cable routing grommets Yes
Fixed cable straps  Yes
Captive thumbscrews  HDD brackets, SSD bracket, Side Panels, PSU Bracket

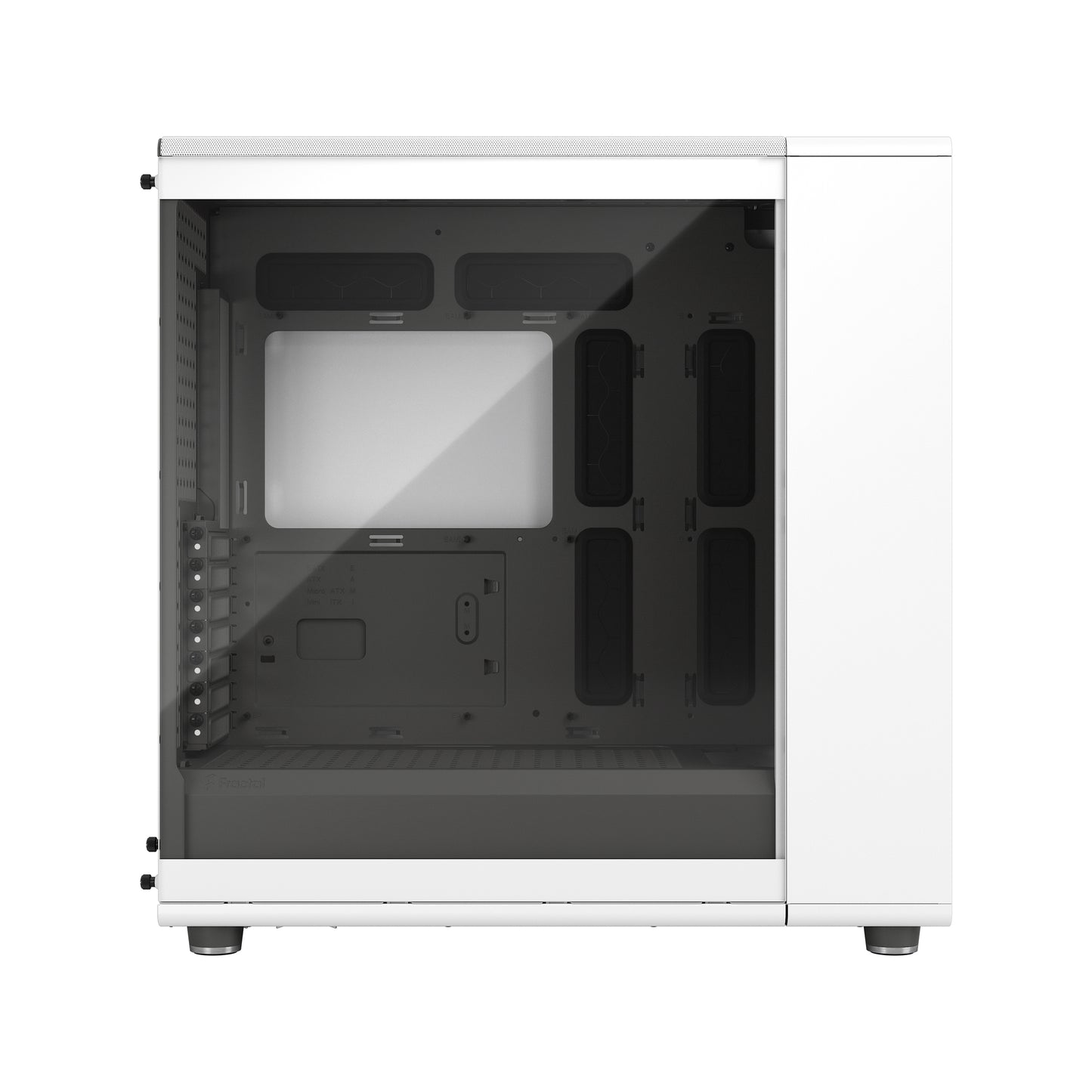

Left side panel  Tempered Glass, 3 mm

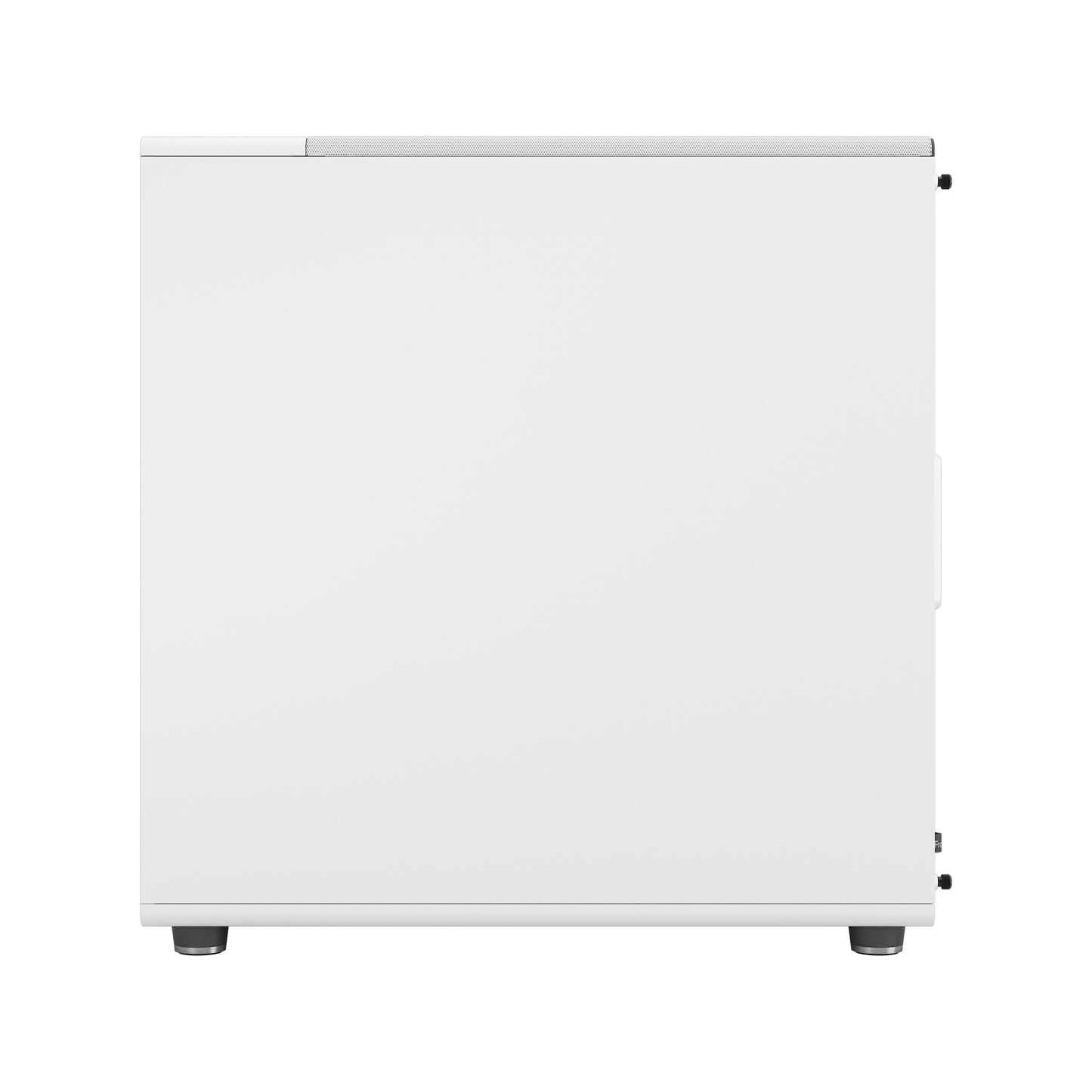

Right side panel Steel
Case dimensions (LxWxH)  503 x 240 x 509 mm
Case dimensions w/o feet/protrusions/screws  490 x 240 x 490 mm
Net weight  9,5 kg
Package dimensions (LxWxH)  604 x 355 x 608 mm
Gross weight  11,7 kg

Package Content North XL Case TG
  Accessory Box
  User Manual



View full details

Description

North XL Chalk White TG Clear
(FD-C-NOR1X-04)

Transformative design in a generous format North XL offers a transformative take on the gaming PC case in a generous form factor. With fine-patterned mesh ventilation and an open front featuring FSC-certified walnut or oak panels, the design of North XL makes it a stylish addition to any living space while helping components stay cool. The design is complemented by sleek brass or steel details and an integrated tab for easy access to the top of the case. Inside, it boasts a spacious, flexible, and intuitive interior layout so you can make the most of your building aspirations and gaming experience.

Key features

  • Enhance the look of your gaming station with sleek wood and alloy details
  • Designed for E-ATX / ATX / mATX / mITX motherboards
  • Enjoy natural ventilation through an open front and stylishly integrated mesh
  • Choose a GPU up to 413 mm, or up to 380 mm with a 420 mm front radiator
  • Compatible with front radiators up to 420 mm and top radiators up to 360 mm
  • Get a head start on your build with the three included 140 mm Aspect PWM fans
  • Slide open the side panels, unclip the front and use the integrated tab to pop off the top panel
  • Make the most of your building experience with an intuitive interior layout
  • Enjoy a sophisticated looking case which integrates effortlessly into your living space

SPECIFICATIONS

Specification North XL - TG
Dedicated 3.5" drive mounts  0
Dedicated 2.5" drive mounts 2
Combined 3.5/2.5” drive mounts 2 (2 included)
5.25” drive mounts 0 0 0
Expansion slots 7
Motherboard compatibility E-ATX (330 mm)/ATX / mATX / Mini-ITX
Power supply type ATX
Front interface  1xUSB 3.1 Gen 2 Type-C, 2xUSB 3.0, Audio & Mic
Total fan mounts  7 x 120 mm or 6 x 140 mm
Front fan 3 x 120, 3 x 140 mm
  (3 x Aspect 140 mm PWM Included)
Top fan 3 x 120, 2 x 140 or 2 x 180 mm
Rear fan 1 x 120/140 mm
Side Bracket Fans  N/A
Dust filters   Front, PSU
Front radiator  Up to 420/ 360 mm
Top radiator  Up to 280/ 360 mm
Rear radiator 1 x 120/140 mm
Bottom radiator N/A
* If you’re using a rear radiator the fan bracket can only be slotted into the bottom position

PSU max length 2 HDD Tray: 175 mm max
  2 HDD Tray: 175 mm max
GPU max length  413 mm with front fan mounted / 380 mm with 420/360 mm front mounted radiator
CPU cooler max height  185 mm
Cable routing space 29 mm
Cable routing grommets Yes
Fixed cable straps  Yes
Captive thumbscrews  HDD brackets, SSD bracket, Side Panels, PSU Bracket
Left side panel  Tempered Glass, 3 mm
Right side panel Steel
Case dimensions (LxWxH)  503 x 240 x 509 mm
Case dimensions w/o feet/protrusions/screws  490 x 240 x 490 mm
Net weight  9,5 kg
Package dimensions (LxWxH)  604 x 355 x 608 mm
Gross weight  11,7 kg

Package Content North XL Case TG
  Accessory Box
  User Manual
