Description
Ridge

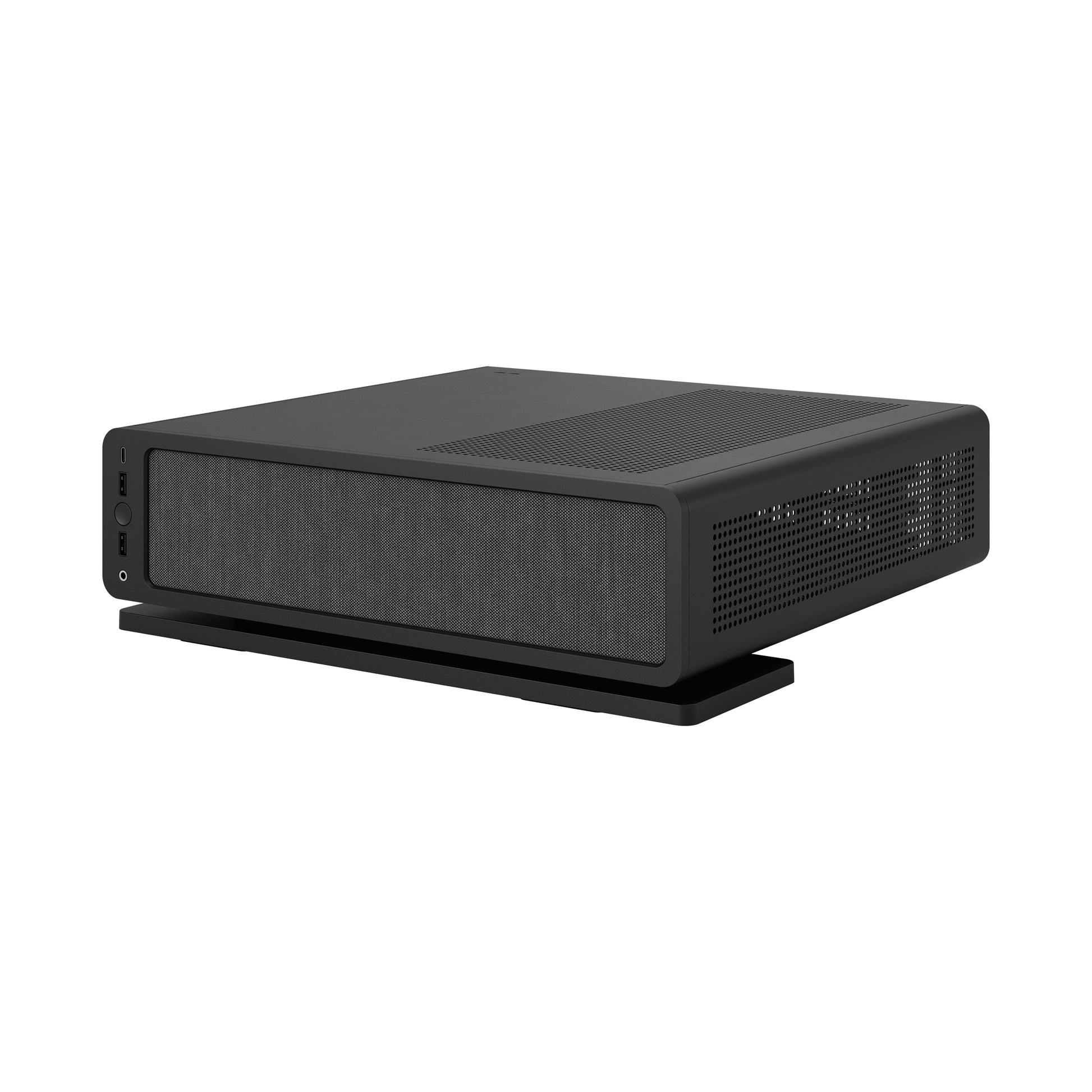

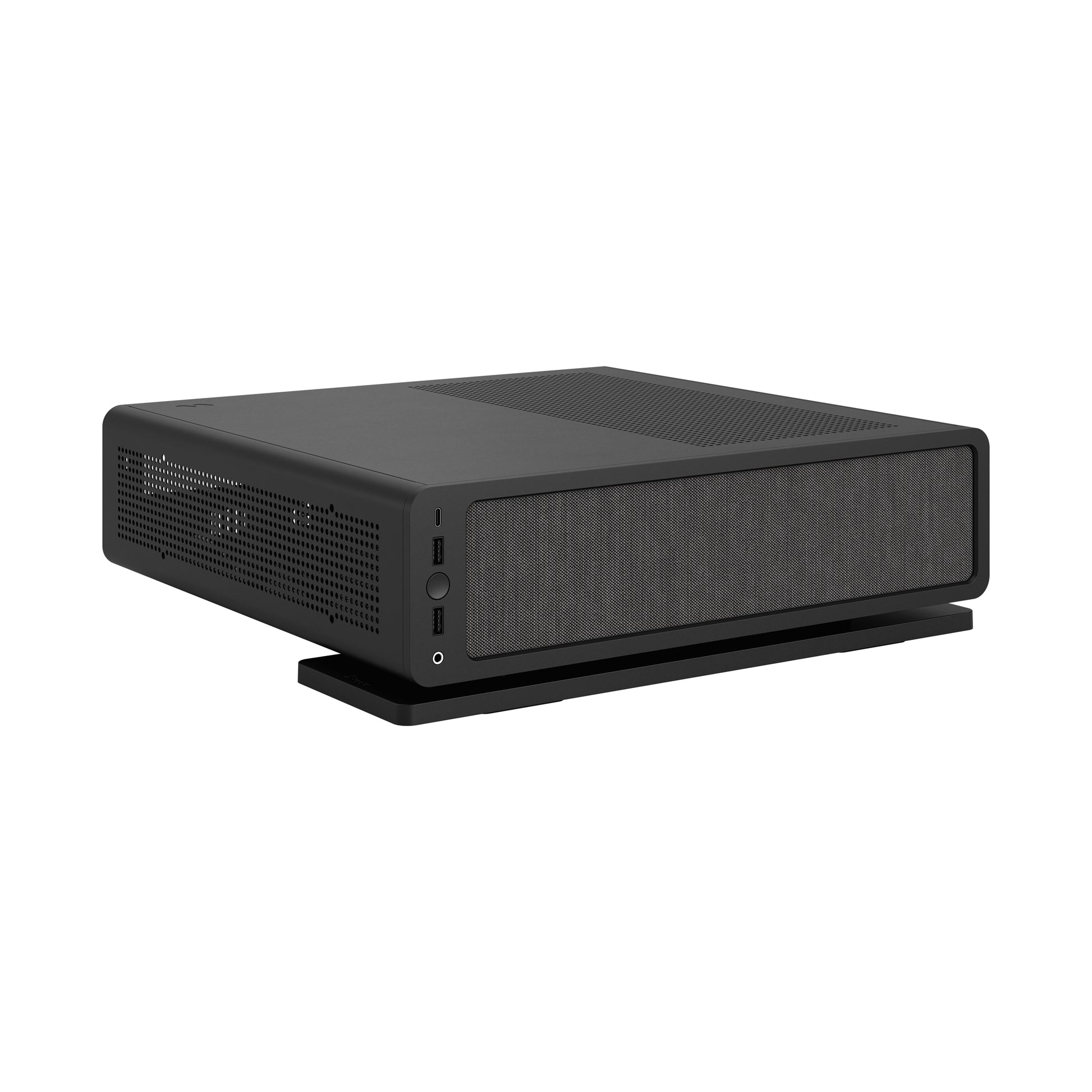

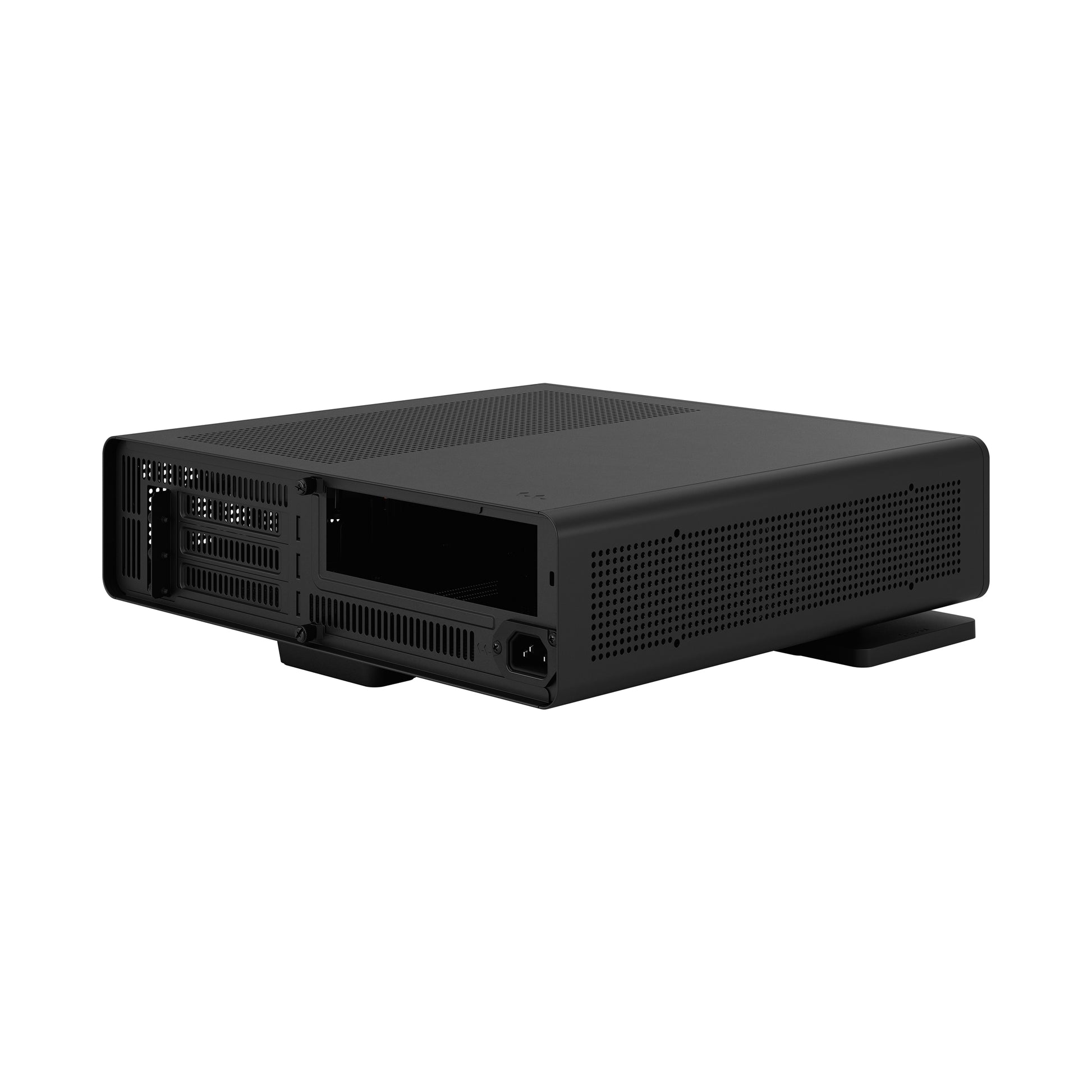

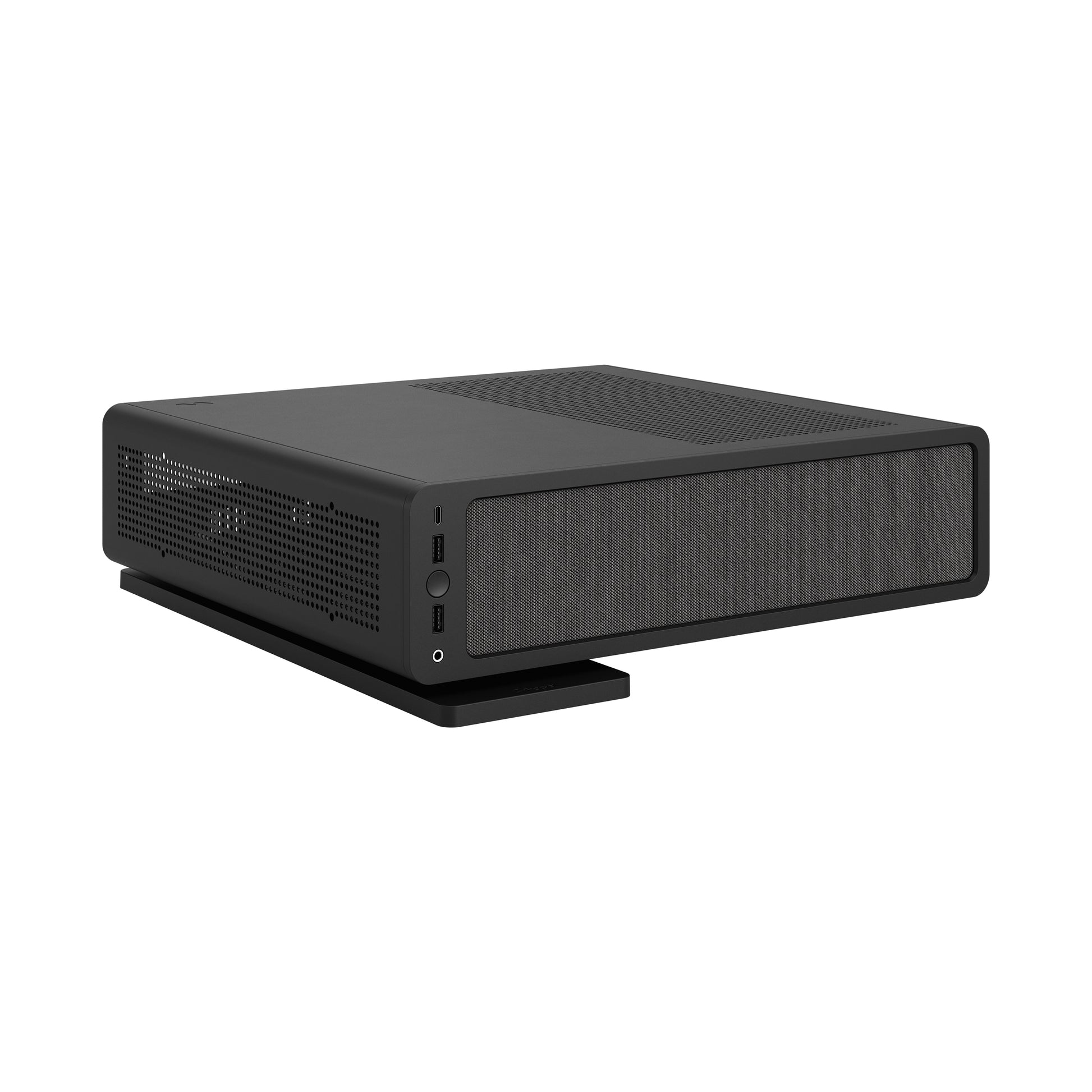

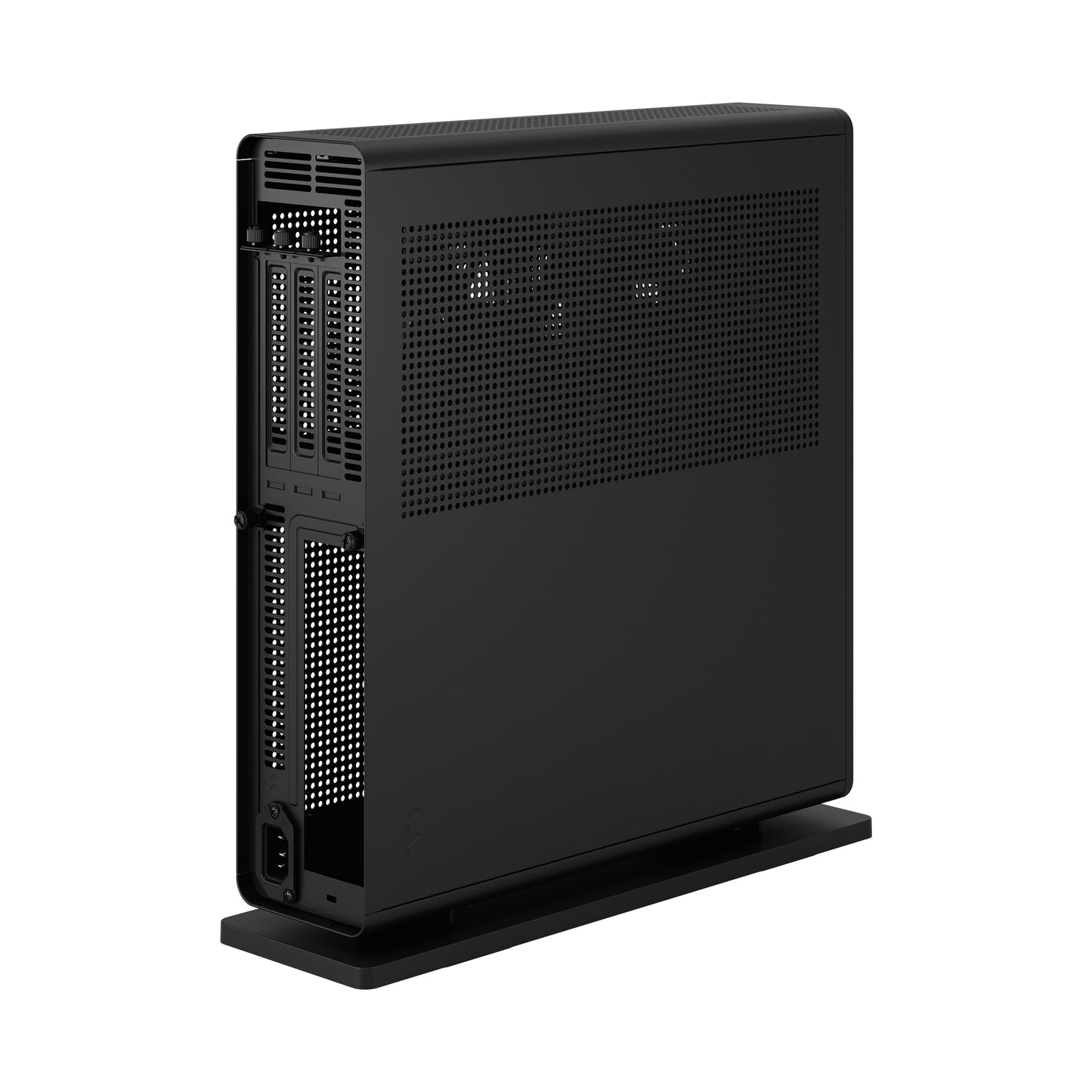

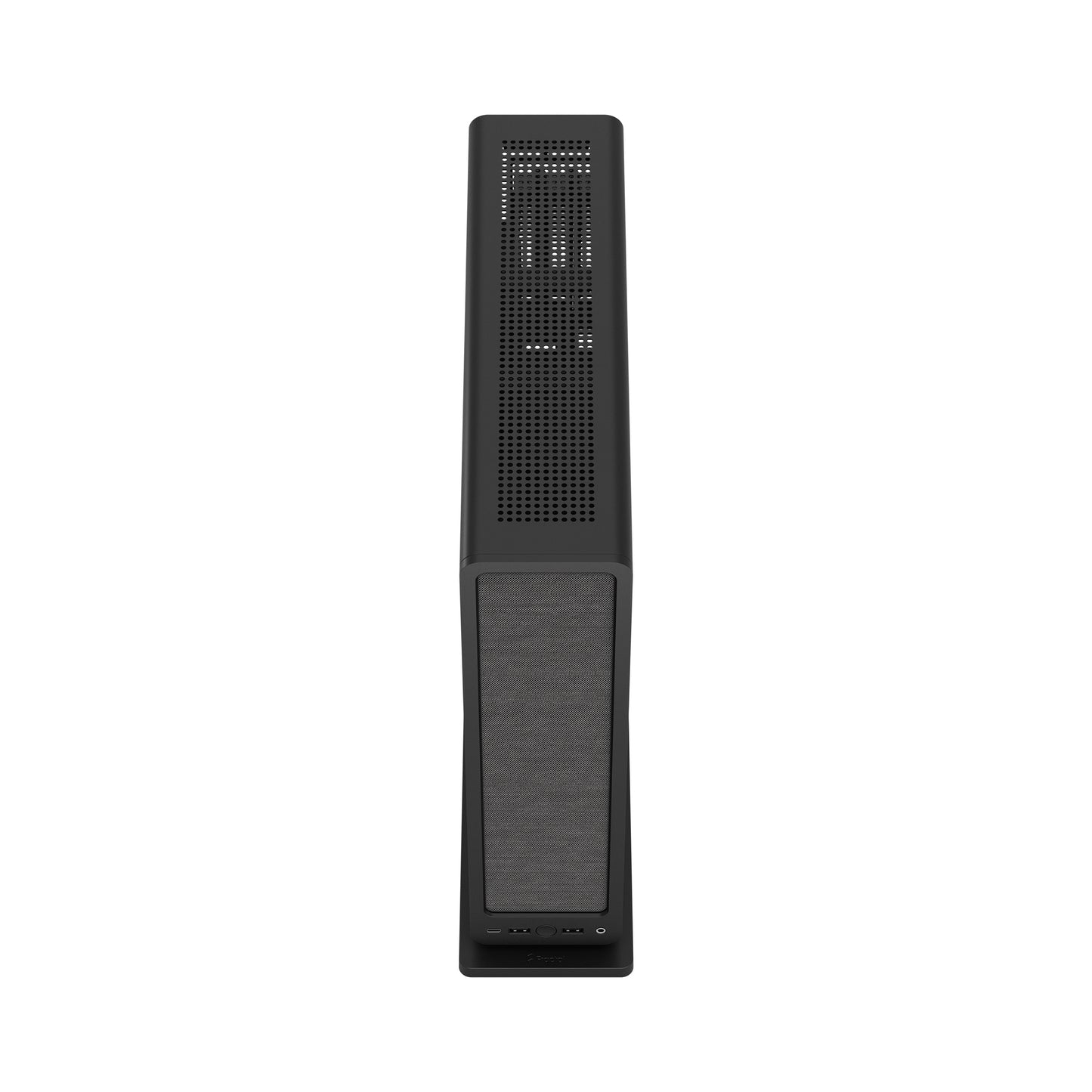

An uncluttered, small form factor case designed to integrate seamlessly into your living space and daily rituals. An evolution of the slimline format, Ridge was developed in collaboration with gaming and entertainment enthusiasts to subtly improve their homes and enhance the small form factor PC experience.
- Supports GPUs up to a length of 335 mm

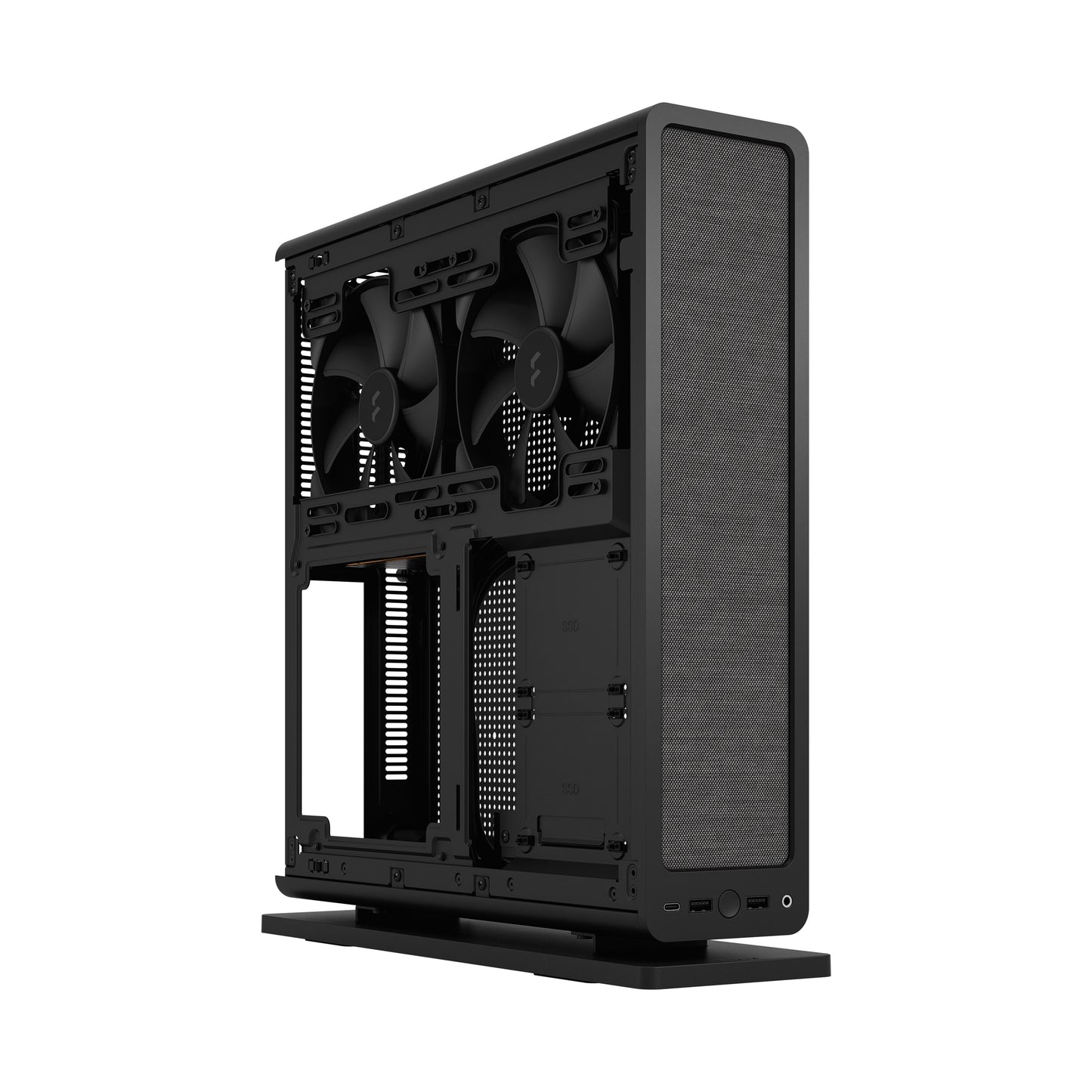

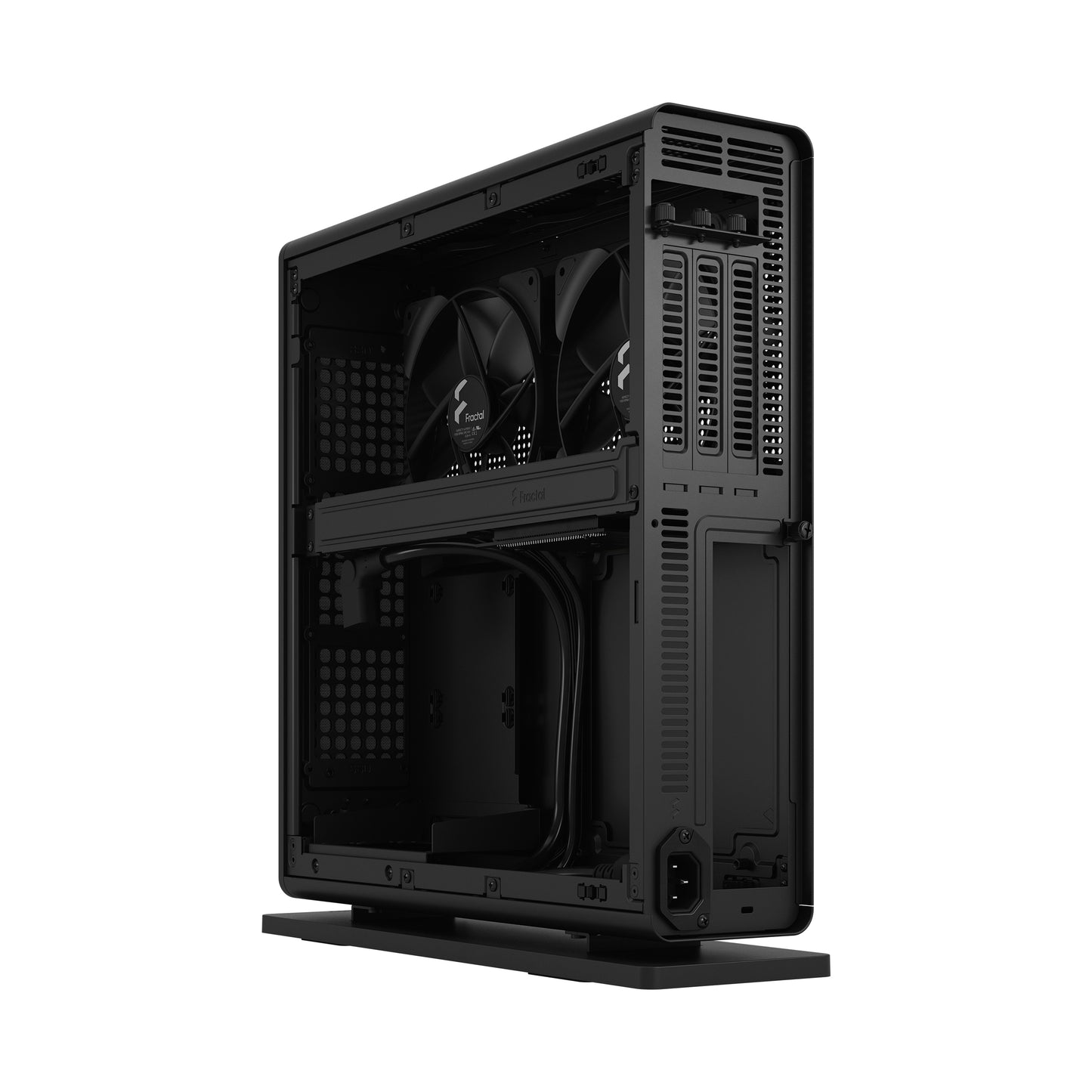

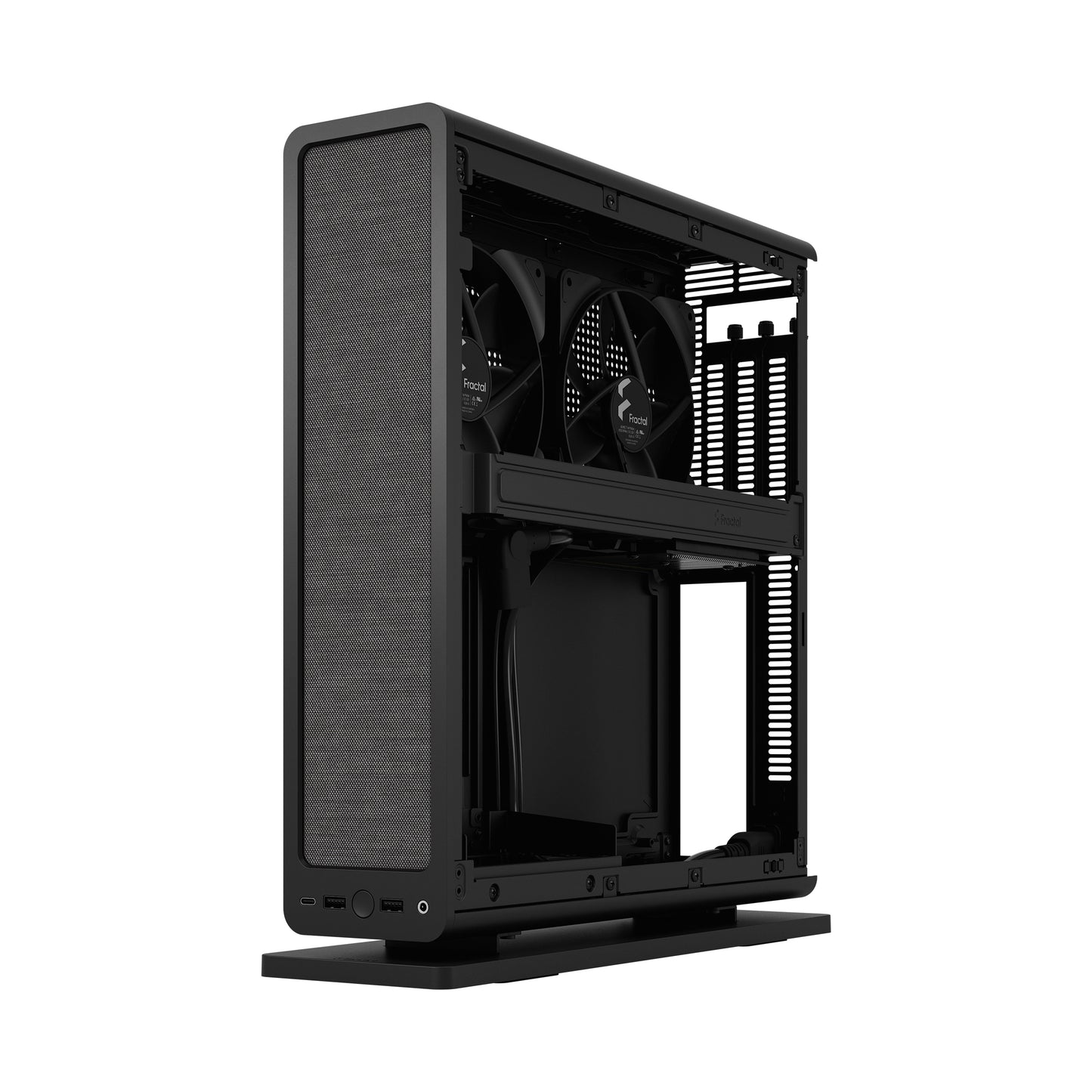

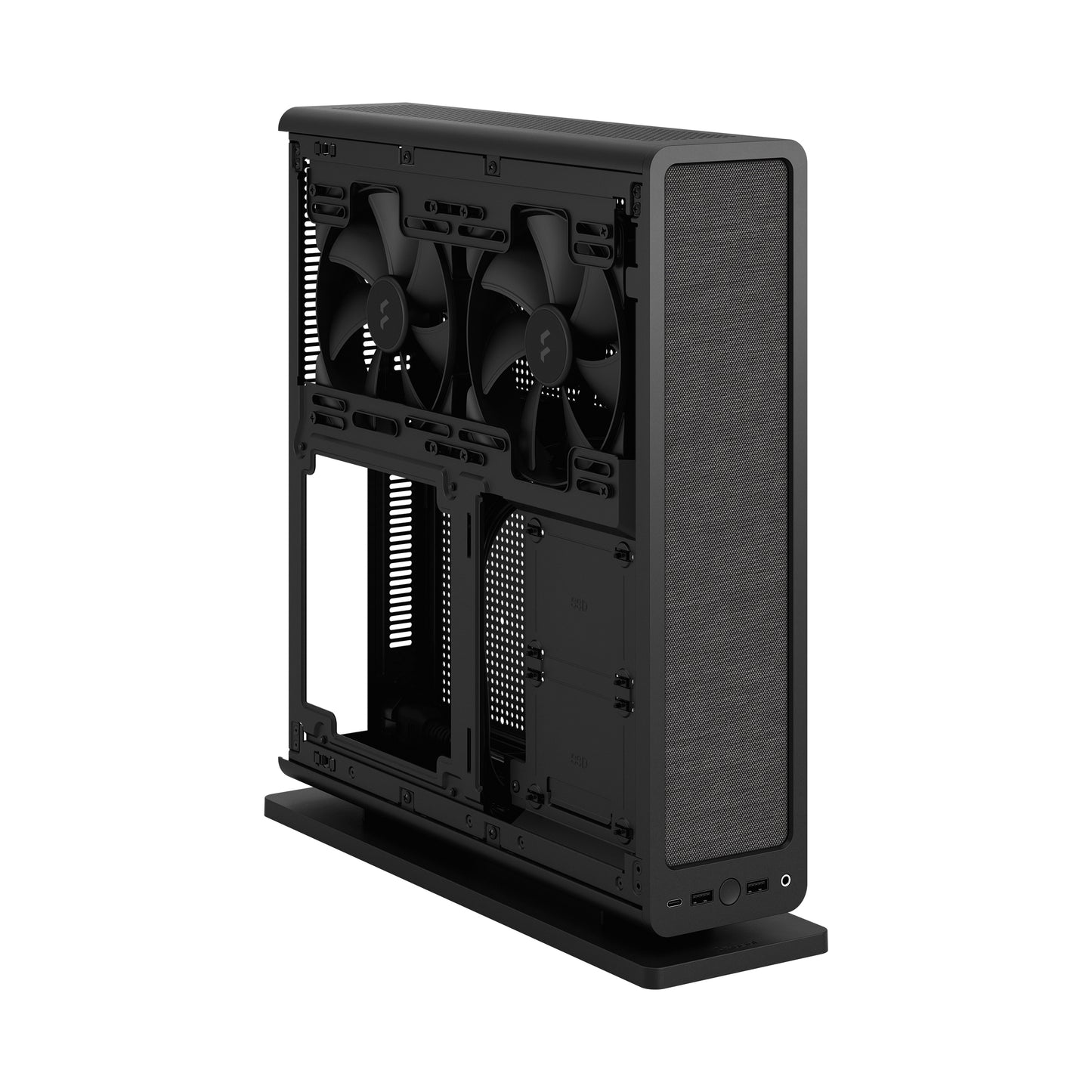

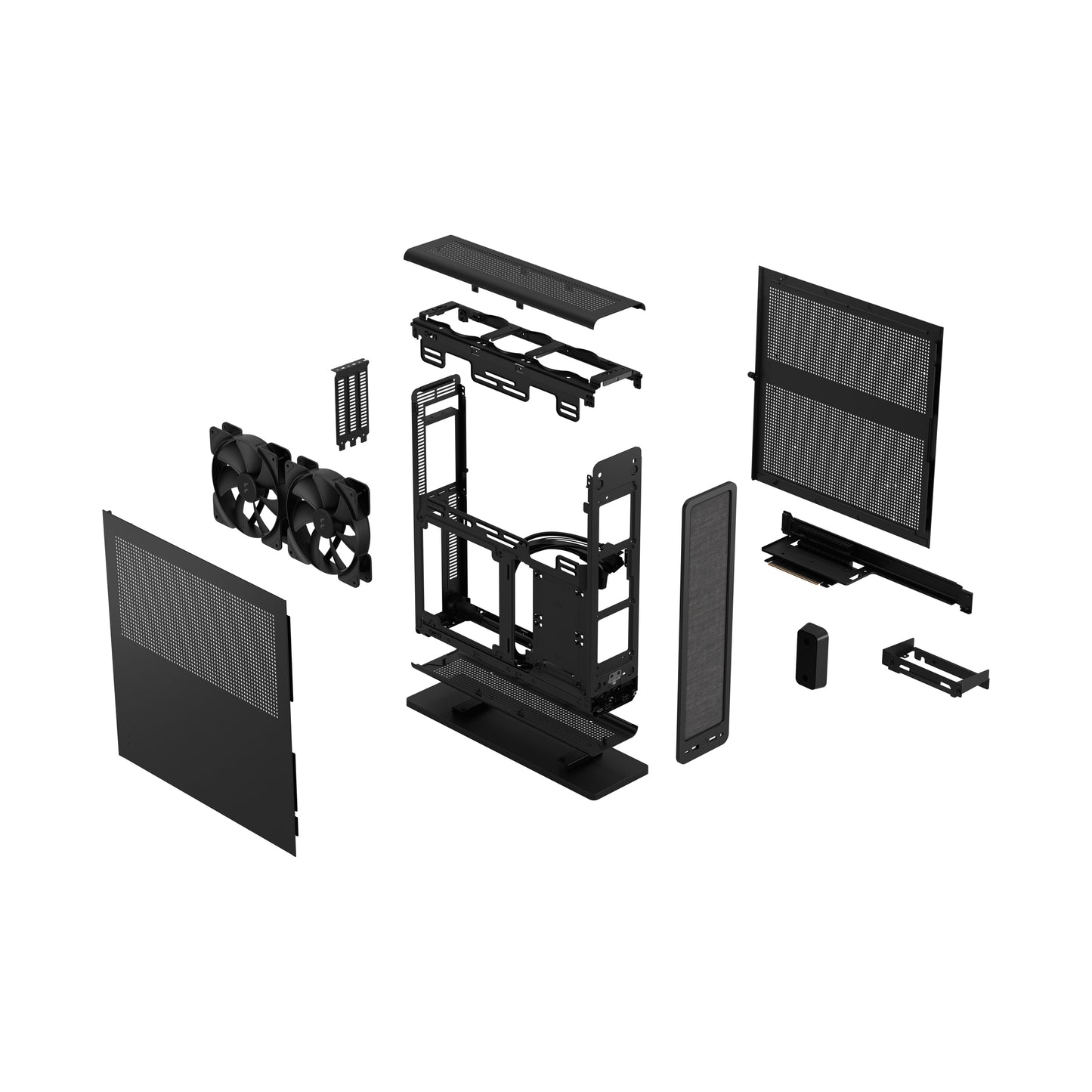

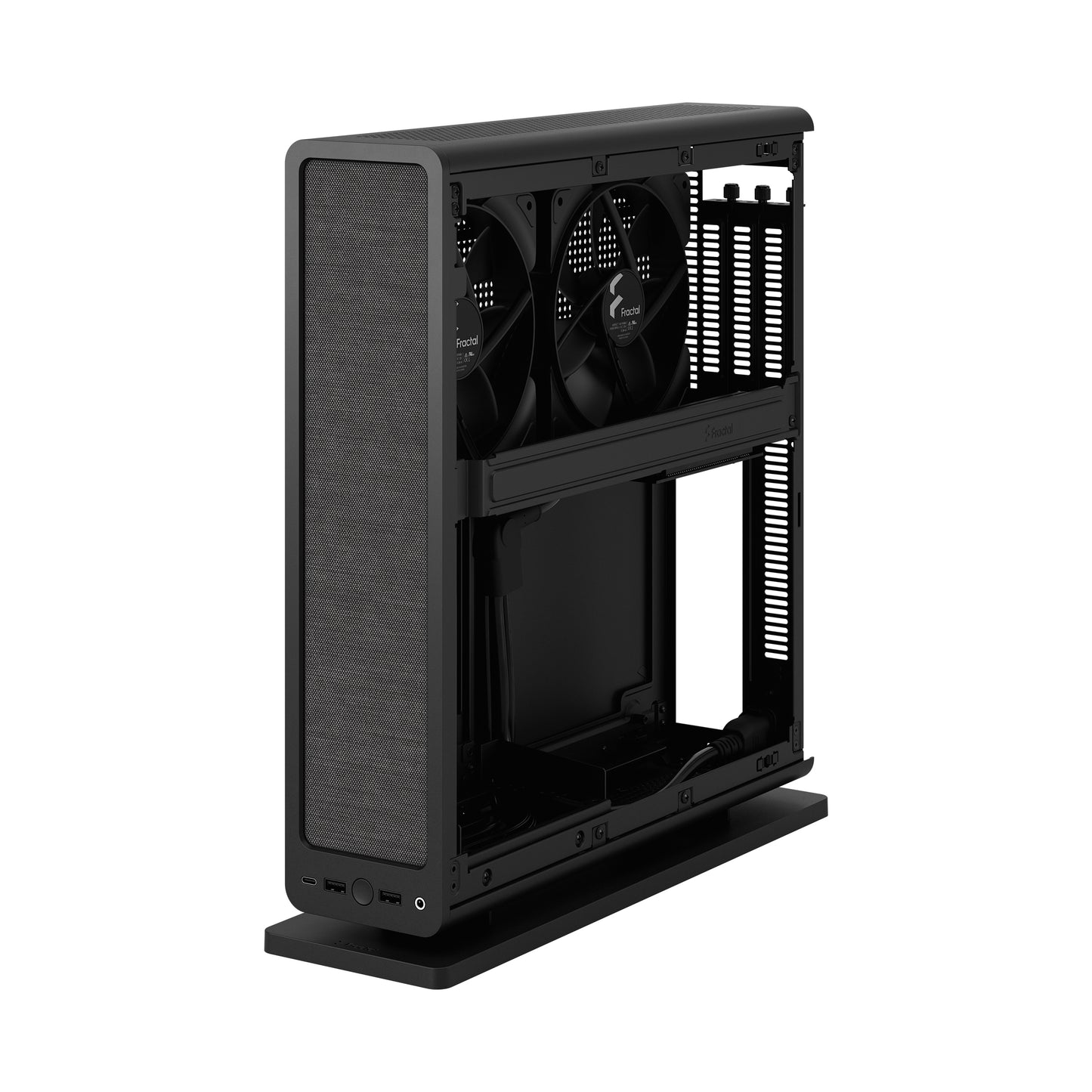

- All panels are removable, enabling maximum accessibility
- Available with either PCIe 4.0 or PCIe 3.0 riser card
Specifications
-

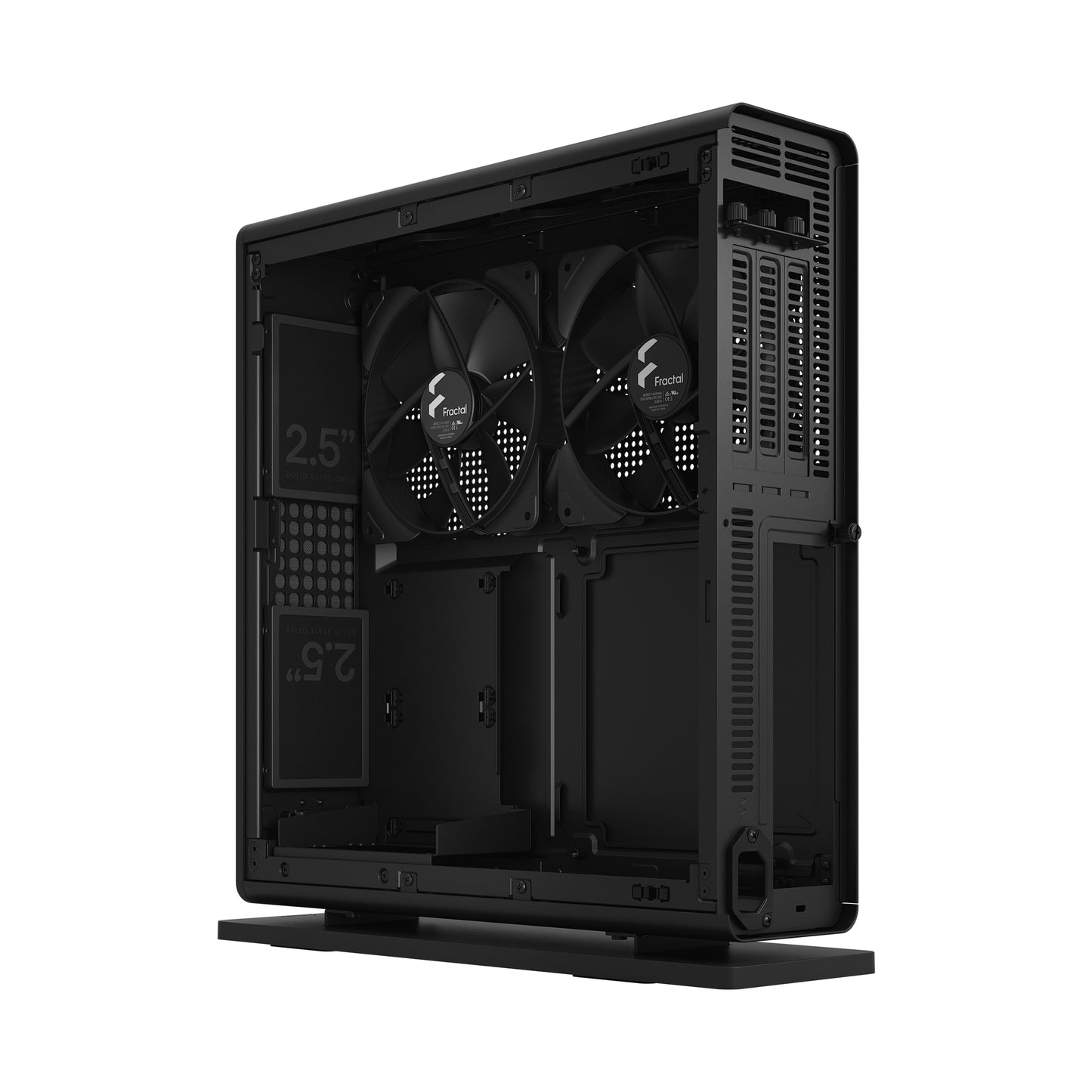

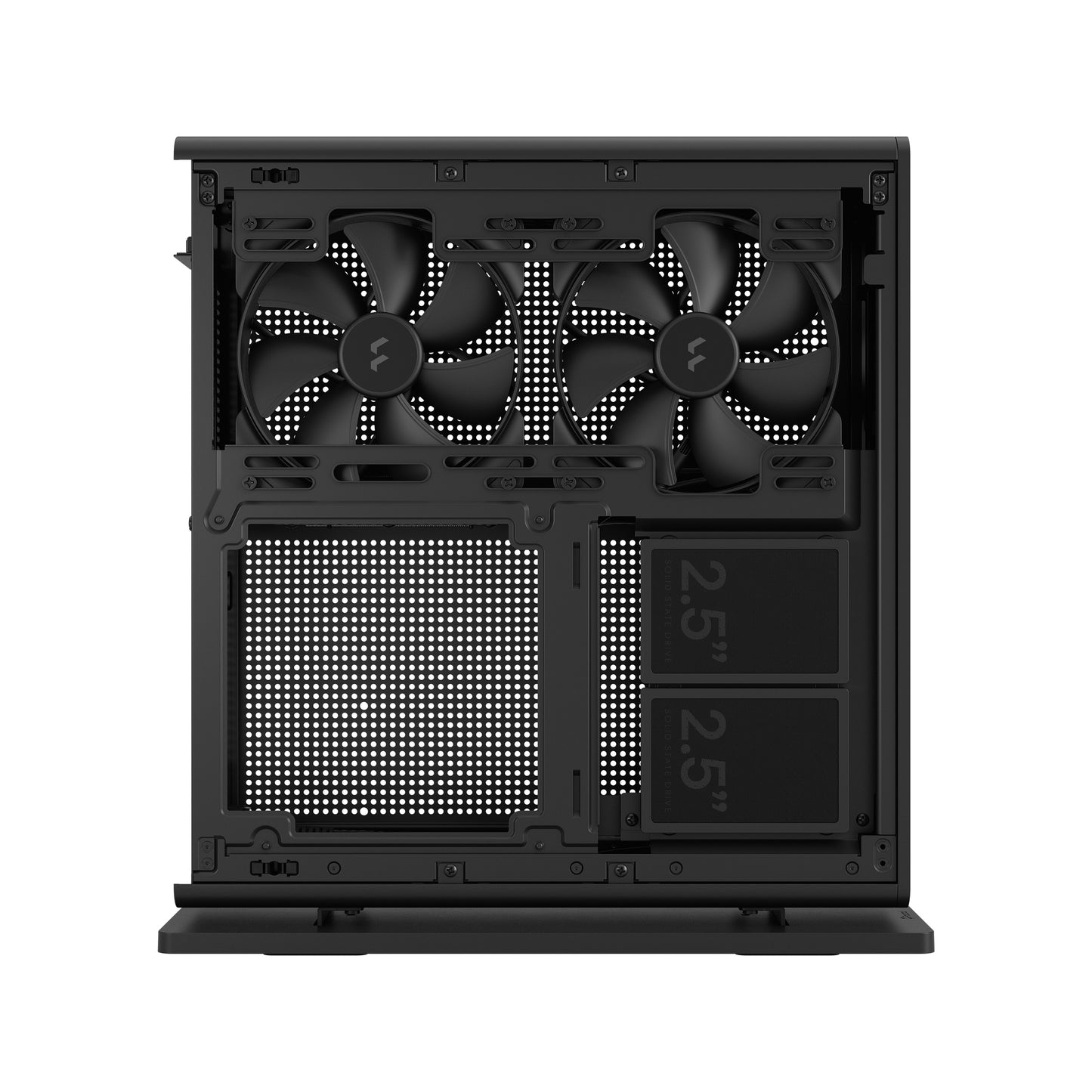

Dedicated 2.5" drive mounts4x included, 4x positions total
-

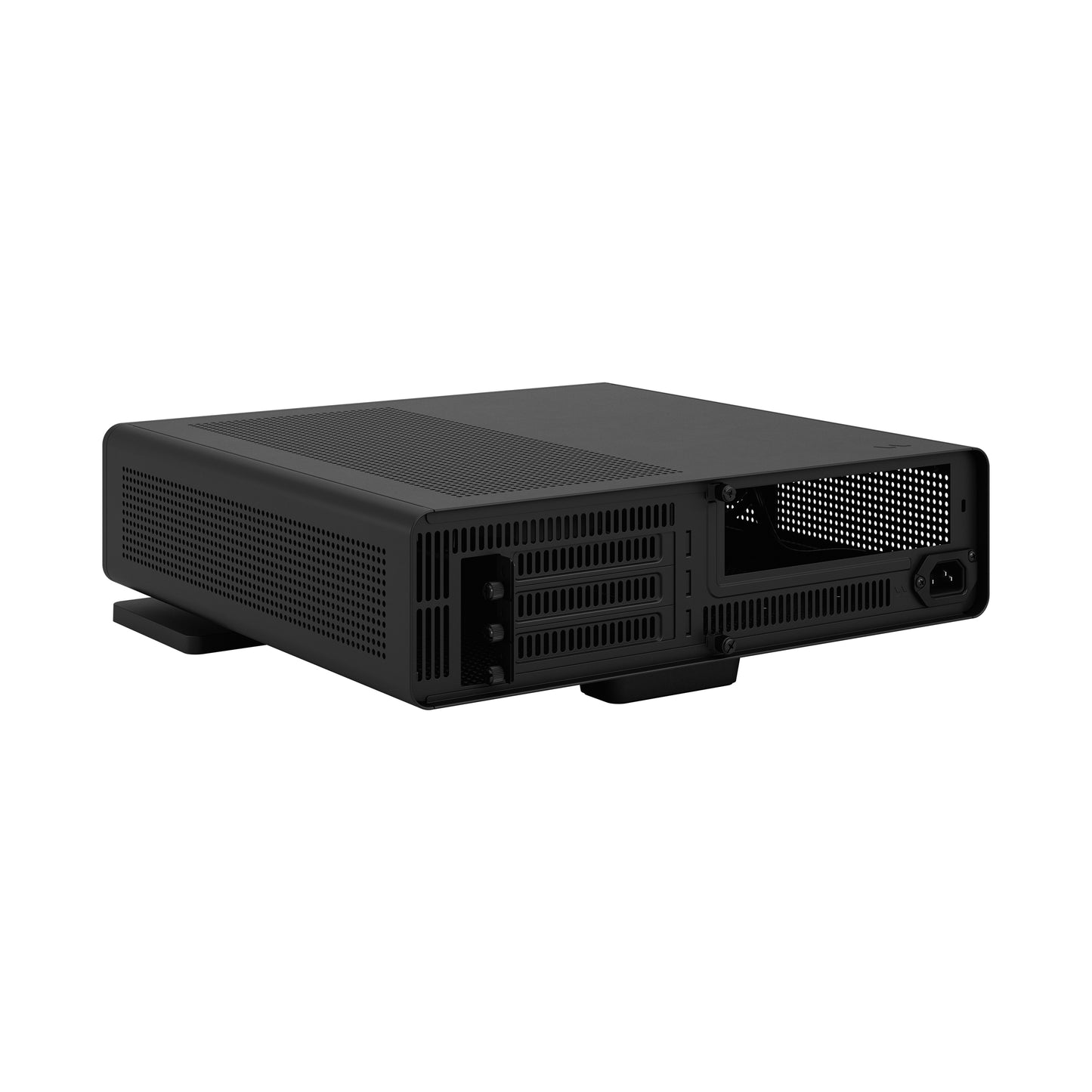

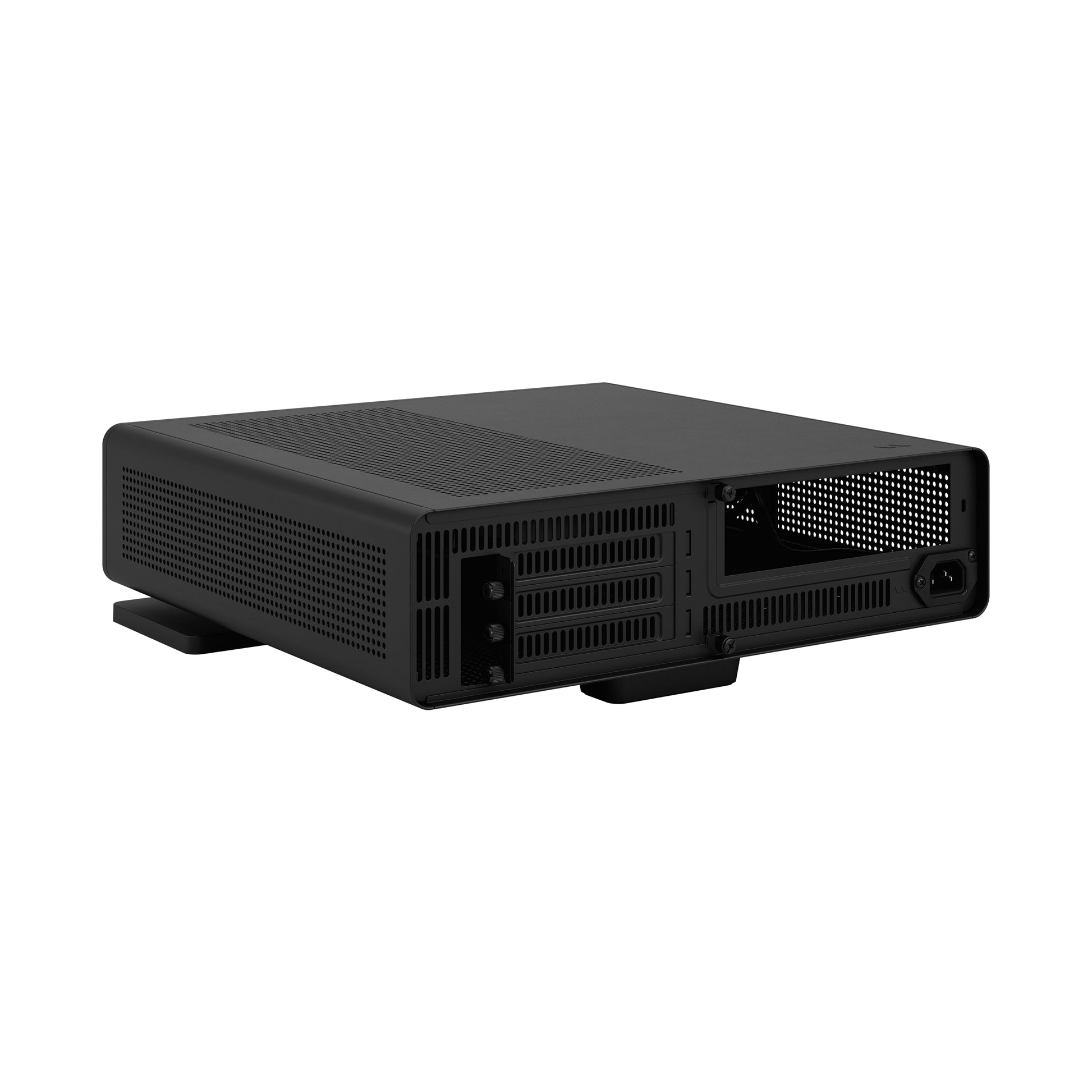

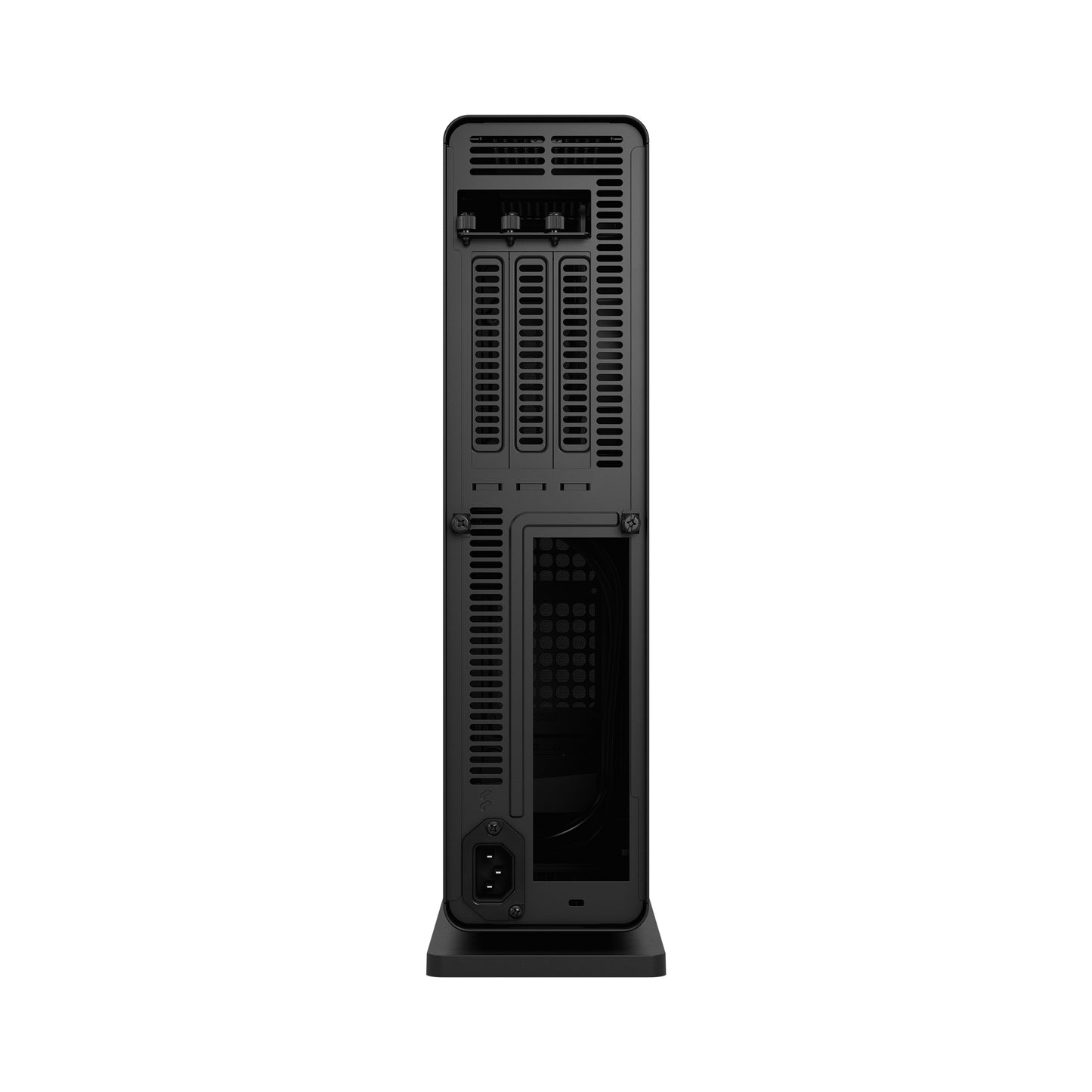

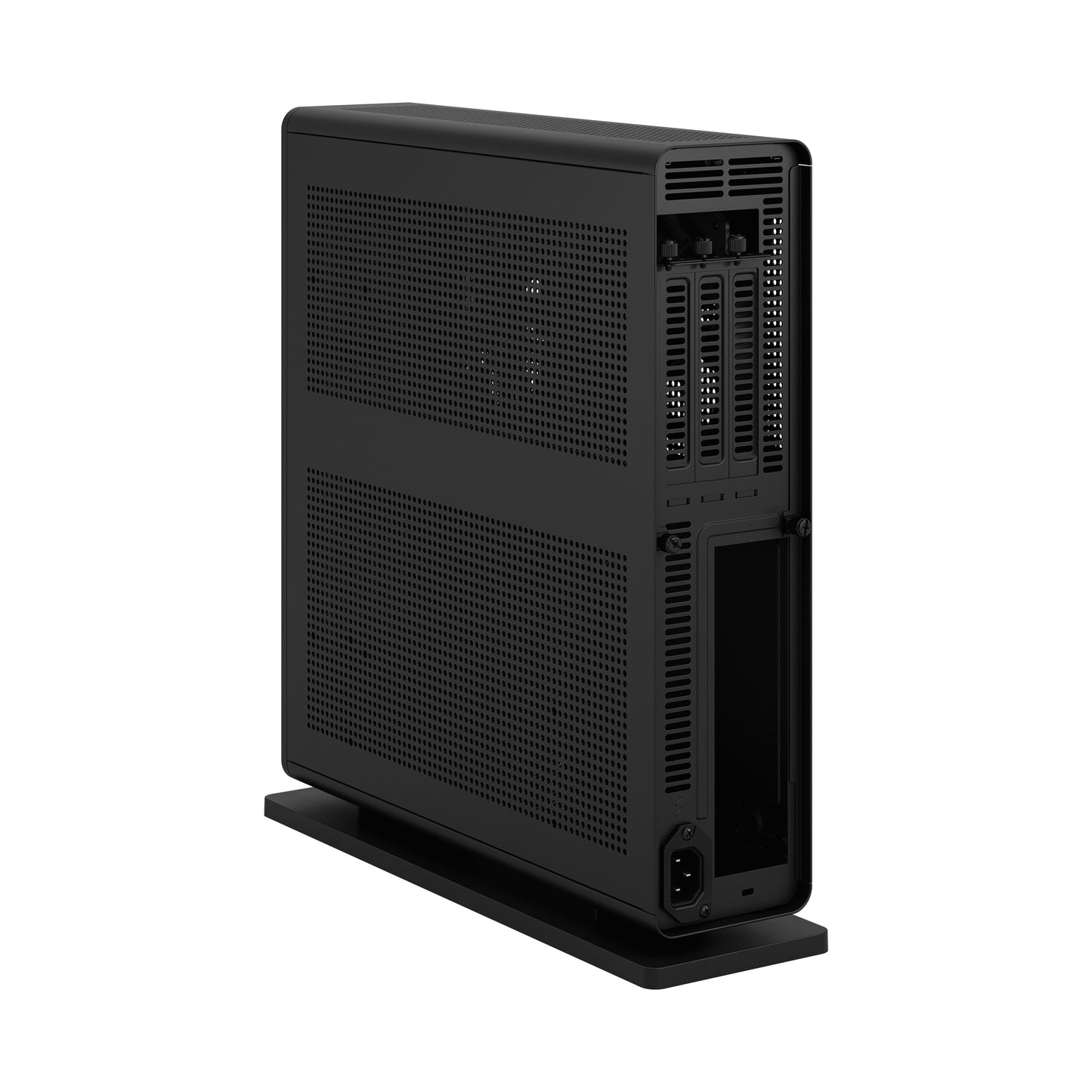

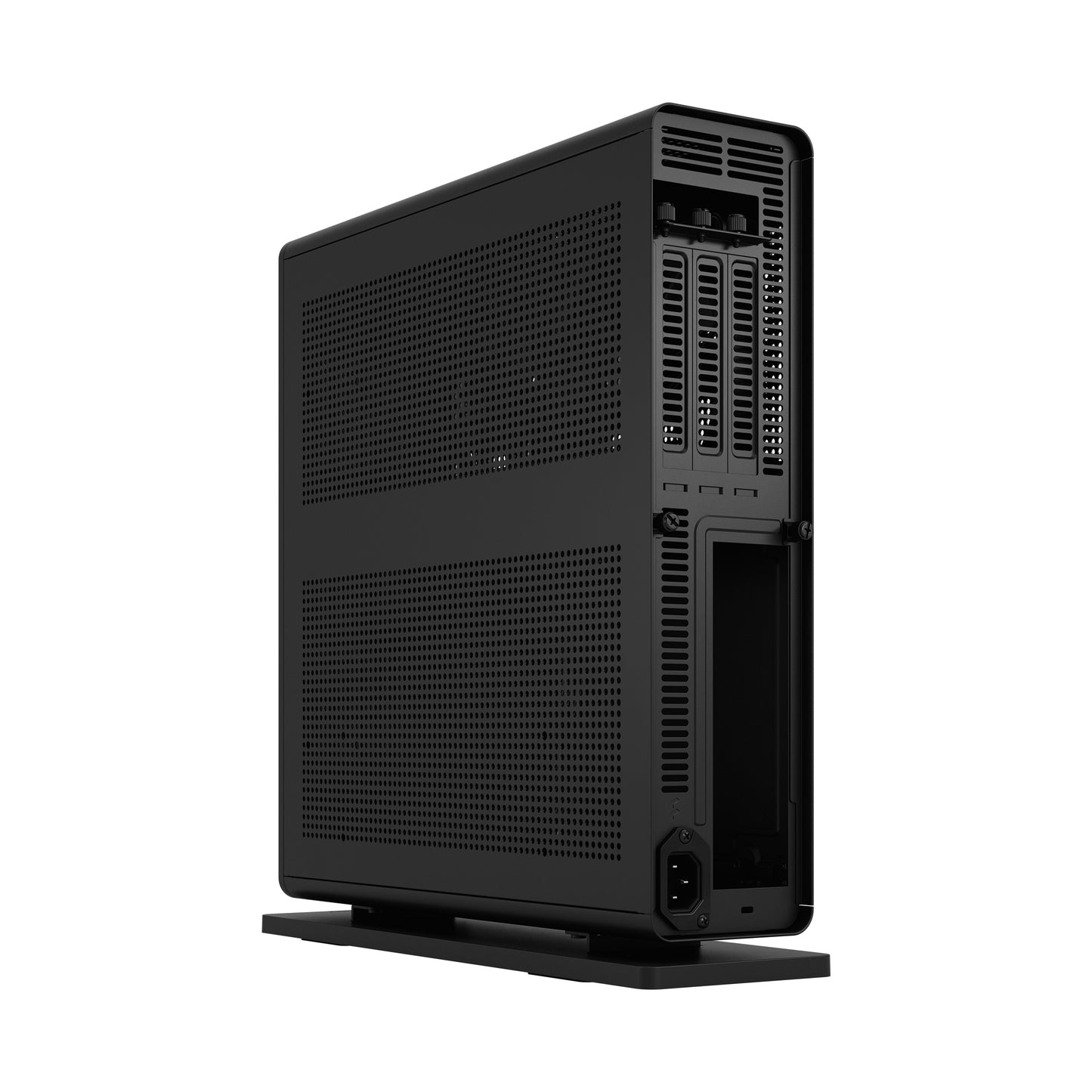

Expansion slots3-slot
-

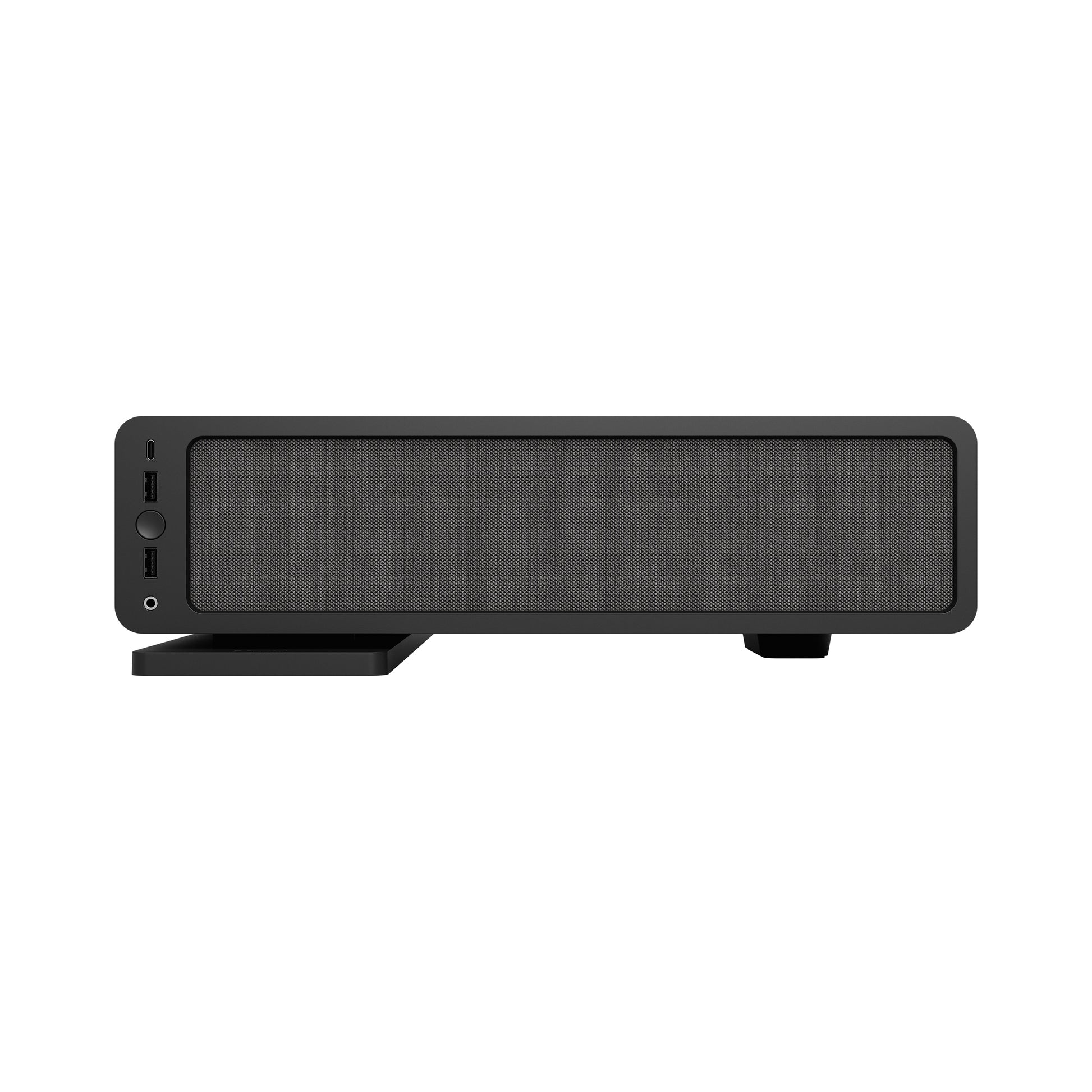

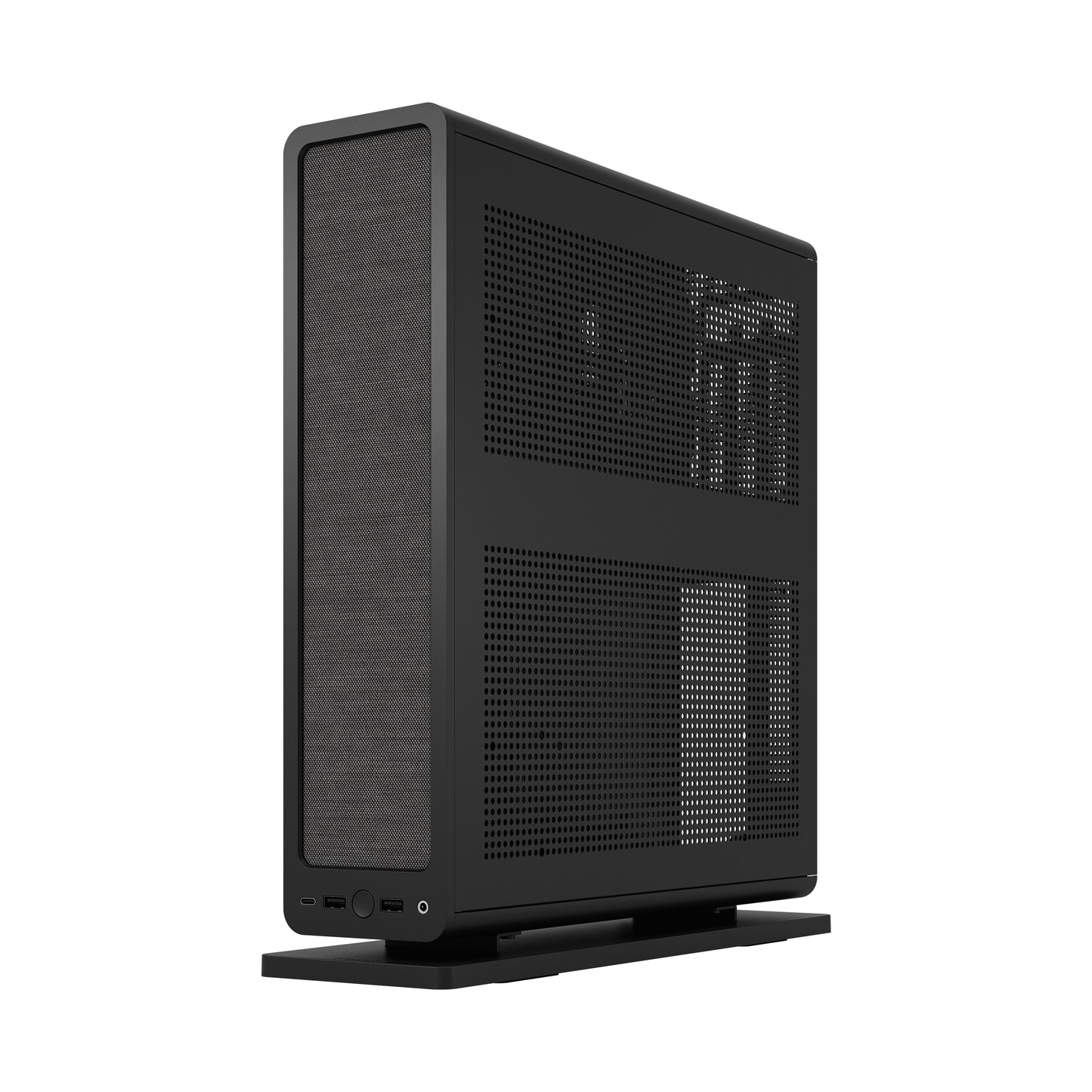

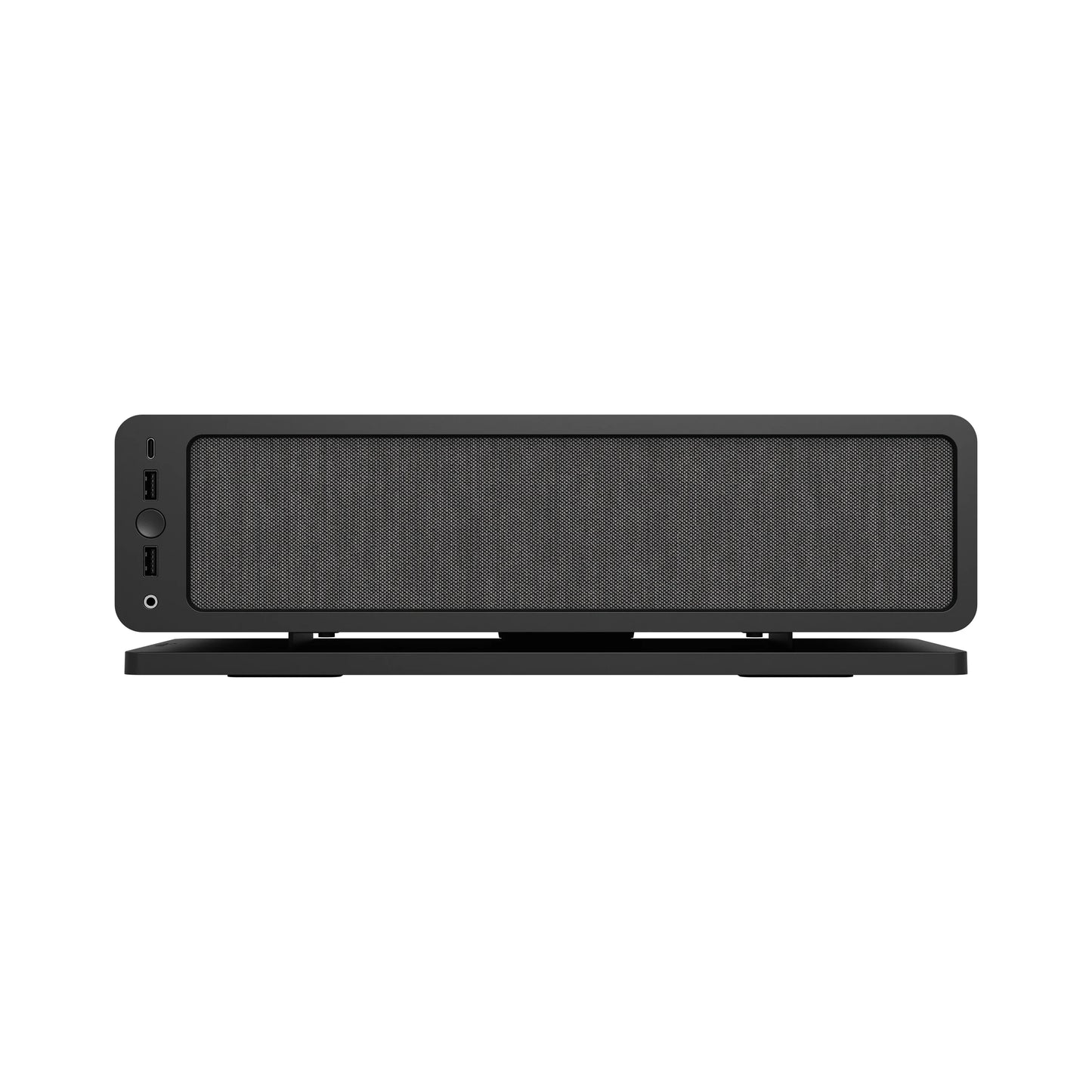

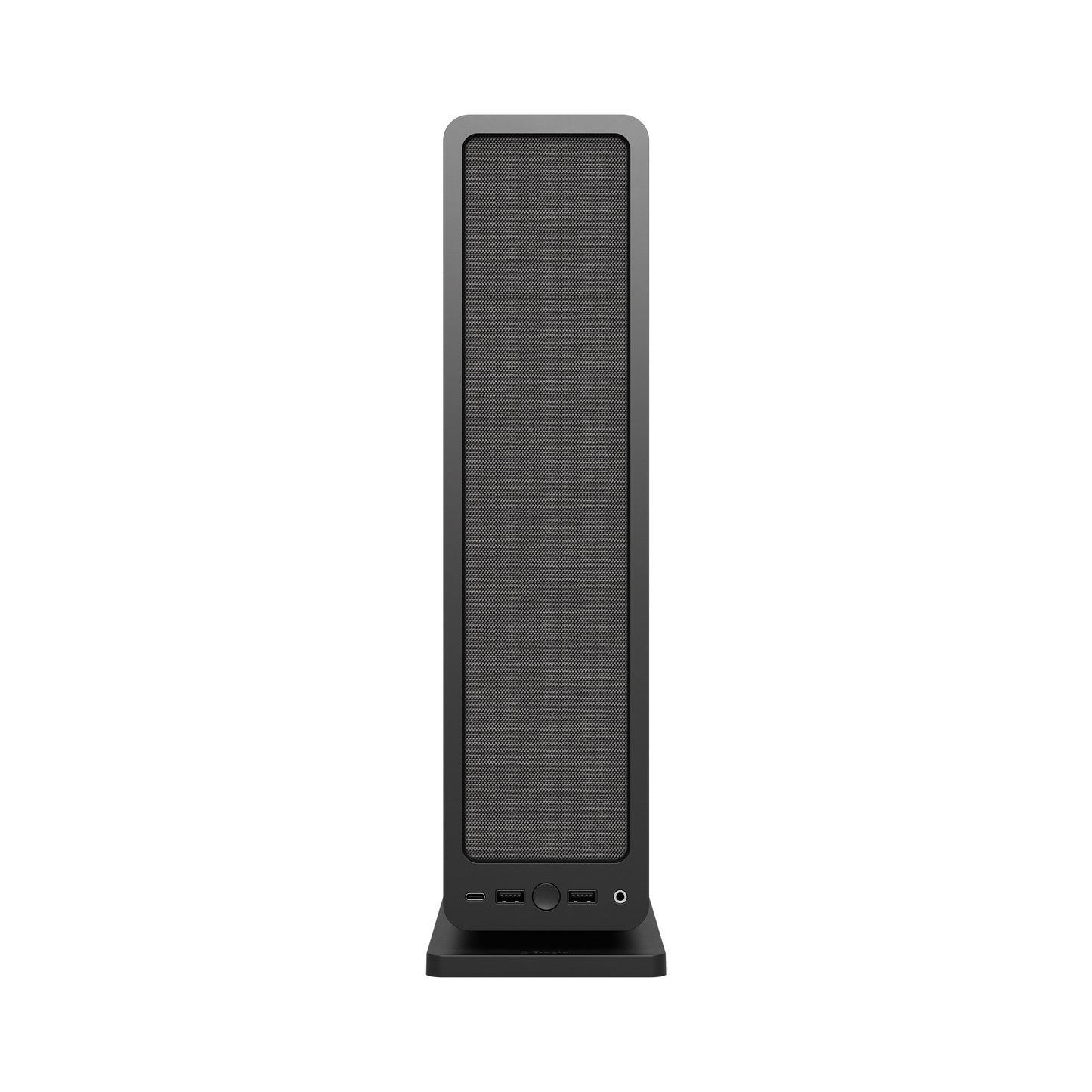

Front interface1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Combo jack – Audio/Microphone, power button, power LED
-
Total fan mounts2x 120/140 mm and 3x 80 mm
-

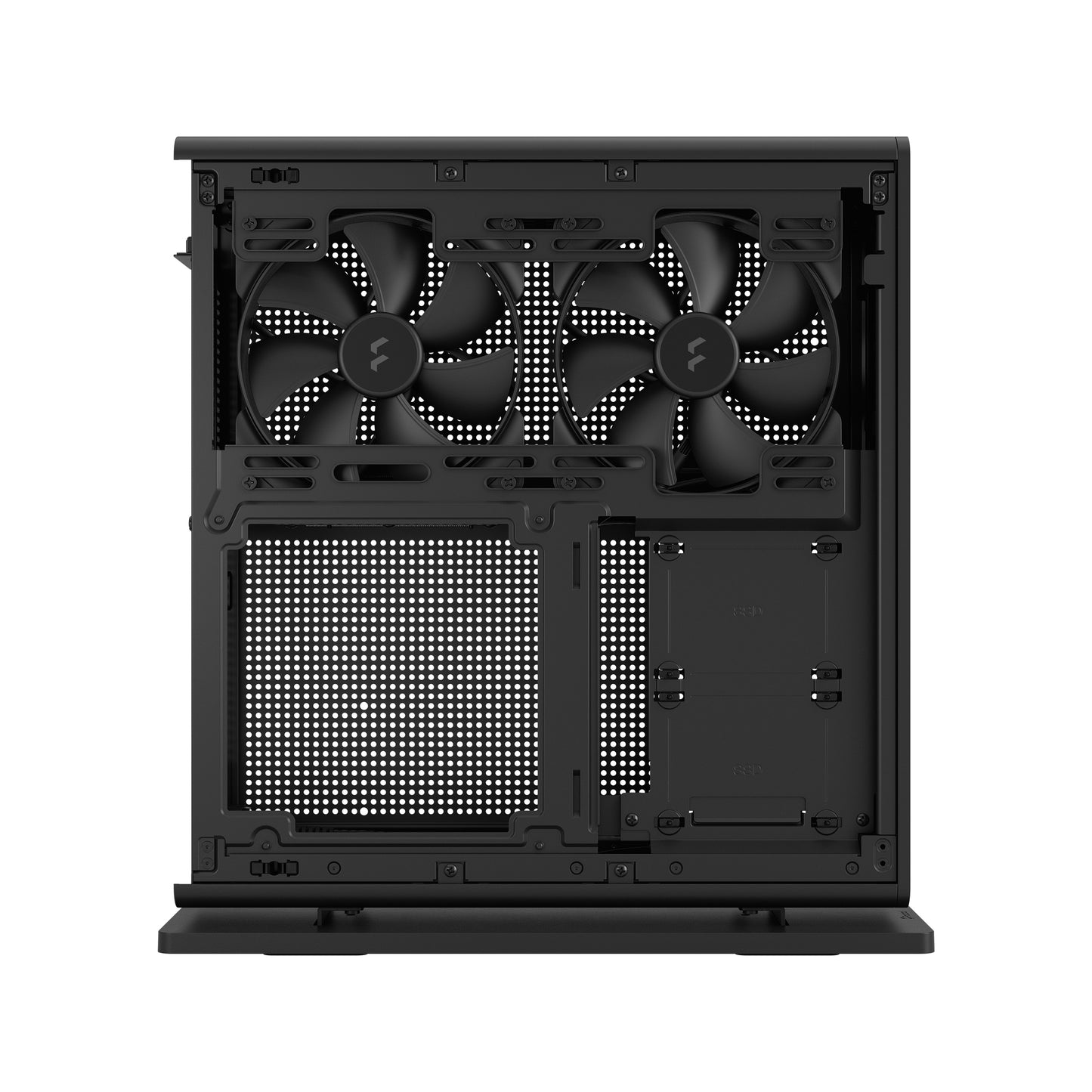

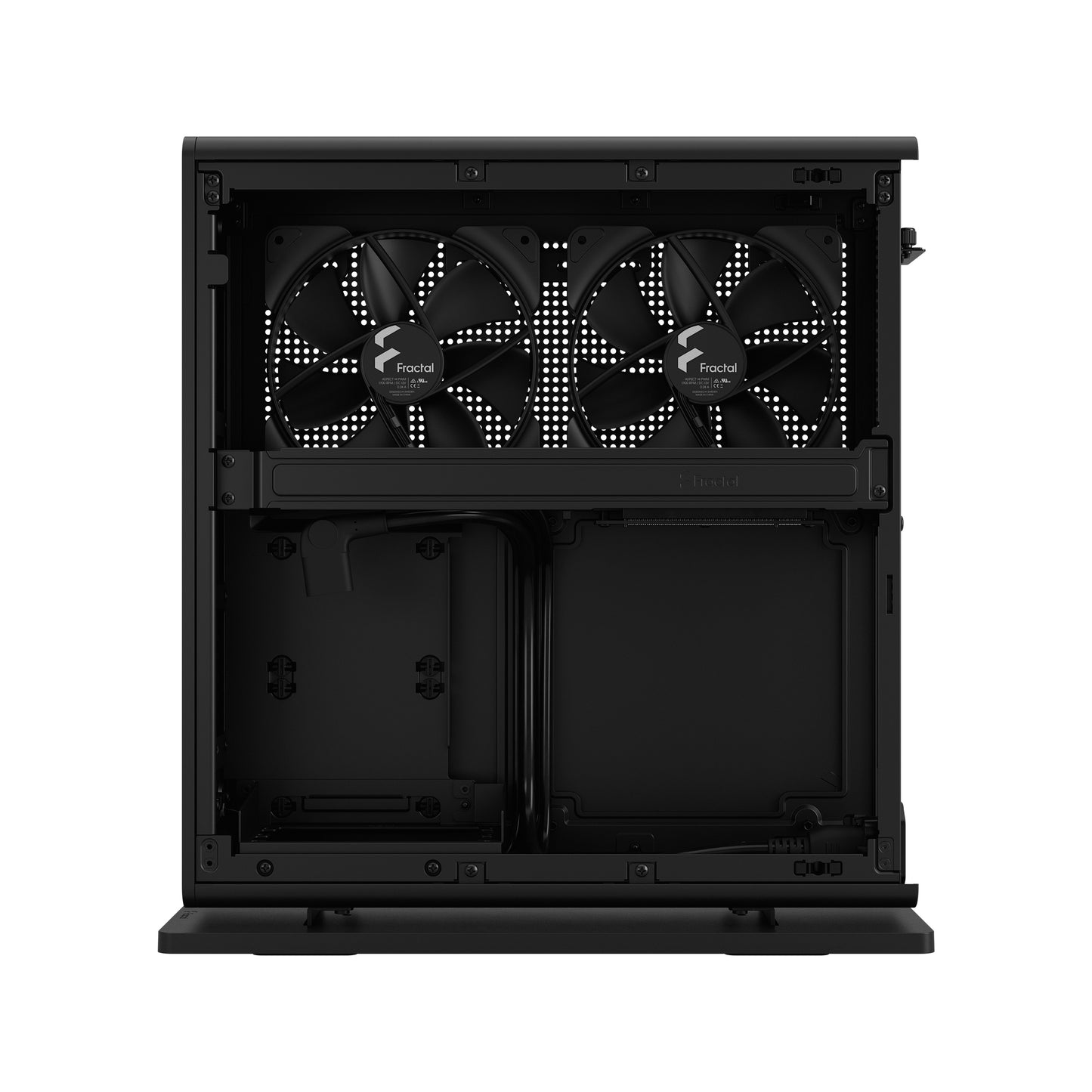

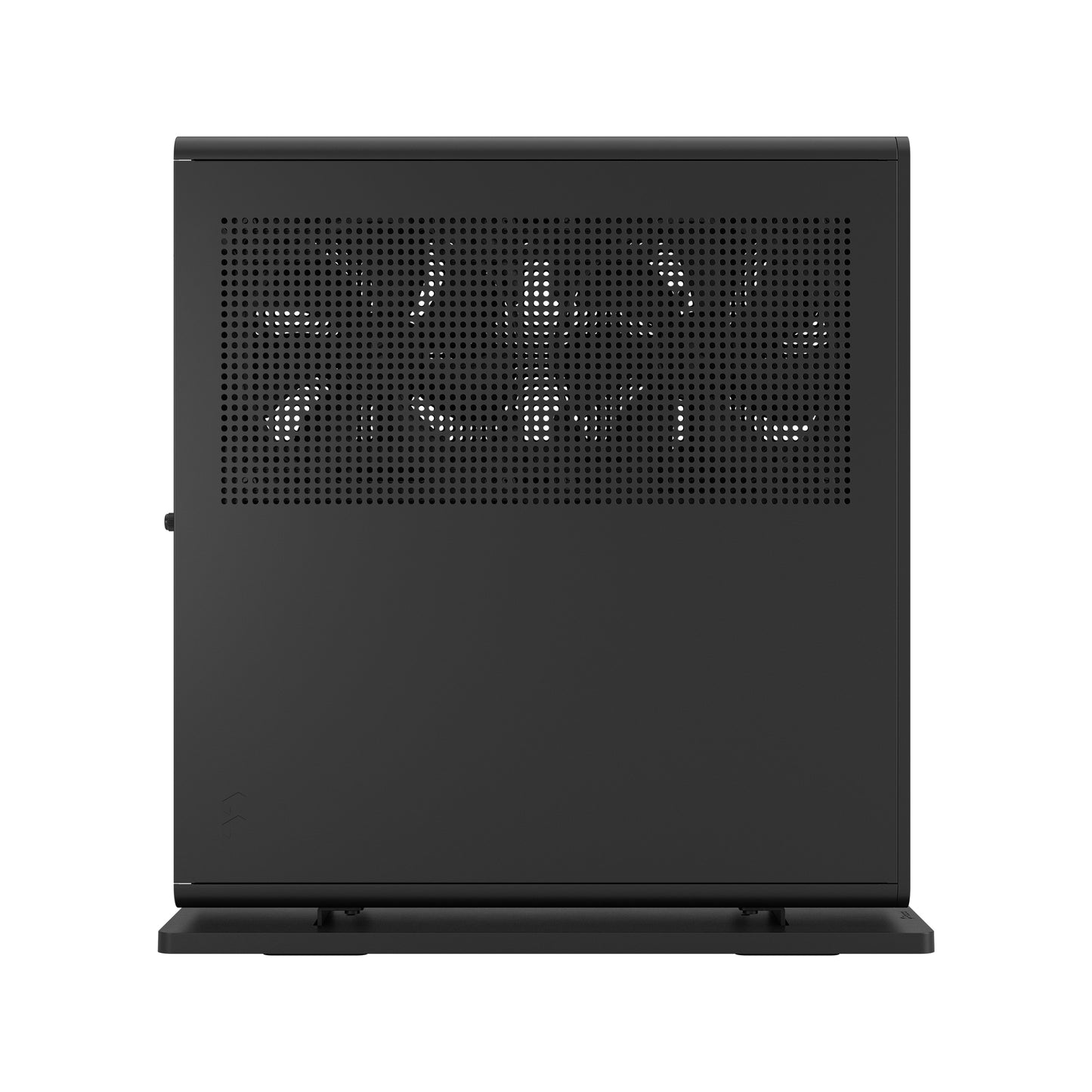

Side fan2x 120/140 mm (2x PWM Aspect fan 140 mm included)
-
Top fan3x 80 mm (not included)
-
Cable routing space13,8 mm (behind PSU)
-
Tool-less slide with thumbscrew lockSide panels
-
Captive thumbscrewsSide panels
-
Left side panelSteel
-
Right side panelSteel
Compatibility
-
Motherboard compatibilityMini ITX
-
Power supply typeSFX, SFX-L
-
Side radiator120 mm when ≤175mm long GPUs are installed (280 mm without GPU)
-
PSU max lengthSFX-L
-
GPU max length325 mm with SSD installed. 335 mm without SSD installed.
-
GPU max height125 mm with top fan(s) installed, 137 mm without top fans
-
GPU max thickness57 mm with 2x 140 mm fans installed, 82 mm without side fans
-
CPU cooler max height70 mm
Dimensions
-

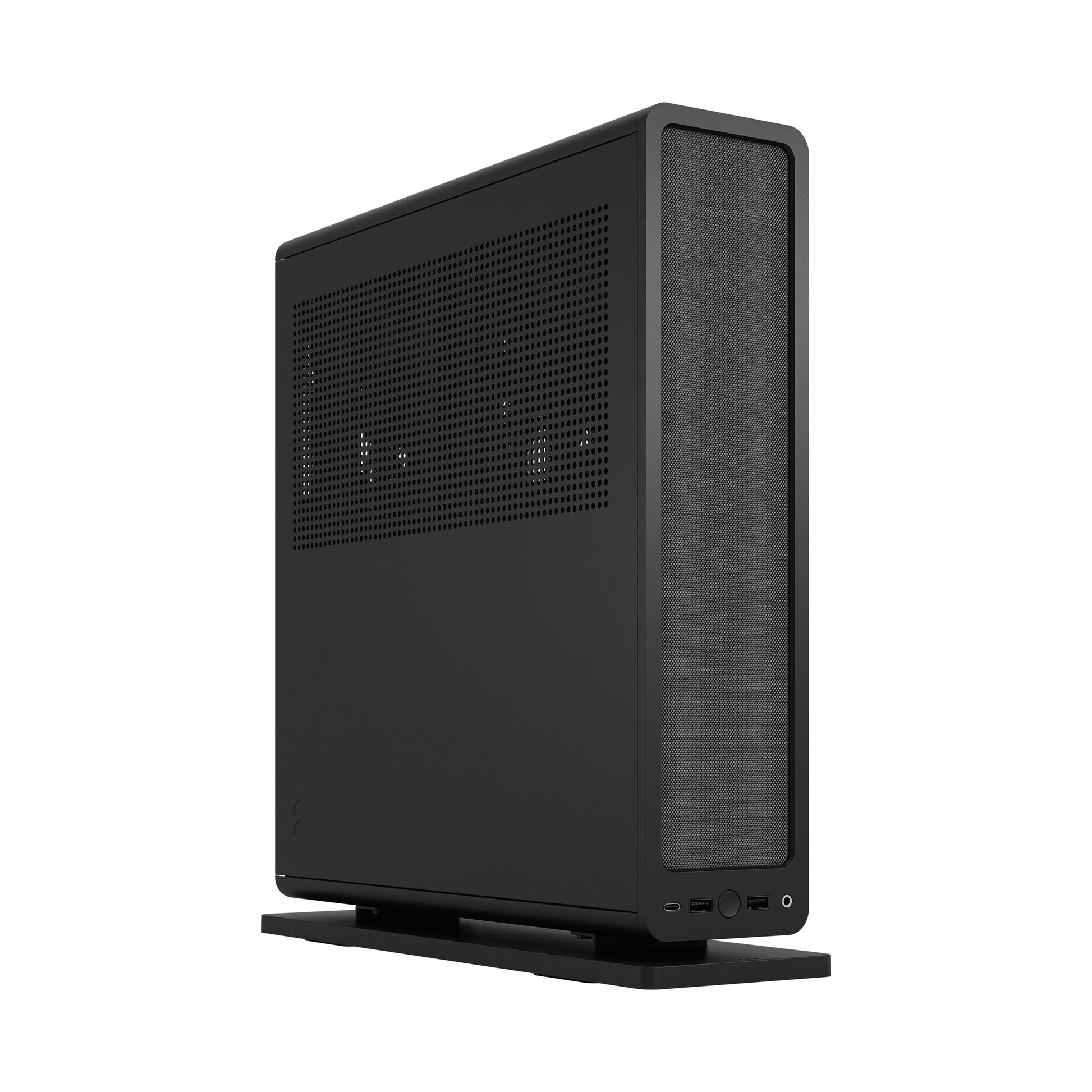

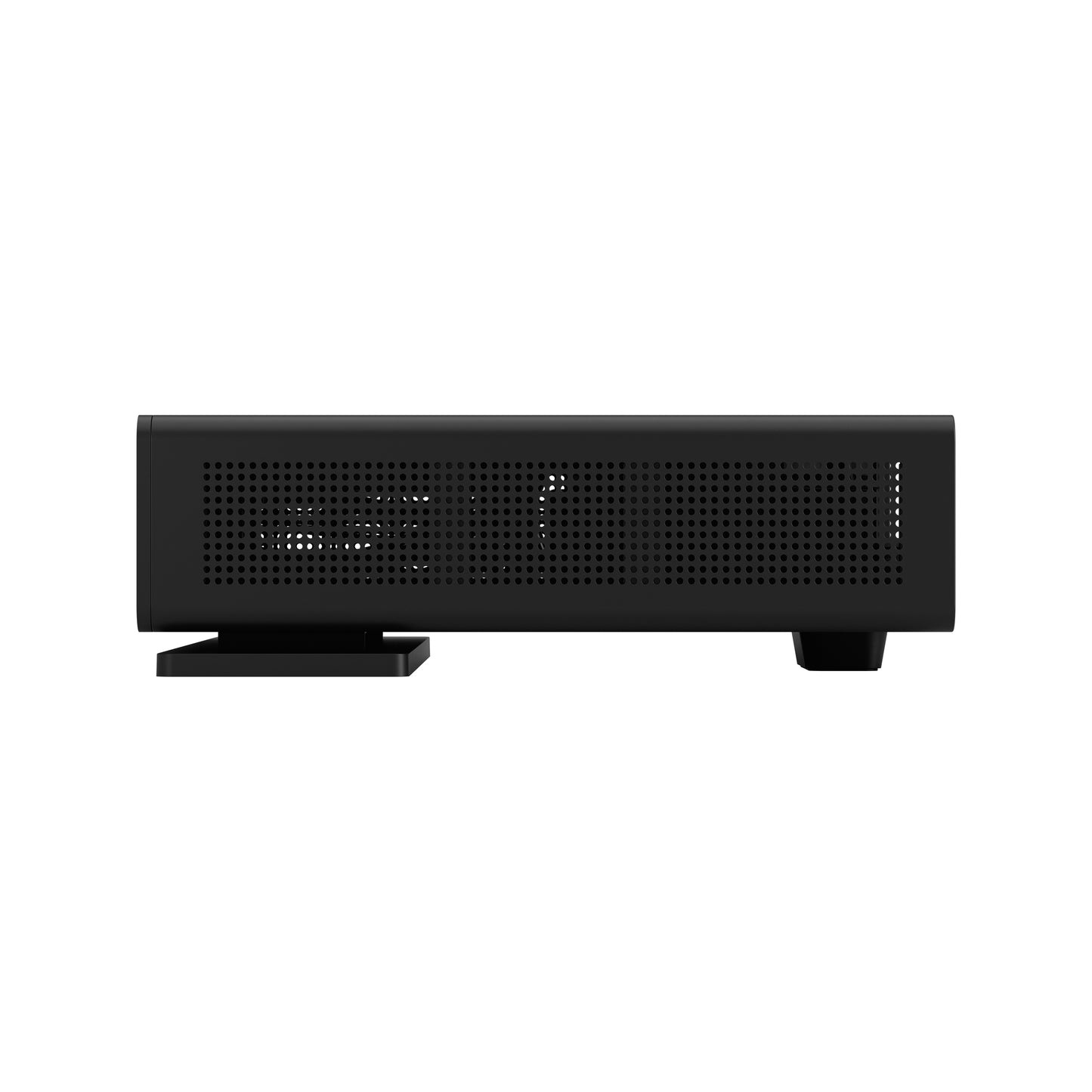

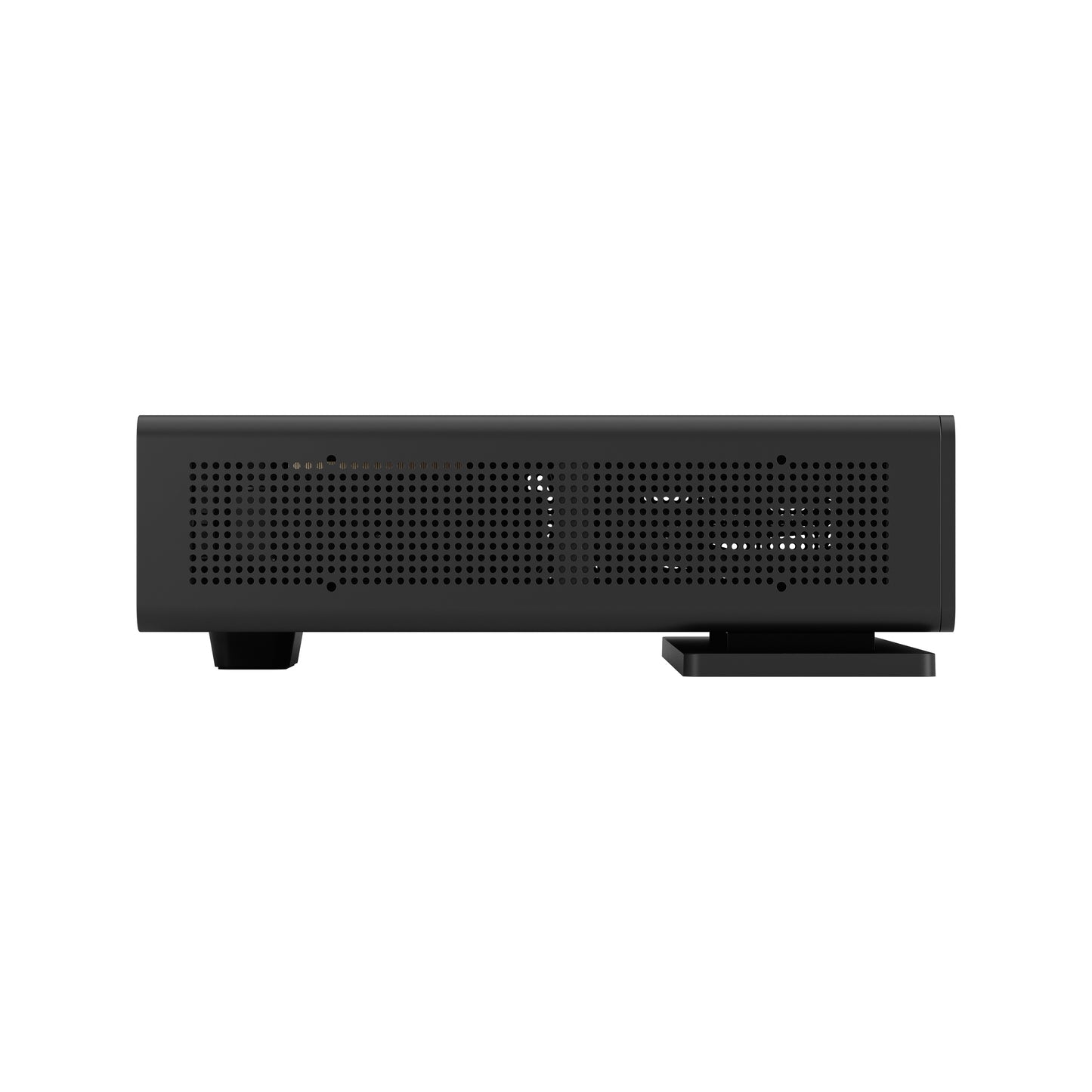

Case dimensionsVertical: 374 x 110 x 395 mm, Horizontal: 360 x 375 x 115 mm
-
Case dimensions w/o feet/protrusions/screws355 x 95 x 375 mm
-
Net weight4.3 kg
-
Package dimensions (LxWxH)426 x 167 x 431 mm
-
Gross weight5.5 kg
-
Volume12.6 liter
Other
-
Package contentsCase, Accessory box, Manual
-
SKU (Ridge)Black: FD-C-RID1N-01, White: FD-C-RID1N-02
-
SKU (Ridge PCIe 4.0)Black: FD-C-RID1N-11, White: FD-C-RID1N-12
-
EAN (Ridge)Black: 7340172703969, White: 7340172703976
-
EAN (Ridge PCIe 4.0)Black: 7340172706090, White: 7340172706106
-
UPC (Ridge)Black: 843276103965, White: 843276103972
-
UPC (Ridge PCIe 4.0)Black: 843276106096, White: 843276106102
-
JAN (Ridge)Black: 4537694302494, White: 4537694302500
-
JAN (Ridge PCIe 4.0)Black: 4537694323123, White 4537694323130
-
Warranty2 Years
