| Total fan mounts |
6x 120 mm or 5x 140 mm + 1x 120 mm |
10 (140 mm) / 7 (120 mm)
Specifications
-
3.5"/2.5" drive mounts
2/4
-
Dedicated 2.5" drive mounts
2 (6 total)
-
5.25” drive mounts
-
-
Expansion slots
7
-
Adjust Pro Hub
Included in Ambience Pro RGB version
-
Ambient Case Lighting
Ambience Pro RGB version
-
Front interface
1 x USB Type-C 20 Gbps, 2 x USB Type-A 5 Gbps, 1x Audio Combo Jack, Power button
-
Total fan mounts
6x 120 mm or 5x 140 mm + 1x 120 mm
-
Front fan
3x 120 mm, 3x 140 mm (3 x 140 mm Momentum Included)
-
Top fan
2x 120 mm, 2x 140 mm
-

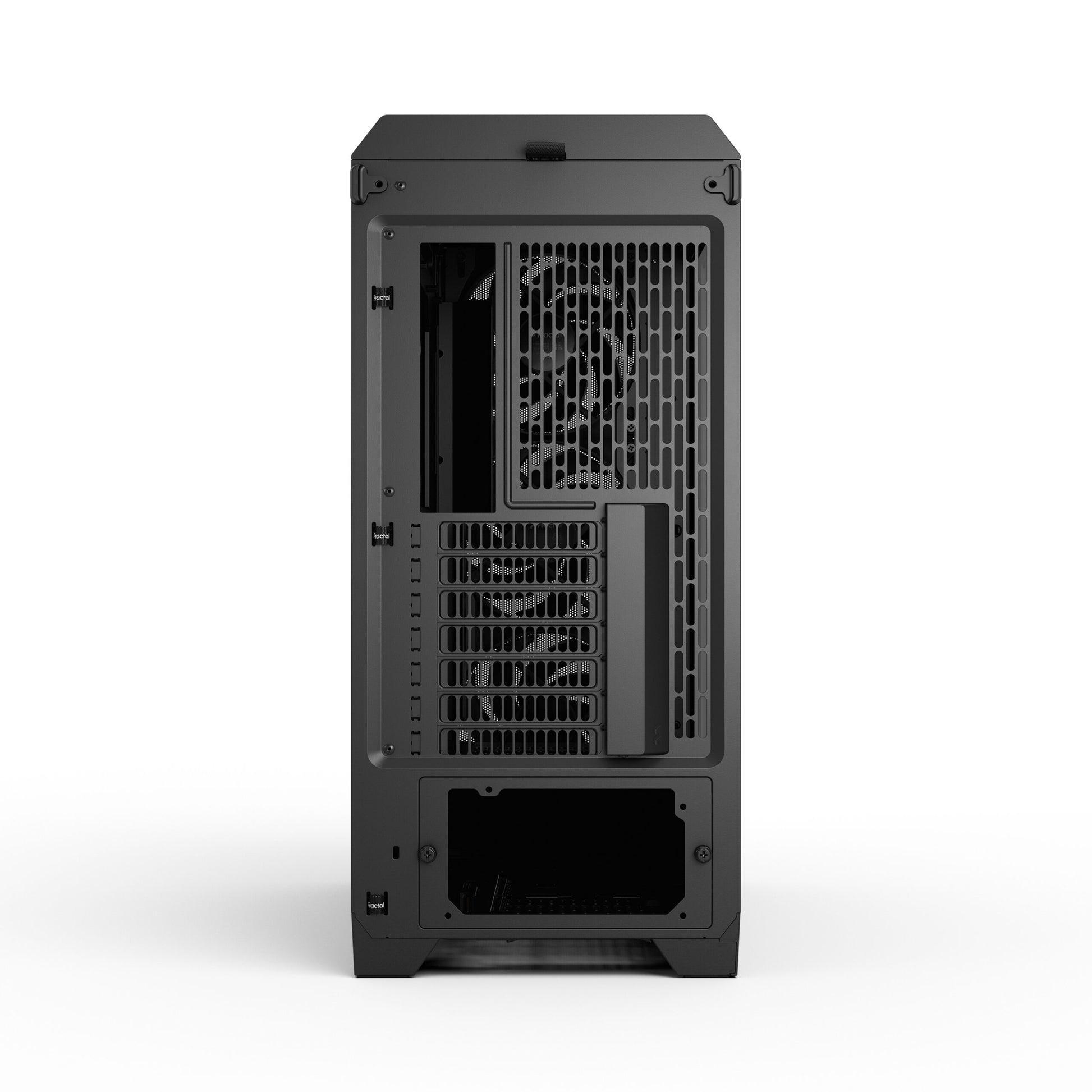

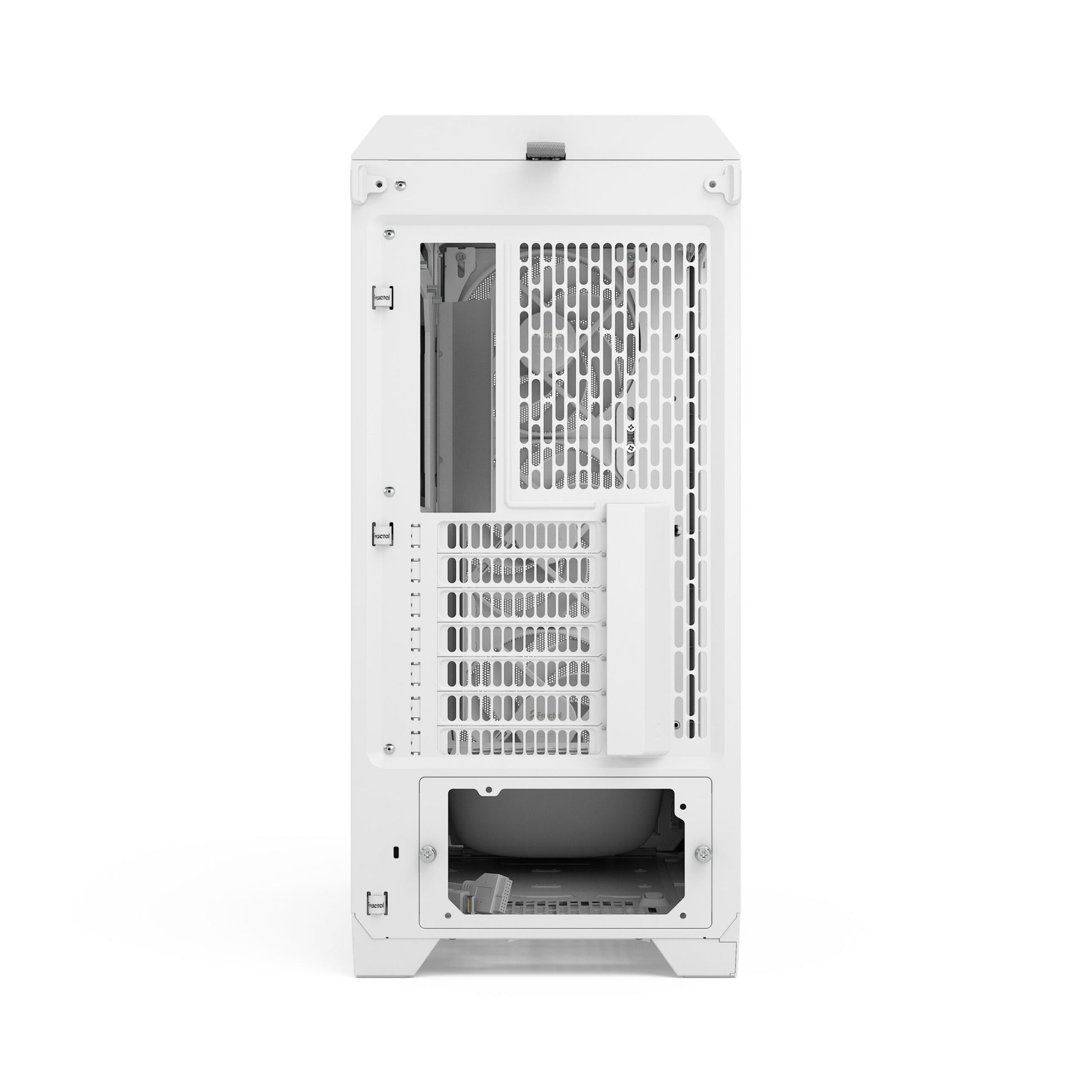

Rear fan
1x 120 mm
-
Bottom fan
-
-
Dust filters
PSU (Bottom)
-

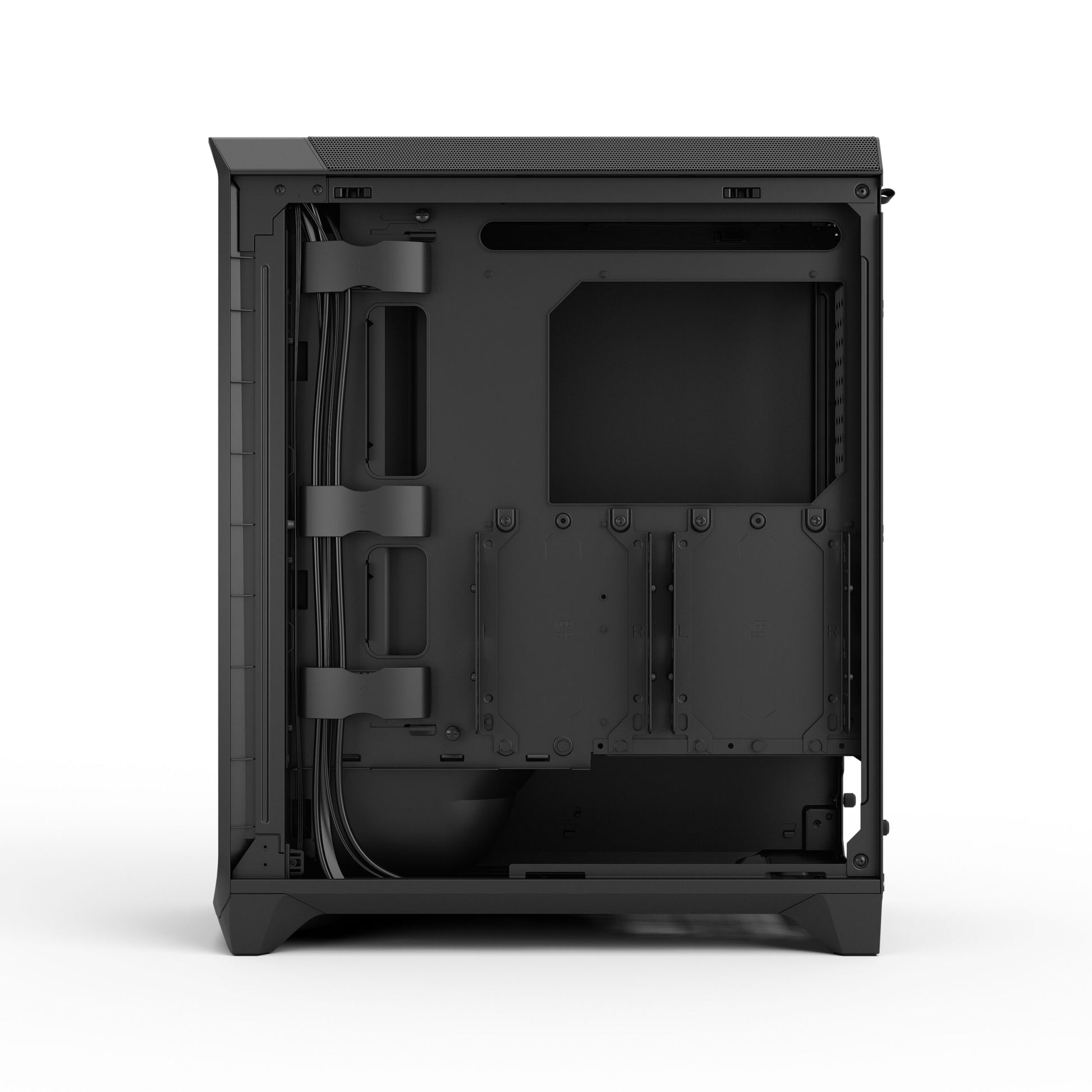

Cable routing space
34,5 mm
-
Cable cover
Yes
-
Cable organizers
3 Hook-and-loop straps + 3 Cable Aligners
-
Tool-less push-to-lock
Both Side Panels, Bottom Filter, Front Panel, Top Panel, PSU Bracket
-
Captive thumbscrews
Top Radiator Bracket, PSU Bracket
-

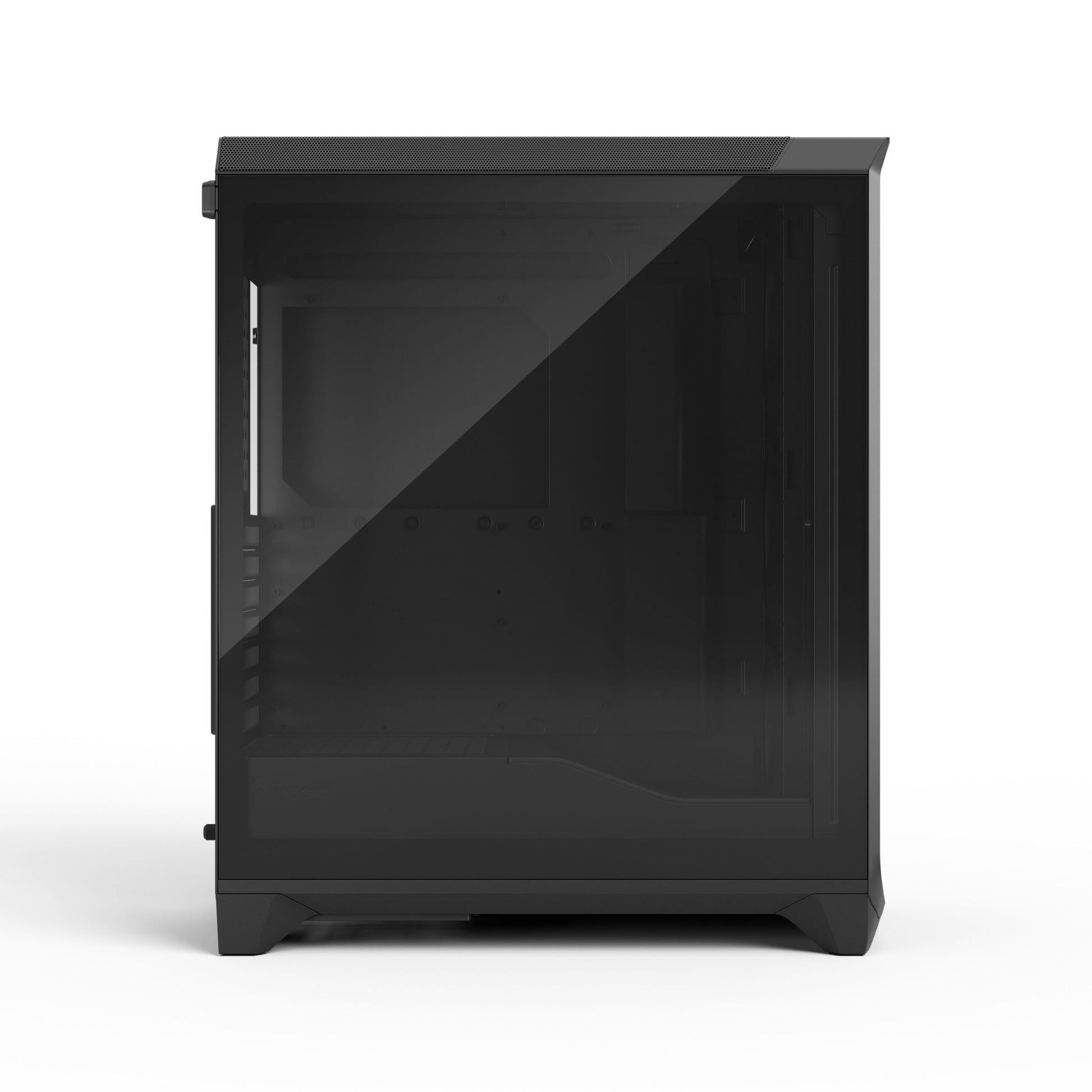

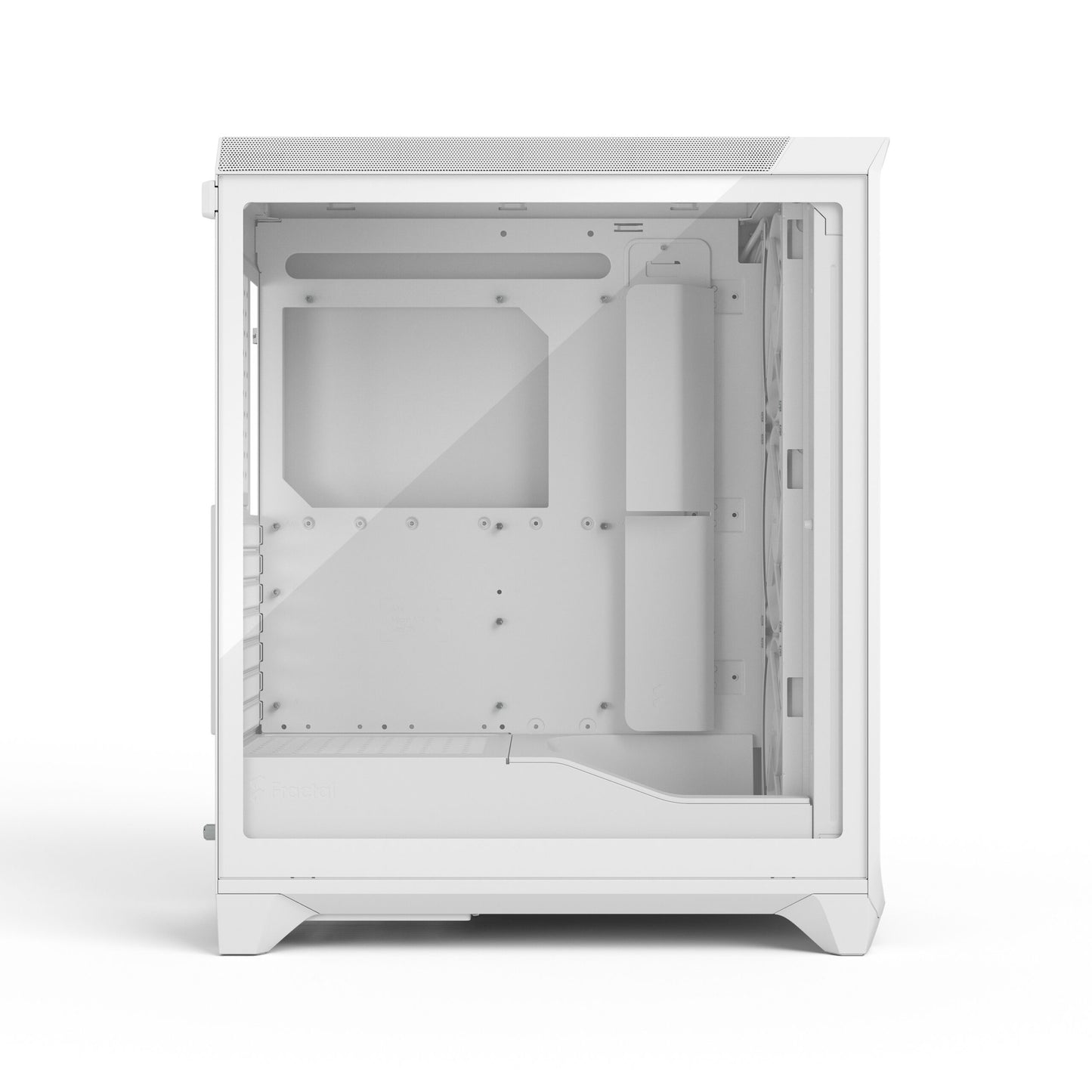

Left side panel
Industrial steel (Solid), Tempered Glass (TG/RGB/Ambience Pro RGB)
-

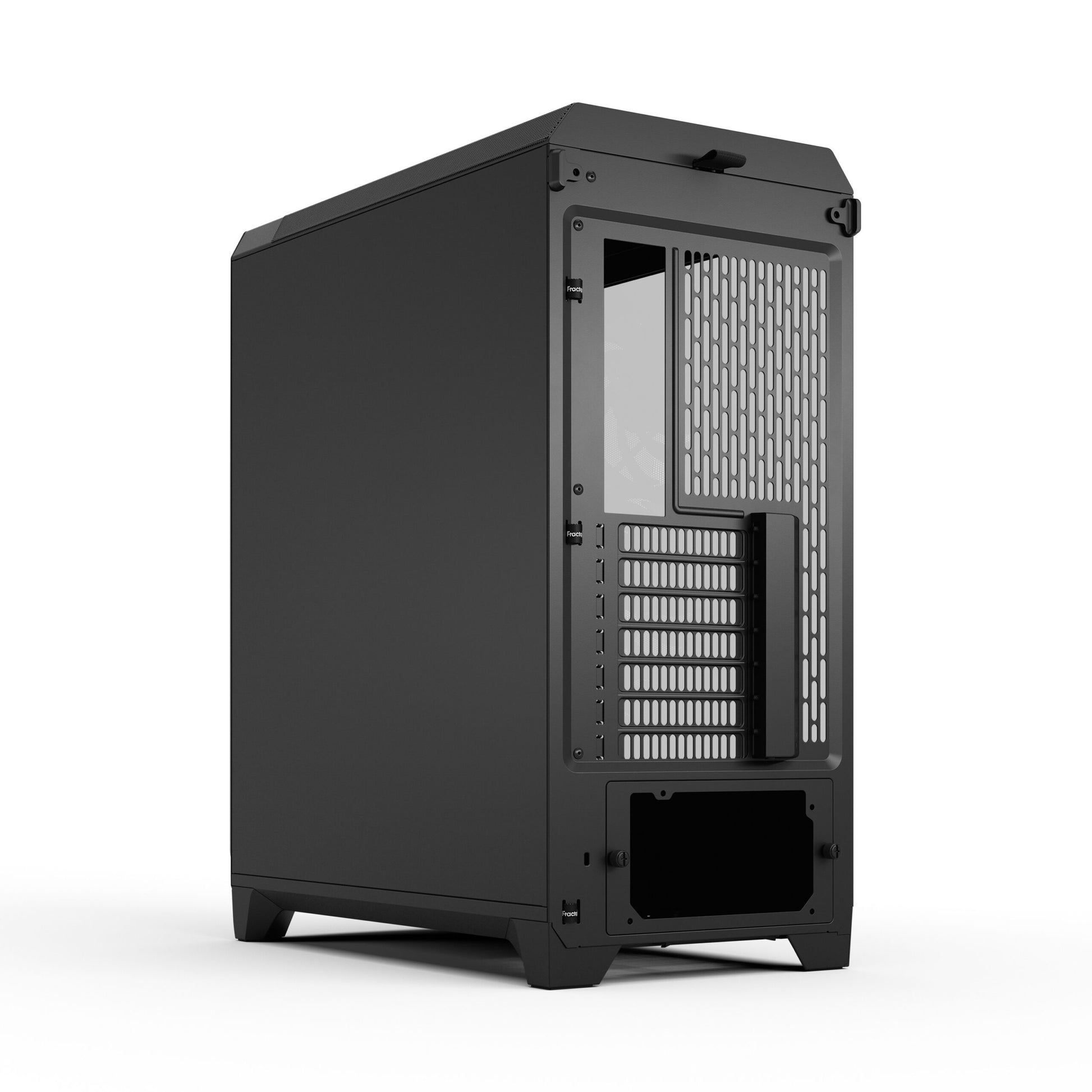

Right side panel
Industrial steel
Compatibility
-
Power supply type
ATX
-
Motherboard compatibility
E-ATX (277 mm) / ATX / MATX / m-ITX
-
PSU max length
180 mm
-
GPU max length
349 mm
-
GPU max height
176 mm (7 slot) including cables
-
CPU cooler max height
173 mm
-
Front radiator
280/360 mm
-
Top radiator
240/280 mm
-
Rear radiator
120 mm
-
Bottom radiator
-
Dimensions
-
Case dimensions (LxWxH)
433 x 229 x 507 mm
-
Case dimensions w/o feet/protrusions/screws
423 x 229 x 483 mm
-
Package dimensions
596 x 345 x 550 mm
-
Net weight
8.7 kg (Solid) 8.8 kg (TG and RGB) 9.1 kg (Ambience Pro RGB)
-
Gross weight
10.5 kg (Solid) 10.6 kg (TG and RGB) 11.1 kg (Ambience Pro RGB)
Other
-
Package contents
Case, Accessory Box, manual, Manual, Red Note
-
Accessory Box content (Solid/TG/RGB)
Motherboard Screw x9, PSU Screw x4, SSD Screw x24, HDD Screw x8, Motherboard Standoff x1, HDD Rubber x8, Zip Tie x4
-
Accessory Box content (Ambience Pro RGB)
Motherboard Screw x9, PSU Screw x4, SSD Screw x24, HDD Screw x8, Motherboard Standoff x1, HDD Rubber x8, Zip Tie x4, 500 mm Fractal Connect Cable x1, Legacy Splitter Cable
-
EAN
Black Solid: 7340172707165 Black TG Light Tint: 7340172707172 Ambience Pro RGB Black TG Light Tint: 7340172707189 White TG Clear Tint: 7340172707196 Ambience Pro RGB White TG Clear Tint: 7340172707202 Black RGB TG Light Tint: 7340172709503 White RGB TG Clear Tint: 7340172709510
-
UPC
Black Solid: 843276107161 Black TG Light Tint: 843276107178 Ambience Pro RGB Black TG Light Tint: 843276107185 White TG Clear Tint: 843276107192 Ambience Pro RGB White TG Clear Tint: 843276107208 Black RGB TG Light Tint: 843276109509 White RGB TG Clear Tint: 843276109516
-
Product Code

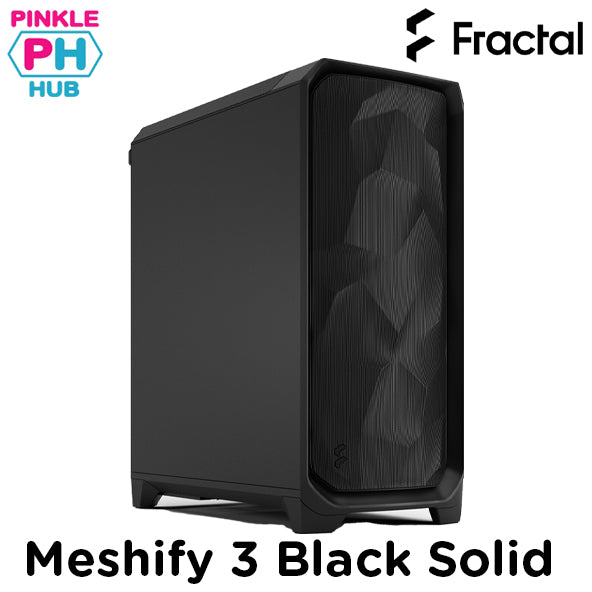

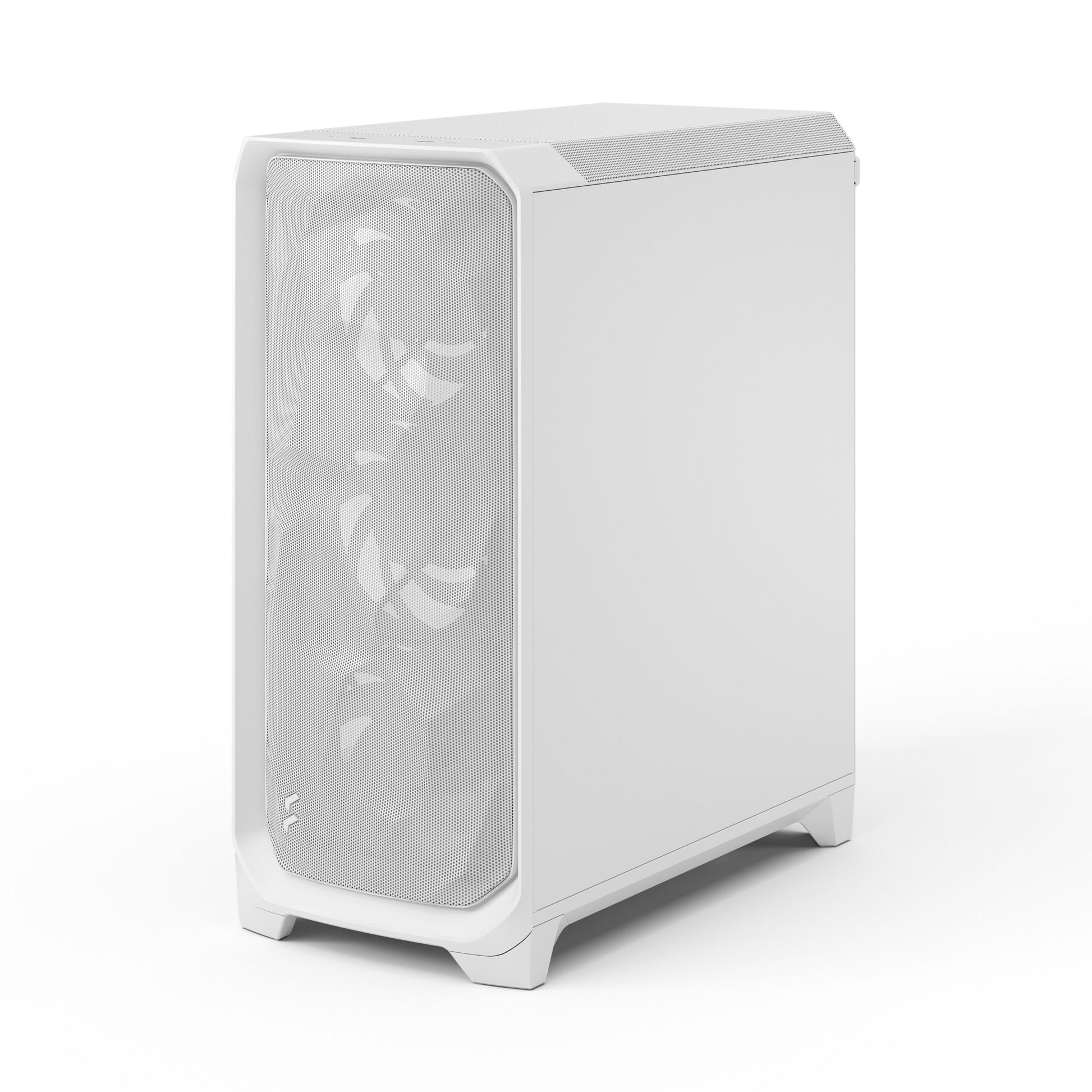

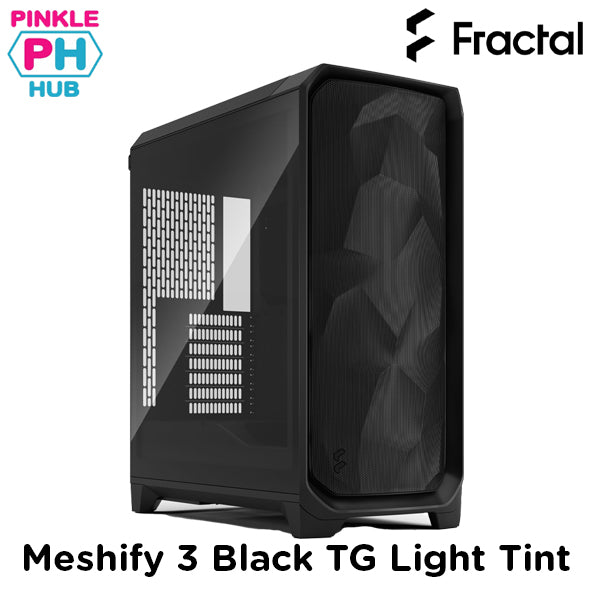

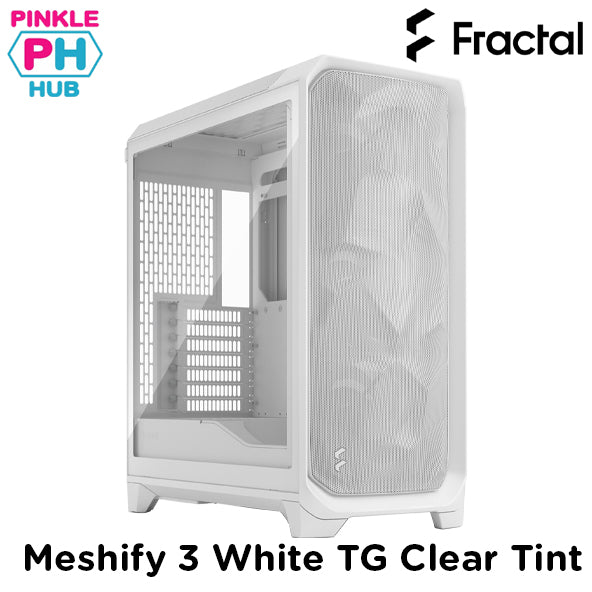

Black Solid: FD-C-MES3A-01 Black TG Light Tint: FD-C-MES3A-02 Ambience Pro RGB Black TG Light Tint: FD-C-MES3A-03 White TG Clear Tint: FD-C-MES3A-04 Ambience Pro RGB White TG Clear Tint: FD-C-MES3A-05 Black RGB TG Light Tint: FD-C-MES3A-06 White RGB TG Clear Tint: FD-C-MES3A-07
-
Warranty
2 Years
|
