Description
Torrent Nano
The Torrent Nano is built to maximize cooling potential straight out of the box. Main standouts include an unobstructed base intake, an open front grille and one of our 180 x 38 mm Dynamic PWM fans (Prisma for RGB version) custom-made to achieve maximum air cooling while maintaining controlled noise levels.

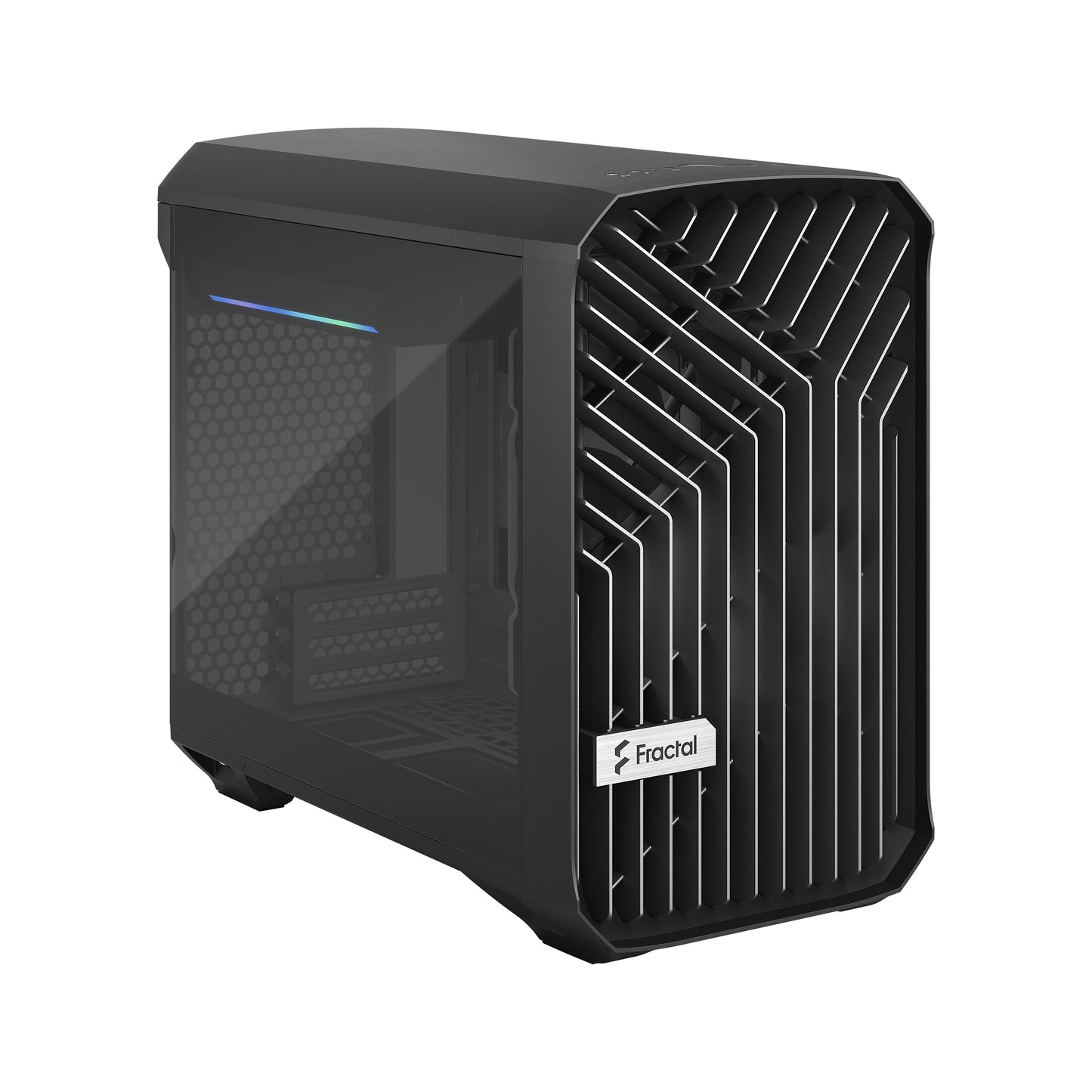

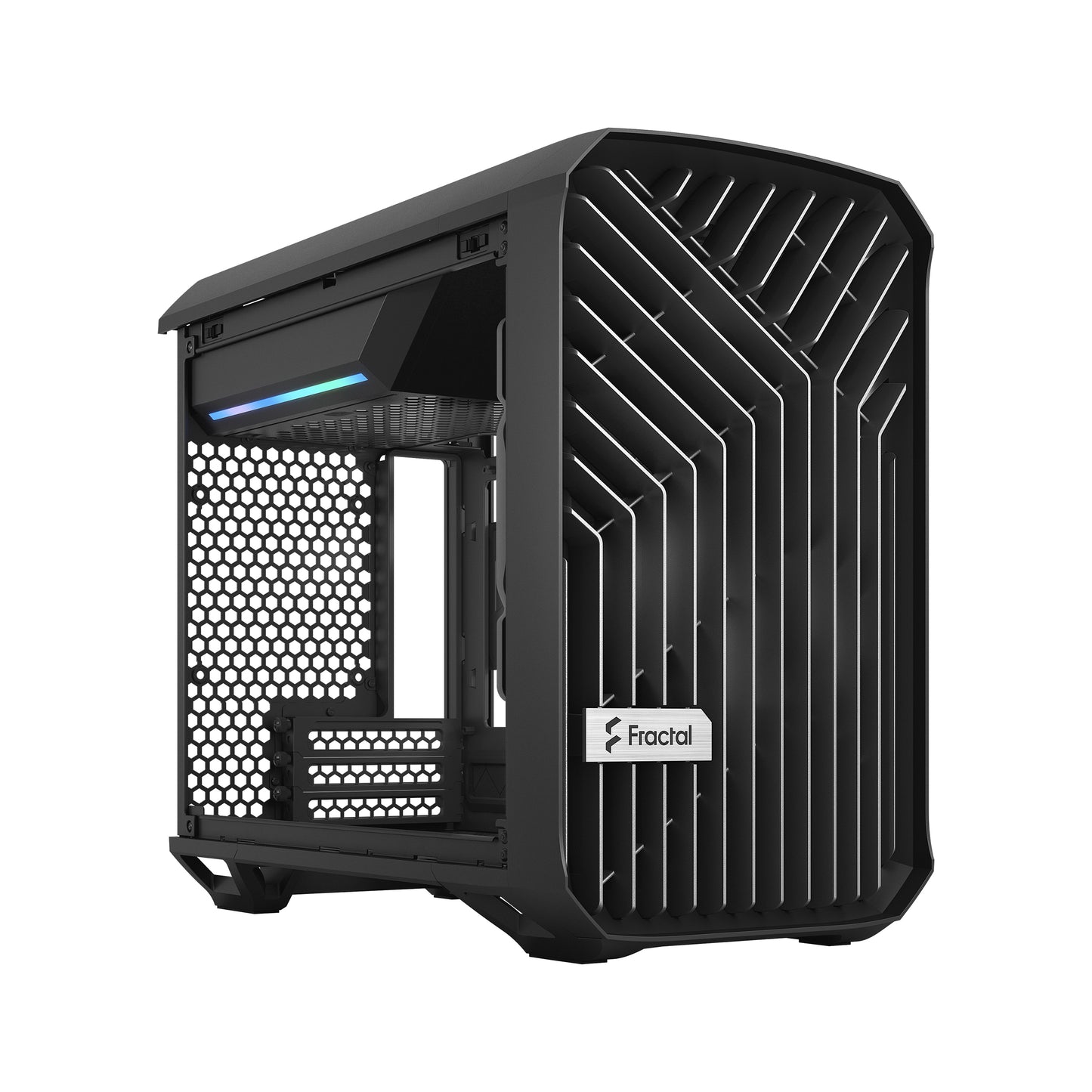

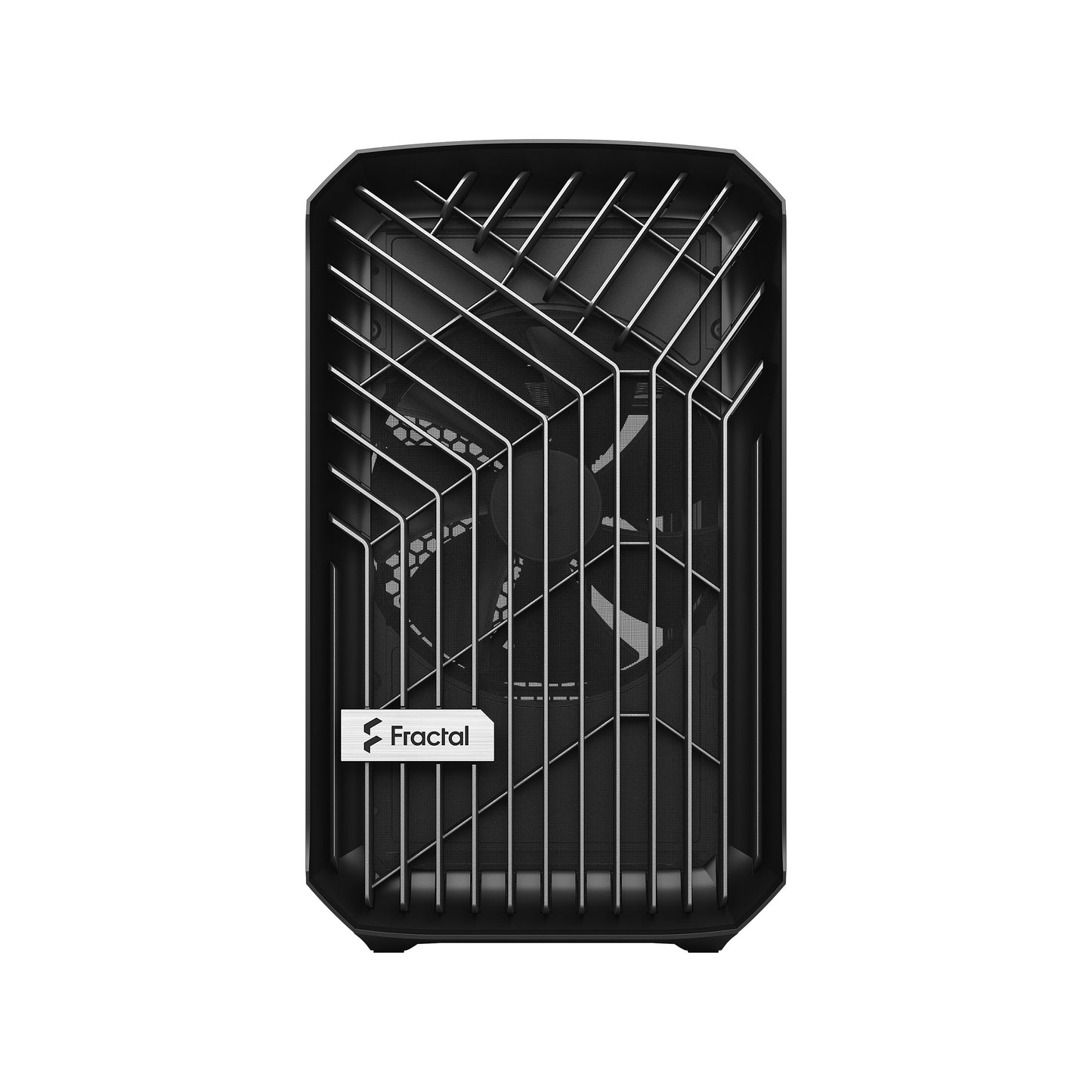

- Open grille and 180 mm front fan optimized for maximum air intake
- Fractal Design 180 x 38 mm fan leverages power, size, and thickness for massive air-moving capacity
- Space optimized, yet still capable of handling up to 3-slot thick 335 mm long GPUs
Top-tier airflow
-
The included Fractal Design 180 x 38 mm fan leverages power, size, and thickness for massive air-moving capacity
-
Front fan brackets allow for unblocked airflow to the larger fan while catering to standard radiator sizes
-

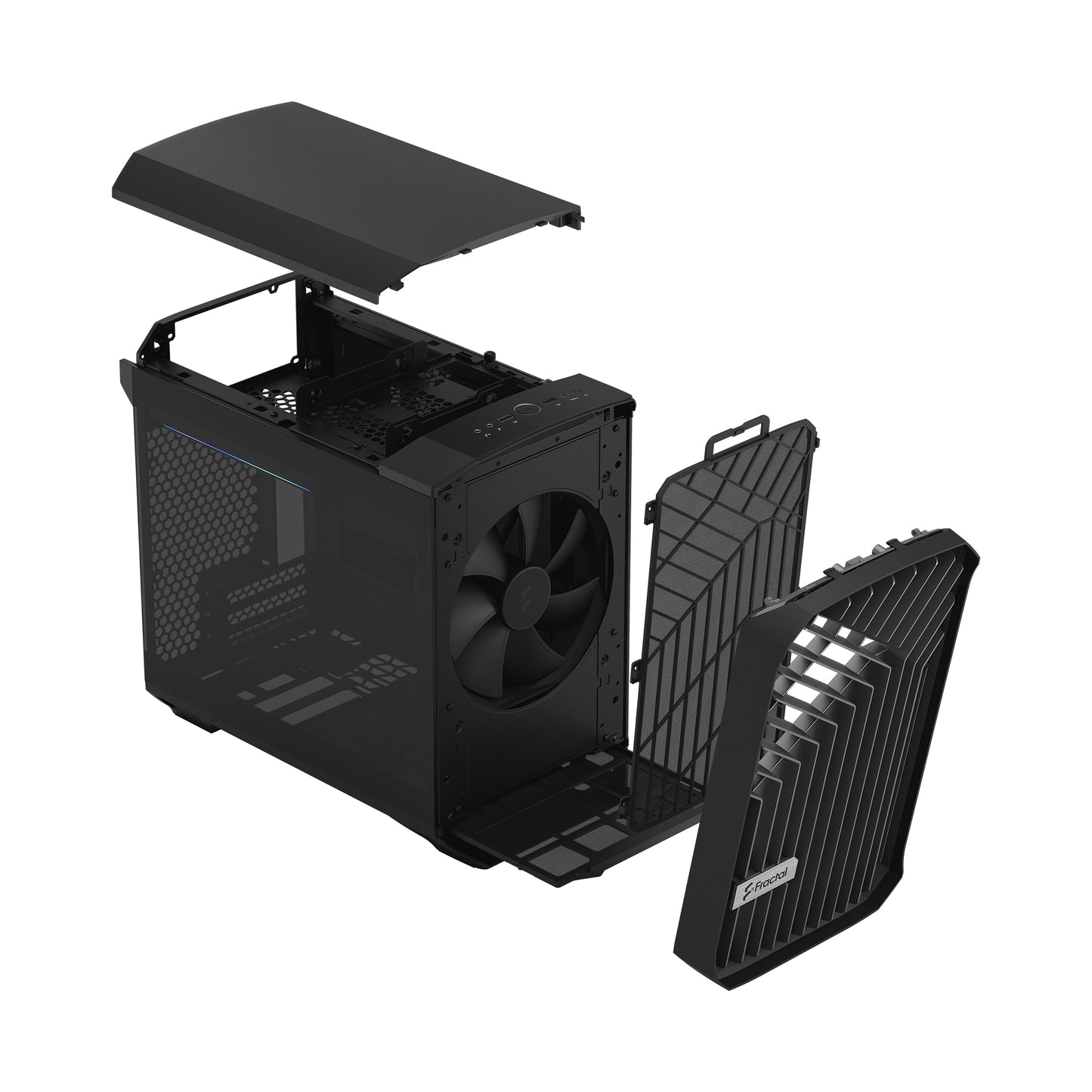

Dust filters for front and bottom easily accessible by removing the front
Quick start, clean finish
-

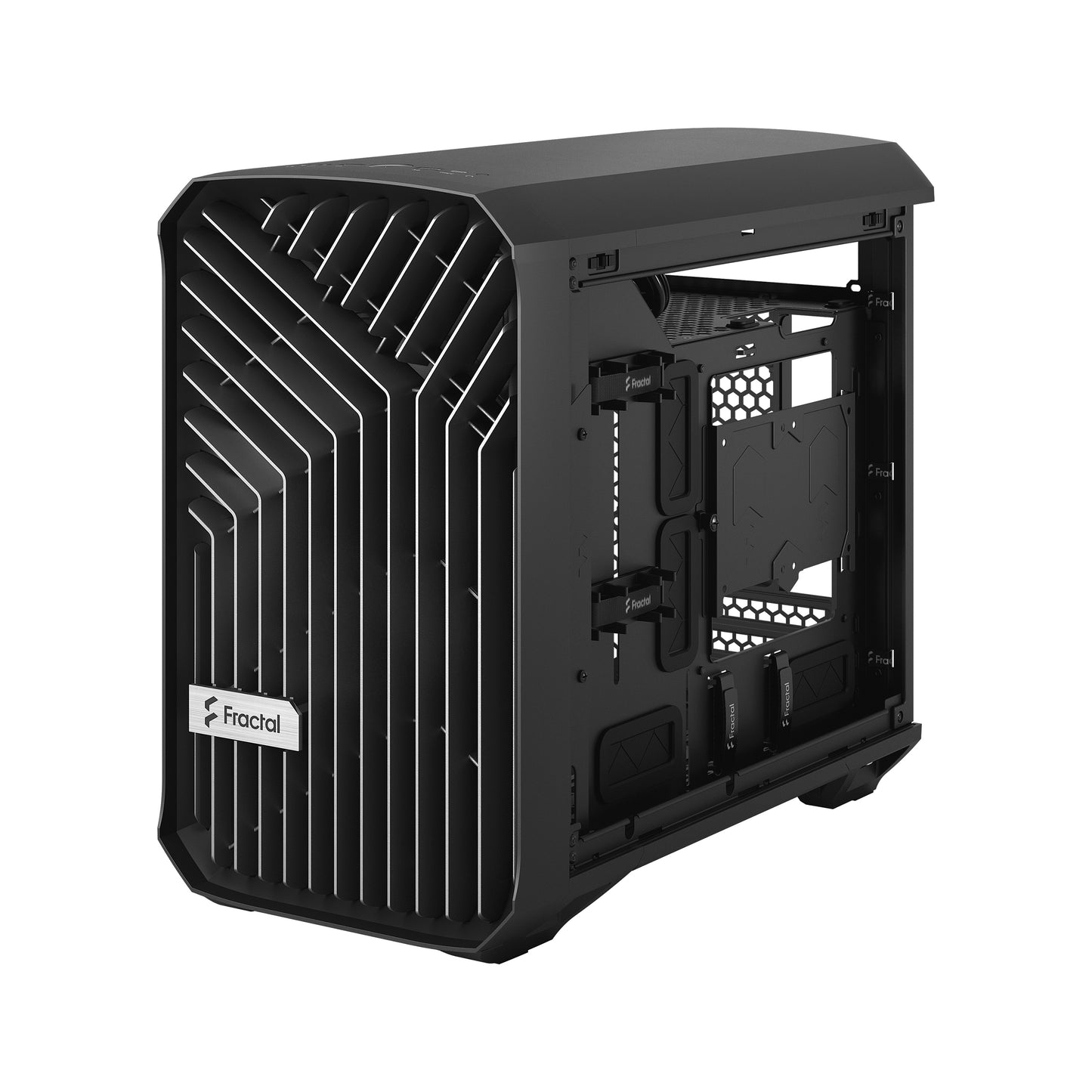

Removable top bezel and routing clips with cable ties make for easy installation and cable management
-

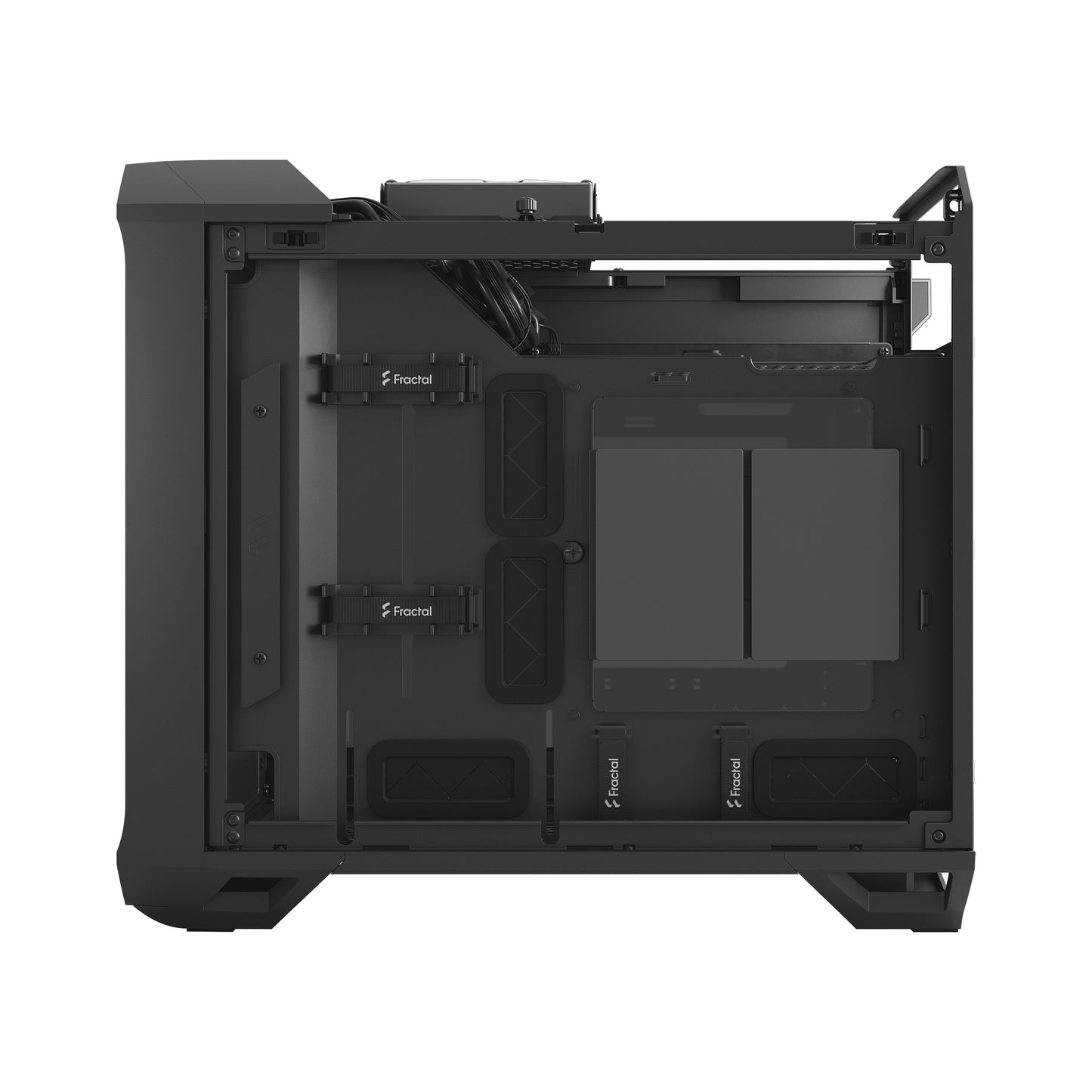

A sturdy, vibration-damped drive tray supporting a single HDD or dual SSDs with two optional mounting positions
-
A dedicated SSD bracket with room for 2x 2.5” drives included
Transparently easy
-

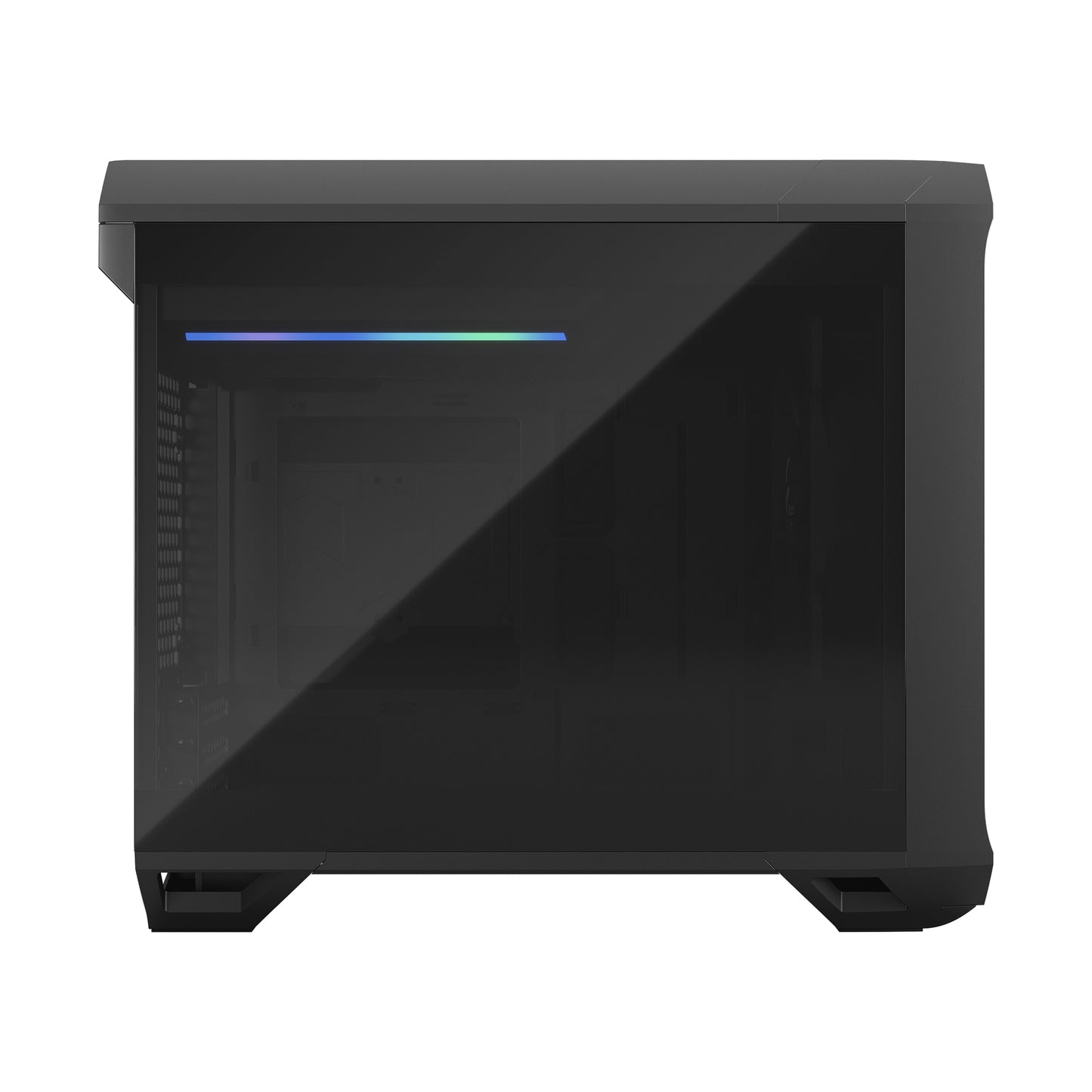

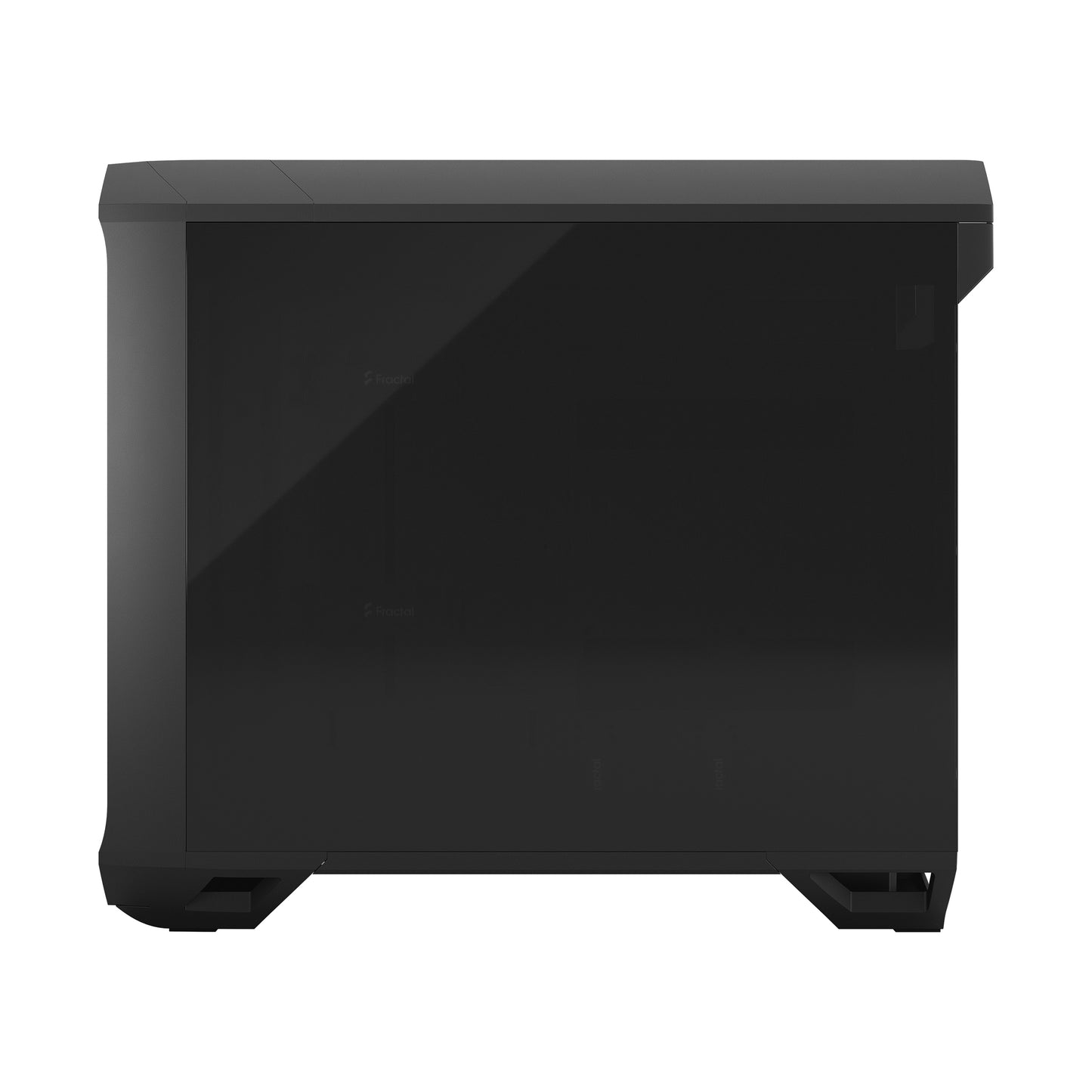

Seamless tempered glass panels (TG versions) with bolt-free top-latching mechanisms for easy handling
-

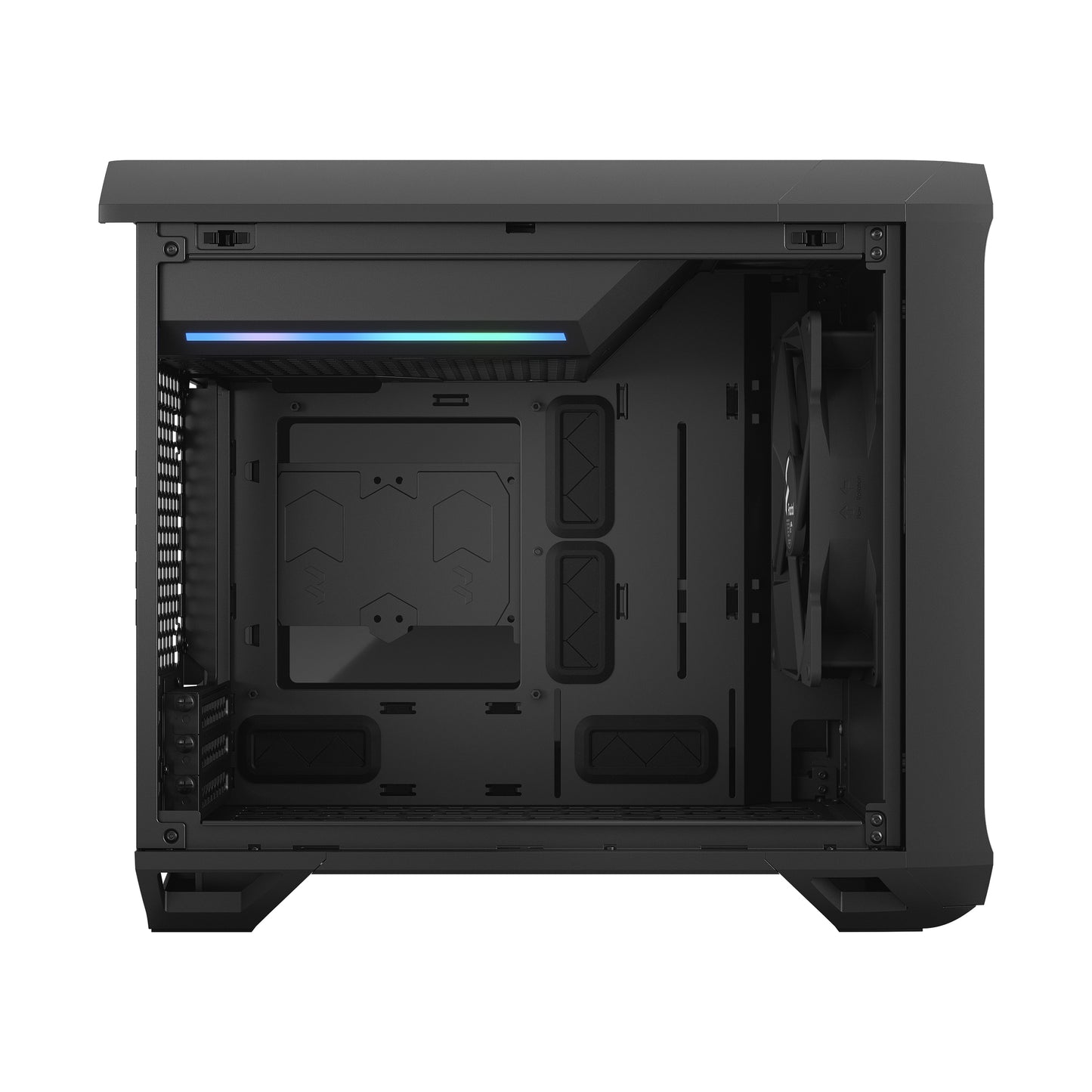

Top mounted aerodynamic PSU shroud with integrated ARGB effects (ARGB strip only available on TG and RGB versions)
-
LED lights (TG versions) and RGB fans (RGB version) are fully controllable through motherboards supporting addressable RGB (5V)
Included GPU support bracket
Helps your GPU stay level (user assembled, instructions included)
With flexibility in focus
-
Space optimized, yet still capable of handling up to 3-slot thick 335 mm long GPUs
-
Integrated support for a water-cooling reservoir on the motherboard tray
-
Comes with included GPU support bracket that helps your GPU stay level
Specifications
-
3.5"/2.5" drive mounts1 (included)
-
Dedicated 2.5" drive mounts2 (included)
-
Expansion slots3
-

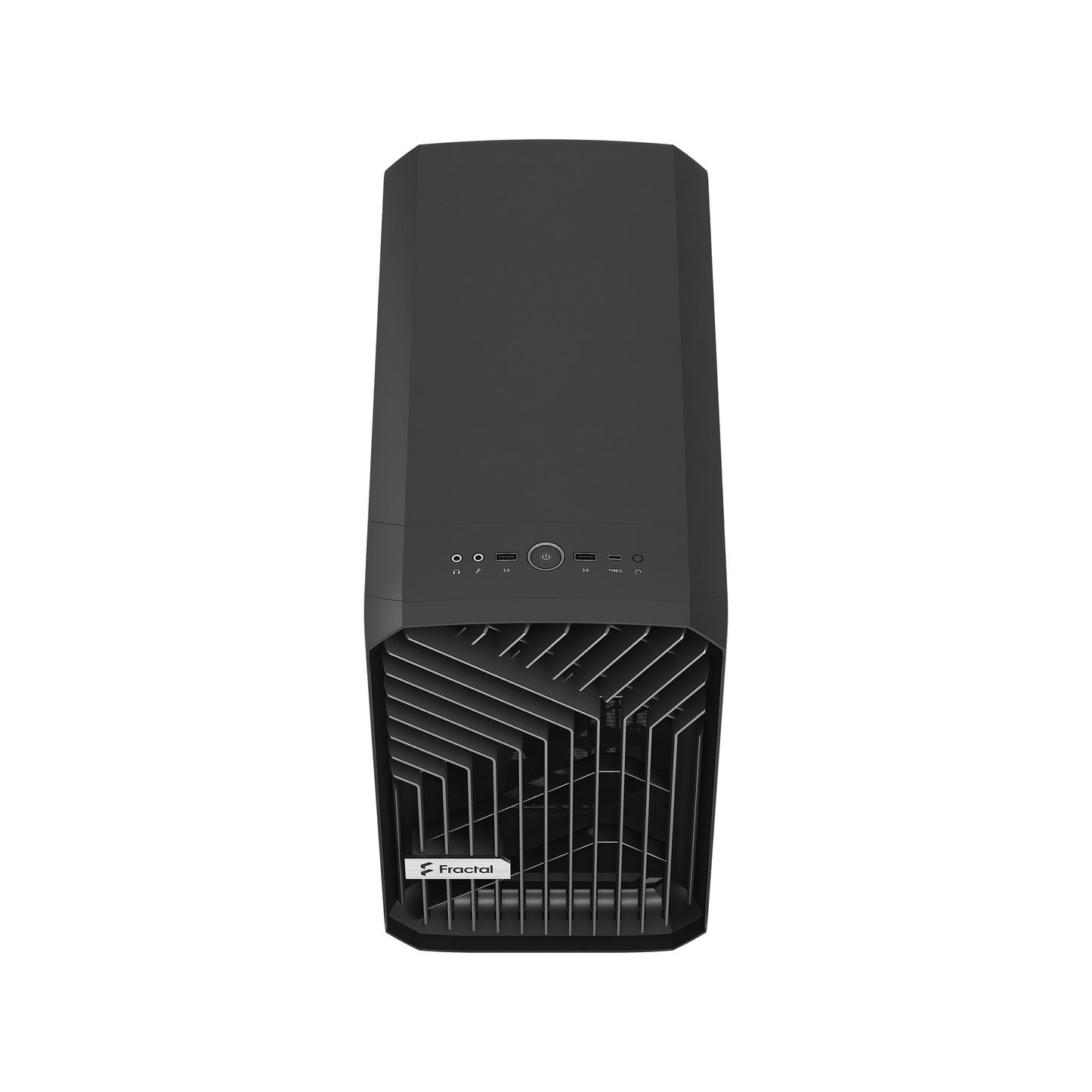

Front interface1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio
-
Total fan mounts1x 180 mm, 4x 140 mm, or 5x 120 mm (with included brackets)
-
Front fan1x 180 mm or 2x 140/120 mm (with included bracket) (1x Dynamic GP-18 included in standard versions, 1x Prisma AL-18 included in RGB version)
-
Dust filtersFront, Bottom
-
Fixed cable strapsYes
-
Cable routing grommetsYes
-
Tool-less push-to-lockSide panels
-
Captive thumbscrewsHDD and SSD brackets
-
Left side panelSteel or Tempered glass (RGB version: Tempered glass only)
-
Right side panelSteel or Tempered glass (Solid/White RGB: Steel, TG/Black RGB: Tempered Glass)
Compatibility
-
Motherboard compatibilitymITX / mDTX
-
Power supply typeATX
-
PSU max length200 mm
-
GPU max length335 mm with front fan mounted
-
CPU cooler max height165 mm
-
Rear fan1x 120 mm (not included)
-
Bottom fan2x 140/120 mm (not included)
-
Front radiatorUp to 240/140 mm
-
Rear radiator120 mm
-
Bottom radiatorUp to 240/280 mm
-
Cable routing space29 mm
Dimensions
-
Case dimensions (LxWxH)417 x 222 x 374 mm
-
Net weightBK TGD/TGL: 6.0 kg, WT TGC: 5.8 kg, BK Solid: 5.5 kg
-
Package dimensions (LxWxH)446 x 300 x 538 mm
-
Gross weightBK TGD/TGL: 7.8 kg, WT TGC: 7.5 kg, BK Solid: 7.2 kg
Other
-
Package contents (non RGB versions)Torrent Nano, 1x Dynamic GP-18 fan, Accessory box with screws etc. , User manual, Extra front fan brackets, GPU support bracket
-
Package contents (RGB version)Torrent Nano, 1x Prisma AL-18 fan, Accessory box with screws etc. , User manual, Extra front fan brackets, GPU support bracket
-
EANBlack RGB TG Light Tint: 7340172702948, Black TG Dark Tint: 7340172702931, White TG Clear Tint: 7340172702955, Black Solid: 7340172702962, White RGB Clear Tint: 7340172705246
-
UPCBlack RGB TG Light Tint: 843276102944, Black TG Dark Tint: 843276102937, White TG Clear Tint: 843276102951, Black Solid: 843276102968, White RGB Clear Tint: 843276105242
-
JANBlack RGB TG Light Tint: 4537694282963, Black TG Dark Tint: 4537694282956, White TG Clear Tint: 4537694282970, Black Solid: 4537694282987, White RGB Clear Tint: 4537694311717
-
Product codeBlack RGB TG Light Tint: FD-C-TOR1N-02, Black TG Dark Tint: FD-C-TOR1N-01, White TG Clear Tint: FD-C-TOR1N-03, Black Solid: FD-C-TOR1N-04, White RGB Clear Tint: FD-C-TOR1N-05
