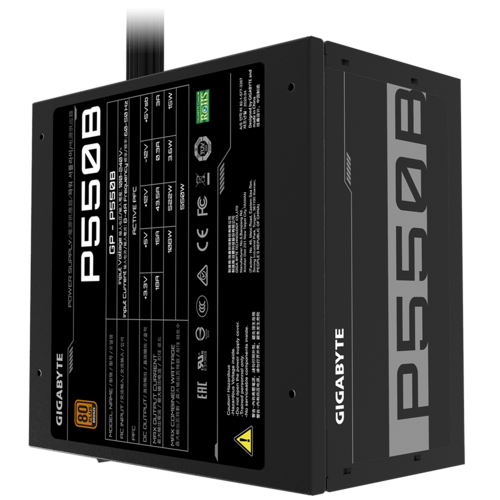

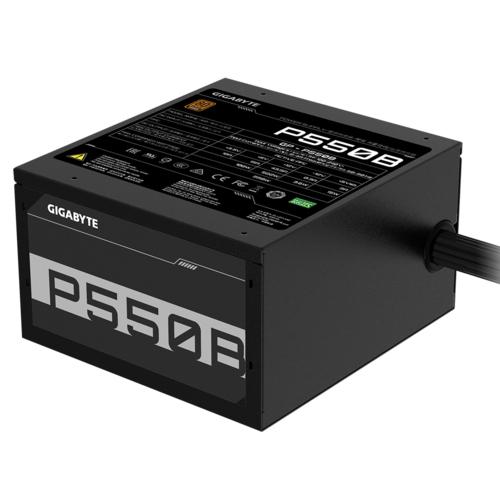

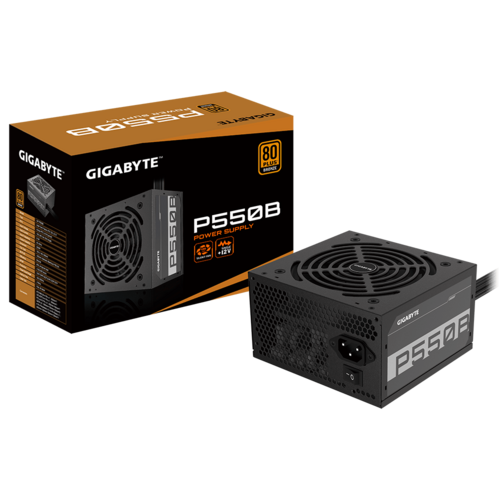

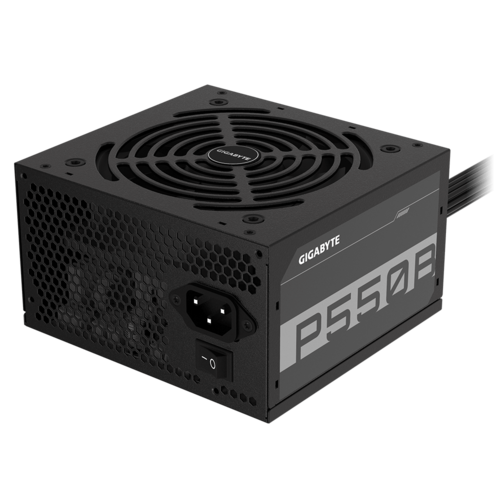

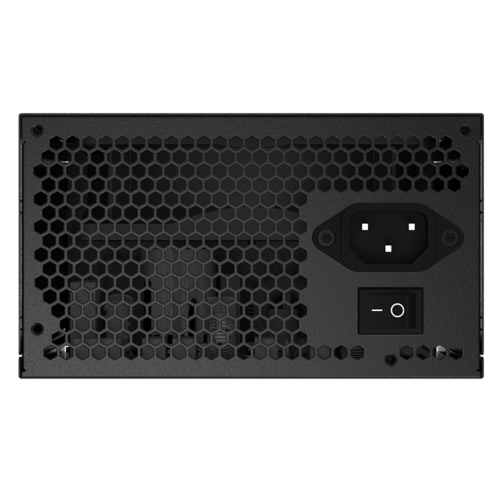

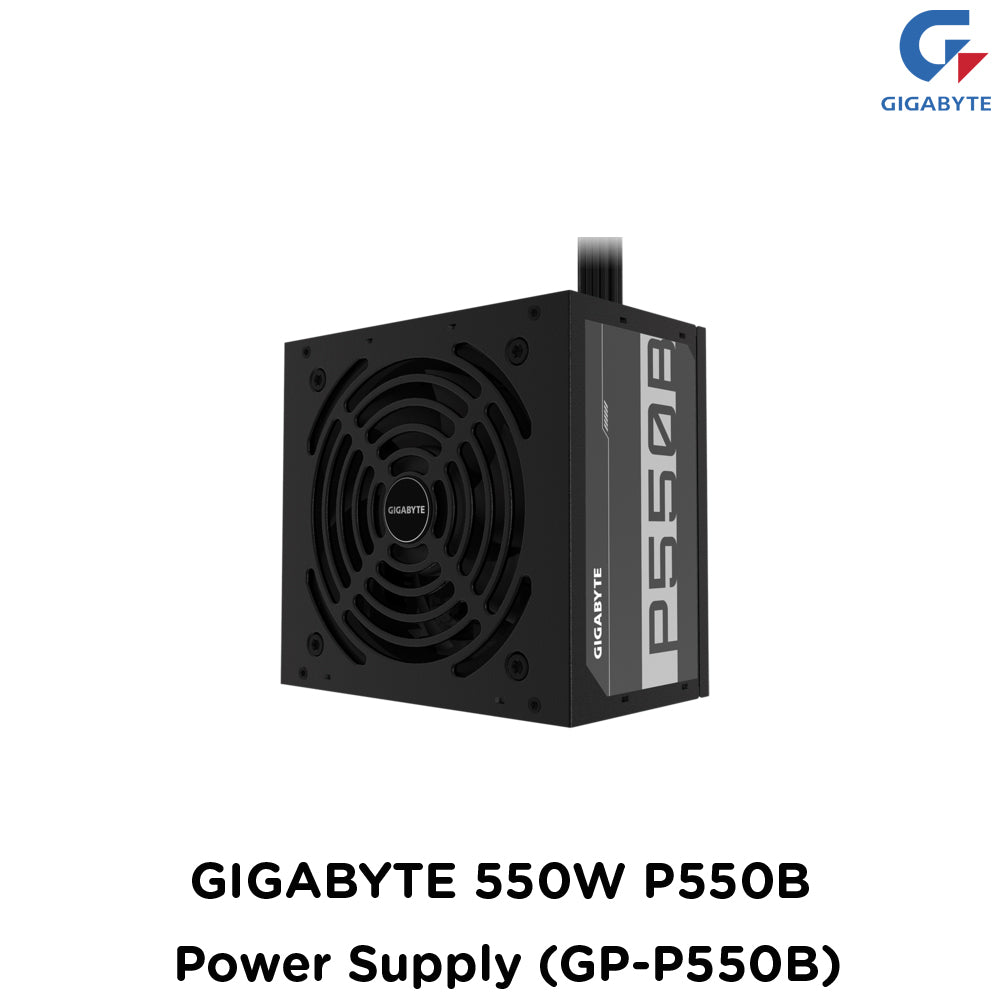

GIGABYTE 550W P550B Power Supply (GP-P550B)

Features

• 80 PLUS Bronze certified
• 120mm Silent Hydraulic Bearing (HYB) Fan
• Reliable flat cable
• Single +12V rail
• OVP/OPP/SCP/UVP/OCP/OTP protection
• 3 years warranty (Adjusted according to different regions)

SPECIFICATION

• Model
  P550B
• Type
  Intel Form Factor ATX 12V v2.31
• PFC
  Active PFC(>0.9 typical)
• Input Voltage
  100-240 Vac(full range)
• Input Current
  8-4 A
• Input Frequency
  60-50 Hz
• Output Capacity
  550W
• Dimension
  150 x 140 x 86 mm

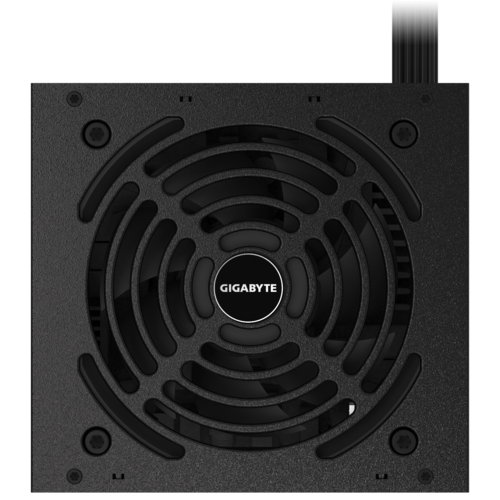

• Fan Type
  120mm Hydraulic Bearing (HYB) Fan
• 80 PLUS
  Bronze
• Efficiency
  85% at typical load
• MTBF
  >100,000 hours
• Protection
  OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal
  100-500ms
• Hold Up Time
  >16ms
• Cable Type
  Flat, All black
• Connectors
  ATX/MB 20+4 Pin x 1 : 550mm*1
  CPU/EPS 4+4 Pin x 1 : 600mm*1
  PCI-e 6+2 Pin x 2 : 550mm+150mm*1
  SATA x 6 : 500mm+120mm+120mm*2
  4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1
