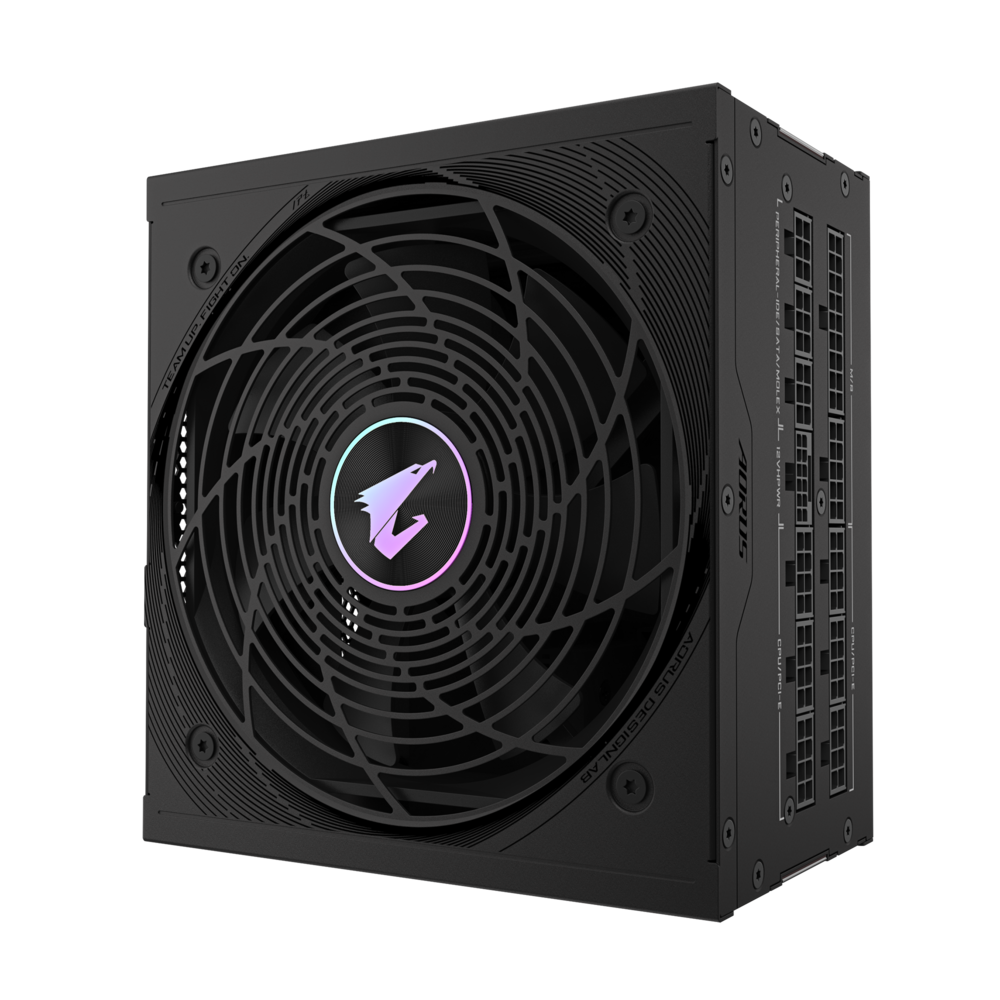

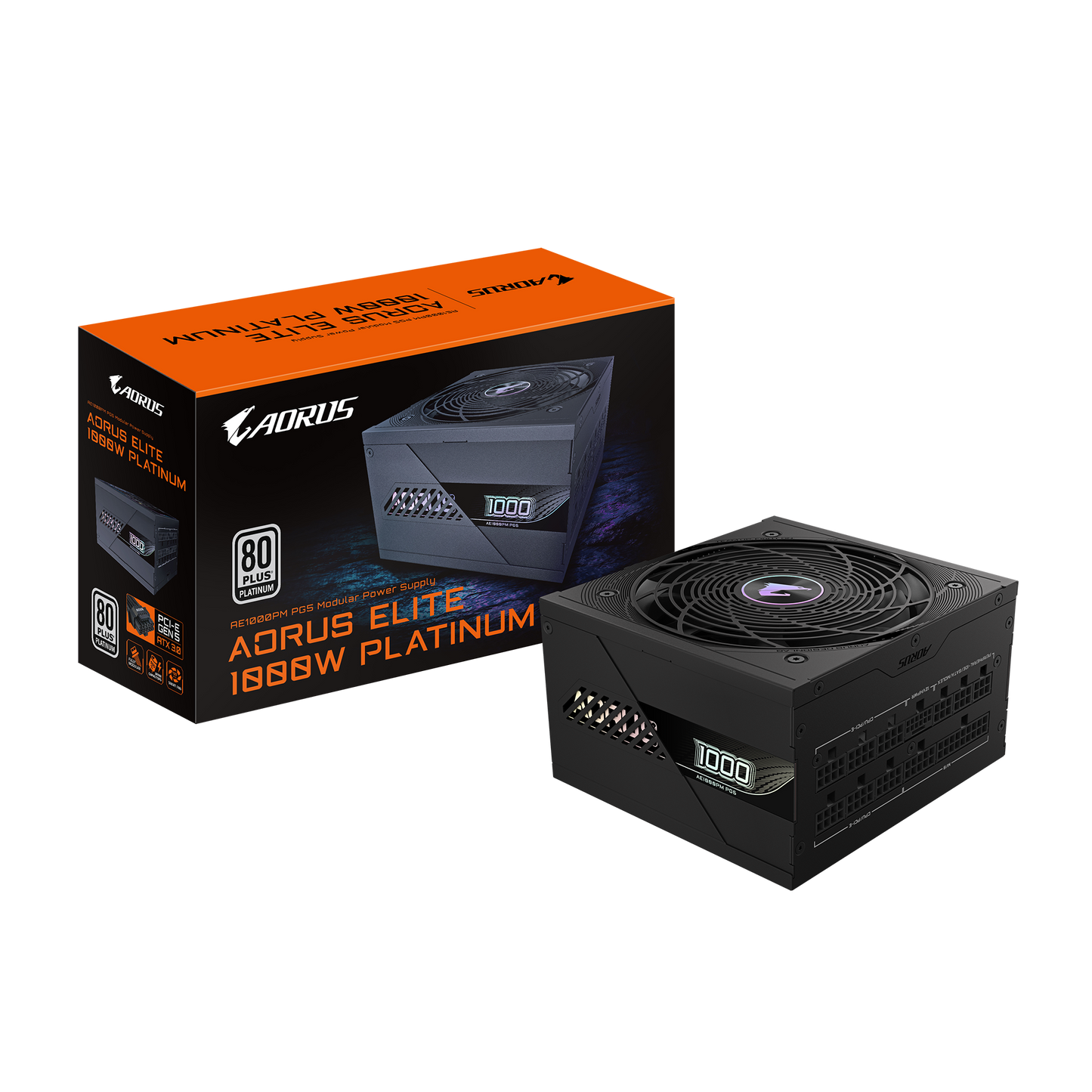

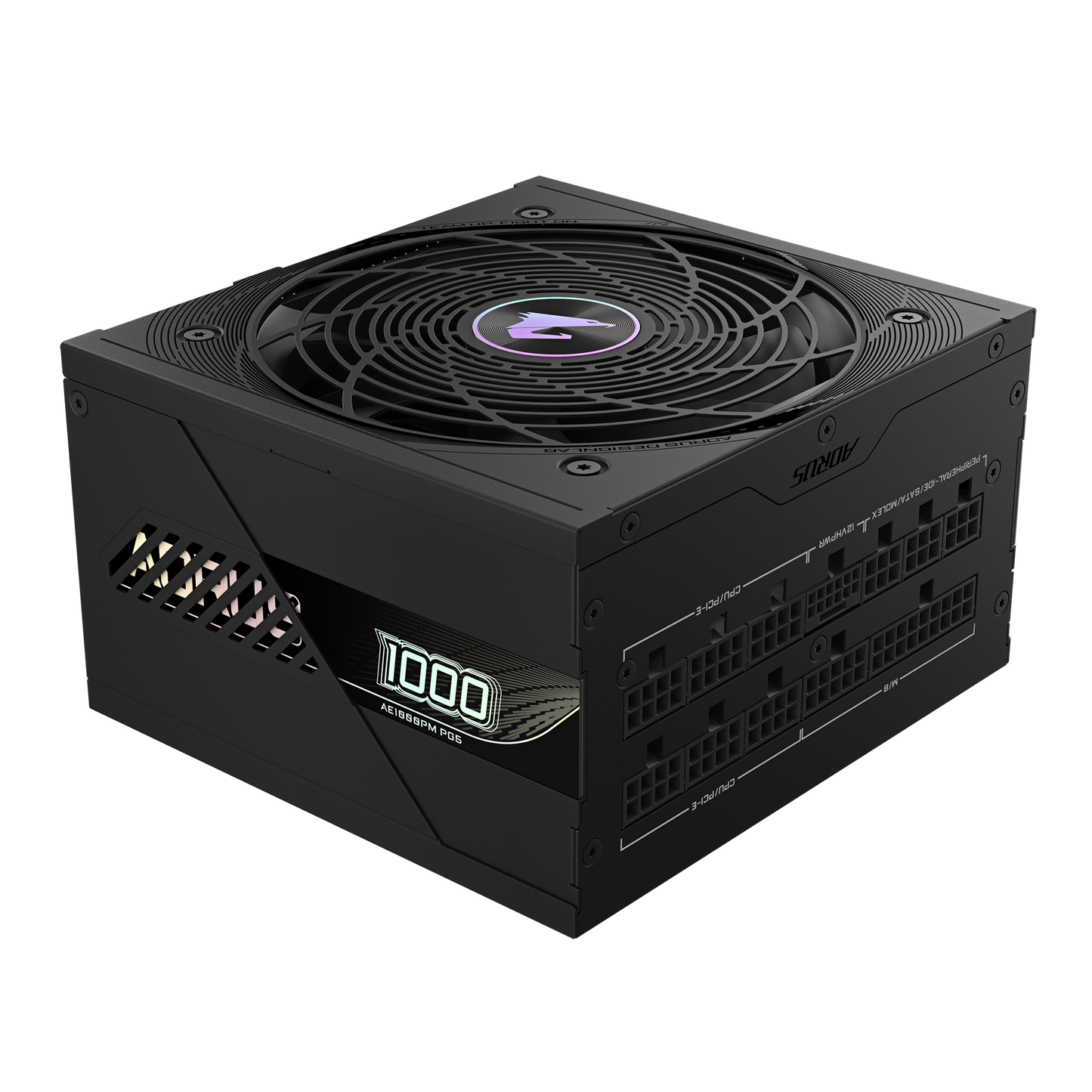

GIGABYTE AORUS ELITE P1000W 80+ Platinum Modular PCIe 5.0 (rev. 1.0) rev. 1.1
GIGABYTE AORUS ELITE P1000W 80+ Platinum Modular PCIe 5.0 (rev. 1.0) rev. 1.1
SKU: SKU: GP-AE1000PM-PG5
Regular price
₱10,548.00
Regular price
₱12,130.00
Sale price
₱10,548.00
Unit price
/
per
Low stock: 2 left
No reviews
KEY FEATURE
- ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
- 80 PLUS Platinum certified
- 100% Japanese capacitors
- 120mm smart Fluid Dynamic Bearing (FDB) fan
- Compact design
- Fully modular design
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
SPECIFICATION
-
ModelGP-AE1000PM PG5
-
TypeIntel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
-
PFCActive PFC (>0.9 typical)
-
Input Voltage100-240 Vac (full range)
-
Input Current15-6.5A
-
Input Frequency60-50 Hz
-
Output Capacity1000W
-
Dimension150 x 140 x 86mm
-
Fan Type120mm Fluid Dynamic Bearing (FDB) Fan
-
80 PLUSPlatinum
-
Efficiency92% at typical load
-
MTBF>100,000 hours
-
ProtectionOVP/OPP/SCP/UVP/OCP/OTP
-
Power Good Signal100-150ms
-
Hold Up Time>16ms
-
Cable TypeFlat, All black
-
ConnectorsATX/MB 20+4 Pin x 1 : 650mm*1
CPU/EPS 4+4 Pin x 2 : 700mm*2
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
