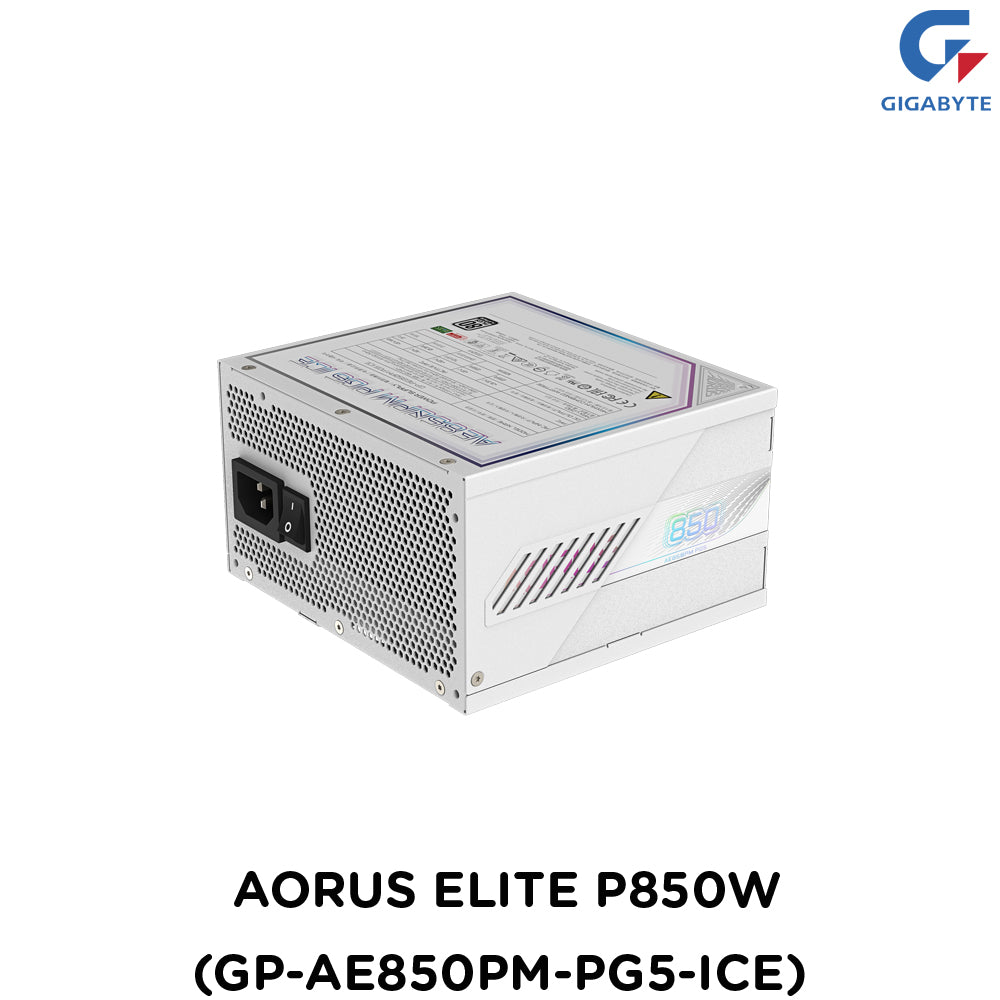

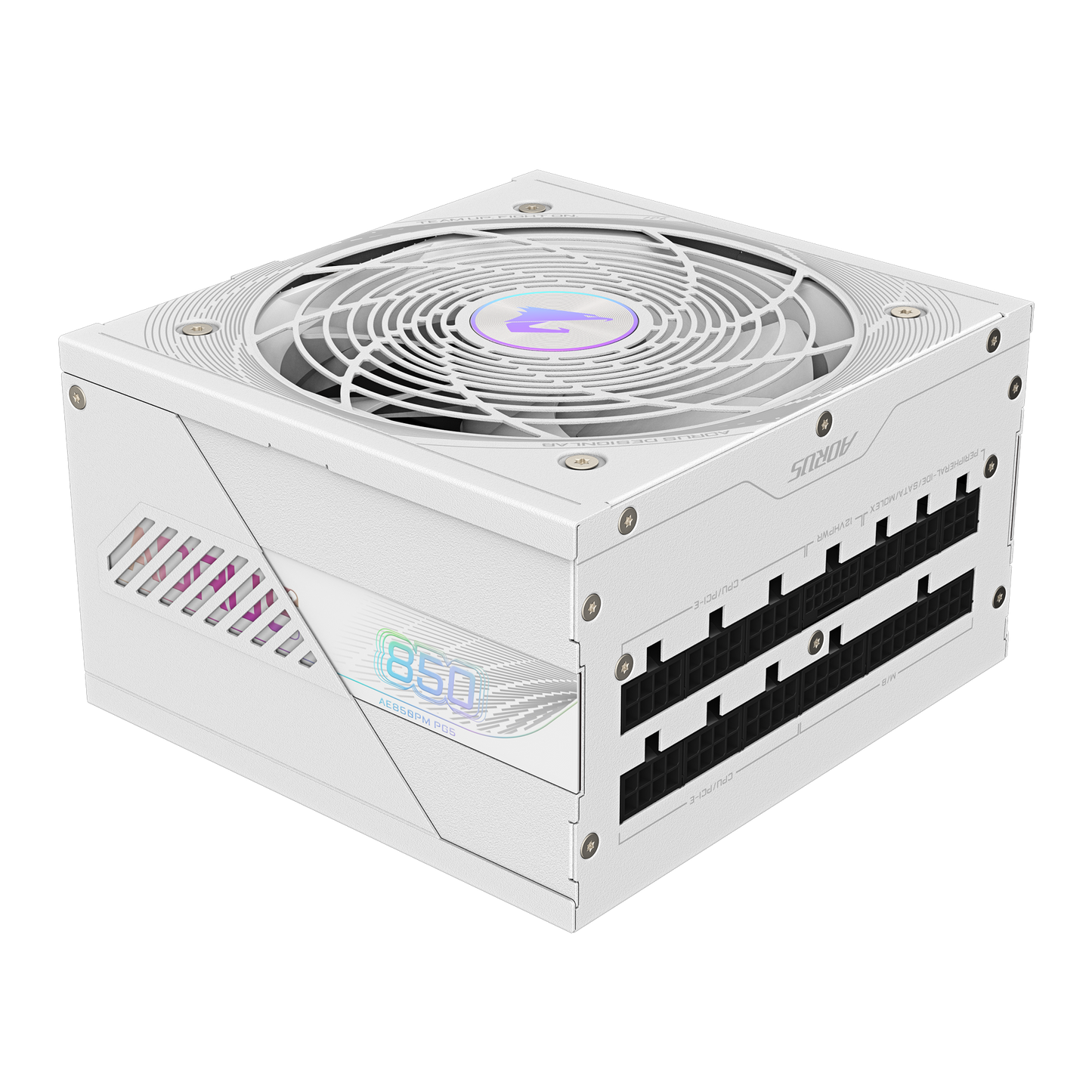

GIGABYTE AORUS ELITE P850W 80+ Platinum Modular PCIe 5.0 ICE (rev. 1.0) rev. 1.1

GIGABYTE AORUS ELITE P850W 80+ Platinum Modular PCIe 5.0 ICE (rev. 1.0) rev. 1.1

Brand : Gigabyte

SKU:  GP-AE850PM-PG5-ICE

₱8,784.00
₱10,101.00 ₱8,784.00
Sale! Sold out
Taxes included.

Low stock: 2 left

GKEY FEATURE

  • ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
  • 80 PLUS Platinum certified
  • 100% Japanese capacitors

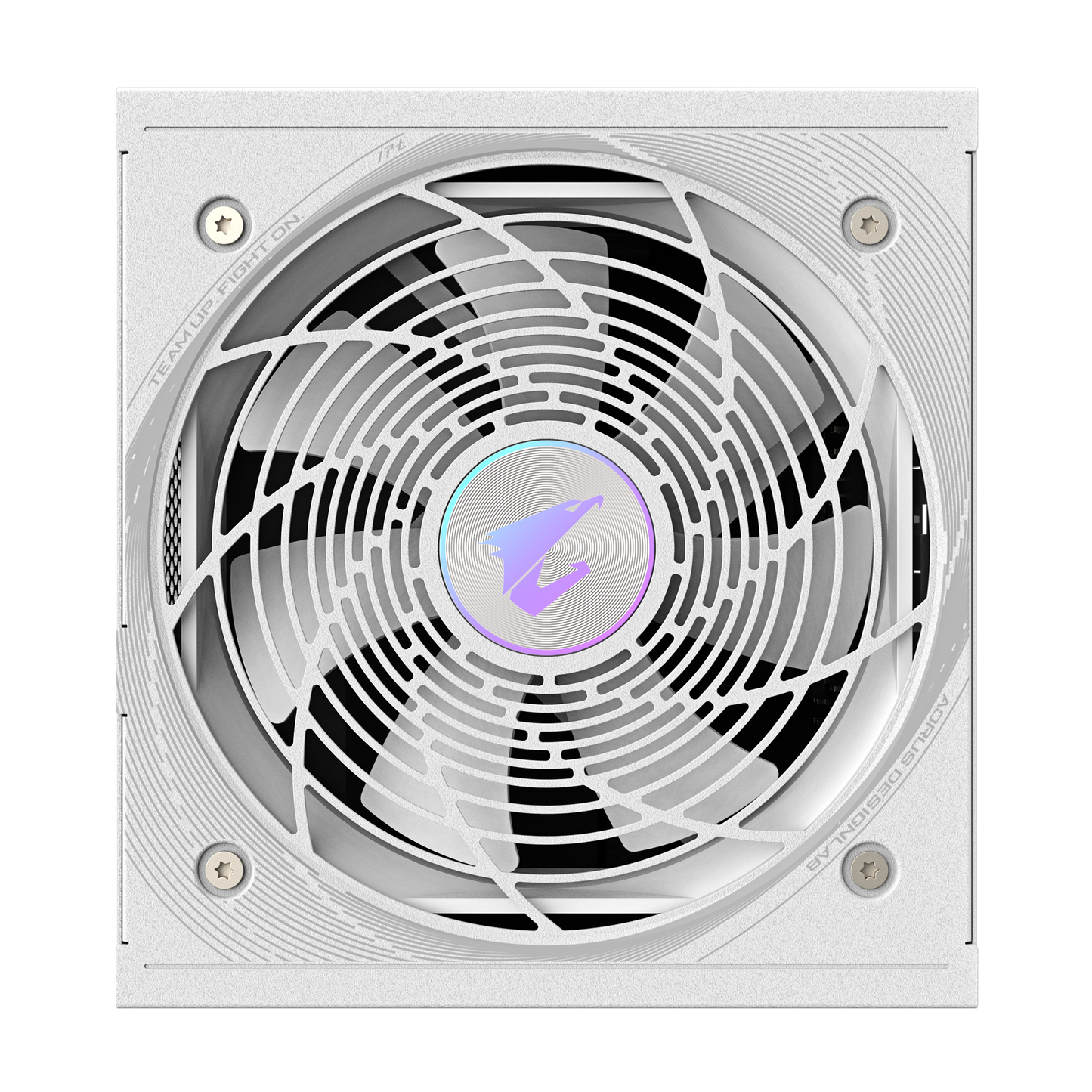

  • 120mm smart Fluid Dynamic Bearing (FDB) fan
  • Compact design
  • Fully modular design
  • Powerful single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • 10 years warranty (Adjusted according to different regions)

SPECIFICATIONS
  • Model
    GP-AE850PM PG5 ICE
  • Type
    Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
  • PFC
    Active PFC (>0.9 typical)
  • Input Voltage
    100-240 Vac (full range)
  • Input Current
    12-6A
  • Input Frequency
    60-50 Hz
  • Output Capacity
    850W
  • Dimension
    150 x 140 x 86mm
  • Fan Type
    120mm Fluid Dynamic Bearing (FDB) Fan
  • 80 PLUS
    Platinum
  • Efficiency
    92% at typical load
  • MTBF
    >100,000 hours
  • Protection
    OVP/OPP/SCP/UVP/OCP/OTP
  • Power Good Signal
    100-150ms
  • Hold Up Time
    >16ms
  • Cable Type
    Flat, All white

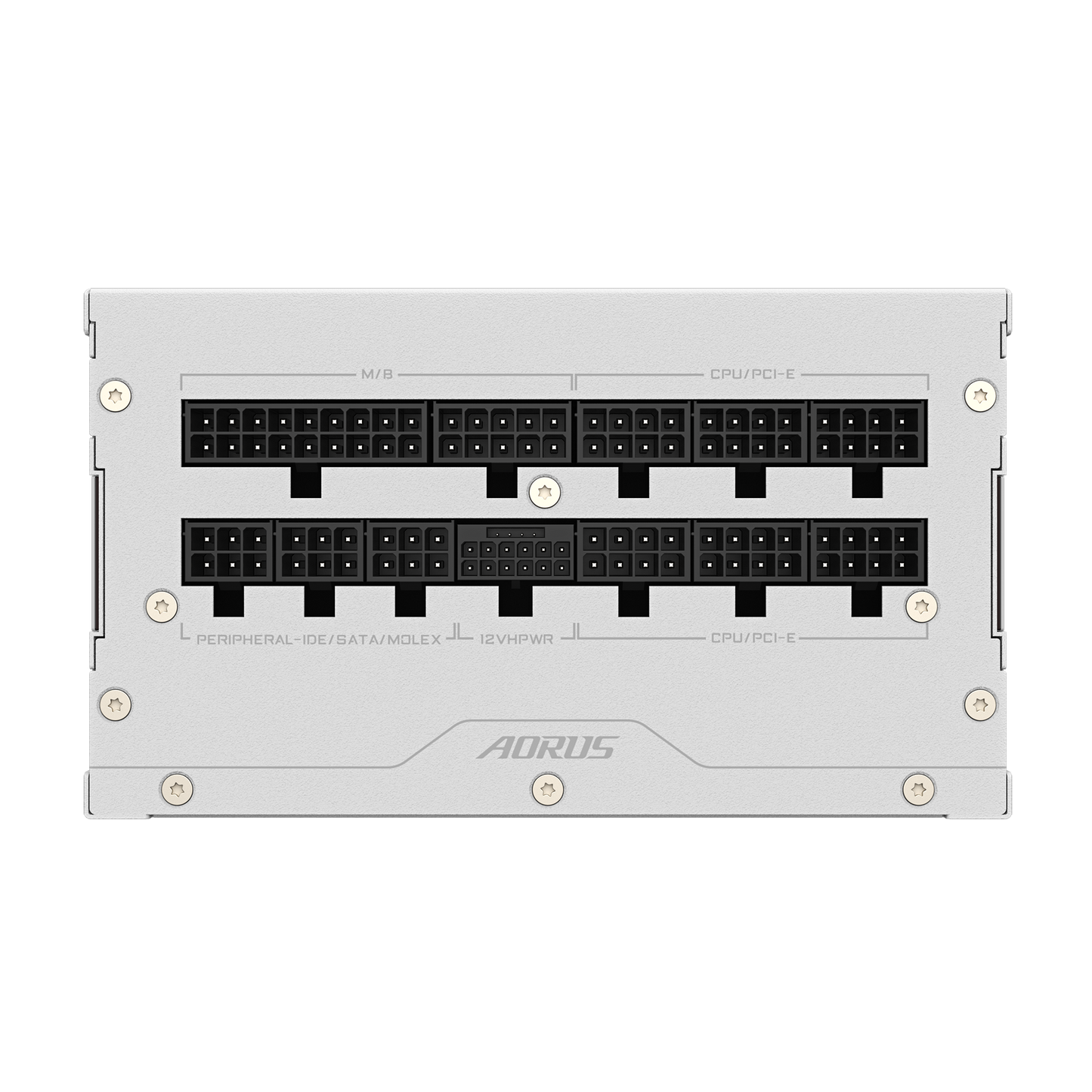

  • Connectors
    ATX/MB 20+4 Pin x 1 : 650mm*1
    CPU/EPS 4+4 Pin x 2 : 700mm*2
    PCI-e 16 Pin x 1: 700mm*1
    PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
    SATA x 8 : 600mm+150mm+150mm+150mm*2
    4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
