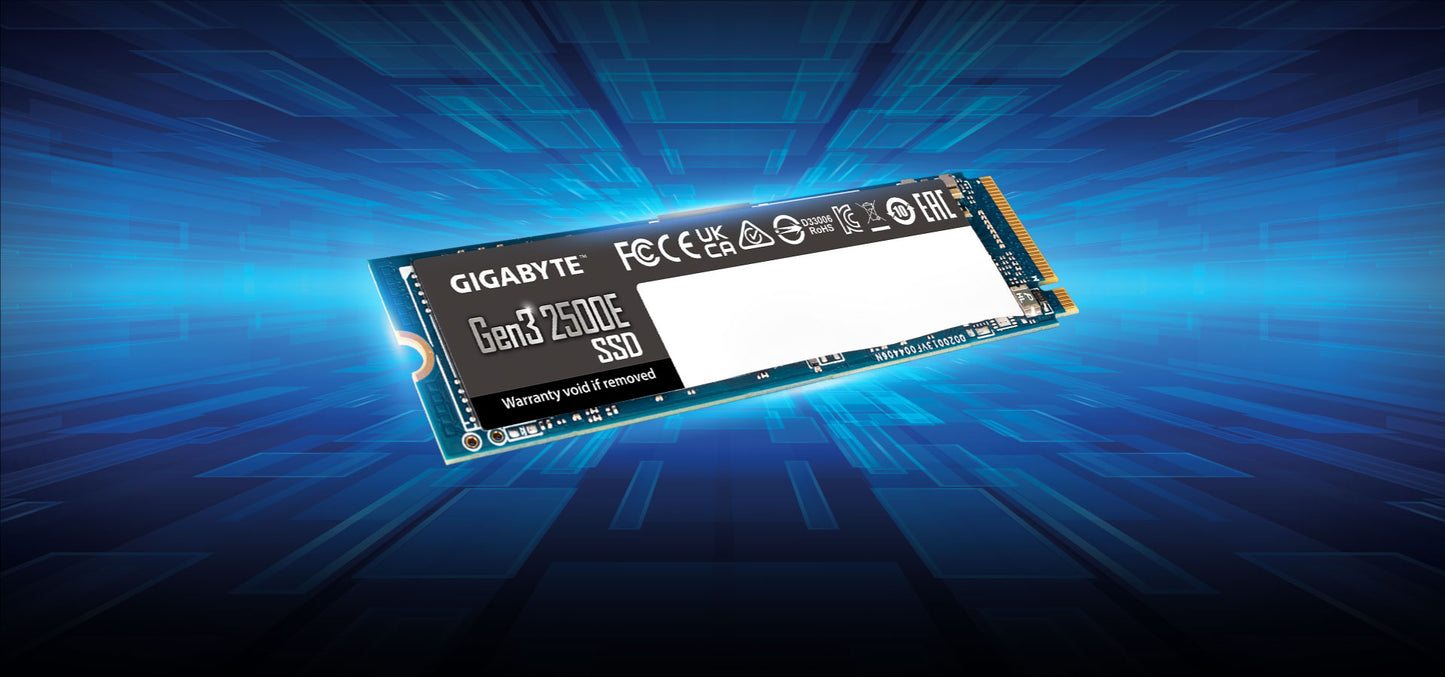

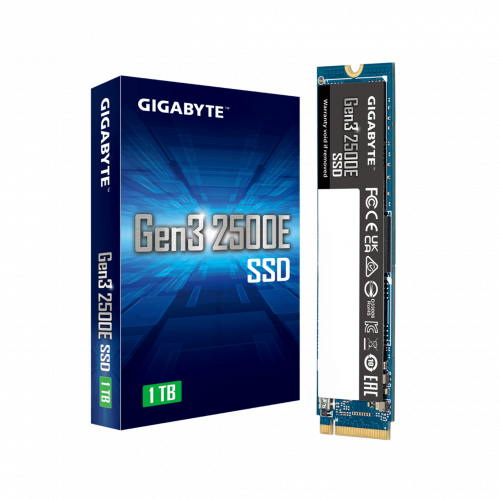

GIGABYTE GEN3 2500E SSD 1TB (GP-G325E1TB)

Upgrade Easily with GIGABYTE Gen3 2500E SSD
PCIe 3.0x4, NVMe 1.3
A worthy choice for your PC upgrade
GIGABYTE Gen3 2500E SSD adopts Phison’s controller and high-quality 3D NAND, delivers up to 2400 MB/s sequential read and 1800 MB/s sequential write performance. By utilizing Host Memory Buffer technology, the SSD controller can access the host DRAM without performance loss. Furthermore, GIGABYTE Gen3 2500E SSD features TRIM, SMART, and Over-Provision support to secure your data and perform stably.

• PCIe 3.0x4, NVMe1.3 interface
• Sequential Read Speed : up to 2,400 MB/s
• Sequential Write speed : up to 1,800 MB/s
• HMB (Host Memory Buffer) supported
• TRIM & S.M.A.R.T supported
• Energy-efficient

Breaking the Barriers of SATA Limitations (1TB)

• Outstanding performance
• GIGABYTE Gen3 2500E SSD provides performance for your daily computing tasks, boast of best controller & 3D NAND flash.
• Sequential read speeds up to 2400 MB/s
• Sequential write speeds up to 1800 MB/s
• GIGABYTE Gen3 2500E SSD gives you faster data transferring experience compared to 2.5" SATA solid state drive.

Host Memory Buffer (HMB)
The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.

* HMB feature is only supported by Windows 10 & 11.

Power Saving While Operating
Comparing with regular PCIe 3.0 x4 SSD, GIGABYTE Gen3 2500E SSD reduces about 40%+ power while operating. Power consumption of the GIGABYTE Gen3 2500E SSD is notably improved.
Power Consumption (mW)

SSD Tool Box
The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.
SSD tool box function may vary by model

Quality Guaranteed
Extreme Performance
Comes From High Standard Test
Reliability You Can Trust - 3 Years Limited Warranty
GIGABYTE Gen3 2500E SSD possess both high data transferring speed and enhanced endurance, providing durable MTBF* of 1.5 million hours and 3 years or 240TBW** limited warranty***.
* MTBF (Mean Time Between Failure): Measure of how reliable a hardware product or component is.
** TBW (Terabyte Written): the total amount of data that can be written into an SSD before it is likely to fail.
*** 3 years or 240TBW, whichever comes first.
**** TBW is evaluated by JEDEC workload standard.

Dimension
GIGABYTE Gen3 2500E SSD
Capacity* Model Sequential Read MB/s**(Up to) Sequential Write MB/s**(Up to)
500GB GIGABYTE Gen3 2500E SSD 500GB
(G325E500G)
2300 1500
1000GB GIGABYTE Gen3 2500E SSD 1TB
(G325E1TB)
2400 1800
* Note: 1GB = 1 billion bytes. Real useable capacity may vary by models.
** Speeds based on internal testing. Real performance may vary by models.

SPECIFICATION

• Interface
  PCIe 3.0x4, NVMe1.3 interface
• Form Factor
  M.2 2280
• Total Capacity
  1000GB
• External DDR Cache
  N/A
• Sequential Read speed
  Up to 2400 MB/s
• Sequential Write speed
  Up to 1800 MB/s
• Random Read IOPS
  Up to 130K
• Random Write IOPS
  Up to 350K
• Dimension
  22 x 2.3 x 80 mm
• Mean time between failure (MTBF)
  1.5 million hours
• Max. Operating Power
  Read: 2670mW
  Write: 3200mW
• Power Consumption (Idle, PS3)
  30mW
• Power Consumption(PS4, L1.2)
  5mW
• Temperature (Operating)
  0°C to 70°C
• Temperature (Storage)
  -40°C to 85°C
• Warranty
  • 1. Limited 3 years or 240TBW.
  • 2. Limited warranty based on 3 years or 240TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
    *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
  • 3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
• Note
  • • Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
  • • Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
  • • Speeds based on internal testing. Actual performance may vary.
  • • 1GB = 1 billion bytes. Actual useable capacity may vary.
