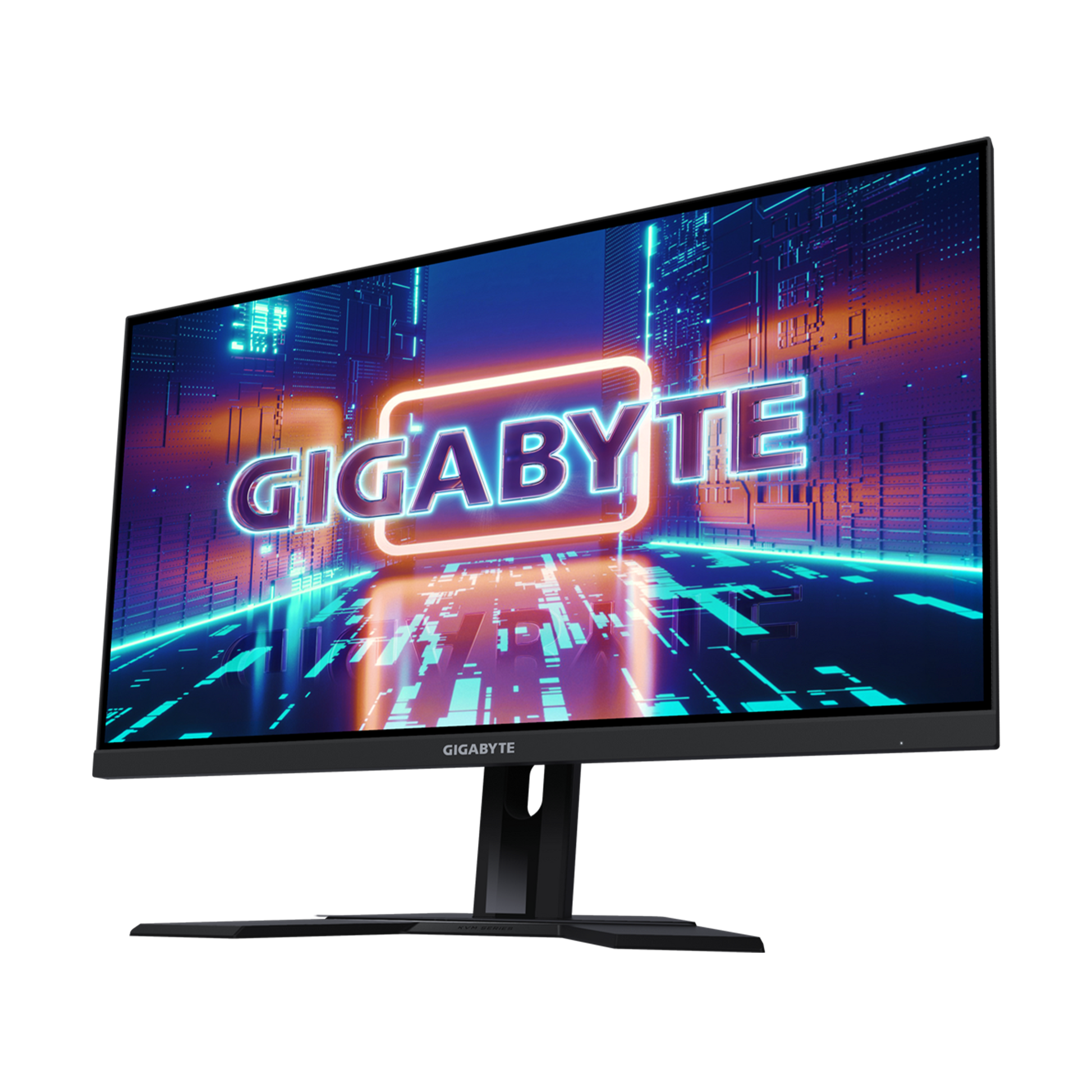

M27Q Gaming Monitor (rev. 1.0)

WORLD’S FIRST KVM GAMING MONITOR

It's time

THE LAST MILE FOR YOUR GAMING SYSTEM

As an unseen player, monitor is often being underestimated. The truth is monitors form as a synergistic effect and bring out the best performance of PC components. GIGABYTE gaming monitors offer the ultimate specifications and quality, users can truly enjoy upscale performance without the need for extravagance.

One For All

KVM feature allows you to control multiple devices via one set of keyboard, video and mouse. With our exclusive KVM button, you’ll find switching devices cannot be any easier! Quick like a snap!

Characteristic

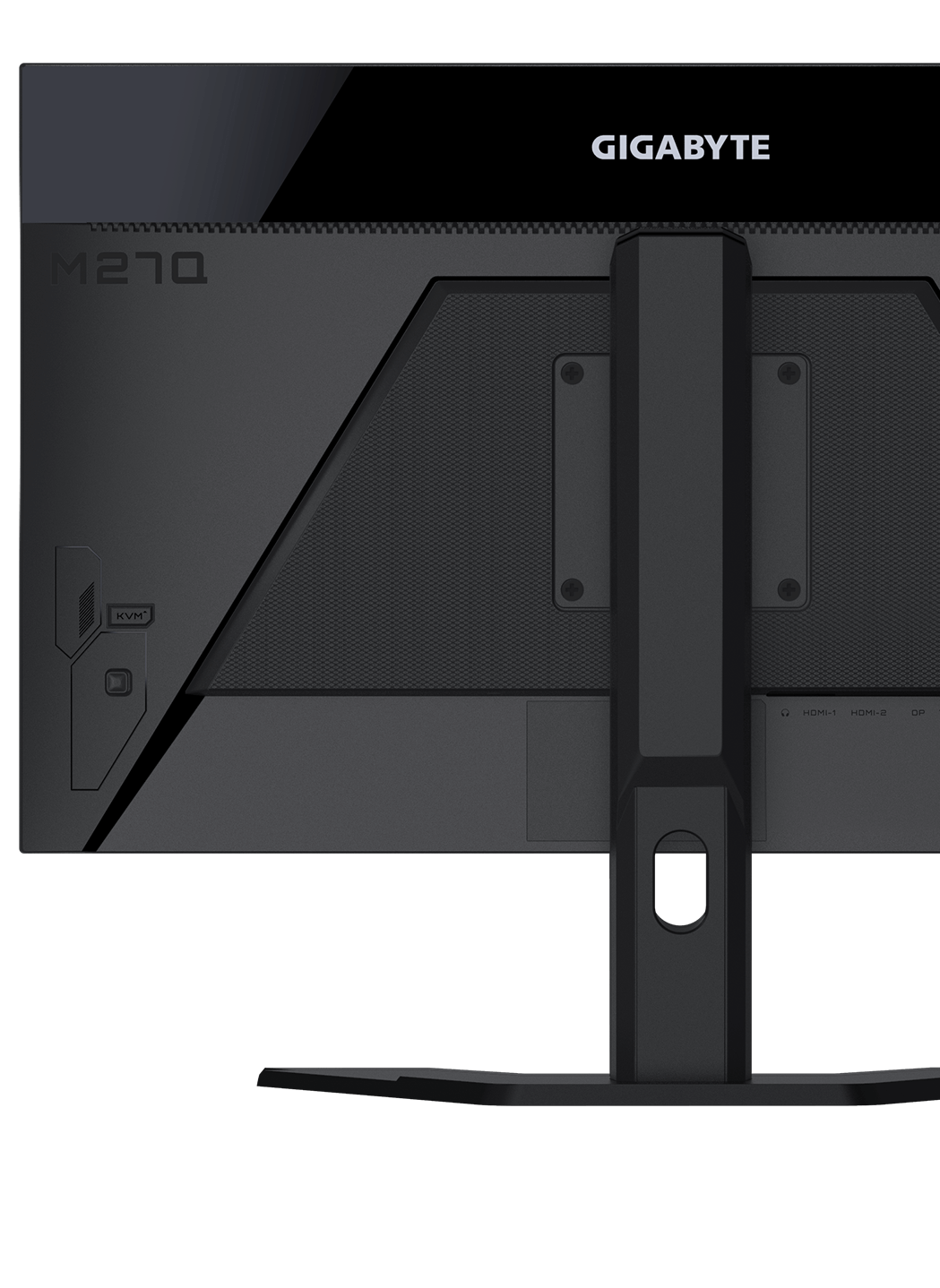

SIMPLE BUT STYLISH

The streamline appearance represents the simplicity of the GIGABYTE gaming series design philosophy, sturdy stand and matte finish built for functional and aesthetic features adding more to the characteristics.

OSD Sidekick

GIGABYTE OSD Sidekick allows you to set the display options with keyboard and mouse, giving you the easiest way to adjust monitor settings.

PERFECT VIEWING ANGLE

GIGABYTE Gaming monitor features an exclusive stand that's ergonomically designed to offer extensive range of height and tilt adjustments.

SPECIFICATION

• Panel Size (diagonal)
  27” SS IPS
• Display Viewing Area (HxV)
  596.736 x 335.663 (mm)
• Panel Backlight/ Type
  Edge type
• Display Surface(non-glare/ glare)
  Non-glare
• Color Saturation
  92% DCI-P3 / 140% sRGB
• True Resolution
  2‎560 x 1440 (QHD)
• Pixel Pitch
  0.2331 (H) x 0.2331 (V) (mm)
• Brightness
  350 cd/m2 (TYP)
• Contrast Ratio
  1000:1
• Dynamic Contrast Ratio
  100M:1
• Viewing Angle
  178°(H)/178°(V)
• Display Colors
  8 bits
• Response Time
  0.5ms (MPRT)
• Refresh Rate
  170Hz
• HDR
  VESA Display HDR400
• Flicker-free
  Yes
• Connectivity
  HDMI 2.0 x2
  Display port 1.2 x1 (capable for HDR)
  USB Type-C x1
• Earphone Jack
  Yes
• Unique Features
  OSD Sidekick^*
  Aim Stabilizer
  Black Equalizer
  Dashboard
  Crosshair
  Timer
  Counter
  Crosshair
  PiP/PbP
  Auto-Update
  KVM
• USB port(s)
  USB 3.0 x2
• Power Type
  Power adapter
• AC Input Max
  58W
• Power Saving Mode
  0‎.5W
• Power Off Mode
  0‎.3W
• Voltage
  1‎9VDC 3.42A
• Tilt(angle)
  -5°~+20°
• Swivel(angle)
  N/A
• Pivot(angle/direction)
  N/A
• Height Adjustment (mm)
  130mm
• VESA Wall Mounting(mm)
  100*100mm
• Kensington lock
  Yes
• Phys. Dimension with Stand(WxHxD)
  615.11*533.55*202.97
• Phys. Dimension w/o stand  (WxHxD)
  615.11*367.35*42.22
• Box Dimension (WxHxD)
  720*470*200
• Net Weight (Esti.)
  5.5
• Gross Weight (Esti.)
  7.79
• Accessories
  Power cable/HDMI cable/DP cable/ USB cable/QSG/Warranty card
• Note
  * To enable OSD Sidekick, it requires connection between PC and monitor with USB (A-Male to B-Male) cable.
