Description

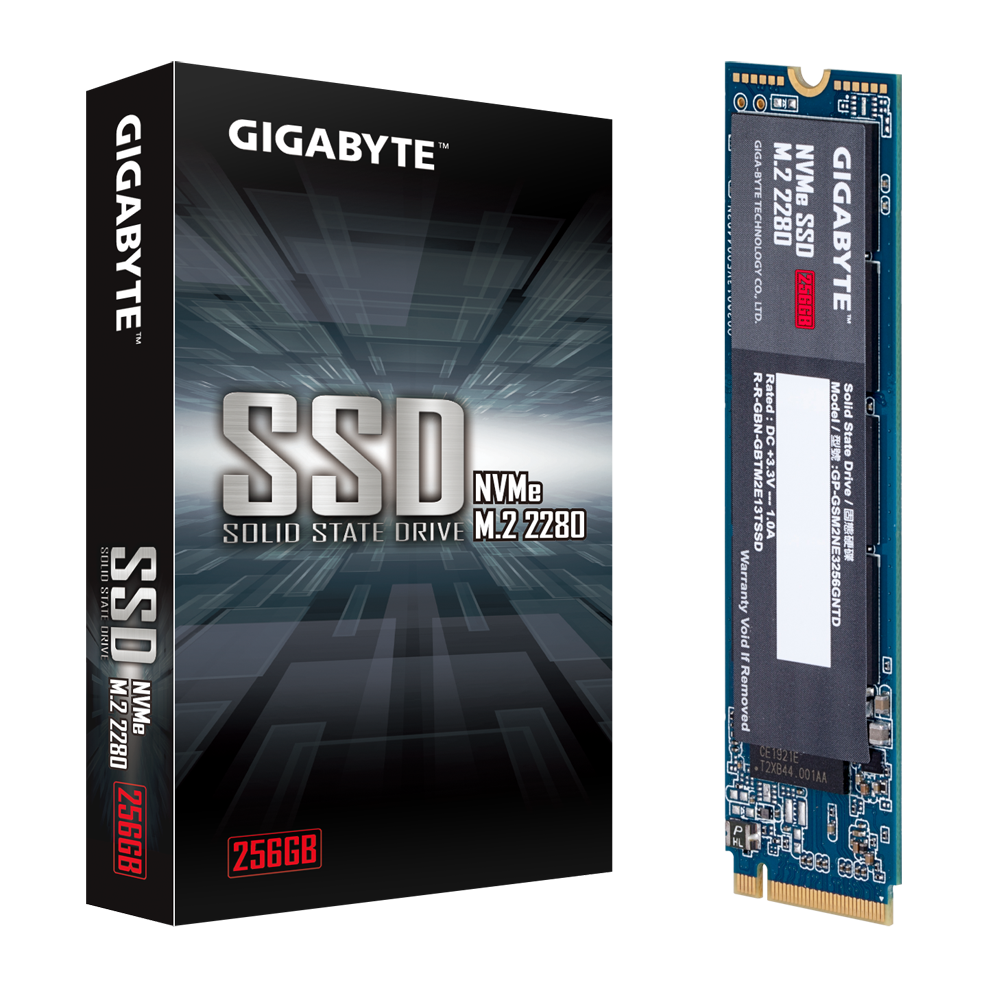

GIGABYTE NVMe SSD 256GB (GP-GSM2NE3256GNTD)
- Form Factor: M.2 2280
- Interface: PCI-Express 3.0 x4, NVMe 1.3
- Total Capacity: 256GB*
- Warranty: Limited 5-year or 300TBW
- Sequential Read Speed : up to 1700 MB/s**
- Sequential Write speed : up to 1100 MB/s**
- HMB (Host Memory Buffer) supported
- TRIM & S.M.A.R.T supported
*Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
**Speeds based on internal testing. Actual performance may varies
SPECIFICATION
-
InterfacePCI-Express 3.0 x4, NVMe 1.3
-
Form FactorM.2 2280
-
Total Capacity256GB
-
NANDNAND Flash
-
External DDR CacheN/A
-
Sequential Read speedUp to 1700 MB/s
-
Sequential Write speedUp to 1100 MB/s
-
Random Read IOPSUp to 180k
-
Random Write IOPSUp to 250k
-
Dimension80 x 22 x 2.3 mm
-
Mean time between failure (MTBF)1.5M hours
-
Max. Operating PowerRead: 2.6W
Write:2.4W -
Power Consumption (Idle, PS3)30mW
-
Power Consumption(PS4, L1.2)5mW
-
Temperature (Operating)0°C to 70°C
-
Temperature (Storage)-40°C to 85°C
-
Warranty
- 1. Limited 5-years or 300TBW.
- 2. Limited warranty based on 5 years or 300TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail. - 3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
-
Note
- Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
- Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
- Speeds based on internal testing. Actual performance may vary.
- 1GB = 1 billion bytes. Actual useable capacity may vary.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to m
