Description
KEY FEATURE

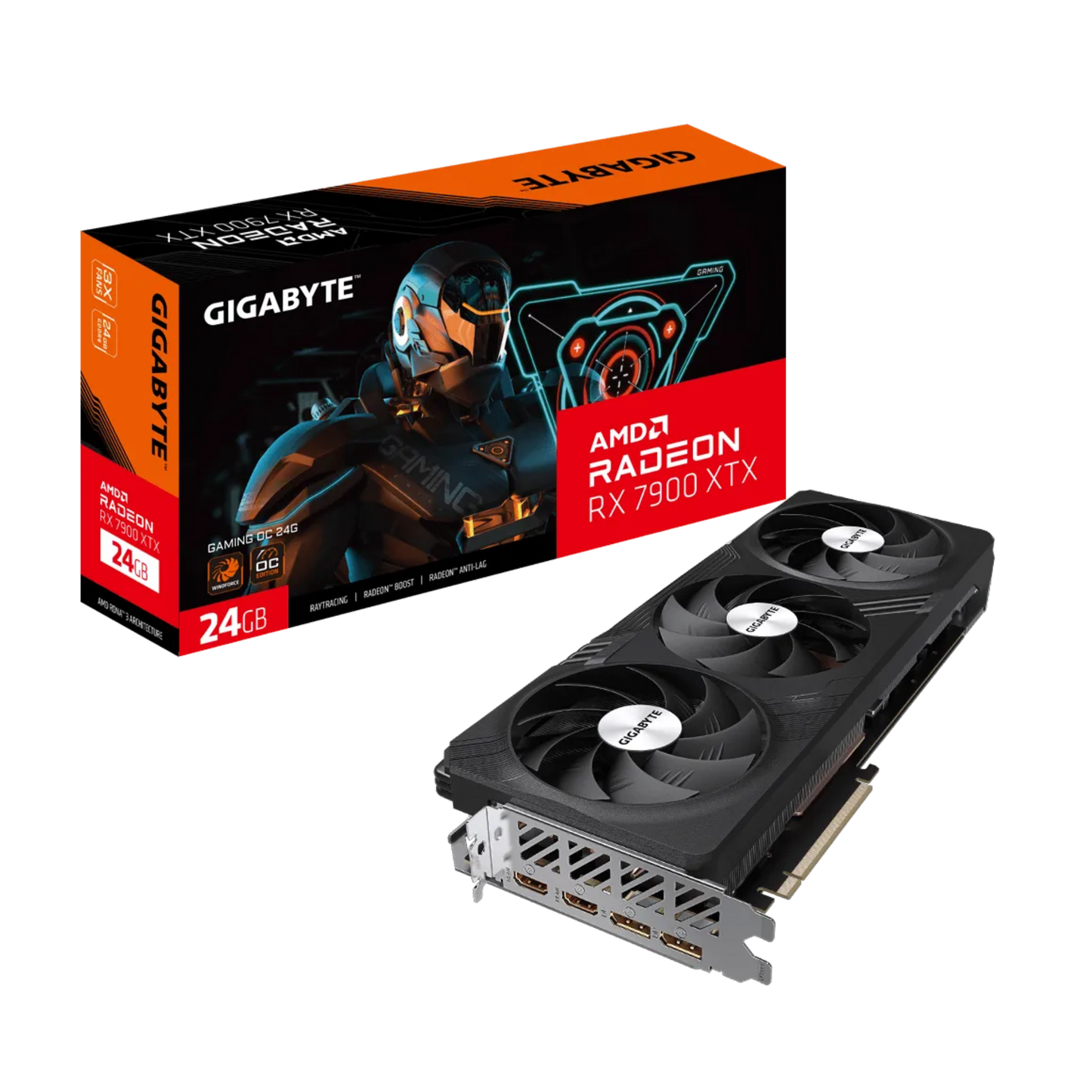

- Powered by Radeon™ RX 7900 XTX
- Integrated with 24GB GDDR6 384-bit memory interface
- WINDFORCE Cooling System
- RGB Fusion
- Dual BIOS
- Protection metal back plate
- Anti-sag bracket
CORE CLOCK
Boost Clock* : up to 2525 MHz (Reference card: 2500 MHz)
Game Clock* : up to 2330 MHz (Reference card: 2300 MHz)
SPECIFICATION
-
Graphics ProcessingRadeon™ RX 7900 XTX
-
Core ClockBoost Clock* : up to 2525 MHz (Reference card: 2500 MHz)
Game Clock* : up to 2330 MHz (Reference card: 2300 MHz) -
Stream Processors6144
-
Memory Clock20 Gbps
-
Memory Size24 GB
-
Memory TypeGDDR6
-
Memory Bus384 bit
-
Card BusPCI-E 4.0
-
Digital max resolution7680x4320
-
Multi-view4
-
Card sizeL=331 W=138 H=50 mm
-
PCB FormATX
-
DirectX12 Ultimate
-
OpenGL4.6
-
Recommended PSU850W
-
Power Connectors8 Pin*2
-
OutputDisplayPort 2.1 *2
HDMI 2.1 *2 -
Accessories1. Quick guide
2. Anti-sag bracket
3. Anti-sag bracket installation guide -
Note* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
