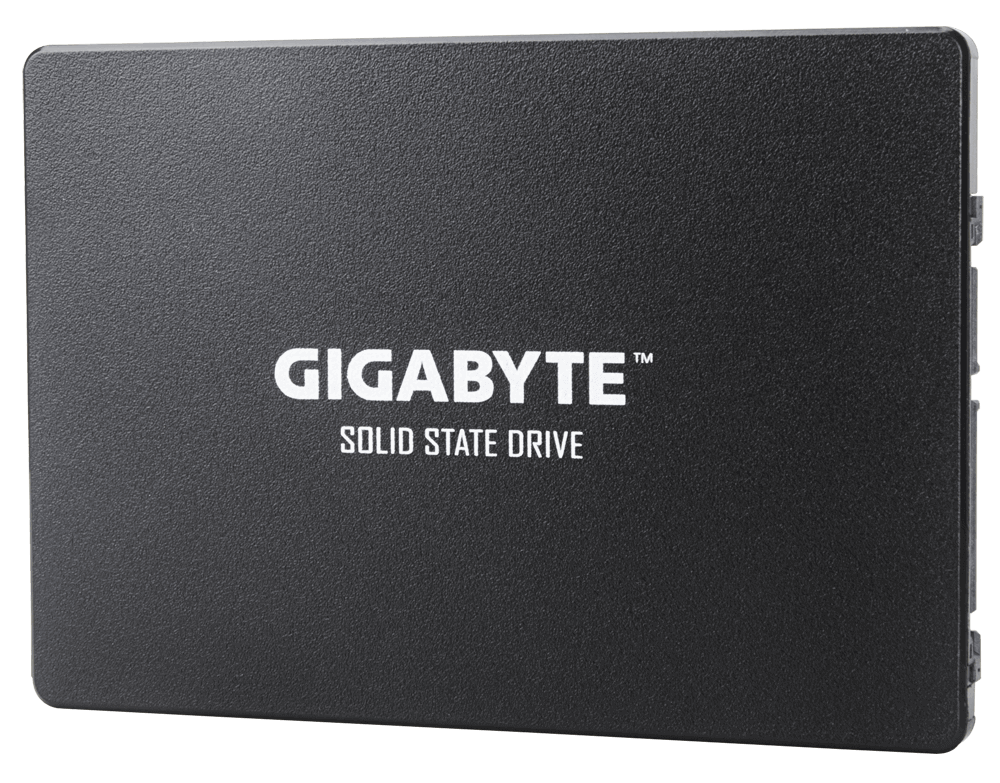

GIGABYTE SSD 1TB (GP-GSTFS31100TNTD)

• Form Factor: 2.5-inch internal SSD
• Interface: SATA 6.0Gb/s
• Total Capacity: 1TB*
• Warranty: Limited 3-years
• Sequential Read speed : up to 550 MB/s**
• Sequential Write speed : up to 500 MB/s**
• TRIM & S.M.A.R.T supported

*Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
**Speeds based on internal testing. Actual performance may vary.

SPECIFICATION

• Interface
  SATA 6.0Gb/s
• Form Factor
  2.5-inch internal SSD
• Total Capacity
  1TB
• NAND
  3D NAND Flash
• External DDR Cache
  N/A
• Sequential Read speed
  Up to 550 MB/s
• Sequential Write speed
  Up to 500 MB/s
• Random Read IOPS
  up to 75k
• Random Write IOPS
  up to 85k
• Dimension
  69.85 x 7 x 100 mm
• Mean time between failure (MTBF)
  2M hours
• Power Consumption (Active)
  Average : R : 2240mW; W : 2610mW
• Power Consumption (Idle)
  AVG. 330mW
• Temperature (Operating)
  0°C to 70°C
• Temperature (Storage)
  -40°C to 85°C
• Warranty
  • 1. Limited 3-years or 600TBW
  • 2. Limited warranty based on 3 years or 600TBW, whichever comes first.
    *TBW (Terabyte Written):Terabytes Written is the total amount of data that can be written into an SSD before it is likely to fail.
  • 3. The "percentage of SSD life" (SMART ID: E7 or A9) in SMART page of the "GIGABYTE SSD toolbox" program will be used as the determining criteria when the number is 0 means out of warranty. (A new unused product will show the percentage of 100.)
• Note
  • • Test system configuration: configuration may vary by models; we will choose the latest platform for verification.
  • • Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
  • • Speeds based on internal testing. Actual performance may vary.
  • • 1GB = 1 billion bytes. Actual useable capacity may vary.
