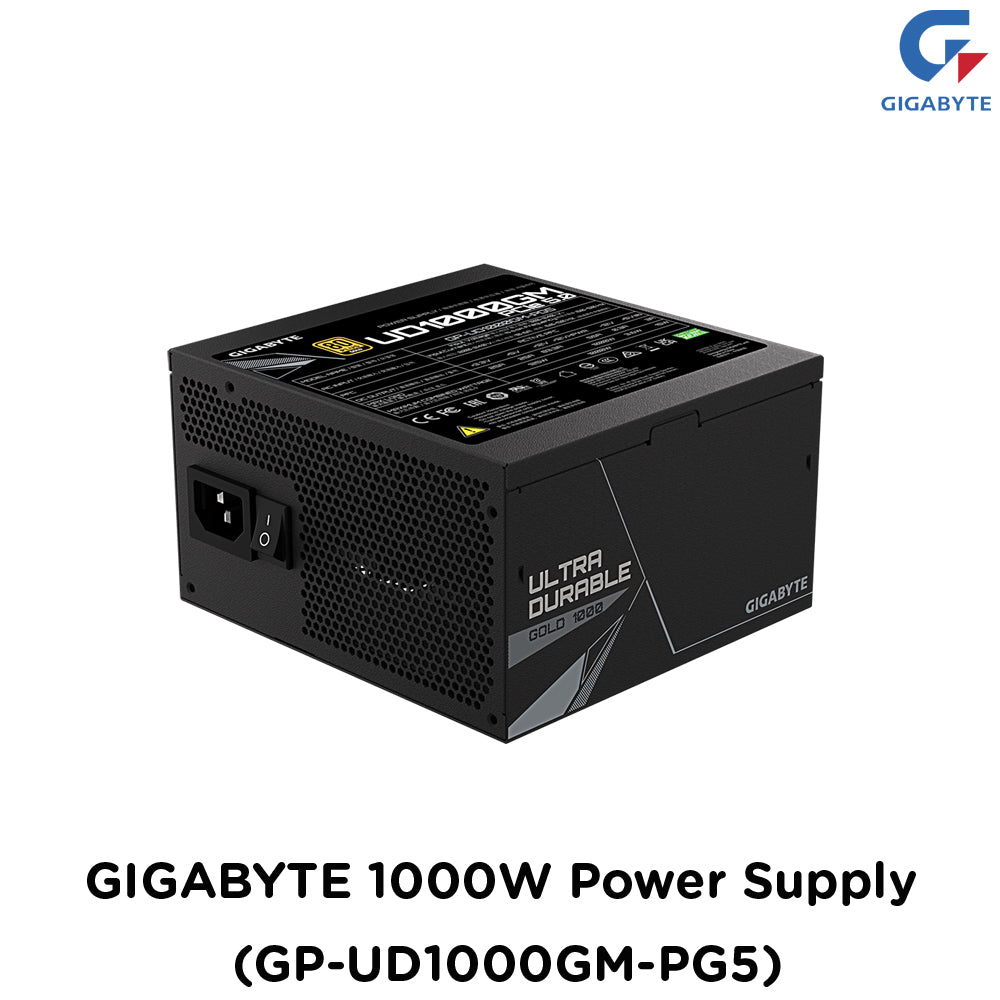

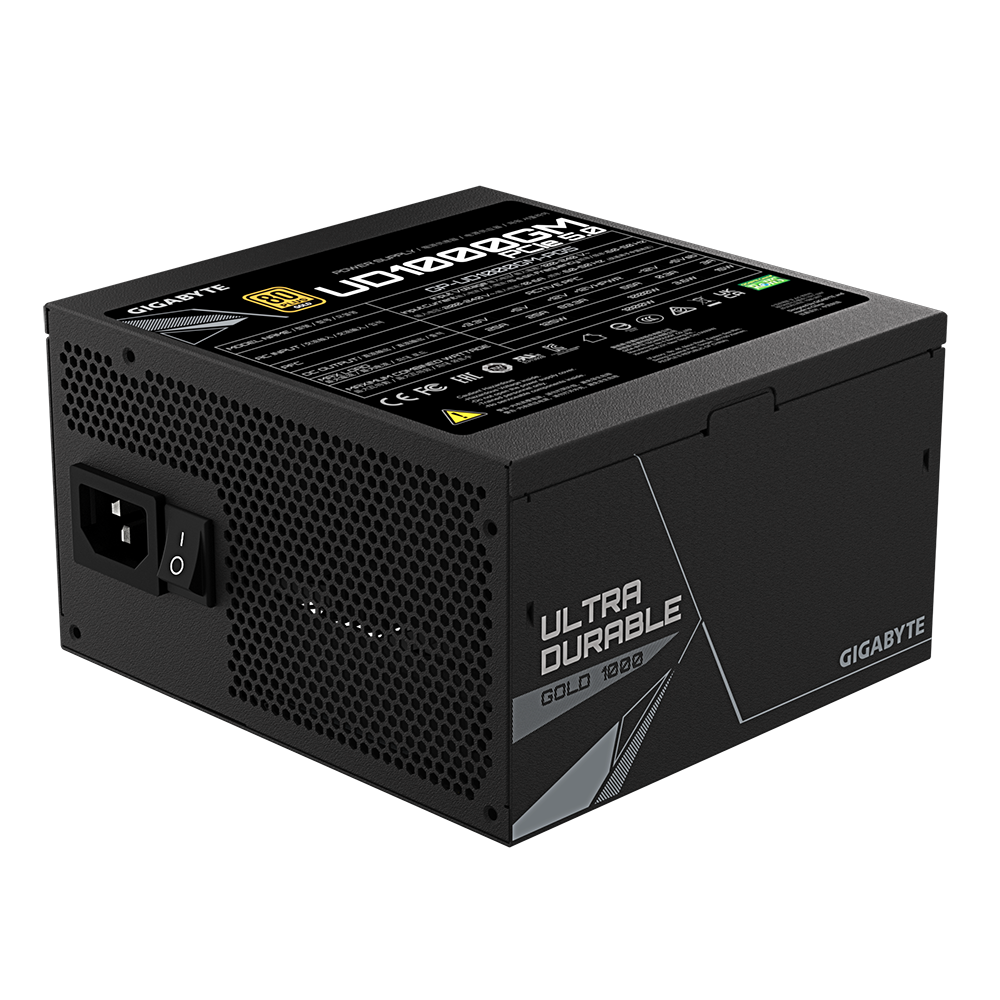

GIGABYTE UD1000GM PG5 (rev. 1.0)  Power Supply (GP-UD1000GM-PG5)

KEY FEATURE

• Ultra Durable
• Main Japanese capacitors
• Enhanced thermal solution

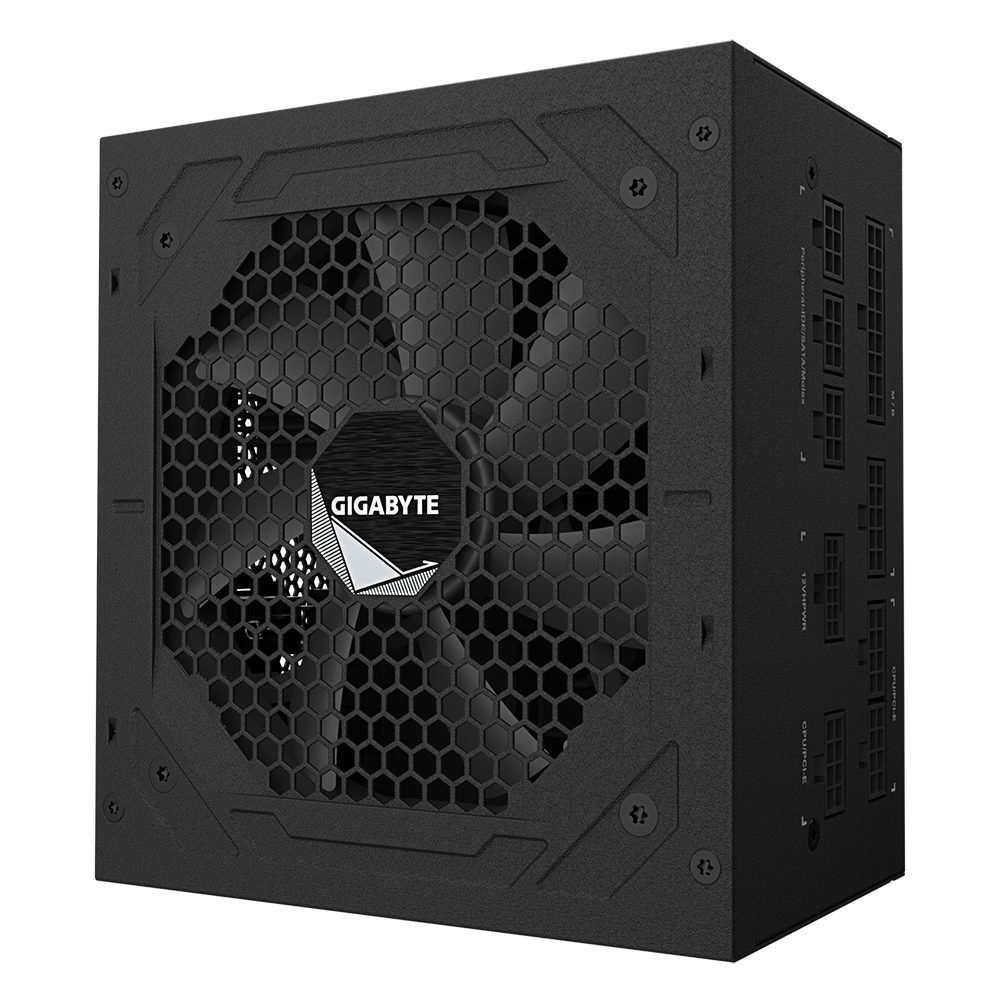

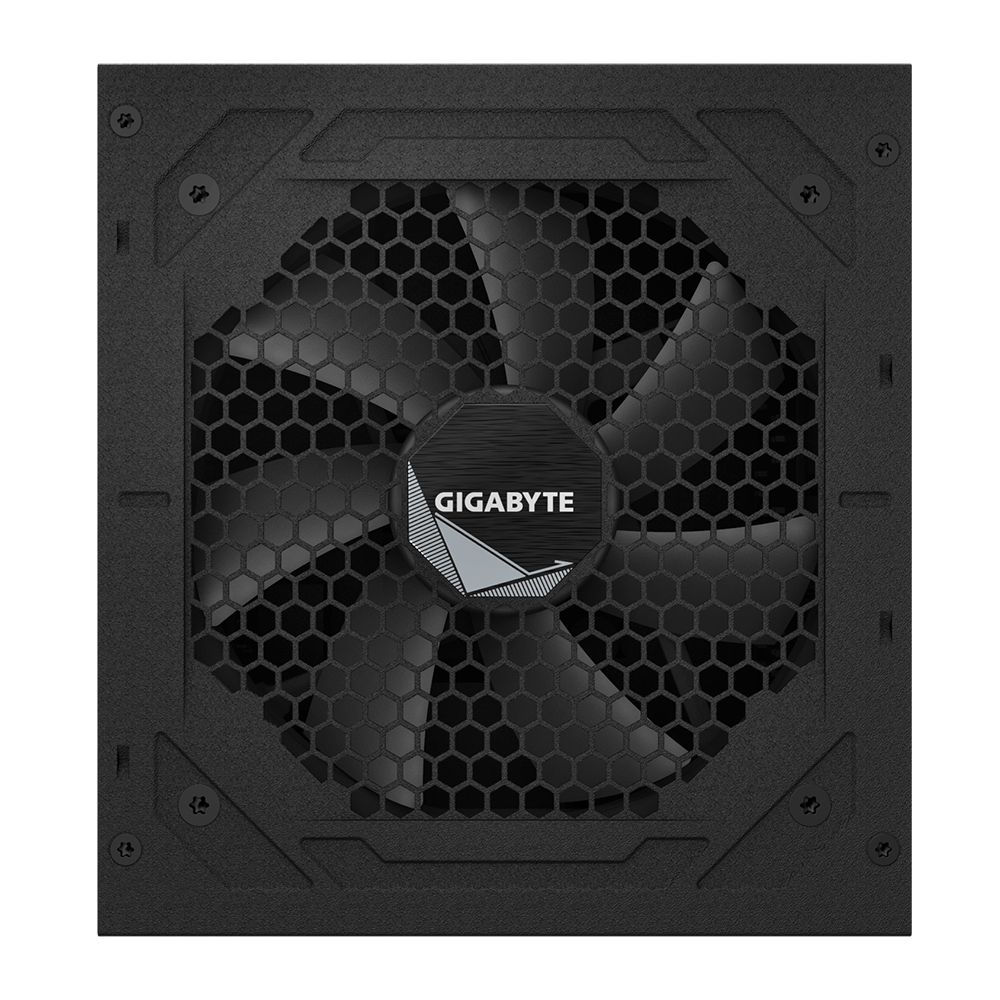

• 120mm smart hydraulic bearing (HYB) fan
• OVP/OPP/SCP/UVP/OCP/OTP protection
• Support PCIe Gen 5.0 graphics card

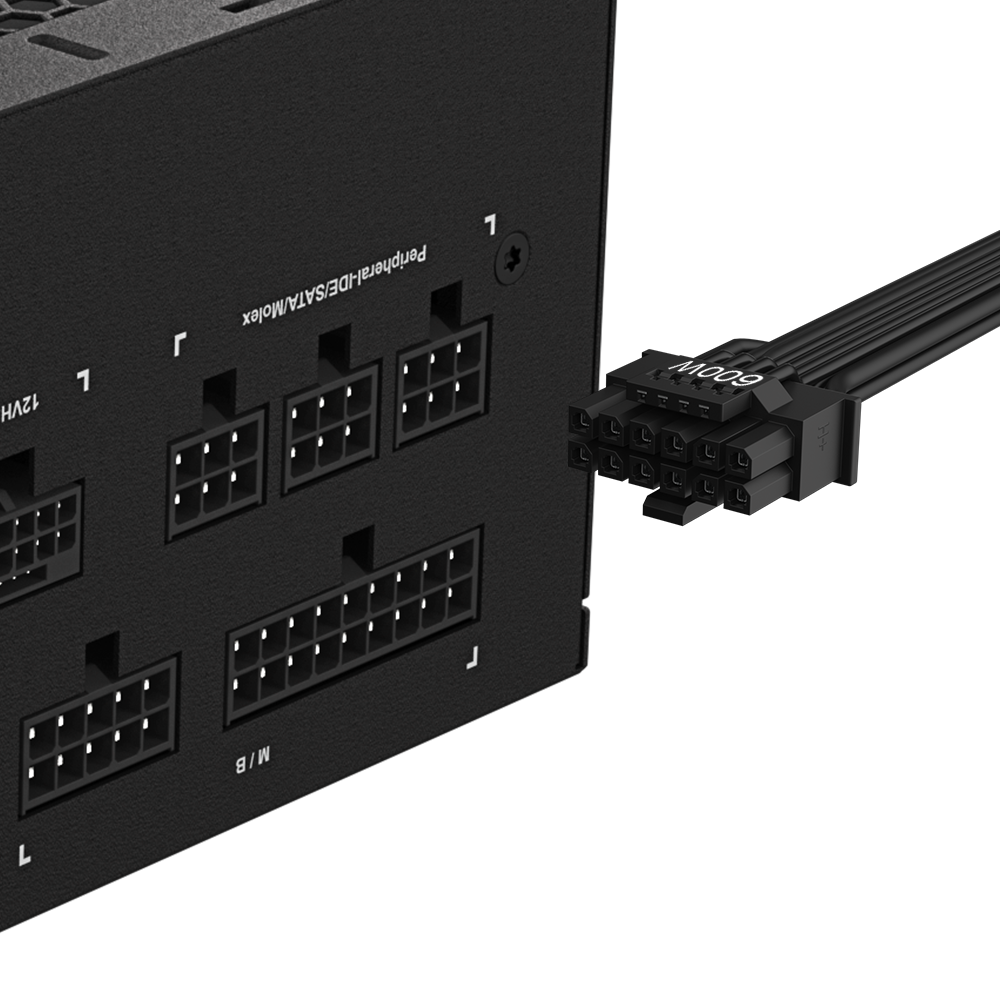

• High-quality native 16-pin cable supports 600W output
• 80 PLUS Gold certified

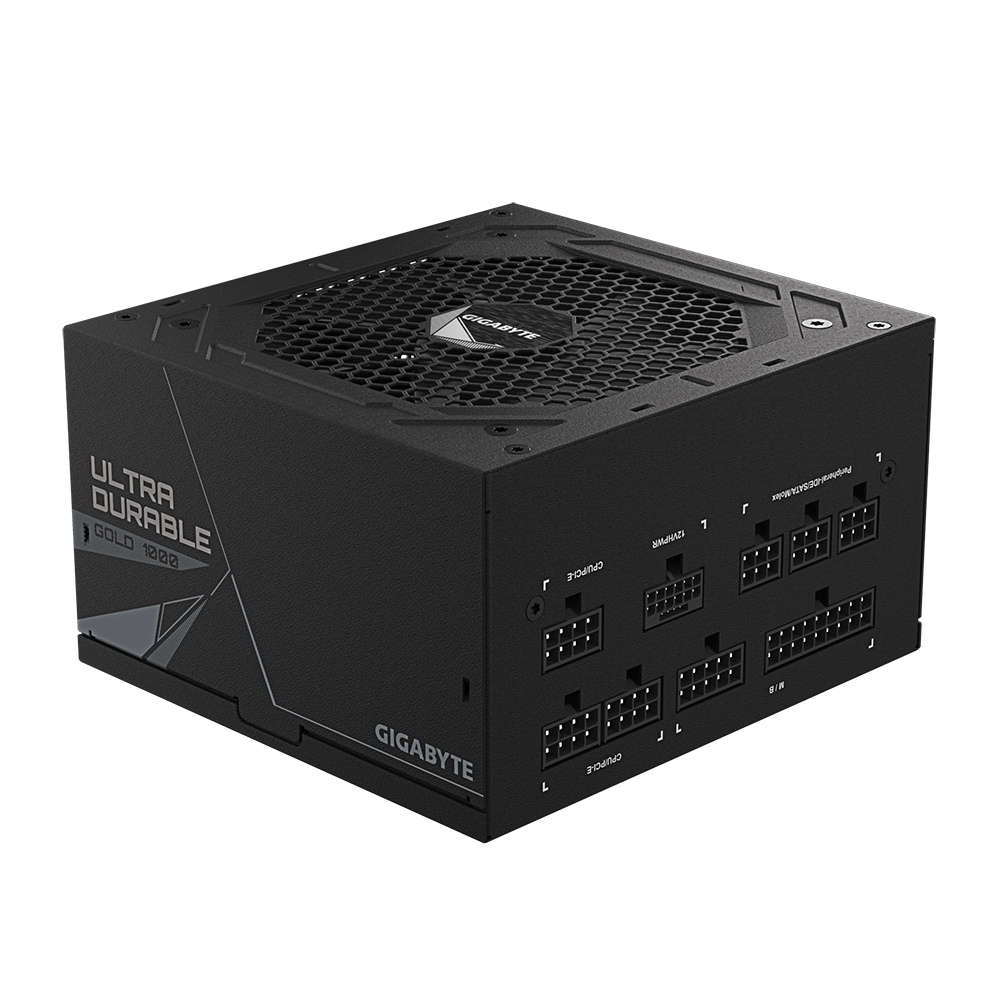

• Fully modular design
• Compact design
• 10 years warranty (Adjusted according to different regions)

SPECIFICATION

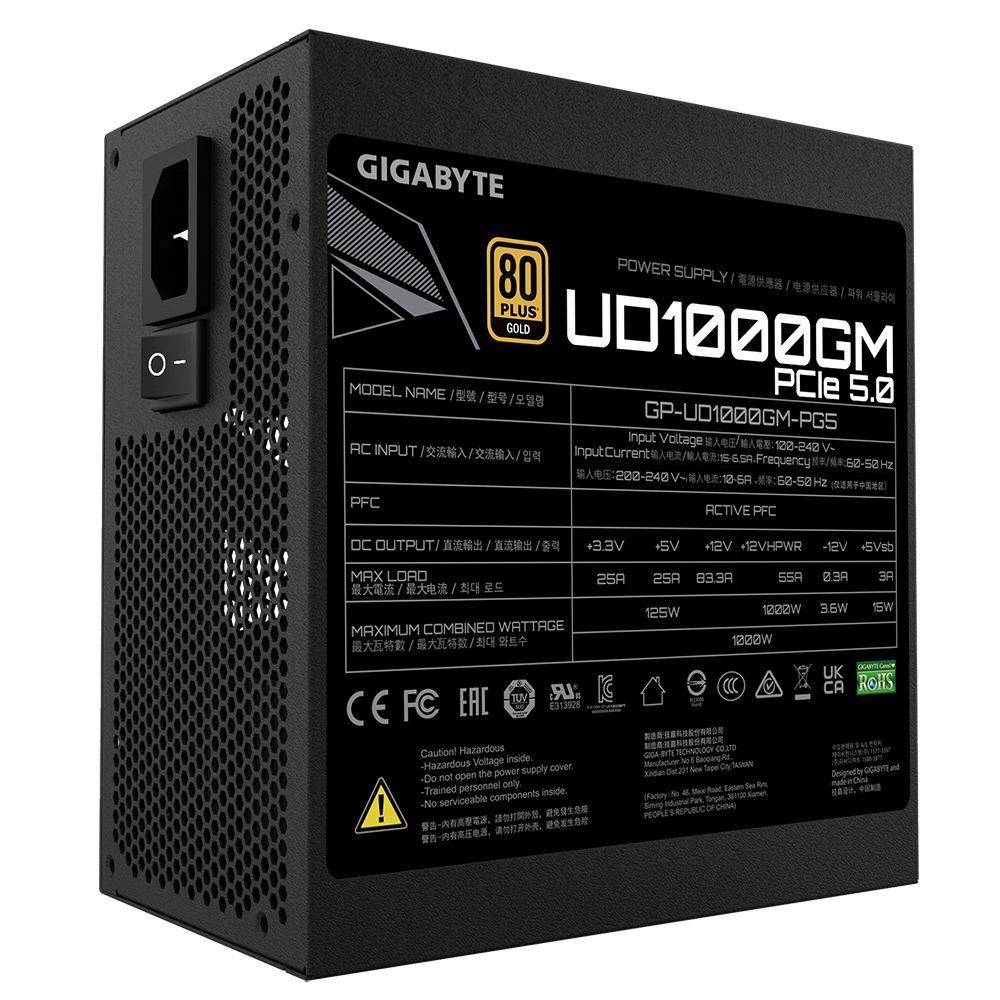

• Model
  GP-UD1000GM PG5
• Type
  Intel Form Factor ATX 12V
• PFC
  Active PFC (>0.9 typical)
• Input Voltage
  100-240 Vac (full range)
• Input Current
  15-6.5A
• Input Frequency
  60-50 Hz
• Output Capacity
  1000W
• Dimension
  150 x 140 x 86 mm
• Fan Type
  120mm Hydraulic Bearing(HYB)fan
• 80 PLUS
  Gold
• Efficiency
  90% at typical load
• MTBF
  >100,000 hours
• Protection
  OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal
  100-150ms
• Hold Up Time
  >16ms
• Cable Type
  Flat, All black

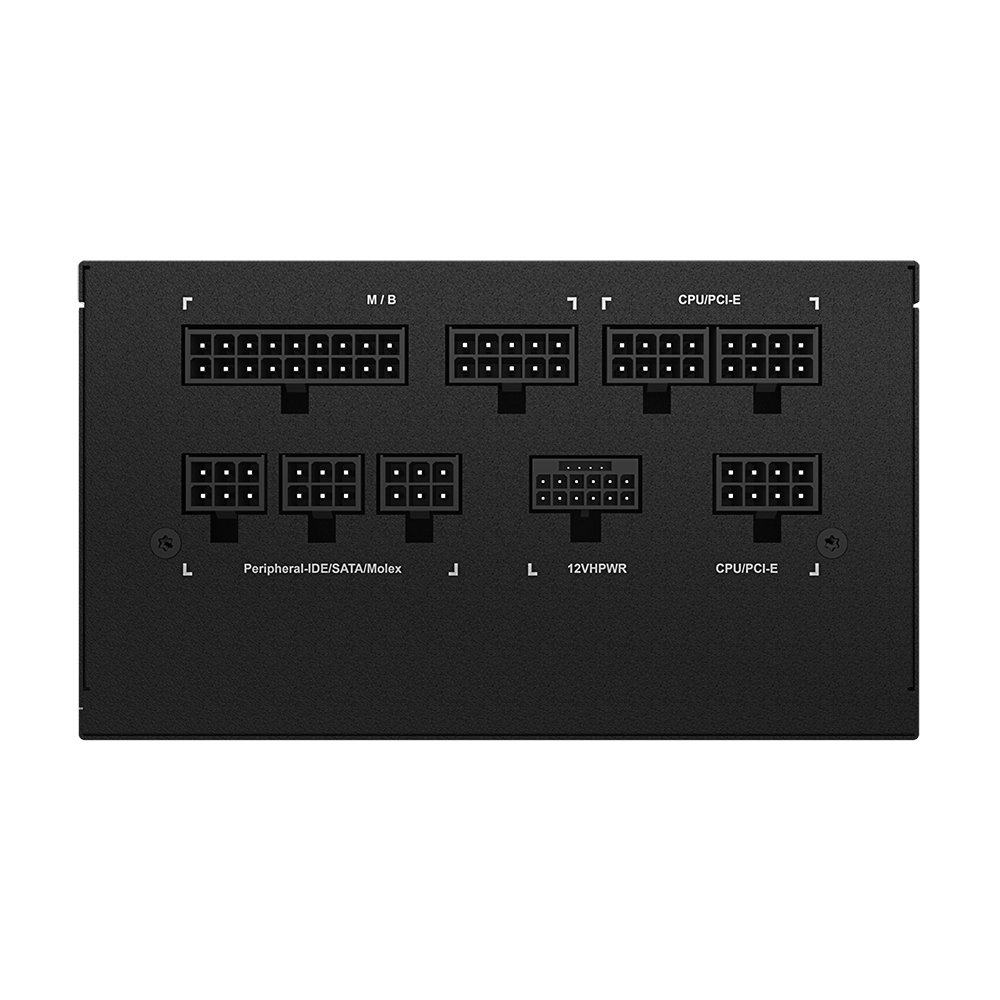

• Connectors
  ATX/MB 20+4 Pin x 1 : 610mm*1
  CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
  PCI-e 16 Pin x 1: 700mm*1
  PCI-e 6+2 Pin x 4 : 600mm+150mm*2
  SATA x 8 :
  600mm+150mm+150mm+150mm*2
  4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
