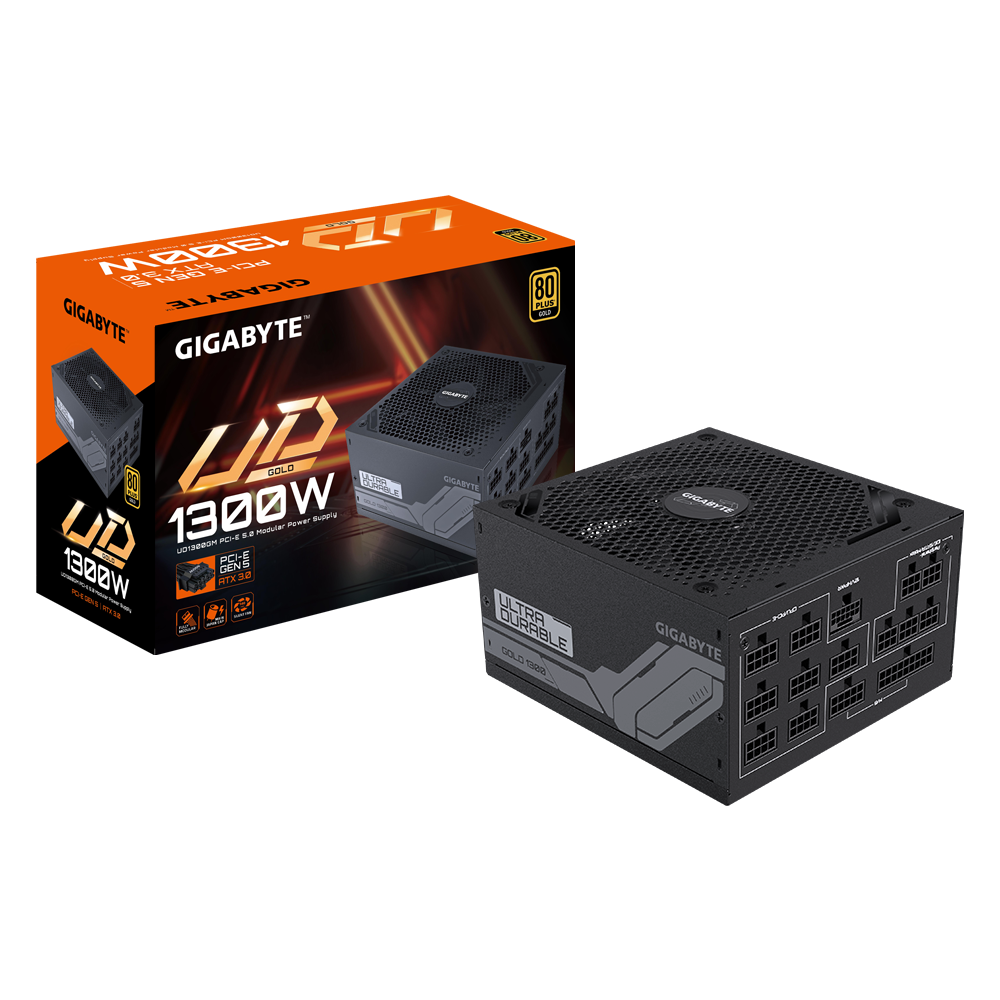

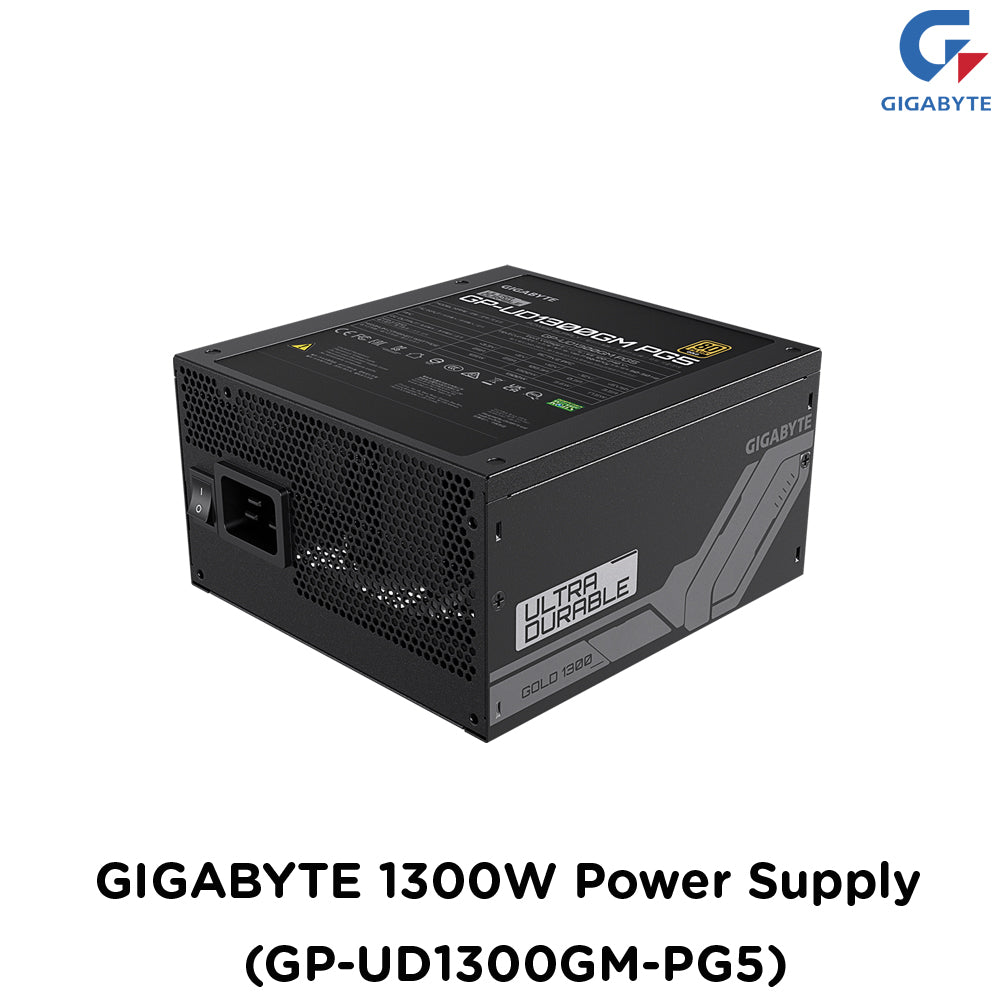

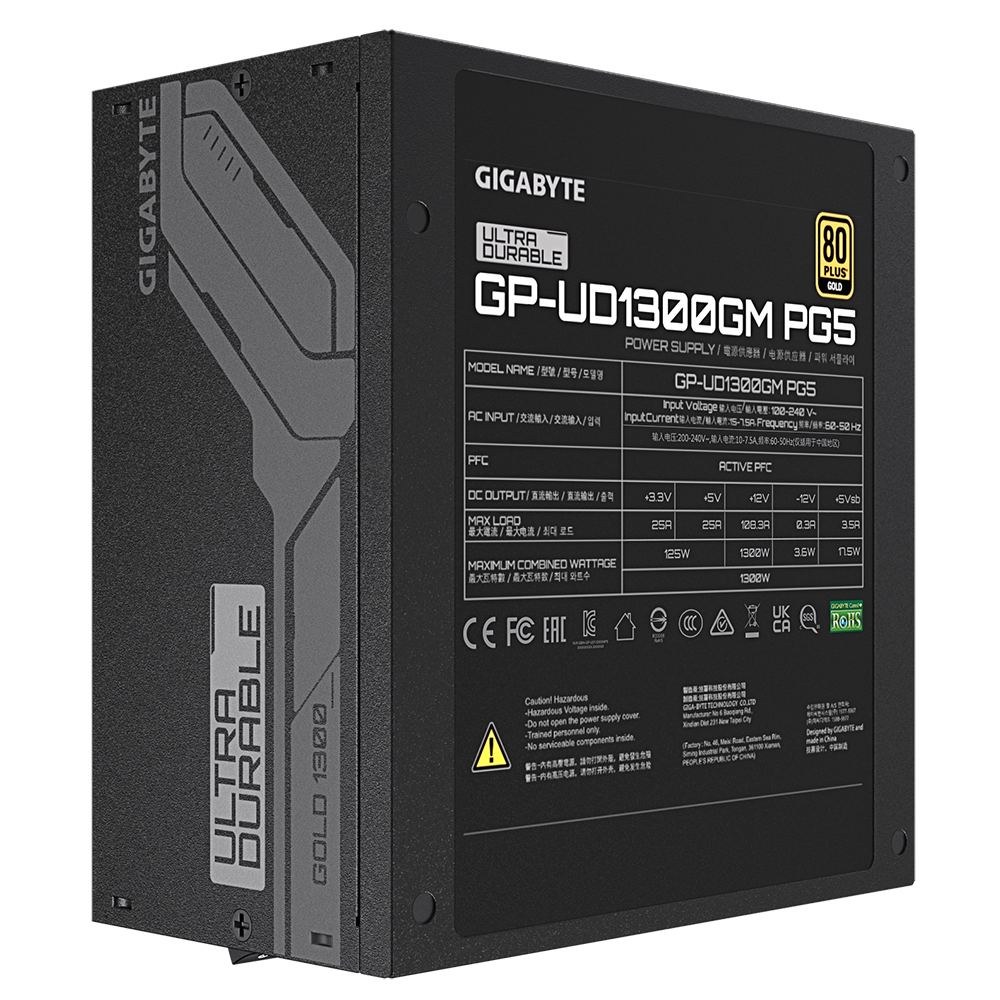

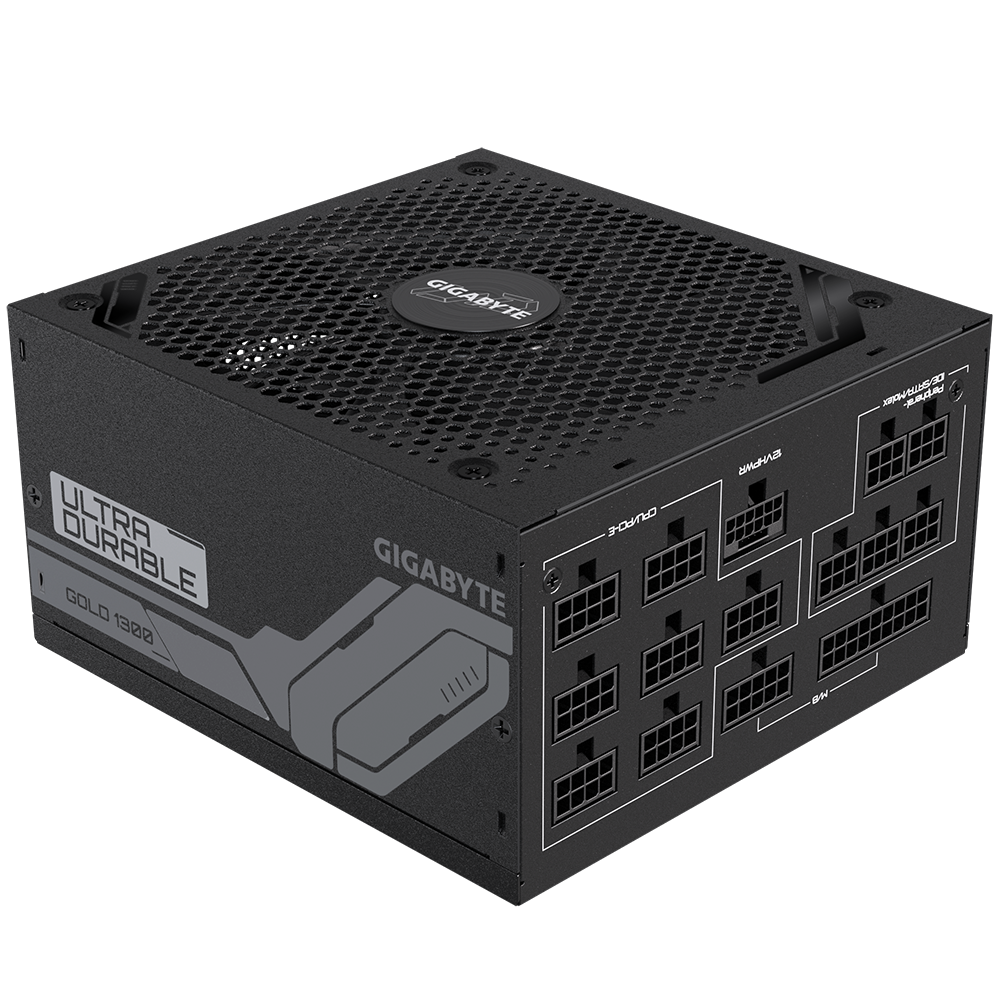

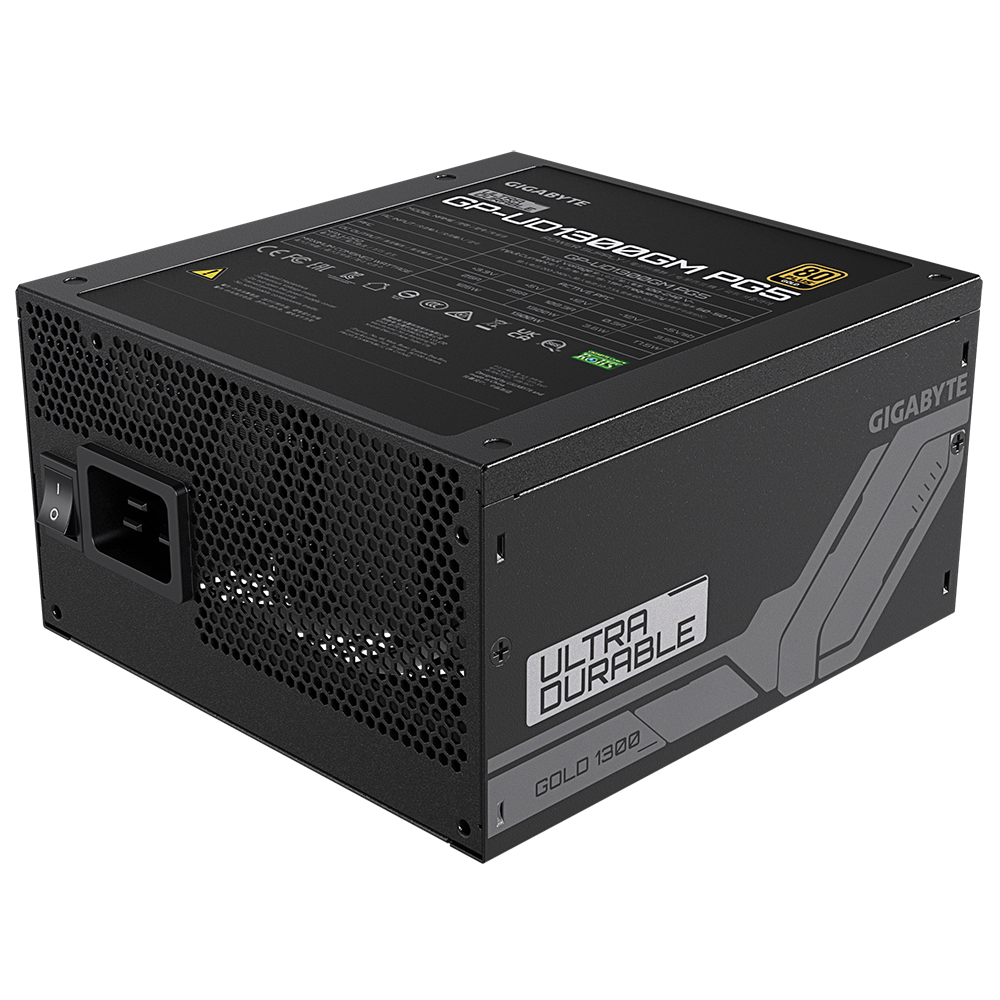

GIGABYTE UD1300GM PG5 Power Supply (GP-UD1300GM-PG5)

KEY FEATURE

• Ultra Durable
• Main Japanese capacitors
• Enhanced thermal solution

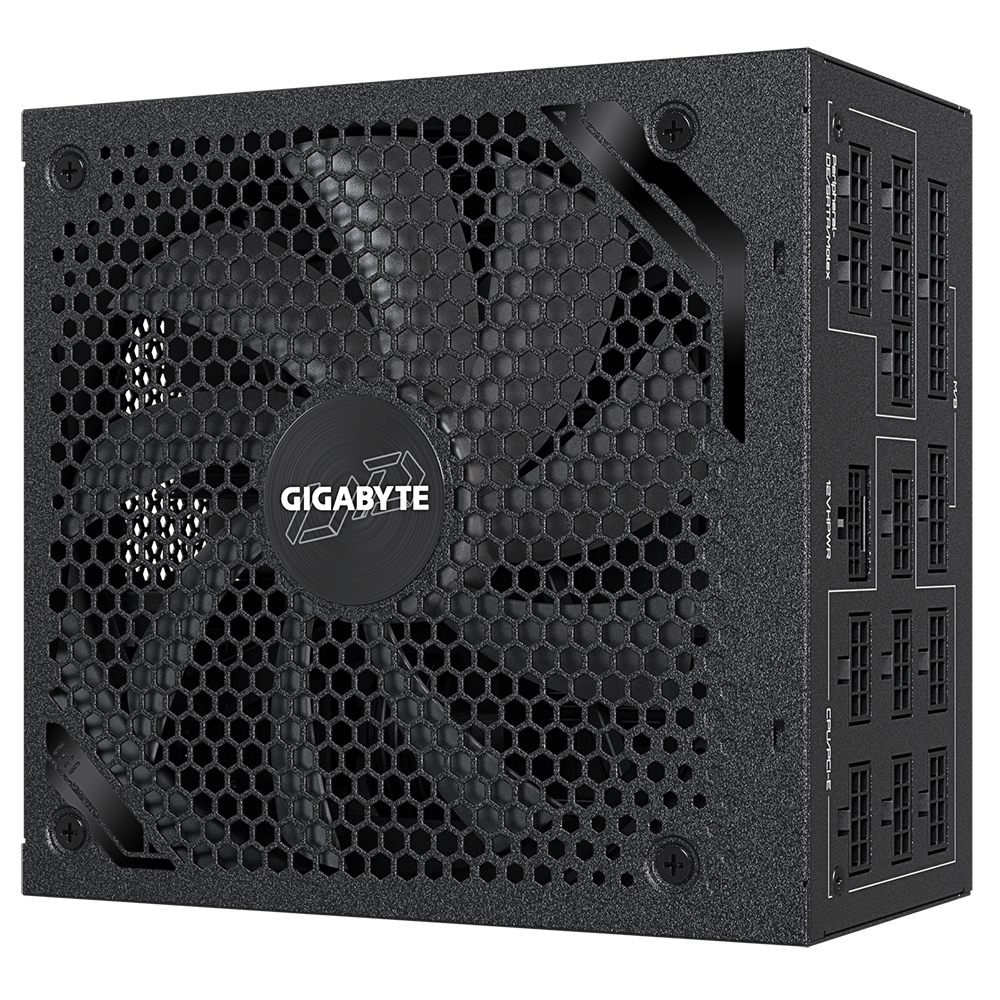

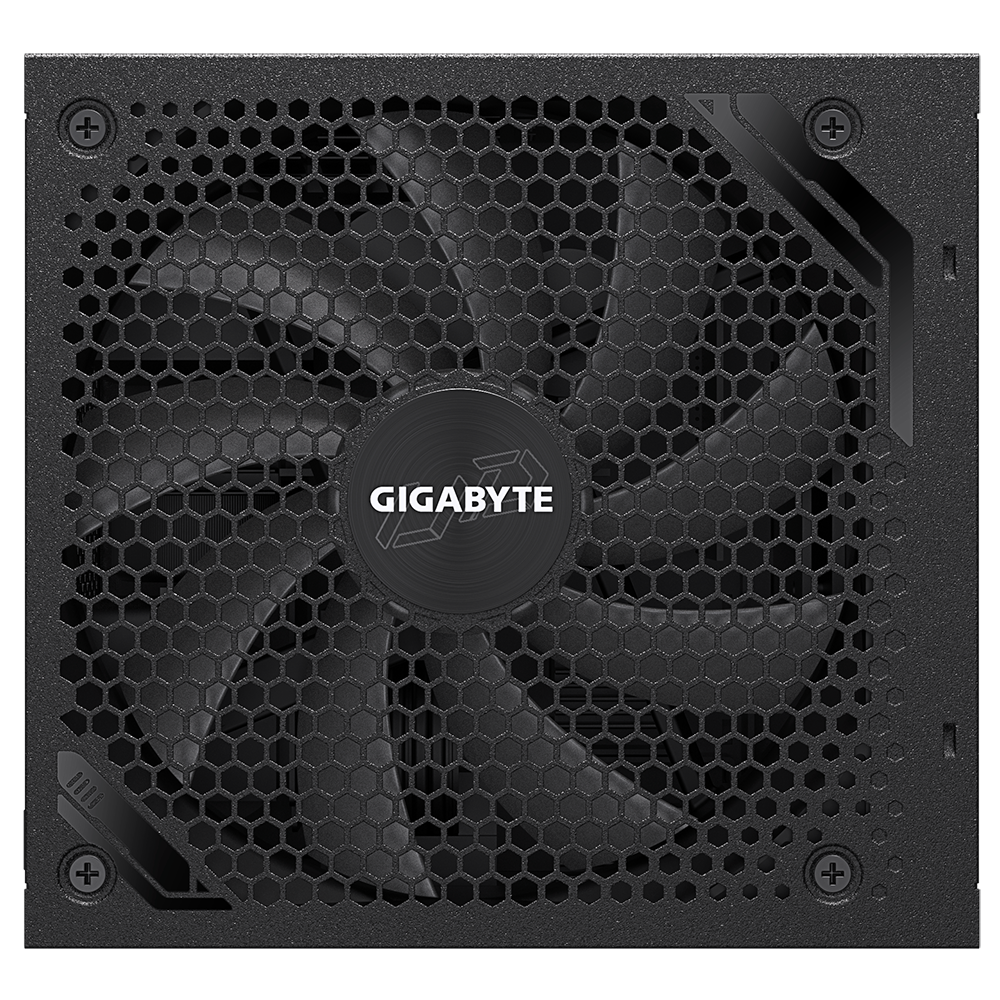

• 140mm double ball bearing fan
• OVP/OPP/SCP/UVP/OCP/OTP protection
• Support PCIe Gen 5.0 graphics card
• Support Intel ATX 3.0 standard
• 80 PLUS Gold certified
• Fully modular design
• Compact size


SPECIFICATION

• Model
  GP-UD1300GM PG5
• Type
  Intel Form Factor ATX 12V v3.0
• PFC
  Active PFC (>0.9 typical)
• Input Voltage
  100-240 Vac (full range)
• Input Current
  15-6.5A
• Input Frequency
  60-50 Hz
• Output Capacity
  1300W
• Dimension
  150 x 160 x 86 mm
• Fan Type
  140mm double ball bearing fan
• 80 PLUS
  Gold
• Efficiency
  90% at typical load
• MTBF
  >100,000 hours
• Protection
  OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal
  100-150ms
• Hold Up Time
  >16ms
• Cable Type
  Flat, All black

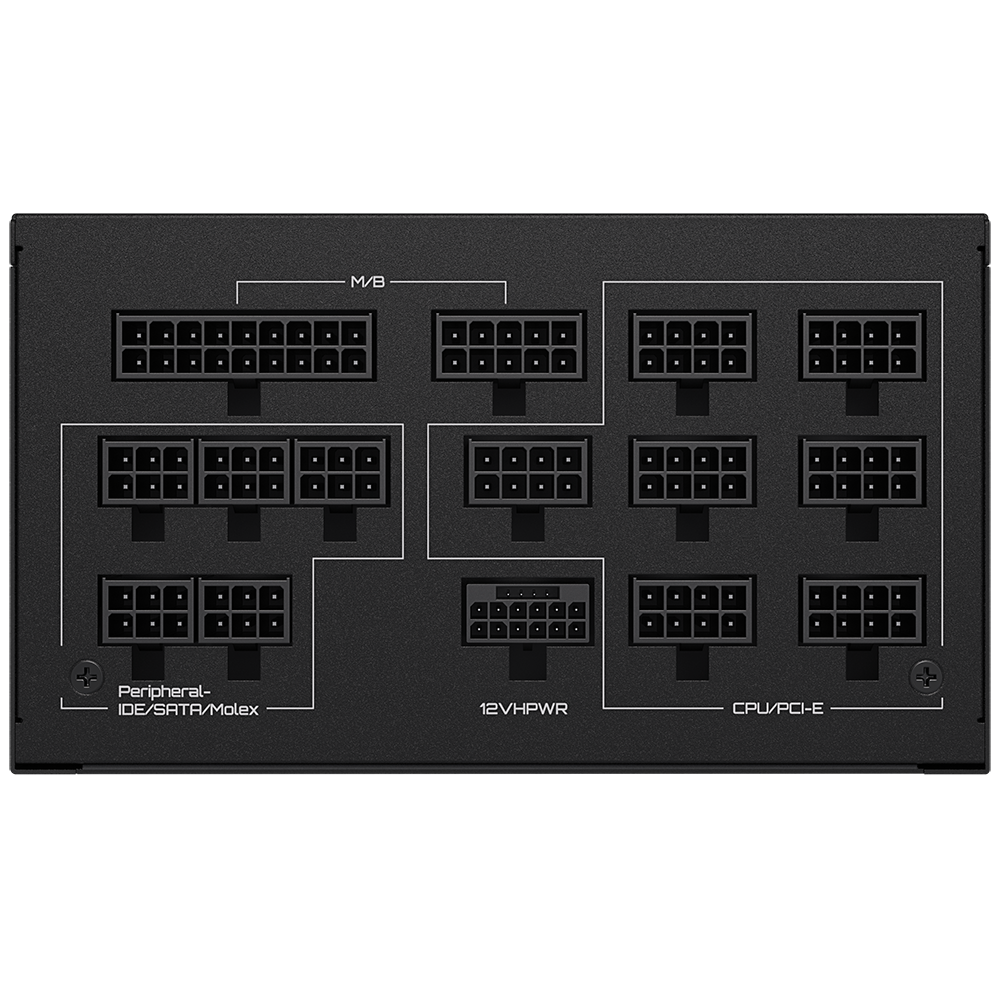

• Connectors
  ATX/MB 20+4 Pin x 1 : 610mm*1
  CPU/EPS 4+4 Pin x 2 : 650mm*2
  PCIe 16 Pin x 1: 700mm*1
  PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2
  SATA x 12 : 650mm+150mm+150mm+150mm*3
  4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2
