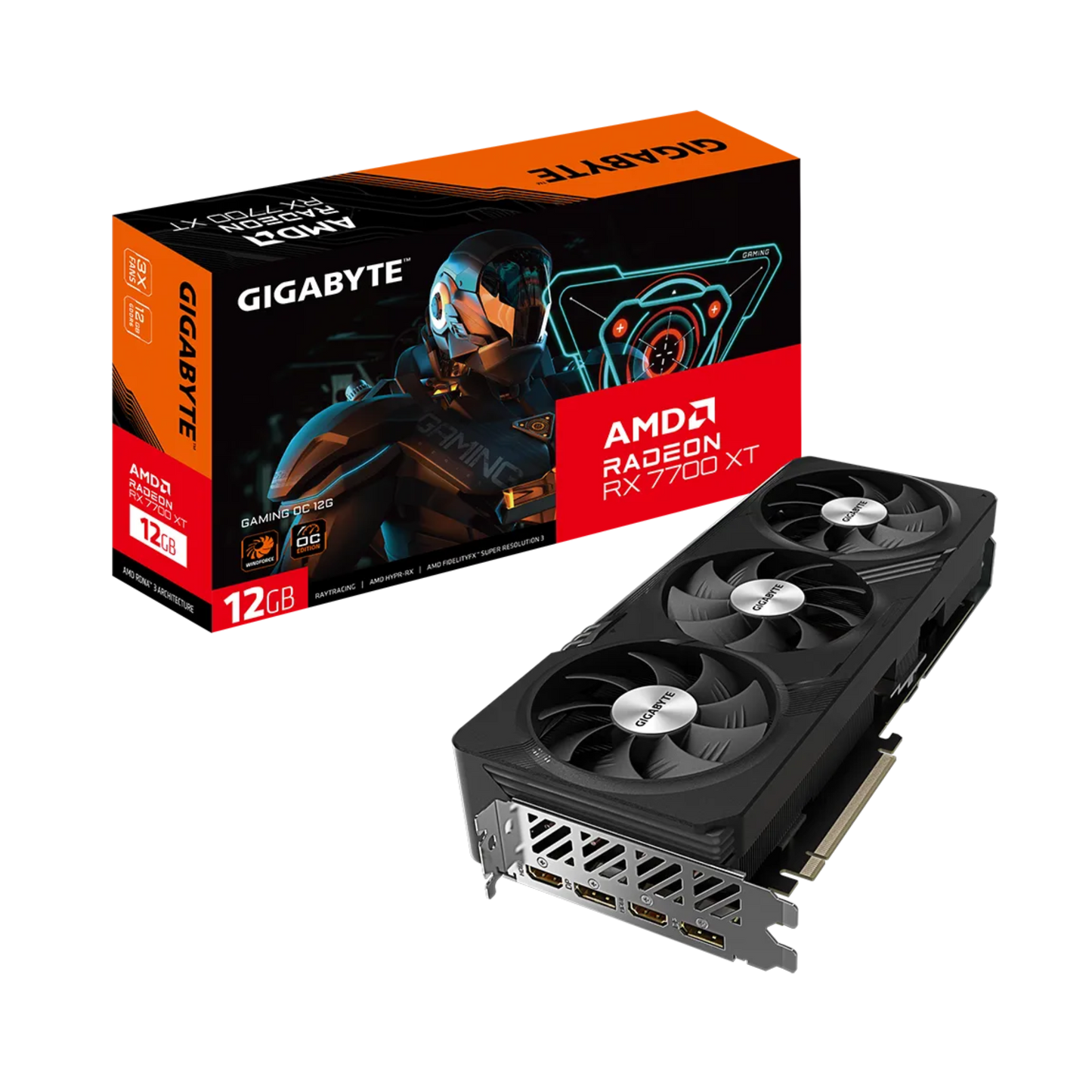

GIGIABYTE Radeon™ RX 7700 XT GAMING OC 12G (GV-R77XTGAMING-OC-12GD)

KEY FEATURE

• Powered by Radeon™ RX 7700 XT
• Integrated with 12GB GDDR6 192-bit memory interface
• WINDFORCE Cooling System
• RGB Fusion
• Dual BIOS
• Protection metal back plate

CORE CLOCK

• Boost Clock* : up to 2599 MHz (Reference card: 2544 MHz)
• Game Clock* : up to 2276 MHz (Reference card: 2171 MHz)

SPECIFICATION

• Graphics Processing
  Radeon™ RX 7700 XT
• Core Clock
  Boost Clock* : up to 2599 MHz (Reference card: 2544 MHz)
  Game Clock* : up to 2276 MHz (Reference card: 2171 MHz)
• Stream Processors
  3456
• Memory Clock
  18 Gbps
• Memory Size
  12 GB
• Memory Type
  GDDR6
• Memory Bus
  192 bit
• Card Bus
  PCI-E 4.0
• Digital max resolution
  7680x4320
• Multi-view
  4
• Card size
  L=302 W=130 H=56 mm
• PCB Form
  ATX
• DirectX
  12 Ultimate
• OpenGL
  4.6
• Recommended PSU
  700W
• Power Connectors
  8 Pin*2
• Output
  DisplayPort 2.1 *2
  HDMI 2.1 *2
• Accessories
  Quick guide
• Note
  * “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.GD-151
  * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
