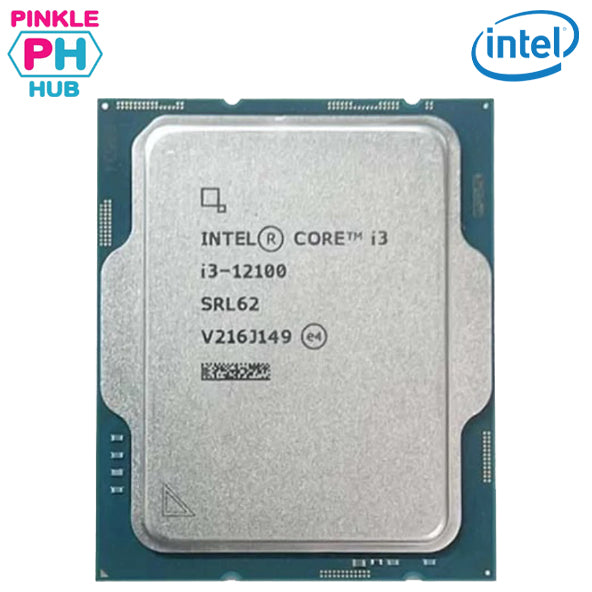

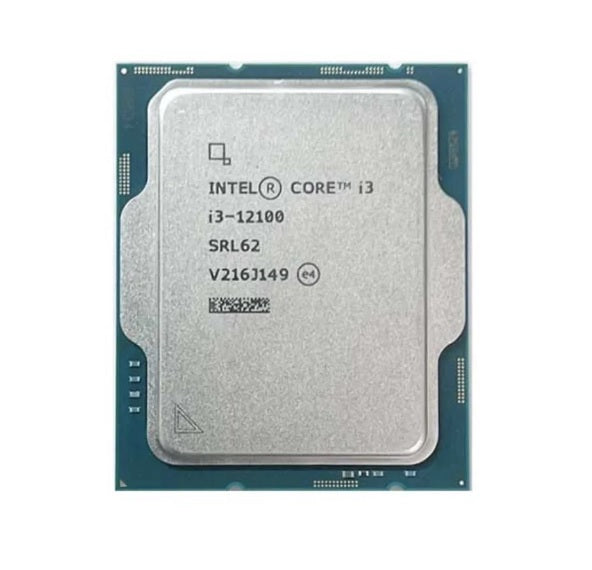

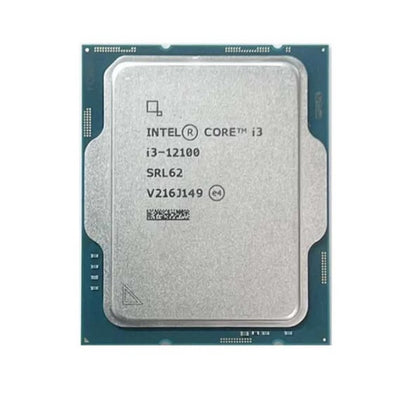

Intel Core i3-12100 4.30GHz 12M Cache LGA 1700 Processor - Box Type (Processor Only)

Product description
Essentials
Product Collection    12th Generation Intel® Core™ i3 Processors
Code Name    Products formerly Alder Lake
Vertical Segment    Desktop
Processor Number    i3-12100
Lithography    Intel 7
Recommended Customer Price    $134.00-$144.00
CPU Specifications
Total Cores    4
# of Performance-cores    4
# of Efficient-cores    0
Total Threads    8
Max Turbo Frequency    4.30 GHz
Performance-core Max Turbo Frequency    4.30 GHz
Performance-core Base Frequency    3.30 GHz
Cache    12 MB Intel® Smart Cache
Total L2 Cache    5 MB
Processor Base Power    60 W
Maximum Turbo Power    89 W
Supplemental Information
Marketing Status    Launched
Launch Date    Q1'22
Embedded Options Available    Yes
Use Conditions    PC/Client/Tablet
Datasheet    View now
Memory Specifications
Max Memory Size (dependent on memory type)    128 GB
Memory Types    Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels    2
Max Memory Bandwidth    76.8 GB/s
GPU Specifications
GPU Name‡    Intel® UHD Graphics 730
Graphics Base Frequency    300 MHz
Graphics Max Dynamic Frequency    1.40 GHz
Graphics Output    eDP 1.4b |  DP 1.4a |  HDMI 2.1
Execution Units    24
Max Resolution (HDMI)‡    4096 x 2160 @ 60Hz
Max Resolution (DP)‡    7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡    5120 x 3200 @ 120Hz
DirectX* Support    12
OpenGL* Support    4.5
OpenCL* Support    3
Multi-Format Codec Engines    1
Intel® Quick Sync Video    Yes
Intel® Clear Video HD Technology    Yes
# of Displays Supported ‡    4
Device ID    0x4692
Expansion Options
Direct Media Interface (DMI) Revision    4
Max # of DMI Lanes    8
Scalability    1S Only
PCI Express Revision    5.0 and 4.0
PCI Express Configurations ‡    Up to 1x16+4 |  2x8+4
Max # of PCI Express Lanes    20
Package Specifications
Sockets Supported    FCLGA1700
Max CPU Configuration    1
Thermal Solution Specification    PCG 2020C
TJUNCTION    100°C
Package Size    45.0 mm x 37.5 mm
Max Operating Temperature    100 °C
Advanced Technologies
Intel® Volume Management Device (VMD)    Yes
Intel® Gaussian & Neural Accelerator    3
Intel® Thread Director    No
Intel® Deep Learning Boost (Intel® DL Boost) on CPU    Yes
Intel® Optane™ Memory Supported ‡    Yes
Intel® Speed Shift Technology    Yes
Intel® Turbo Boost Max Technology 3.0 ‡    No
Intel® Turbo Boost Technology ‡    2
Intel® Hyper-Threading Technology ‡    Yes
Intel® 64 ‡    Yes
Instruction Set    64-bit
Instruction Set Extensions    Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2
Idle States    Yes
Enhanced Intel SpeedStep® Technology    Yes
Thermal Monitoring Technologies    Yes
Security & Reliability
Intel® Threat Detection Technology (TDT)    Yes
Intel® Standard Manageability (ISM) ‡    Yes
Intel® Control-Flow Enforcement Technology    Yes
Intel® AES New Instructions    Yes
Secure Key    Yes
Intel® OS Guard    Yes
Execute Disable Bit ‡    Yes
Intel® Boot Guard    Yes
Mode-based Execute Control (MBEC)    Yes
Intel® Virtualization Technology (VT-x) ‡    Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡    Yes
Intel® VT-x with Extended Page Tables (EPT) ‡    Yes
