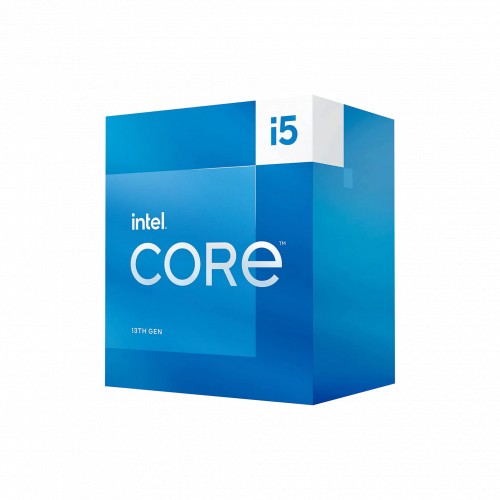

Intel Core i5-13400 Processor

Intel Core i5-13400 Processor

Brand : Intel

Regular price ₱14,140.00
Sale price ₱14,140.00
Regular price ₱16,375.00 -14%
Sale! Sold out
Intel® Core™ i5-13400 Processor (20M Cache- up to 4.60 GHz)
Essentials
Product Collection 13th Generation Intel® Core™ i5 Processors
Code Name Products formerly Raptor Lake
Vertical Segment Desktop
Processor Number i5-13400
Lithography Intel 7
Use Conditions PC/Client/Tablet
CPU Specifications
Total Cores 10
# of Performance-cores 6
# of Efficient-cores 4
Total Threads 16
Max Turbo Frequency 4.60 GHz
Performance-core Max Turbo Frequency 4.60 GHz
Efficient-core Max Turbo Frequency 3.30 GHz
Performance-core Base Frequency 2.50 GHz
Efficient-core Base Frequency 1.80 GHz
Cache 20 MB Intel® Smart Cache
Total L2 Cache 9.5 MB
Processor Base Power 65 W
Maximum Turbo Power 148 W
Supplemental Information
Marketing Status Launched
Launch Date Q1'23
Embedded Options Available Yes
Datasheet View now
Memory Specifications
Max Memory Size (dependent on memory type) 192 GB
Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s
GPU Specifications
Processor Graphics ‡ Intel® UHD Graphics 730
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 1.55 GHz
Graphics Output eDP 1.4b |  DP 1.4a |  HDMI 2.1
Execution Units 24
Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3
Multi-Format Codec Engines 1
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ‡ 4
Device ID 0x4682/0xA782
Expansion Options
Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1x16+4 |  2x8+4
Max # of PCI Express Lanes 20
Package Specifications
Sockets Supported FCLGA1700
Max CPU Configuration 1
Thermal Solution Specification PCG 2020C
TJUNCTION 100°C
Package Size 45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator 3
Intel® Thread Director Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 ‡ No
Intel® Turbo Boost Technology ‡ 2
Intel® Hyper-Threading Technology ‡ Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device (VMD) Yes
Security & Reliability
Intel® Standard Manageability (ISM) ‡ Yes
Intel® Control-Flow Enforcement Technology Yes
Intel® AES New Instructions Yes
Secure Key Yes
Intel® OS Guard Yes
Execute Disable Bit ‡ Yes
Intel® Boot Guard Yes
Mode-based Execute Control (MBEC) Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
View full details
