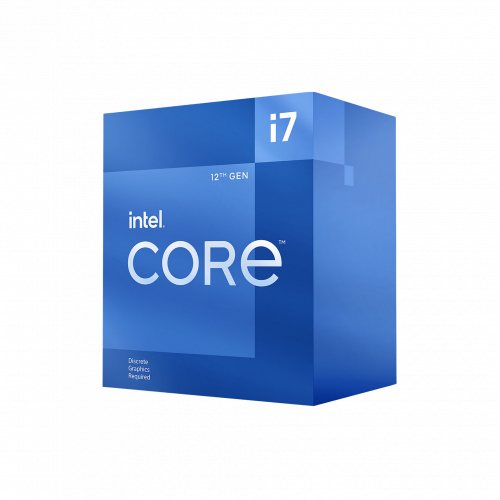

Intel® Core™ i7-12700F Processor (25M Cache- up to 4.90 GHz) |
|
|
Essentials |
|
Product Collection |
12th Generation Intel® Core™ i7 Processors |
Code Name |
Products formerly Alder Lake |
Vertical Segment |
Desktop |
Processor Number |
i7-12700F |
Lithography |
Intel 7 |
Use Conditions |
PC/Client/Tablet |
|
|
CPU Specifications |
|
Total Cores |
12 |
# of Performance-cores |
8 |
# of Efficient-cores |
4 |
Total Threads |
20 |
Max Turbo Frequency |
4.90 GHz |
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ |
4.90 GHz |
Performance-core Max Turbo Frequency |
4.80 GHz |
Efficient-core Max Turbo Frequency |
3.60 GHz |
Performance-core Base Frequency |
2.10 GHz |
Efficient-core Base Frequency |
1.60 GHz |
Cache |
25 MB Intel® Smart Cache |
Total L2 Cache |
12 MB |
Processor Base Power |
65 W |
Maximum Turbo Power |
180 W |
|
|
Supplemental Information |
|
Marketing Status |
Launched |
Launch Date |
Q1'22 |
Embedded Options Available |
No |
Datasheet |
View now |
|
|
Memory Specifications |
|
Max Memory Size (dependent on memory type) |
128 GB |
Memory Types |
Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
Max # of Memory Channels |
2 |
Max Memory Bandwidth |
76.8 GB/s |
|
|
Expansion Options |
|
Direct Media Interface (DMI) Revision |
4 |
Max # of DMI Lanes |
8 |
Scalability |
1S Only |
PCI Express Revision |
5.0 and 4.0 |
PCI Express Configurations ‡ |
Up to 1x16+4 | 2x8+4 |
Max # of PCI Express Lanes |
20 |
|
|
Package Specifications |
|
Sockets Supported |
FCLGA1700 |
Max CPU Configuration |
1 |
Thermal Solution Specification |
PCG 2020C |
TJUNCTION |
100°C |
Package Size |
45.0 mm x 37.5 mm |
|
|
Advanced Technologies |
|
Intel® Gaussian & Neural Accelerator |
3 |
Intel® Thread Director |
Yes |
Intel® Deep Learning Boost (Intel® DL Boost) on CPU |
Yes |
Intel® Optane™ Memory Supported ‡ |
Yes |
Intel® Speed Shift Technology |
Yes |
Intel® Turbo Boost Max Technology 3.0 ‡ |
Yes |
Intel® Turbo Boost Technology ‡ |
2 |
Intel® Hyper-Threading Technology ‡ |
Yes |
Intel® 64 ‡ |
Yes |
Instruction Set |
64-bit |
Instruction Set Extensions |
Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 |
Idle States |
Yes |
Enhanced Intel SpeedStep® Technology |
Yes |
Thermal Monitoring Technologies |
Yes |
Intel® Volume Management Device (VMD) |
Yes |
|
|
Security & Reliability |
|
Intel® Standard Manageability (ISM) ‡ |
Yes |
Intel® Control-Flow Enforcement Technology |
Yes |
Intel® AES New Instructions |
Yes |
Secure Key |
Yes |
Intel® OS Guard |
Yes |
Execute Disable Bit ‡ |
Yes |
Intel® Boot Guard |
Yes |
Mode-based Execute Control (MBEC) |
Yes |
Intel® Virtualization Technology (VT-x) ‡ |
Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ |
Yes |
Intel® VT-x with Extended Page Tables (EPT) ‡ |
Yes |
