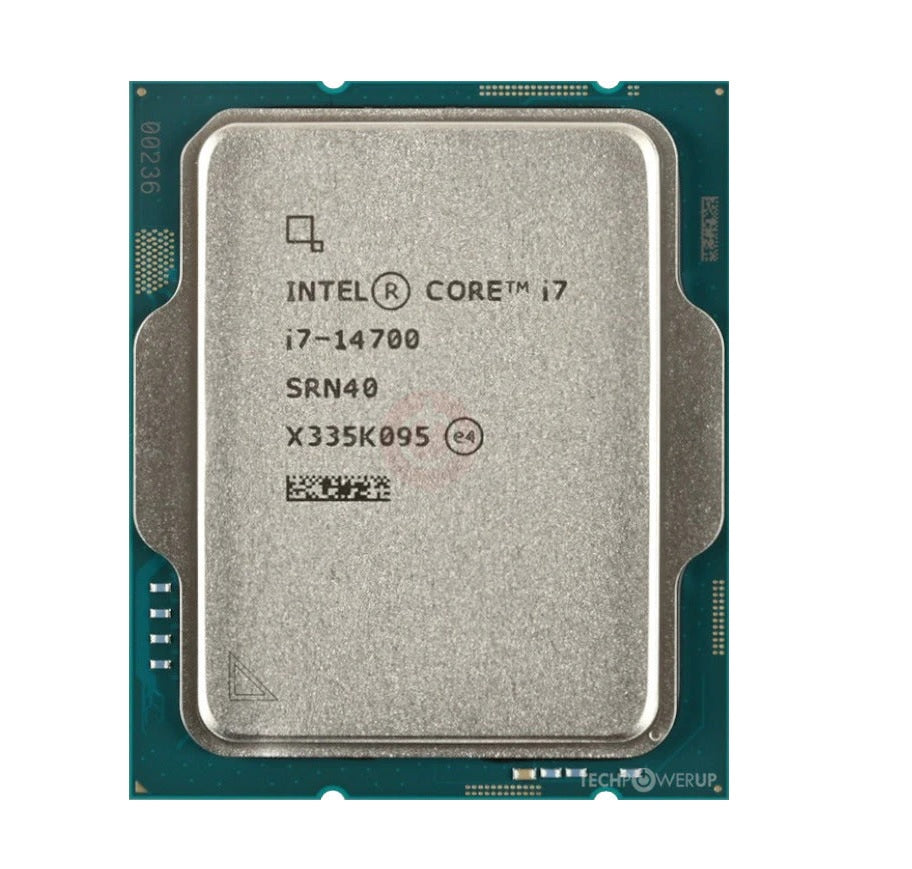

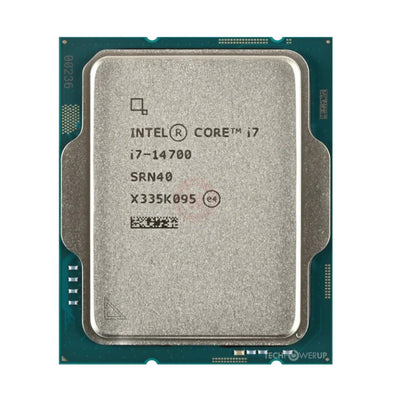

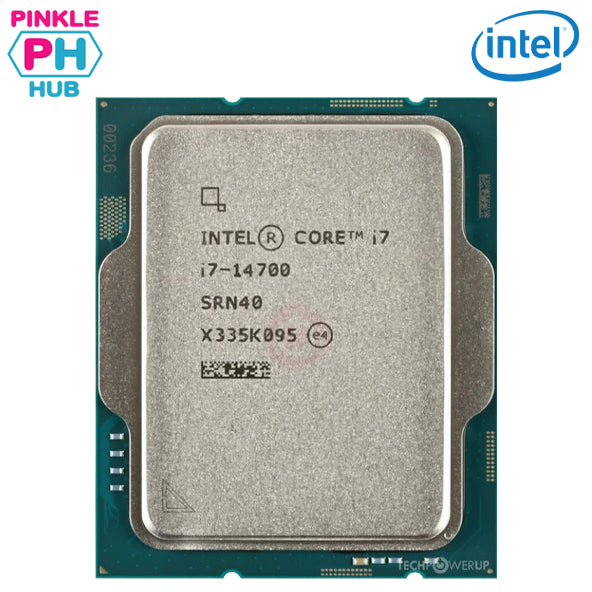

Intel Core i7-14700 5.40GHz 33M Cache LGA 1700 Processor - Tray Type (Processor Only)

Product description
Essentials
Product Collection    Intel® Core™ i7 Processors (14th gen)
Code Name    Products formerly Raptor Lake
Vertical Segment    Desktop
Processor Number    i7-14700
Lithography    Intel 7
Recommended Customer Price    $384.00-$394.00
CPU Specifications
Total Cores    20
# of Performance-cores    8
# of Efficient-cores    12
Total Threads    28
Max Turbo Frequency    5.4 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡    5.4 GHz
Performance-core Max Turbo Frequency    5.3 GHz
Efficient-core Max Turbo Frequency    4.2 GHz
Performance-core Base Frequency    2.1 GHz
Efficient-core Base Frequency    1.5 GHz
Cache    33 MB Intel® Smart Cache
Total L2 Cache    28 MB
Processor Base Power    65 W
Maximum Turbo Power    219 W
Supplemental Information
Marketing Status    Launched
Launch Date    Q1'24
Embedded Options Available    Yes
Use Conditions    PC/Client/Tablet |  Workstation
Datasheet    View now
Memory Specifications
Max Memory Size (dependent on memory type)    192 GB
Memory Types    Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels    2
Max Memory Bandwidth    89.6 GB/s
ECC Memory Supported   ‡    Yes
GPU Specifications
GPU Name‡    Intel® UHD Graphics 770
Graphics Base Frequency    300 MHz
Graphics Max Dynamic Frequency    1.6 GHz
Graphics Output    eDP 1.4b |  DP 1.4a |  HDMI 2.1
Execution Units    32
Max Resolution (HDMI)‡    4096 x 2160 @ 60Hz
Max Resolution (DP)‡    7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡    5120 x 3200 @ 120Hz
DirectX* Support    12
OpenGL* Support    4.5
OpenCL* Support    3
Multi-Format Codec Engines    2
Intel® Quick Sync Video    Yes
Intel® Clear Video HD Technology    Yes
# of Displays Supported ‡    4
Device ID    0xA780
Expansion Options
Direct Media Interface (DMI) Revision    4
Max # of DMI Lanes    8
Scalability    1S Only
PCI Express Revision    5.0 and 4.0
PCI Express Configurations ‡    Up to 1x16+4 |  2x8+4
Max # of PCI Express Lanes    20
Package Specifications
Sockets Supported    FCLGA1700
Max CPU Configuration    1
Thermal Solution Specification    PCG 2020C
TJUNCTION    100°C
Package Size    45.0 mm x 37.5 mm
Max Operating Temperature    100 °C
Advanced Technologies
Intel® Volume Management Device (VMD)    Yes
Intel® Gaussian & Neural Accelerator    3
Intel® Thread Director    Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU    Yes
Intel® Speed Shift Technology    Yes
Intel® Turbo Boost Max Technology 3.0 ‡    Yes
Intel® Turbo Boost Technology ‡    2
Intel® Hyper-Threading Technology ‡    Yes
Intel® 64 ‡    Yes
Instruction Set    64-bit
Instruction Set Extensions    Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2
Idle States    Yes
Enhanced Intel SpeedStep® Technology    Yes
Thermal Monitoring Technologies    Yes
Security & Reliability
Intel vPro® Eligibility ‡    Intel vPro® Enterprise |  Intel vPro® Essentials |  Intel vPro® Platform
Intel® Hardware Shield Eligibility ‡    Yes
Intel® Threat Detection Technology (TDT)    Yes
Intel® Active Management Technology (AMT) ‡    Yes
Intel® Standard Manageability (ISM) ‡    Yes
Intel® Remote Platform Erase (RPE) ‡    Yes
Intel® One-Click Recovery ‡    Yes
Intel® Control-Flow Enforcement Technology    Yes
Intel®
