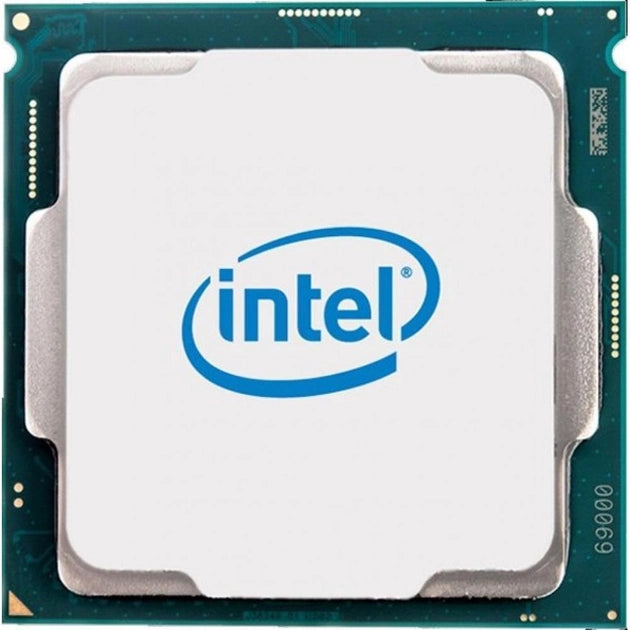

Intel Pentium Gold G6405 Processor (4M Cache, 4.10 GHz) FC-LGA14C, Tray (V120G893)
Intel Pentium Gold G6405 Processor (4M Cache, 4.10 GHz) FC-LGA14C, Tray (V120G893)
Brand : Intel
Regular price
₱3,995.00
Sale price
₱3,995.00
Regular price
₱5,000.00
-20%
Unit price
per
Regular price
Couldn't load pickup availability
CPU Specifications
Total Cores : 2
Total Threads : 4
Processor Base Frequency : 4.10 GHz
Cache : 4 MB Intel® Smart Cache
Bus Speed : 8 GT/s
TDP : 58 W
Supplemental Information
Marketing Status
Launched : Launch Date Q1'21
Embedded Options Available : No
Memory Specifications
Max Memory Size (dependent on memory type) : 128 GB
Memory Types : DDR4-2666
Max # of Memory Channels : 2
Max Memory Bandwidth : 41.6 GB/s
Memory Types : DDR4-2666
Max # of Memory Channels : 2
Max Memory Bandwidth : 41.6 GB/s
Processor Graphics
Processor Graphics : Intel® UHD Graphics 610
Graphics Base Frequency : 350 MHz
Graphics Max Dynamic Frequency : 1.05 GHz
Graphics Video Max Memory : 64 GB
4K Support : Yes, at 60Hz
Max Resolution (HDMI) : 4096x2160@30Hz
Max Resolution (DP) : 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel) : 4096x2304@60Hz
DirectX* Support : 12
OpenGL* Support : 4.5
Intel® Quick Sync Video : Yes
Intel® InTru™ 3D Technology : Yes
Intel® Clear Video HD Technology : Yes
Intel® Clear Video Technology : Yes
# of Displays Supported : 3
Device ID : 0x9BA8
Graphics Base Frequency : 350 MHz
Graphics Max Dynamic Frequency : 1.05 GHz
Graphics Video Max Memory : 64 GB
4K Support : Yes, at 60Hz
Max Resolution (HDMI) : 4096x2160@30Hz
Max Resolution (DP) : 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel) : 4096x2304@60Hz
DirectX* Support : 12
OpenGL* Support : 4.5
Intel® Quick Sync Video : Yes
Intel® InTru™ 3D Technology : Yes
Intel® Clear Video HD Technology : Yes
Intel® Clear Video Technology : Yes
# of Displays Supported : 3
Device ID : 0x9BA8
Expansion Options
Scalability : 1S Only
PCI Express Revision : 3.0
PCI Express Configurations : Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes : 16
PCI Express Configurations : Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes : 16
Package Specifications
Sockets Supported : FCLGA1200
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2015C
TJUNCTION : 100°C
Package Size : 37.5mm x 37.5mm
Thermal Solution Specification : PCG 2015C
TJUNCTION : 100°C
Package Size : 37.5mm x 37.5mm
Advanced Technologies
Intel® Optane™ Memory Supported : Yes
Intel® Thermal Velocity Boost : No
Intel® Turbo Boost Max Technology 3.0 : No
Intel® Turbo Boost Technology : No
Intel® Hyper-Threading Technology : Yes
Intel® Transactional Synchronization Extensions : No
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes
Intel® Identity Protection Technology : Yes
Intel® Thermal Velocity Boost : No
Intel® Turbo Boost Max Technology 3.0 : No
Intel® Turbo Boost Technology : No
Intel® Hyper-Threading Technology : Yes
Intel® Transactional Synchronization Extensions : No
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes
Intel® Identity Protection Technology : Yes
Security & Reliability
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® Software Guard Extensions (Intel® SGX) : Yes with Intel® ME
Intel® OS Guard : Yes
Intel® Trusted Execution Technology : No
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Intel® Stable IT Platform Program (SIPP) : No
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes
Secure Key : Yes
Intel® Software Guard Extensions (Intel® SGX) : Yes with Intel® ME
Intel® OS Guard : Yes
Intel® Trusted Execution Technology : No
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Intel® Stable IT Platform Program (SIPP) : No
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes
