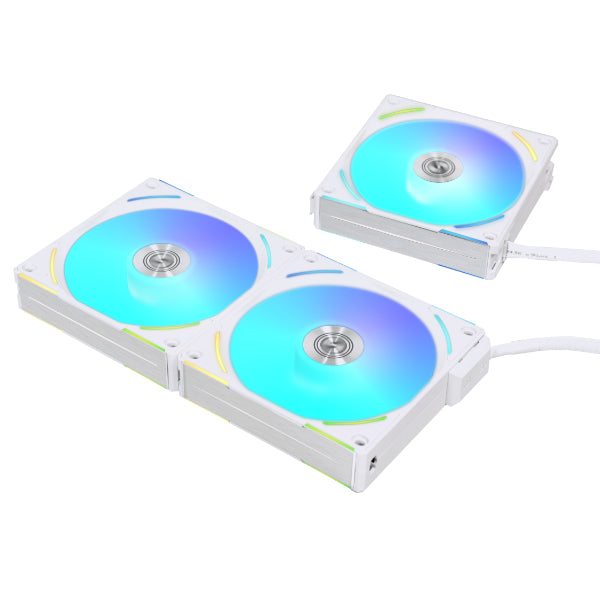

Lian Li AL120V2 ARGB Cooling fans Triple Pack
Lian Li AL120V2 ARGB Cooling fans Triple Pack
Regular price
Lian Li AL120V2 ARGB Cooling fans (Triple Pack)
- Improved daisy chain design to connect 2 clusters of fans.
- AL120 V2 fan frame thickness is 28mm to provide 20% improved airflow compared to V1.
- Removable interlocking keys to provide better radiator clearance.
- Start/stop fan RPM support for a quieter environment.
- New corner lighting visible from all sides
- Only one cable is required for each fan cluster when using the provided new UNI HUB to control lighting effects via L-Connect 3.
UPGRADED MODULARITY
UNI FAN AL V2 features an interlocking system to connect up to 6 fans in two clusters to a single controller port, making fans installation and cable management a simple job.
THICKER YET EASY TO INSTALL
The UNI FAN AL120 V2 has been amended to a slightly thicker frame of 28mm, and implements indented screw holes to fit standard 25mm long screws for installation.
ULTIMATE PERFORMANCE ARGB FAN
Running at peak performance while keeping low noise levels, the UNI FAN AL120 V2 is the best-performing ARGB fan within the entire UNI FAN lineup.
MODEL | AIRFLOW | STATIC PRESSURE | NOISE | SPEED |
AL120 V1 | 64.5 CFM | 2.62 mmH2O | 28.3 dB(A) | 800-1900 RPM |
AL120 V2 | 77.3 CFM | 2.97 mmH20 | 28.7 dB(A) | 0, 250-2000 RPM |
SL120 V2 | 64.5 CFM | 2.59 mmH2O | 29.2 dB(A) | 0, 250-2000 RPM |
SLIN120 | 61.3 CFM | 2.66 mmH2O | 29.0 dB(A) | 0, 200-2100 RPM |
THICKER IMPELLER
Increased thickness to 28mm for better efficiency
MAGNETIC FRAME
To provide extra support for fan blades
FLUID DYNAMIC BEARING (FDB)
To effectively reduce the internal friction for improved durability
CIRCLIP
To secure the fan blades in place
EXTRA MAGNETIC FORCE
To support the fan blades and reduce vibration levels, thus ensuring low noise levels while in operation
STATOR
To provide a rotating magnetic field that generates momentum
RUBBER PADS
To reduce vibrations and ensure extremely low noise levels
DAZZLING FROM ALL ANGLES
UNI FAN ALV2 has comprehensive lighting all around with independent control of the effects at the fan blades and fan frame, and combined lighting effects.
Sophisticated lighting on the fan blade glows the whole system.
The fine LED strips at the four corners of the fan frame and beside the aluminum sides can be set in different colors, creating an elegant look.
A ring of RGB is visible at the rear side, keeping it attractive no matter as intake or exhaust.
MORE LIGHTING EFFECT CHOICES
New lighting effects have been developed for the updated version of the AL fans, offering more lighting options.
CONTINUOUS LIGHTING EFFECTS
A merge function is available to allow lighting effects to flow not only across a single cluster but across the whole system.
SPECIFICATIONS
PRODUCT NAME | UNI FAN AL120 V2 | UNI FAN AL140 V2 | ||||||
---|---|---|---|---|---|---|---|---|
MODEL | UF-AL120V2-3B BLACK | UF-AL120V2-3W WHITE | UF-AL120V2-1B BLACK | UF-AL120V2-1W WHITE | UF-AL140V2-1B BLACK | UF-AL140V2-1W WHITE | ||
COLOR | Black | White | Black | White | Black | White | ||
NUMBER OF FANS | 3 | 3 | 1 | 1 | 1 | 1 | ||
CONTROLLER | Yes | No | No | |||||
CONNECTOR TYPE | 4 × 7-PIN (Power Cable) 2 × Extension Cable | 1 × 4-PIN PWM + 3-PIN SM Type 1 × ARGB MB Adaptor | 1 × 4-PIN PWM + 3-PIN SM Type 1 × ARGB MB Adaptor | |||||
FAN DIMENSION | 120 X 120 X 28 (mm) | 140 X 140 X 25 (mm) | ||||||
FAN SPEED | 0, 250~2000 RPM | 0, 250~1600 RPM | ||||||
MAX. AIR PRESSURE | 2.97 mmH2O (Maximum) | 2.80 mmH2O (Maximum) | ||||||
MAX. AIRFLOW | 77.3 CFM (Maximum) | 81.6 CFM (Maximum) | ||||||
ACOUSTIC NOISE | 28.7 dB(A) Max | 26.8 dB(A) Max | ||||||
MATERIAL | PBT/PC/Aluminum) | |||||||
RATED VOLTAGE | DC 12V (FAN) & 5V (LED) | |||||||
BEARING TYPE | Fluid Dynamic Bearing (FDB) | |||||||
OPERATE VOLTAGE | DC12V & 5V | |||||||
START-UP VOLTAGE | ≦5V | |||||||
INPUT POWER | 7.2W | 6.32W | ||||||
WARRANTY | 2 years |
