Lian Li ARGB DEVICE CABLE KITS
Lian Li ARGB DEVICE CABLE KITS
Brand : PinkleHub
SKU: SKU: UF-EX
No reviews
10 in stock
Regular price
₱500.00
Regular price
₱560.00
Sale price
₱500.00
Unit price
/
per
Couldn't load pickup availability
CONNECTING MORE LIAN LI ARGB DEVICES AT ONCE STARTS NOW

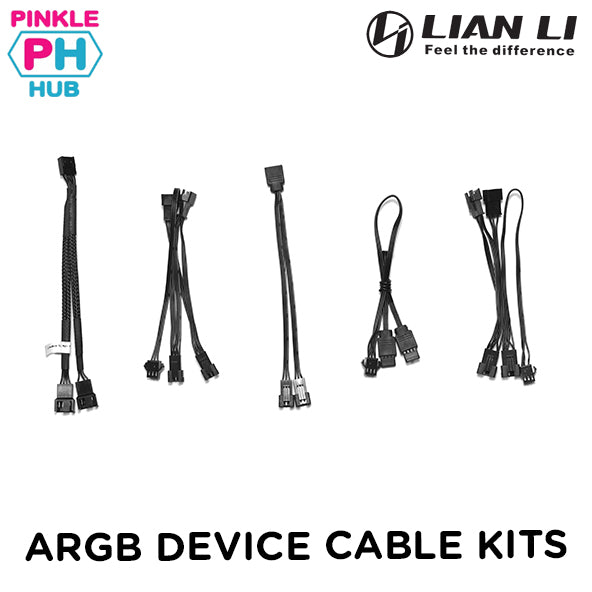

The ARGB Device Cable Kit lets you take control of more LIAN LI ARGB products either via the Uni Hub or via synchronization with the motherboard. With 5 types of cables, 2 of each, the ARGB Device Cable Kit is the solution to connect all the devices required for an outstanding build.
SUPPORTS
Strimer/ Strimer Plus/ Galahad AIO/ ST120/ Bora Digital/ LANCOOL II Side Diffused LED Strip/ O11D XL light bar/ DK-04F&05F light bar
LEDS CHART
| Product | LED numbers for unit |
| Bora digital | 12 |
| ST120 | 12 |
| Galahad AIO Water Block | 12 |
| Strimer 24pin | 12 |
| Strimer 8pin | 8 |
| Strimer Plus 24pin | 120(supported only when connected with controller and SATA power ) |
| Strimer plus 8pin | 108(supported only when connected with controller and SATA power ) |
| Strimer plus 3x8pin | 162(supported only when connected with controller and SATA power ) |
| LANCOOL II-2X | 37 |
| O11D XL lighr bar | 28 |
| DK-04F | 52 |
| DK-05F |
68 |
SPECIFICATIONS
| Model NAME | ARGB DEVICE CABLE KITS | ||||
|---|---|---|---|---|---|
| Model NO. | UF-EX | ||||

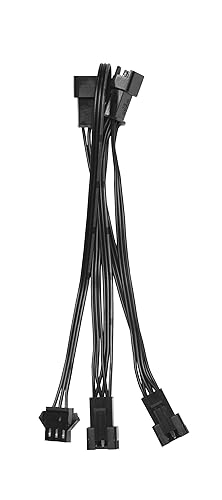

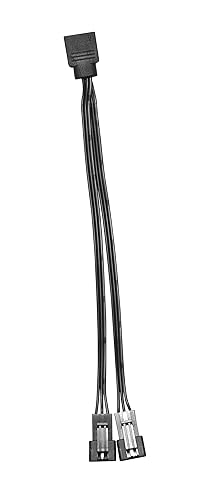

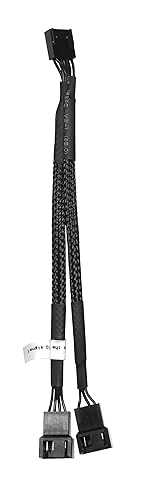

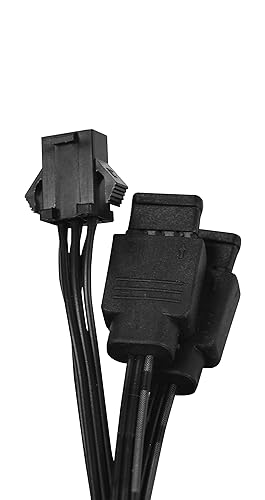

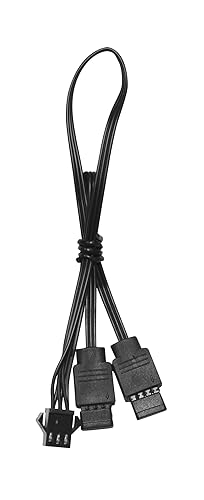

| Cable Name | Fan Y Cable | Motherboard Adaptor Y-Type Cable | Y-Type 3P Signal Cable | Lightbar Extension Cable (3P) | Fan LED Extension Cable (4P) |
| Quantity | 2 | 2 | 2 | 2 | 2 |
| Cable Length | 150mm | 150mm | 250mm / 150mm | 250mm-100-100-100mm | 250mm-100-100-100 mm |
| Connector | 1×4 pin (male) 1×3 pin (male) | 2×3pin (male) | 2×3pin(ARGB Header) | 4×3 pin (male) | 4×4pin (male) |
| Plug | 4 pin (female) | 4 pin (female) | 3 pin (female) | 3 pin (female) | pin (female) |
| Rate Voltage | 12v | 5v | 5v | 5v | 5v |
| Warranty | 1 year | ||||
