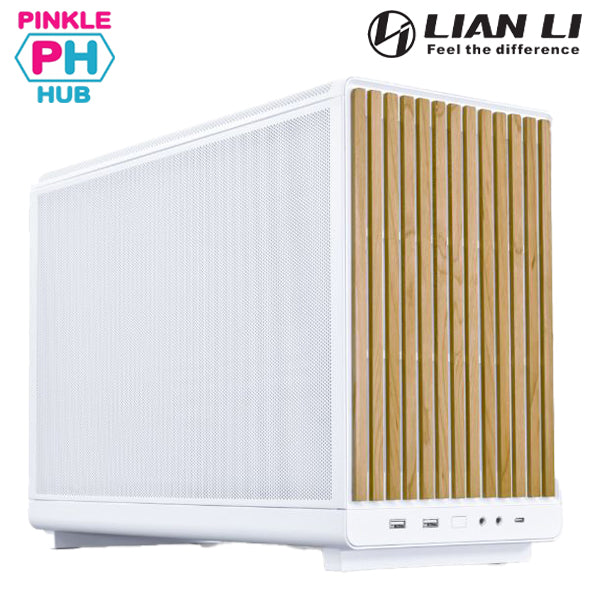

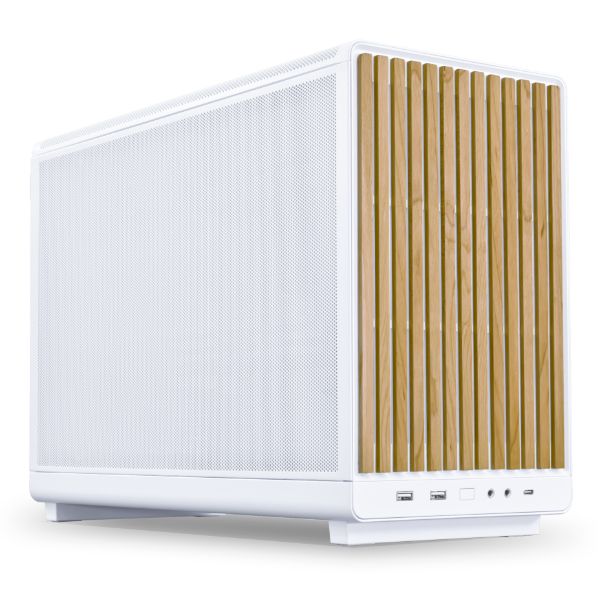

LIAN LI DAN A3 White Wooden Panel Version For M-ATX / Mini ITX
LIAN LI DAN A3 White Wooden Panel Version For M-ATX / Mini ITX
Brand : LIAN LI
SKU: SKU: G99.A3W-WD.00
25 in stock
Couldn't load pickup availability
A3-mATX
- Minimalistic sleek design 26.3L micro form factor chassis
- Side and top panels are designed with steel mesh
- Accommodates M-ATX and ITX motherboard with 4 slots 415mm large GPU
- Supports up to 360 radiator and 10 x 120mm fans
- Supports ATX/SFX/SFX-L and LIAN LI Edge PSU that can be mounted sideways or frontways
- In collaboration with DAN Cases for the case design whereas manufactured and sold by LIAN LI.
The LIAN LI & DAN Cases A3-mATX is a versatile M-ATX mesh PC case that maintains a minimal chassis size while accommodating large components. Thanks to the relocatable PSU bracket, the A3-mATX empowers you to build a powerful and compact PC system tailored to your needs and preferences.
COMPACT DESIGN,MASSIVE POTENTIAL
Dive into the realm of compactness with the A3-mATX,
which unlocks the potential of a small form factor PC case.
WELL VENTILATED, MINIMALIST DESIGN
With three sides featuring minimalist mesh panels and a sleek front panel,
the A3-mATX combines functionality with style,
making it the perfect touch to your setup.
The A3-mATX Wood Edition black front panel is made of a sophisticated black walnut trim and white with beech wood, make is a perfect balance of style and functionality.
EFFORTLESS MODULARITY, STREAMLINED BUILDS
The toolless removal of all exterior panels and modular brackets provide easier access for installation and cable management. With a removable bottom dust filter, ensuring the system stays clean and efficient.
VERSATILE COMPATIBILITY, ULTIMATE CUSTOMIZATION
Unleash your creativity with the flexible compatibility A3-mATX without compromising on high-performance, large size components.
The A3-mATX case accommodates a maximum CPU cooler height of 165mm and a 4-slot thick GPU with a maximum length of 415mm. Note that with a 25mm thick fan installed at the bottom, the GPU thickness will be limited to 61mm, allowing for only a 3-slot GPU. Additionally, when installing a radiator and fan combo, there will be no space for the GPU.
SPECIFICATIONS
| MODEL NAME | A3-mATX | |||
|---|---|---|---|---|
| MODEL NO. | A3-mATX BLACK | A3-mATX WHITE | A3-mATX-WD BLACK | A3-mATX-WD WHITE |
| COLOR | Black | White | Black (Wood Edition) | White(Wood Edition) |
| CASE TYPE | MFF (Micro Form Factor) | |||
| DIMENSION | (D) 443mm x (W) 194mm x (H) 321.5mm (D) 443mm x (W) 194mm x (H) 306mm(w/o feet) |
|||
| CAPACITY | 26.3L | |||
| MATERIAL | Steel | |||
| MOTHERBOARD SUPPORT | M-ATX/ITX | |||
| PSU SUPPORT | ATX/SFX/SFX-L (Max 220mm) | |||
| FAN SUPPORT | Top: 3 x 120mm Side: 3 x 120mm or 2 x 140mm Bottom: 3 x 120mm Rear: 1 x 120mm |
|||
| RADIATOR SUPPORT | Top: 1 x 360/240mm Side: 1 x 360/280/240mm Bottom: 1 x 240mm (360mm with fan at the bottom) |
|||
| DRIVE SUPPORT | Tray: 2 × 2.5” SSD Bottom: 1 × 2.5” SSD or 1 × 3.5” HDD |
|||
| GPU LENGTH CLEARANCE | Max 415mm | |||
| CPU HEIGHT CLEARANCE | Max 165mm | |||
| EXPANSION SLOTS | 4 | |||
| I/O PORTS | 1 x Power Button 2 x USB 3.0 TYPE-A 1 x USB 3.1 TYPE-C 1 x Mic 1 x HD Audio | |||
| DUST FILTER | 1 x Bottom | 1 x Bottom 1 x Front |
||
| WARRANTY | 1 year | |||
