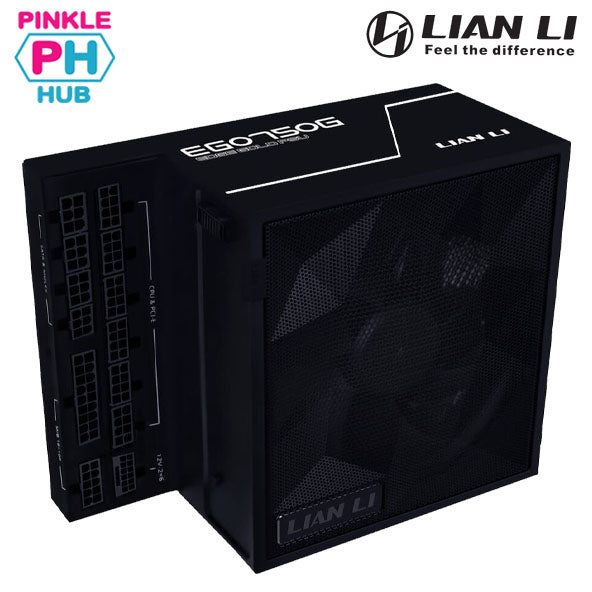

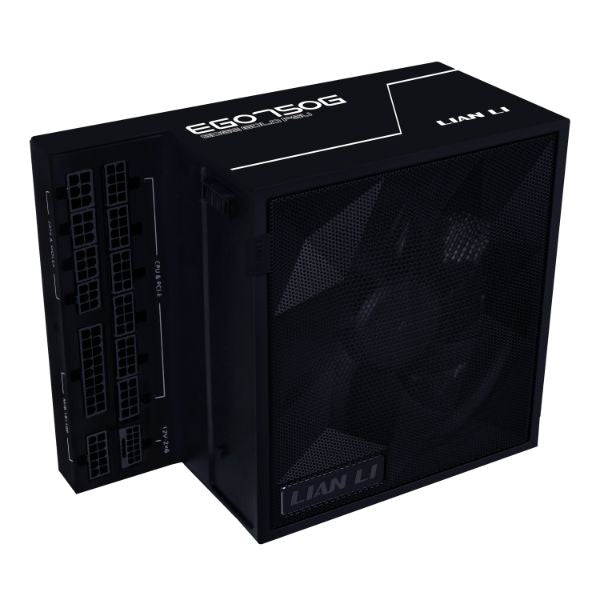

Lian Li Edge Gold 750W Power Supply Black
Lian Li Edge Gold 750W Power Supply Black
Brand : LIAN LI
SKU: SKU: G9P.EG0750G.B000.US
3 in stock
Couldn't load pickup availability
EDGE GOLD
- L-shape design tailored for dual chamber cases
- 80 PLUS Gold efficiency
- PCIe 5.1 ready with in-house R&D 12V-2×6 alloy copper soldered terminals
- Detachable USB hub with 4 internal USB 2.0 headers and 6 PWM headers
- Removable magnetic fan dust filter
- Built with German top-end, industrial-grade EPCOS capacitors
- Fully modular braided-texture cables with pre-installed cable combs on MB/CPU/GPU connectors
The EDGE Gold PSU series features a unique L-shape design, a removable USB and fan PWM hub, longer modular cables, and a conveniently removable dust filter. Experience efficient cable management in a dual chamber or tower chassis that blends aesthetics and convenience in your PC build.
AVAILABLE IN 2 COLORS AND 4 WATTAGES
Offering versatile options, the EDGE Gold PSU is available in multiple configurations with or without a USB hub to meet different power needs and match the components’ colors.
750W
Black
(USB hub not included)

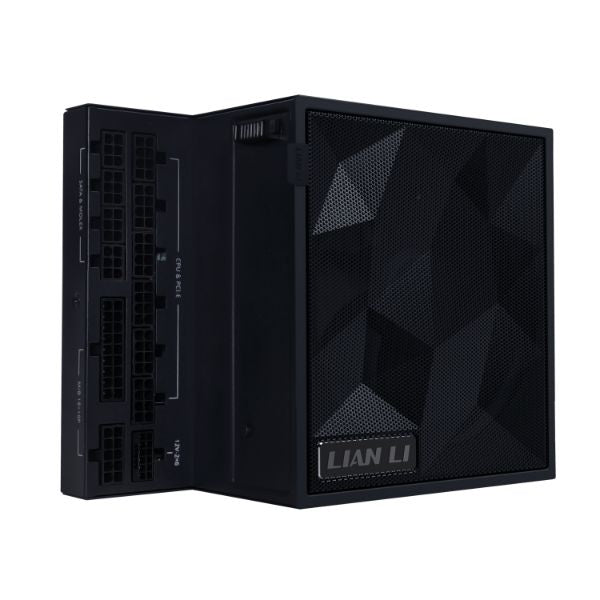

INNOVATIVE L-SHAPE DESIGN
Introducing the world’s first PSU with a detachable USB and PWM fan hub that also functions independently, and that features a removable magnetic dust filter. This unique form factor reorients the connectors outward, simplifying cable management and ensuring a clean, organized build.
MODULAR USB & FAN PWM HUB – EDGE HUB
The external USB and fan PWM hub module offers versatile connectivity options. It can be attached directly to the PSU or connected via a PCIe power interface inside the case.
Fan PWM Hub
6 extended 4-pin fan connectors, each rated at 2A, to meet the demands of multi-fan setups.
USB Hub
4 ports supporting up to 8 downstream connections, ideal for RGB controllers and USB devices, with a total output of 2.5A.
Edge PSU Connector
Remove the cap and attach the hub directly to the Edge PSU for power.
Magnetic Design
Integrated magnets allow easy placement and accessibility inside the case.
Independent Power Supply
Connect the hub to a PCIe 8-PIN cable for independent operation.
MOTHERBOARD SIGNAL CONNECTION
Sync fan speed by connecting the fan 3-PIN to 3-PIN cable.
Offers two options for motherboard USB signal connection to accommodate different configurations.
USB type-A USB type-B
MAGNETIC DUST FILTER
The magnetic mesh dust filter on top of the fan can be easily removed for regular cleaning, ensuring dust-free operation. A high porosity of 66.9% ensures ample ventilation and airflow with quiet fan operation, extending the PSU’s lifespan and reliability.

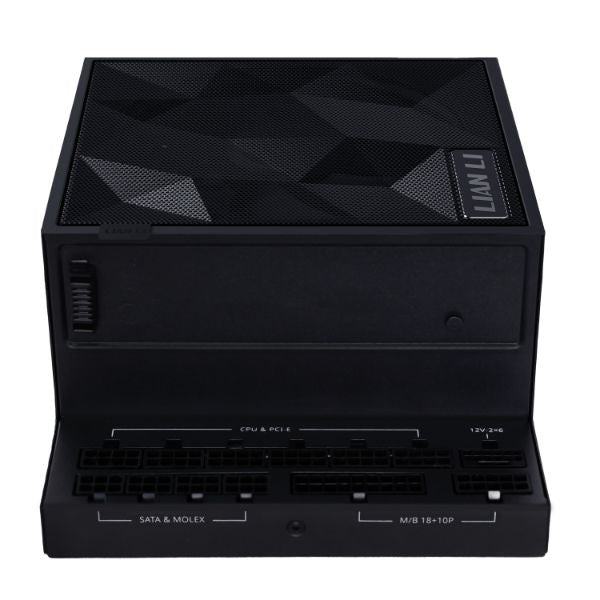

CONVENIENT CABLE MANAGEMENT
Engineered specifically for dual-chamber chassis such as the LIAN LI O11 series, the EDGE Gold PSU’s L-shape design is ideal for vertical installation in the second chamber. This outward-facing interface is more user-friendly than traditional side-mounted designs, making cable management simple and accessible for both beginners and experienced builders.
LONGER CABLE REACH FOR VERSATILE BUILDS
The Edge Gold PSU features new cables that are even longer, making it ideal for dual-chamber or regular tower chassis, enhancing flexibility and ensuring optimal cable management for all kinds of builds with ease.
EFFICIENCY LEVEL CERTIFIED
Achieving the 80 PLUS Gold, Cybenetics Platinum and PPLP Gold certifications, the EDGE Series ensures top-tier energy efficiency, reducing power consumption and heat output while delivering reliable, stable performance.
SPECIFICATIONS
| PRODUCT NAME | EDGE GOLD 750 | EDGE GOLD 850 | EDGE GOLD 1000 | EDGE GOLD 1200 |
|---|---|---|---|---|
| MODEL | EG0750G | EG0850G | EG1000G | EG1200G |
| DIMENSIONS | (D)182 mm X (W)86 mm X (H)150 mm | |||
| POWER SUPPLY DESIGN | Fully modular | |||
| COLOR | Black | Black/ White | ||
| MATERIAL | Steel | |||
| FORM FACTOR | ATX 3.1 | |||
| CERTIFICATION | 80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD | |||
| MAX. DC OUTPUT | 750W | 850W | 1000W | 1200W |
| COMBINED +3.3V & +5V | 120W | 120W | 120W | 120W |
| COMBINED +12V | 744W | 849W | 996W | 1200W |
| INPUT VOLTAGE | 100-240Vac | 100-240Vac | 100-240Vac | 100-240Vac |
| INPUT FREQUENCY RANGE | 9-4.5A 50-60Hz | 10-5A 50-60Hz | 12-6A 50-60Hz | 15-7.5A 50-60Hz |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz | |||
| EFFICIENCY | 90.52%MAX | 90.71%MAX | 91.24%MAX | 91.64%MAX |
| PROTECTIVE CIRCUIT | OCP/OVP/OTP/OPP/SCP/UVP | |||
| CONNECTORS | 1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU connector (750mm) x1pcs 1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs 1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs 1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs 1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs 1 x 12V – 2X6 450W connector (650mm) x1pcs 2 x 6+2 Pin GPU connector (650mm) x2pcs |
1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU connector (750mm) x1pcs 1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs 1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs 1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs 1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs 1 x 12V – 2X6 450W connector (650mm) x1pcs 2 x 6+2 Pin GPU connector (650mm) x2pcs |
1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 6+2 Pin PCle connector (650mm + 100mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (375mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 1 x 12V – 2X6 450W connector (650mm) x1pcs USB*9pin – USB*9pin connector (470mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs |
1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 6+2 Pin PCle connector (650mm + 100mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (375mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 1 x 12V – 2X6 450W connector (650mm) x1pcs 1 x 12V – 2X6 -2*8 600W connector (650mm) x1pcs USB*9pin – USB*9pin connector (470mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs |
| FAN TYPE | 120mm FDB Fan | |||
| FAN SPEED | 2000RPM | 2400RPM | ||
| FAN NOISE LEVEL | 30.9dBA | 39.3dBA | ||
| WARRANTY | 10 Years ( Hub 2 Years ) | |||
