The Hub on Edge Gold 1000W & 1200W is now available separately
Connect to the motherboard using USB-USB and USB-Type A cables
4 ports in 2+2+2+1 format，500mA for each USB port
1 interface for speed feedback functionality

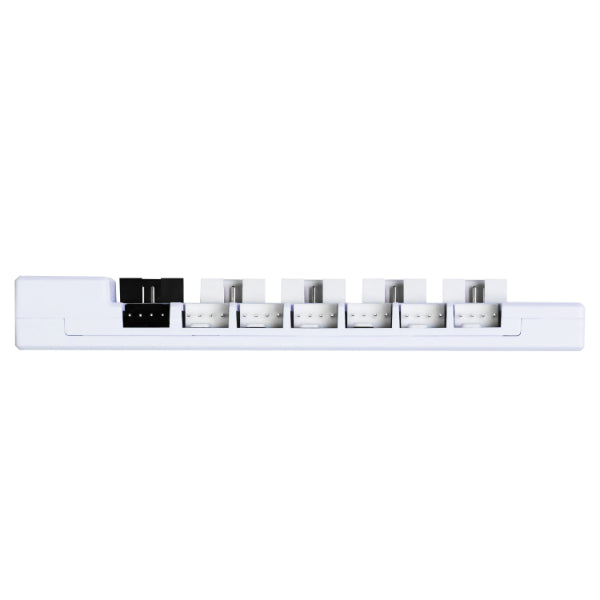

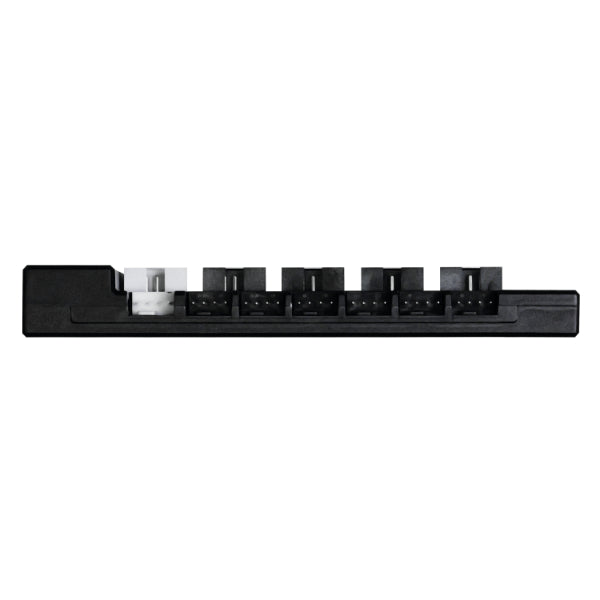

FAN PWM HUB
6 extended 4-pin fan connectors, each rated at 2A, to meet the demands of multi-fan setups.
1 interface for speed feedback functionality
USB HUB
4 ports supporting up to 8 downstream connections, 500mA for each USB port, ideal for RGB controllers and USB devices, with a total output of 2.5A.

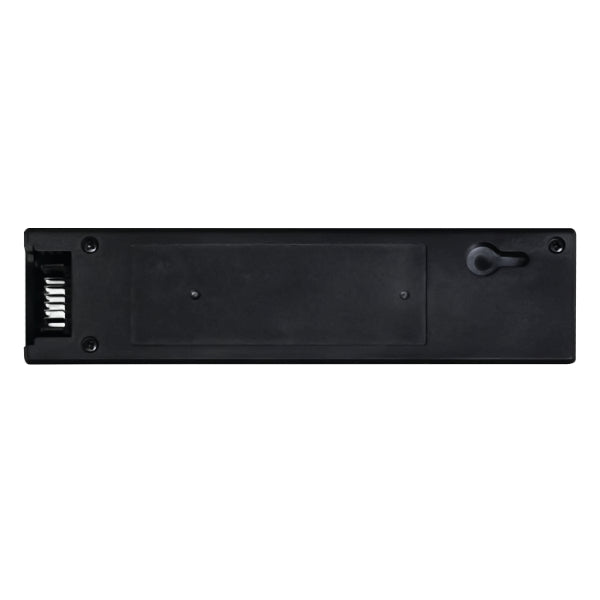

1. Edge PSU Connector Remove the cap and attach the hub directly to the Edge PSU for power.
2. Magnetic Design Integrated magnets allow easy placement and accessibility inside the case.
3. Independent Power Supply Connect the hub to a PCIe 8-PIN cable for independent operation.

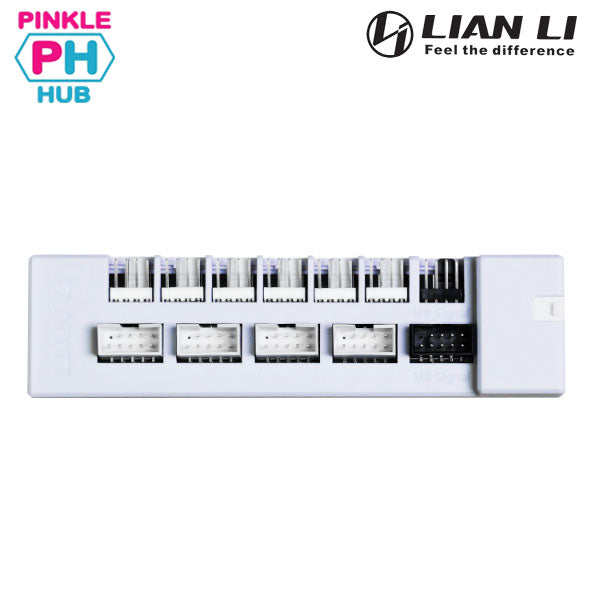

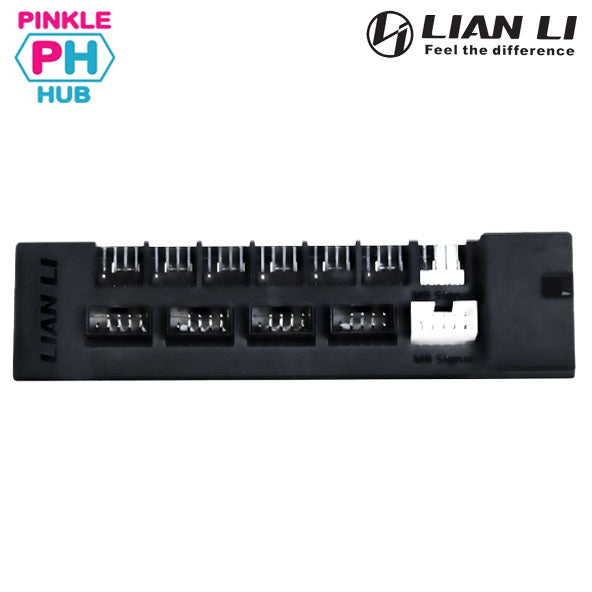

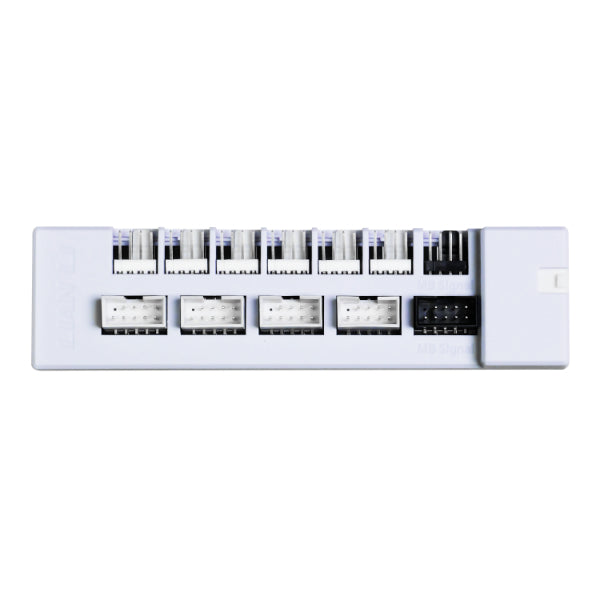

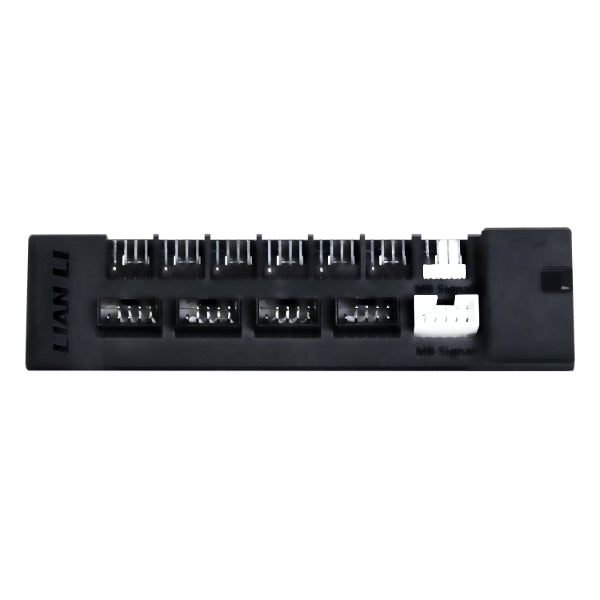

MODULAR USB & FAN PWM HUB
The external USB and fan PWM hub module offers versatile connectivity options. It can be attached directly to the PSU or connected via a PCIe power interface inside the case.
MOTHERBOARD SIGNAL CONNECTION
Offers two options for motherboard USB signal connection to accommodate different configurations.
