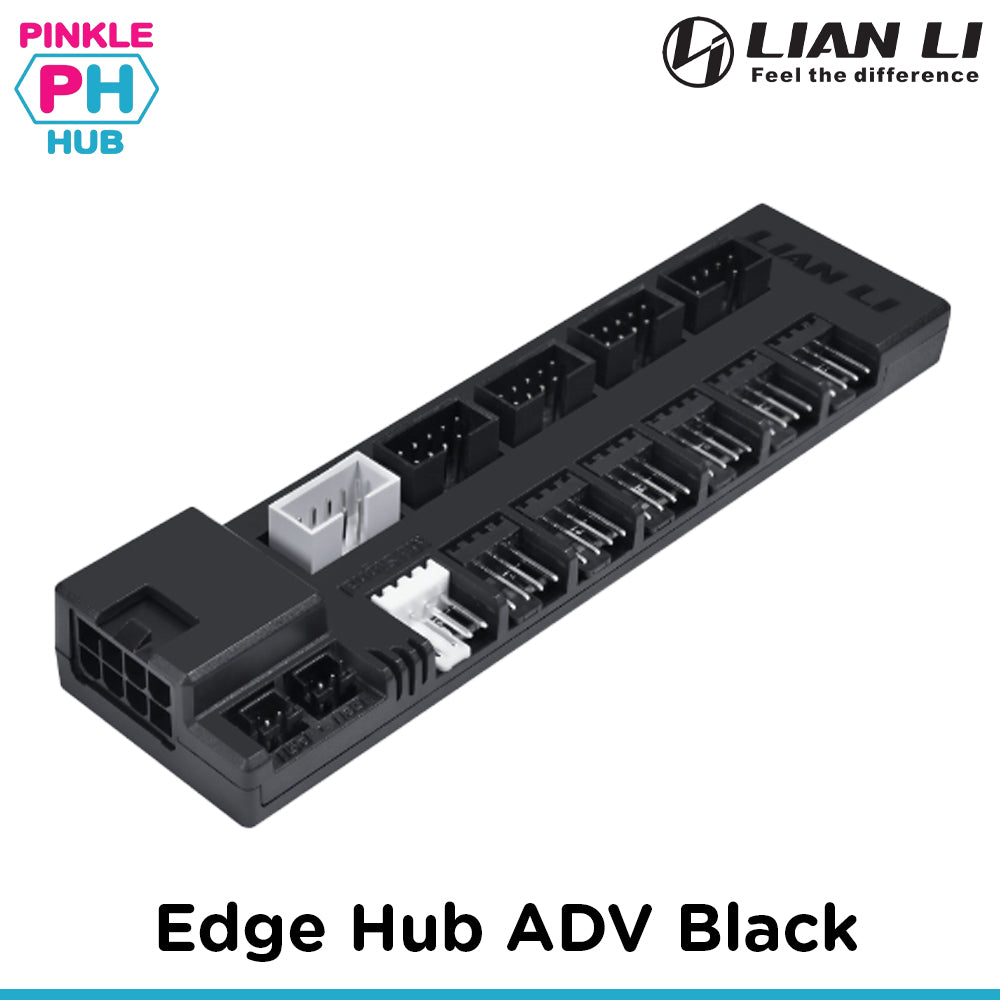

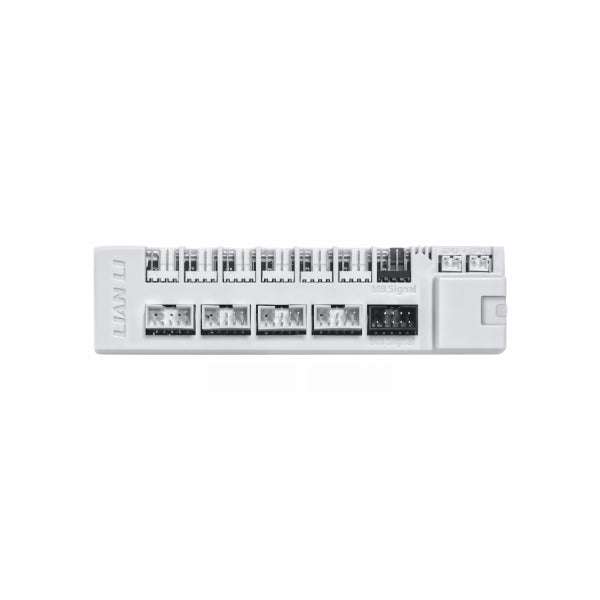

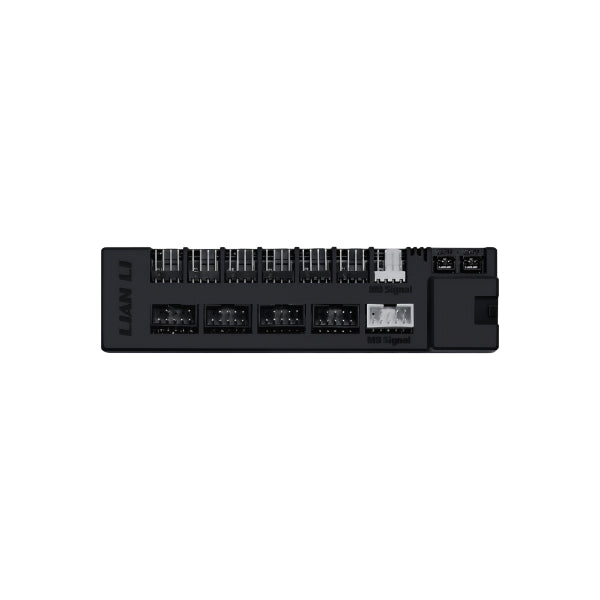

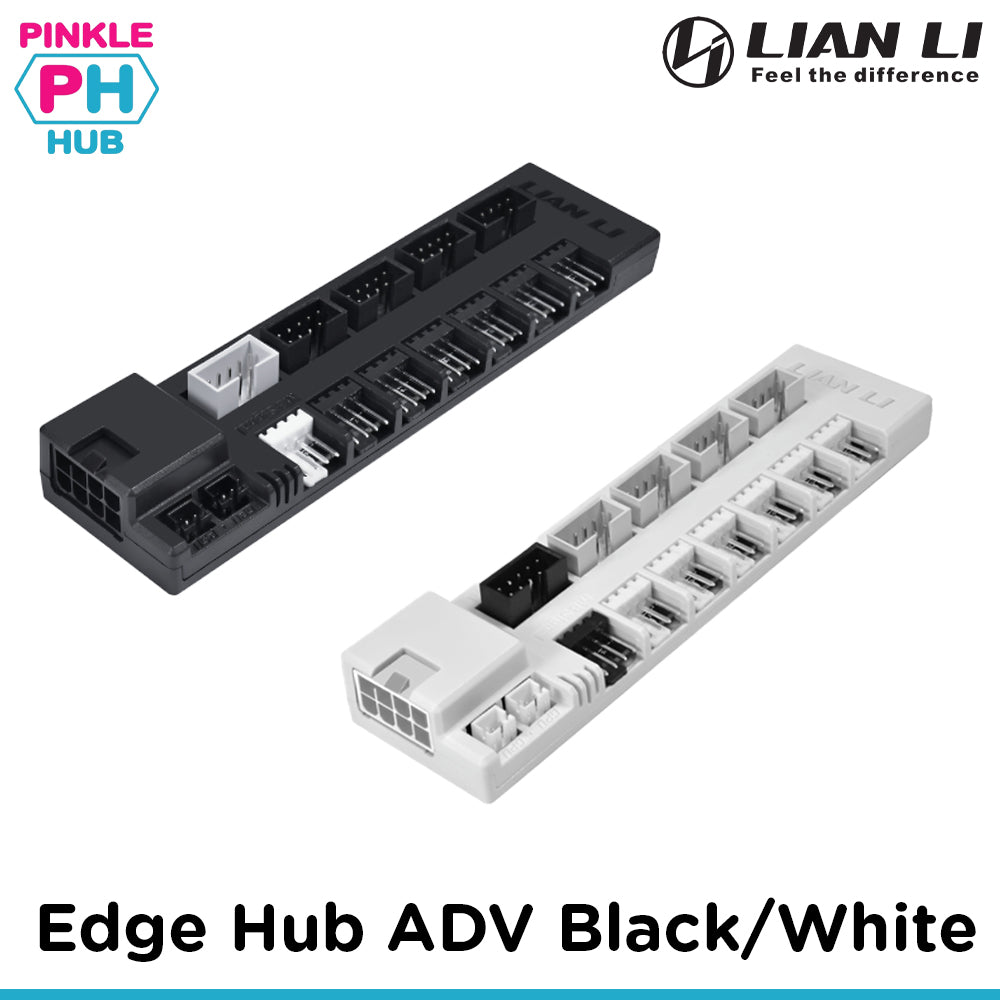

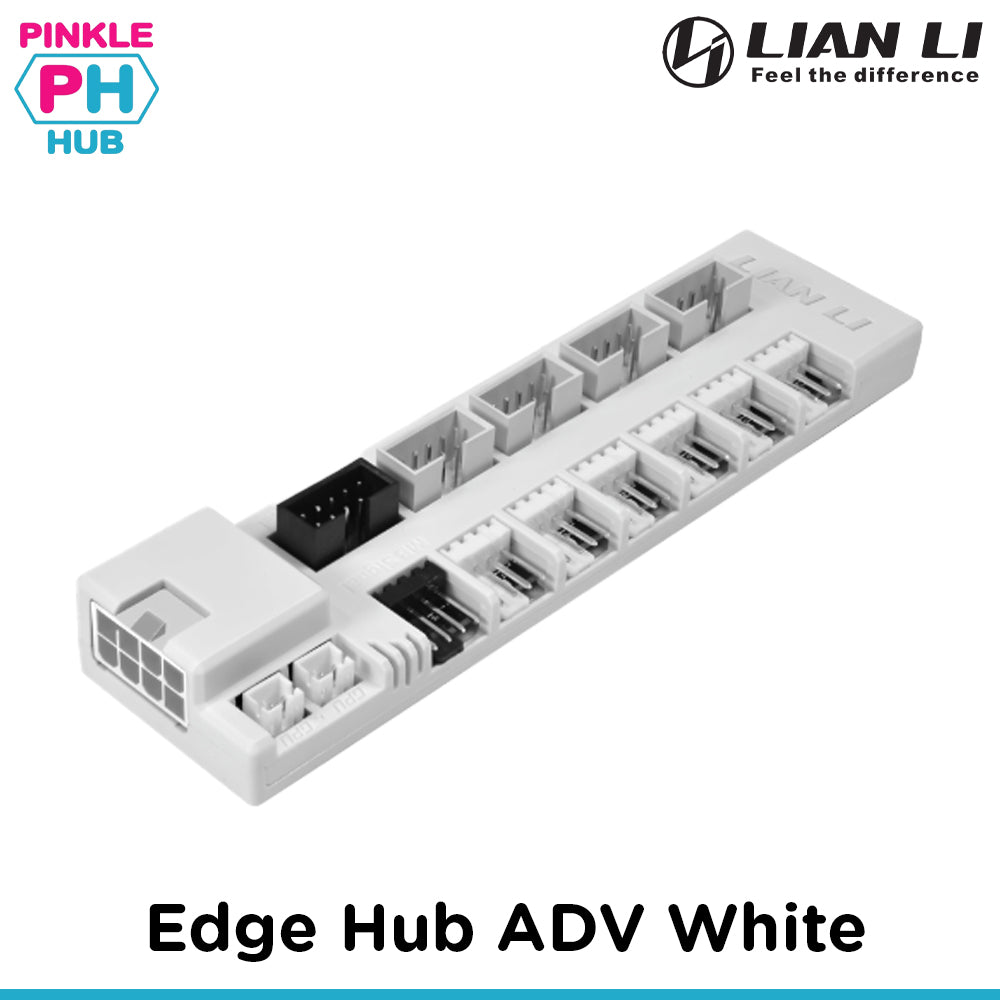

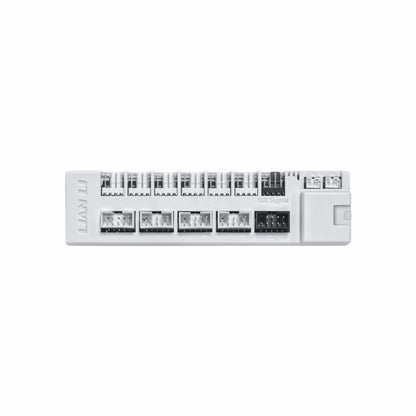

LIAN LI Edge Hub ADV Internal USB and PWM Fan Controller Black/White

Brand : Lian Li

SKU:  G8P.EG-HUB03B.00

3 in stock

₱2,250.00
₱2,250.00
Sale! Sold out

Edge Hub Adv

  • Dual-chip architecture distributes USB devices across two paths for more balanced device usage.
  • Connects through the motherboard’s USB 3.0 header using USB 2.0 signals to reduce hub layers.
  • Four USB ports support seven downstream signals, with one channel reserved for GPU connector temperature monitoring.
  • Six 4-pin PWM fan ports support up to 2A each for centralized fan connectivity.
  • L-Connect 3 provides per-port transfer monitoring, overall hub utilization, high-load alerts, and custom port names.
  • GPU connector temperature monitoring supports customizable alerts, automatic shutdown, and email notifications.
  • Supports direct power from EDGE / RS Series PSUs or independent power via a PCIe 8-pin cable.
  • Magnetic mounting enables flexible placement inside the case.

SPECIFICATIONS


PRODUCT NAME Edge Hub ADV
MODEL EG-HUB03B EG-HUB03W
COLOR Black White
DIMENSIONS (D)35mm x (W)132mm x (H)17mm
INPUT Fan 12Vdc 12.5A
USB 5Vdc 2.5A
USB SIGNAL SOURCE USB 3.0 header (D+/D- tap)
HUB ARCHITECTURE Dual 1-to-4 hub chips
DOWNSTREAM USB PORTS 7 (4 headers x 2)
USB HEADER OUTPUT 4 x header 5Vdc for each 500mA Total 2.5A
FAN HEADER OUTPUT 6 x header 12Vdc 2A for each
BACKWARD COMPATIBLE USB 2.0 9-pin fallback
BANDWIDTH MONITORING L-Connect 3, real-time per port
ALERTS Data loss alerts
High Temperatures alerts
Automated system shut down
TELEMETRY PROTOCOL USB HID, L-Connect 3
TEMPERATURE SENSING GPU1 – GPU2 – Ambiant
ONBOARD MCU ARM 32-ibt MCU
POWER SOURCE Edge Series PSU Connector or PCIe 8-PIN
MOUNTING Magnetic, in case or on PSU
INCLUDED CABLES USB 9pin to USB 9pin (470mm) x 1pc
USB 3.0 to USB 3.0 Female / USB 9pin (330-280mm) x 1pc
Fan 4pin to 4pin (550mm) x 1pc
12V-2×6 with temperature sensors x 1pc (650mm)
WARRANTY 2-Year
