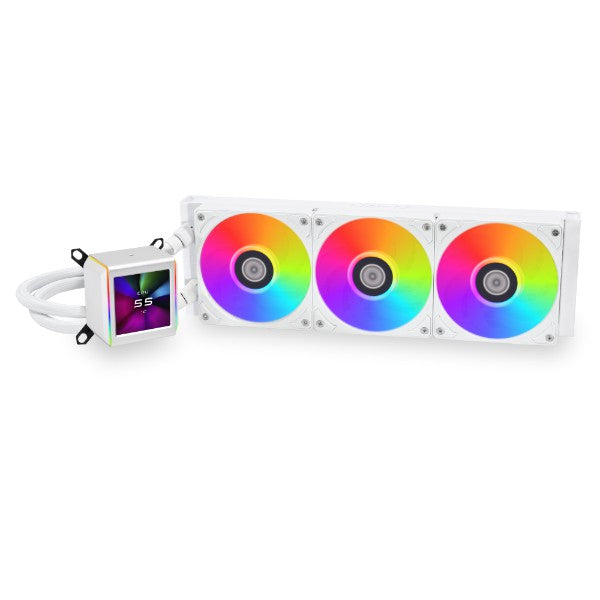

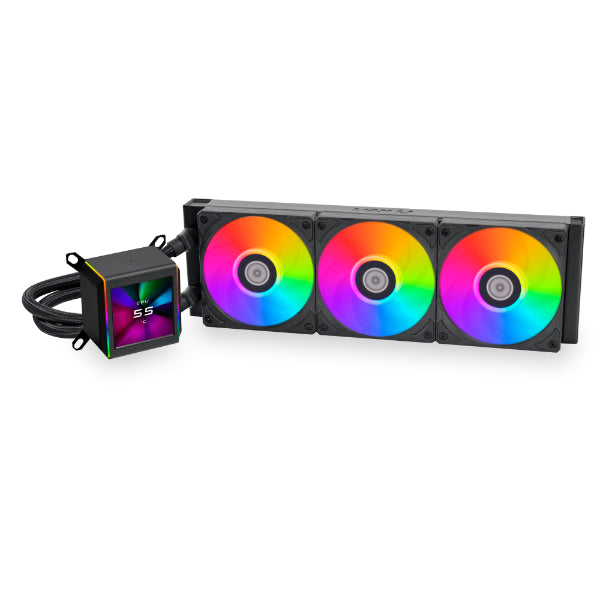

Lian Li GALAHAD II LCD 360

Lian Li GALAHAD II LCD 360

Brand : Lian Li

Regular price ₱13,452.00
Sale price ₱13,452.00
Regular price ₱14,750.00 -9%
Sale! Sold out
Color

GALAHAD II LCD

  • Features a 2.88” IPS LCD screen with a 480×480 resolution
  • Powered by Asetek 8th Gen Solution with a three-phase motor that goes up to 3600 RPM
  • Features screen recording and screen capturing functions to easily display your favorite contents
  • Access unique screen effects and layer-by-layer customization through L-Connect 3
  • Factory installed ARGB daisy-chainable radiator fans or UNI FAN SL-INF
  • 45-degree tubing connector that enables 360-degree rotation of tubes for more installation versatility

EMPOWER WITH CUSTOMIZABLE DISPLAY
The LCD screen on the water block can be personalized and controlled using L-Connect 3, with a wide range of multi-effects and customization for you to explore.

  • 2.88” LCD Screen
  • 480 × 480 Resolution
  • 500 nits Brightness
  • IPS Type Display
  • 24-bit Full Color

VISUALIZING THE CHANGES WITH UNIQUE CIRCULAR EFFECTS
Through L-Connect 3, multiple circular effects that can display text at the center are offered. The speed of the effect can be set manually or adjusted dynamically according to the monitored hardware sensor.

CENTER DISPLAY OPTIONS

  • CPU temperature
  • CPU load
  • GPU temperature
  • GPU load
  • Coolant temperature
  • Customized text
  • Time

BUILD YOUR PERSONAL DASHBOARD
Featuring 4 layers to achieve a completely personalized display system on the go.

Layer 1: Watermark Upload an image or GIF that can be moved horizontally and vertically with different levels of shadow and opacity adjustments.

Layer 2: Hardware Information or Text
Display and loop various hardware information, time, or custom text messages.
Each can be adjusted with various layouts, orientations, fonts, sizes, and shadow settings.

Layer 3: Themed Motion Graphics
Select background type effects with intensity that can be manually customized or dynamically adjusted based on hardware sensor monitor.

Layer 4: Images or Videos
Set your background with colors or display videos and images through screen record/screen capture or file upload (MP4/GIF/JPEG/PNG).

BACKGROUND TYPE EFFECTS
Besides the Circular Effects, there are also Background-Type Effects designed to give your videos and photos a different look.

CAPTURE, EDIT, AND ENJOY
Through L-Connect 3, you can freely screen record or screen capture your favorite content from virtually anywhere. You can even further edit the videos or images that you captured with a built-in editor tool before fully importing the files.

DESIGNED FOR COOL
The 8th Gen Asetek pump features a 3-phase motor with up to 3600 RPM for enhanced cooling and quieter operation. It is further complemented by a larger cold plate designed for the latest Intel and AMD processors.


HIGH DENSITY ALUMINUM RADIATOR
This 30mm thick radiator features single-wave radiator fins with 20 FPI (fins per inch), which is less airflow restrictive and results in greater thermal performance.

DAISY-CHAINABLE ARGB FAN
The ARGB PWM fans can be daisy-chained by a single short cable which can be hidden inside the frame of the fans.

The 120/140mm fan is 25mm thick and is equipped with fluid dynamic bearing for stable and quiet operations while effectively providing airflow to the radiator.

Maximum Static Pressure Maximum Airflow
120MM 3.26 mm    H2O 79.9 CFM
140MM 2.99 mm    H2O 89.7 CFM

SIMPLE CONNECTION
The controller is built in the pump and the fan can be connected to the pump to control via L-Connect 3.

ONLY 2 CABLES ARE NEEDED FOR BLOCK HEAD.

4-PIN PWM Cable
To power up the pump with a 12V pump header on the motherboard

USB Type-C Cable
Plug into a motherboard 9-pin USB header to power up the screen, capture data, and use L-Connect 3.

SPECIFICATIONS

PRODUCT NAME GALAHAD II LCD
MODEL GA2ALCD36B GA2ALCD36W GA2ALCD28B GA2ALCD28W
TYPE 360 280
COLOR Black White Black White
PUMP SOLUTION Asetek 8th Gen Pump
PUMP SPEED 3600 RPM (Max.)
PUMP NOISE 32.1 dBA
WATER BLOCK DIMENSION 72.15 × 73.05 × 61.98 mm
LCD DISPLAY TYPE 2.88” IPS
LCD DISPLAY RESOLUTION 480 × 480 pixels
SCREEN BRIGHTNESS 500 nits
RADIATOR DIMENSION 399.5 x 120 x 30mm 319.5 x 140 x 30mm
RADIATOR MATERIAL Aluminum
TUBE LENGTH 385mm
FAN DIMENSION 123 x 120 x 25mm 143 x 140 x 25mm
FAN SPEED 300~2450 RPM 300~1550 RPM
STATIC PRESSURE 3.26 mmH2O (Max.) 2.99 mmH2O (Max.)
AIRFLOW 79.9 CFM (Max.) 89.7 CFM (Max.)
ACOUSTIC NOISE 30 dB(A) 26.7 dB(A)
BEARING TYPE Fluid Dynamic Bearing (FDB)
COMPATIBLE CPU SOCKETS Intel: LGA 1700 / 1200 / 115x
AMD: AM5 / AM4
WARRANTY 6 years warranty
