Lian Li Galahad II Trinity Performance 360mm (GA2P36)
Lian Li Galahad II Trinity Performance 360mm (GA2P36)
Brand : Lian Li
Regular price
Couldn't load pickup availability
Galahad II Trinity Performance
- 3 interchangeable pump looks that can be customized with L-Connect 3
- Factory installed with daisy-chainable radiator LCP fans
- Pump motor speed goes up to 4200RPM
- Includes a newly designed pathway, copper plate and larger impeller for better waterflow for liquid coolant
- 45-degree tubing connector with tubes’ inner diameter increased to 7mm
REDEFINE YOUR STYLE MAXIMIZE YOUR PERFORMANCE
AVAILABLE IN TWO COLORS
The Galahad II Trinity series comes with pre-installed fans for quick installation to the case.

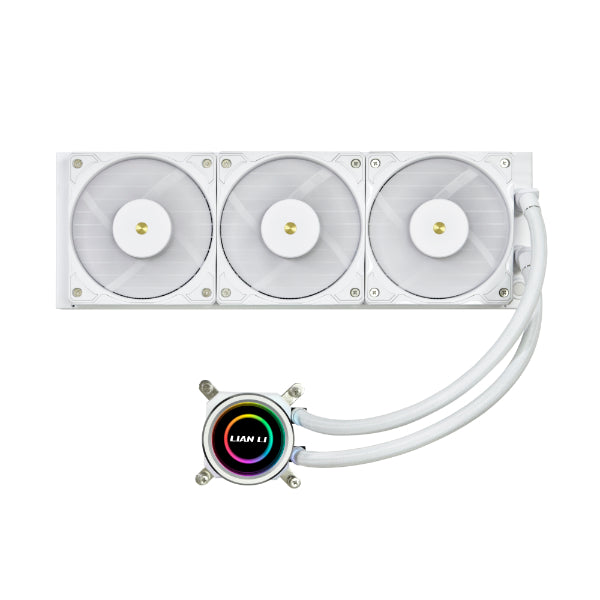

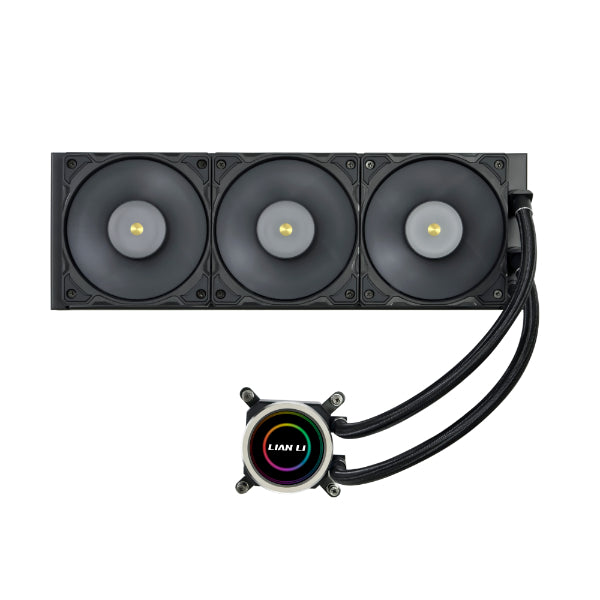

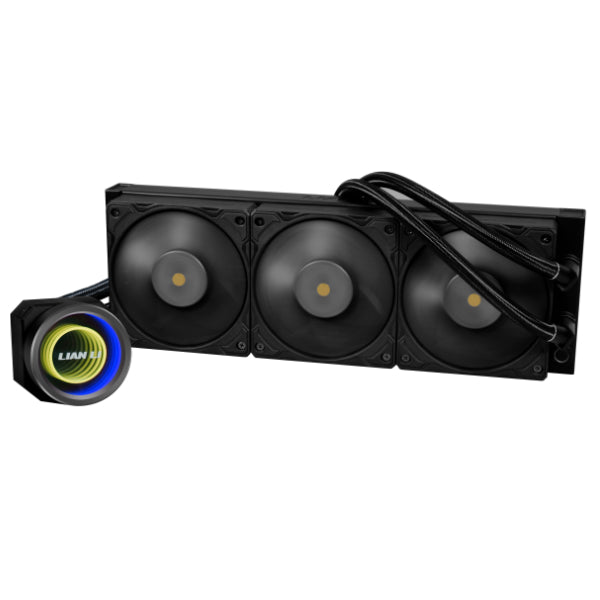

Black 360

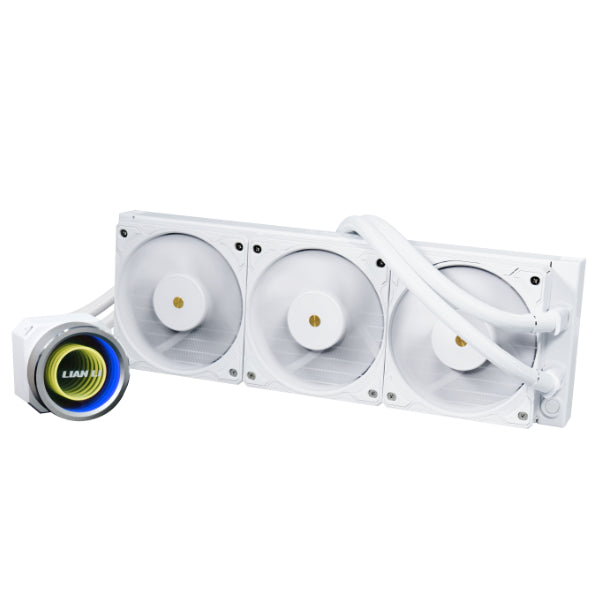

White 360
BOOST PERFORMANCE TO THE NEXT LEVEL
Galahad II Trinity Performance pump is larger than the regular one so that it accommodates upgraded components to efficiently cool the CPU.
Compare to the Galahad II Trinity, the performance version has improved:
Copper Plate Fin Spacing
11%
larger
To prevent substance
buildup over time.
Pump Impeller
15%
bigger
To deliver water efficiently
Motor Speed
31%
faster
To gain stronger water flow
Motor speed
up to 4200RPM
36mm diameter large impeller
for strong water flow
Straightened coolant pathway,
reducing turbulence
Revised the fin thickness / height / distance for better diffusion of the coolant over the entire surface area of the copper plate.
CHOOSE PREFERABLE LOOK
The Galahad II Trinity series’ pump cap has three interchangeable designs, each with a unique look and two rings of colors that can be individually controlled with different lighting effects.

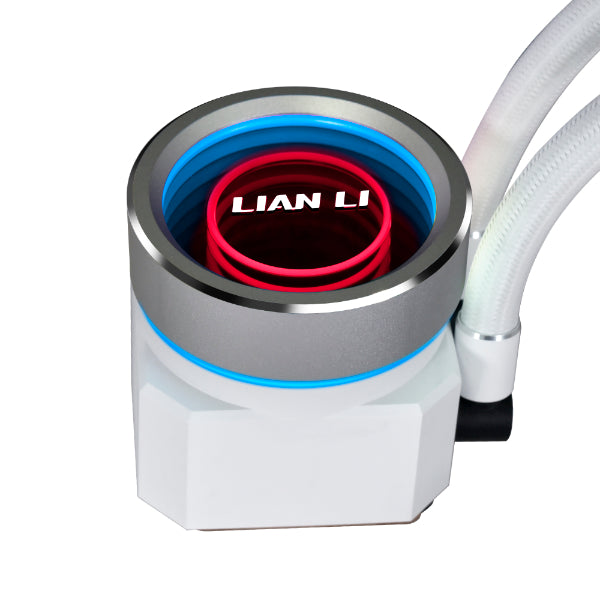

DUO- INFINITY
An aluminum housing cap with duo infinity mirror rings and a Lian Li logo at the center. (90° Rotatable)

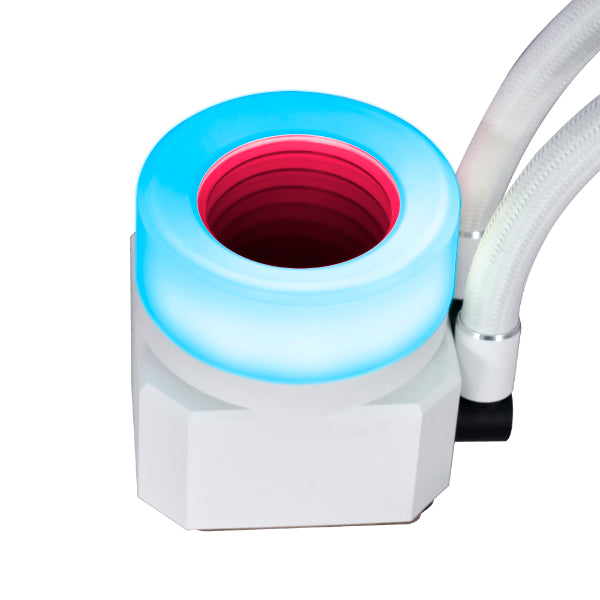

DAZZLE
An entirely shining pump cap that brings the most vivid lighting to your build.

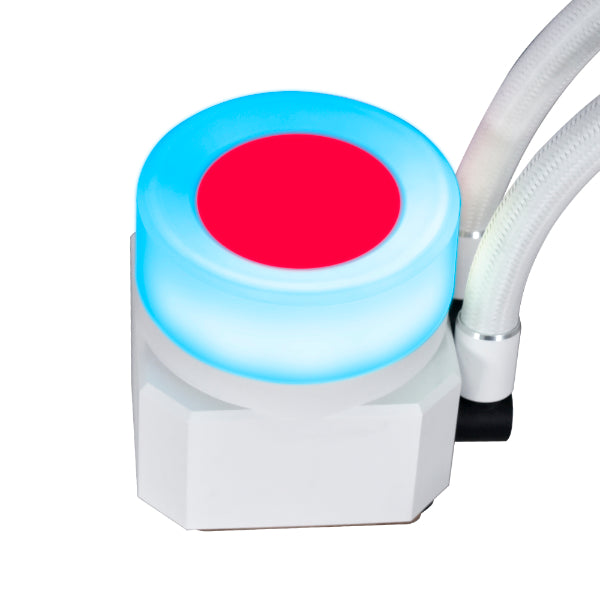

SINK-HOLE
The combination of the diffuser and infinity mirror creates the sinkhole effect.
HIGH DENSITY ALUMINUM RADIATOR
The 32mm thick radiators feature a double-wave radiator fin design of 19 FPI which provides more surface area to dissipate heat with a high performance fan.
DAISY-CHAINABLE LCP FAN
The double-stack radiator fins provide better heat dissipation due to the enlarged surface area. However, the increased density also requires a more performance-oriented fan. These high-performance LCP fans can be daisy-chained by a single short cable which can be hidden inside the frame of the fan. Just like the UNIFAN P28, this 120mm fan is 28mm in thickness and features a copper shield bearing for high RPM stability and quiet operations.
Two modes of fan speed can be set with the included fan speed controller to meet different usage needs:
Maximum Static Pressure
H - 6.99 mmH2O
L - 4.08 mmH2O
Maximum Airflow
H - 108.29 CFM
L - 81.54 CFM
H – Performance oriented with maximum speed at 3000 RPM
L – Noice optimized with maximum fan speed at 2300 RPM
MOUNT IN ANY WAY

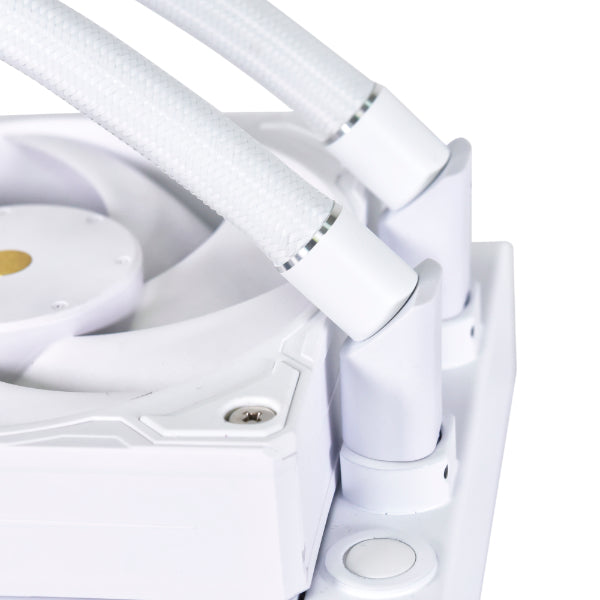

This innovative 45° tubing connector gives the tubes the freedom of 360° rotation, allowing the Galahad ll Trinity series to be installed in many different ways.
The Galahad ll Trinity series can be flexibly installed in ways such as:
Top Mount
Side Mount
Front Mount
Note: Do not apply heavy pressure or strike on the connector.
To make things even better, it also comes with a leather strap to help with organizing the tubes.
INSTALATION MADE EASY, FOR YOU
The Galahad II Trinity series introduces redesigned mounting backplates to provide a hassle-free installation to users while maintaining compatibility with most mainstream CPU sockets. The backplates have a one-piece design with fixed struts to make installation easier.
It also comes with a thermal paste control film and spreader to help ensure the right amount of thermal paste is applied for effective heat dissipation.
SPECIFICATIONS
| PRODUCT NAME | GALAHAD II TRINITY PERFORMANCE | |
| MODEL | GA2P36B | GA2P36W |
| TYPE | 360mm | |
| COLOR | Black | White |
| PUMP SPEED | 4200 RPM | |
| RADIATOR FINS | Double wave | |
| RADIATOR SIZE | 396 x 130 x 32mm | |
| PUMP SIZE | 74 x 74 x 79mm | |
| INCLUDED PUMP BLOCK CAPS | Dazzle Mode, Sink Hole, Duo-Infinity | |
| TUBE LENGTH | 385mm | |
| PUMP NOISE | 22.03 dBA | |
| FAN SIZE | 120 x 120 x 28mm | |
| FAN SPEED | L: 2300 RPM (Max.) H: 3000 RPM (Max.) | |
| STATIC PRESSURE | L: 4.08 mmH2O (Max.) H: 6.99 mmH2O (Max.) | |
| AIRFLOW | L: 81.54 CFM (Max.) L: 108.29 CFM (Max.) | |
| ACOUSTIC NOISE | L: 32.1 dB(A) H: 39.9 dB(A)) | |
| BEARING TYPE | Fluid Dynamic Bearing (FDB) | |
| COMPATIBLE CPU SOCKETS | Intel: LGA 1700 / 1200 / 115x AMD: AM5 / AM4 | |
| WARRANTY | 5 years | |
