Hydroshift LCD AIO
• Shifted AIO tubes for a near-tubeless aesthetic.
• Features server-style ribbed tubes for tight bending radius.
• Performance-enhanced and noise-optimized pump.
• Features a 2.88” IPS LCD screen with a 480×480 resolution.
• Powered by L-Connect 3 for screen display content.
• Pre-installed daisy-chainable radiator fans or UNI FAN TL fans.
HydroShift LCD AIO
Unleash Power, Elevate Style
Experience a PC aesthetic revolution with
HydroShift AIO’s side-mounted coolant pathway,
integrating cooling tubes with the radiator for a sleek, flawless look.

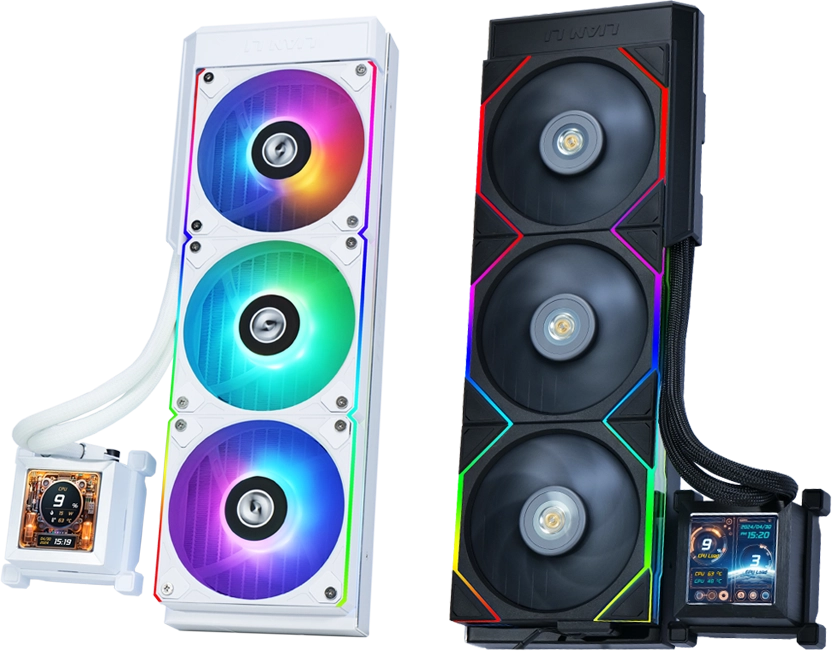

AVAILABLE IN THREE VERSIONS AND DUAL COLORS
Choose from the high-performance 360S, the vibrant 360R,
or the visually stunning 360TL, each available in black or white.
360S

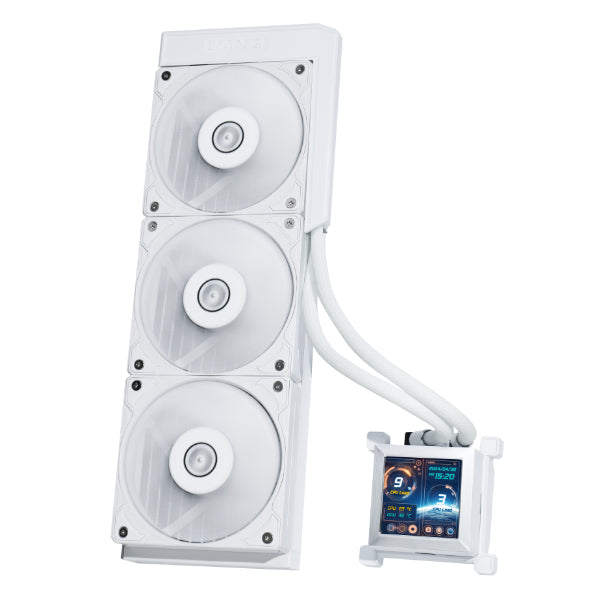

white 360S

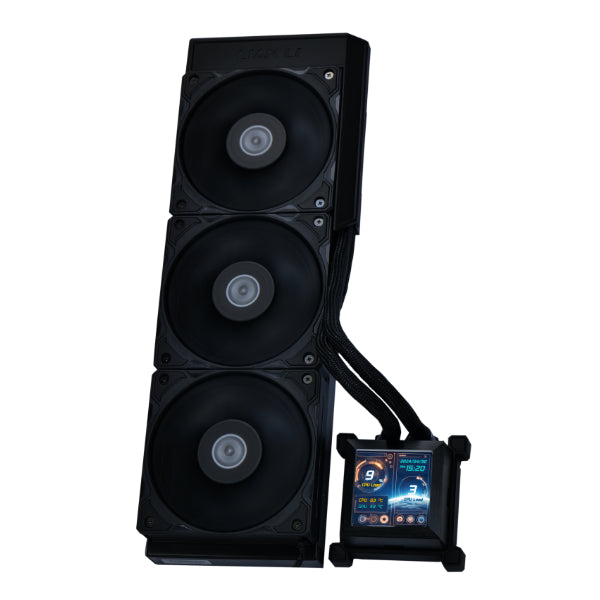

black 360S
Pre-installed three 28mm fans that can reach a maximum speed of 2500 RPM, ensuring quiet operation without compromising high performance. Additionally, this is compatible with the ARGB side light strips of the P28 UNI Fan.
360R

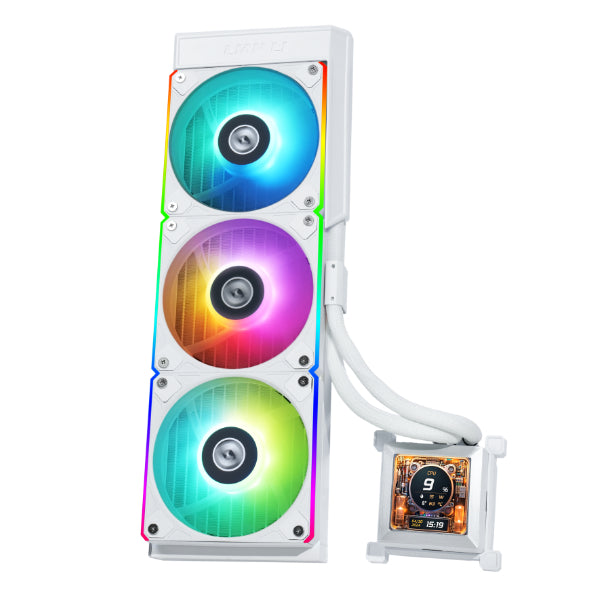

white 360R

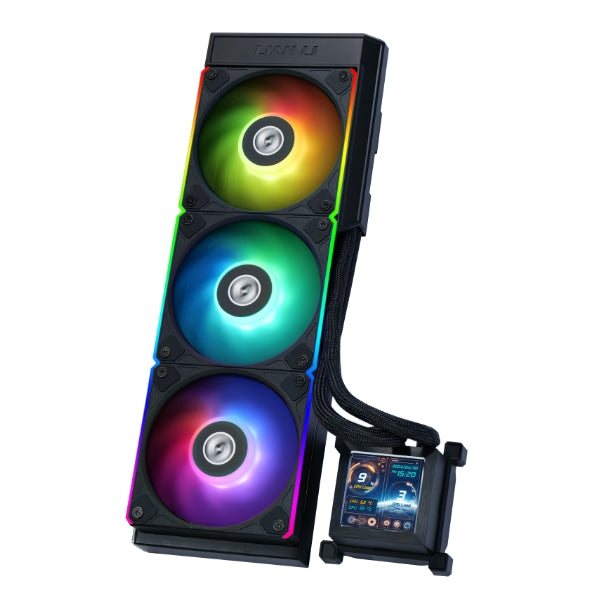

black 360R
This version features more vibrant ARGB fans with impressive airflow performance, reaching a maximum speed of 2400 RPM.
360TL

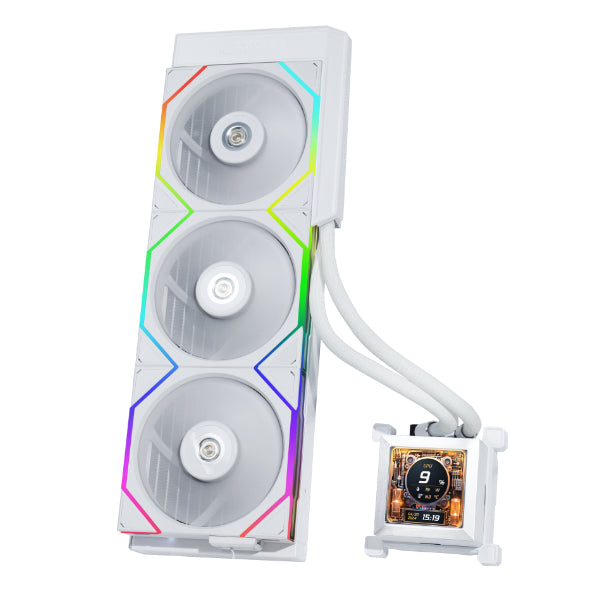

white 360TL

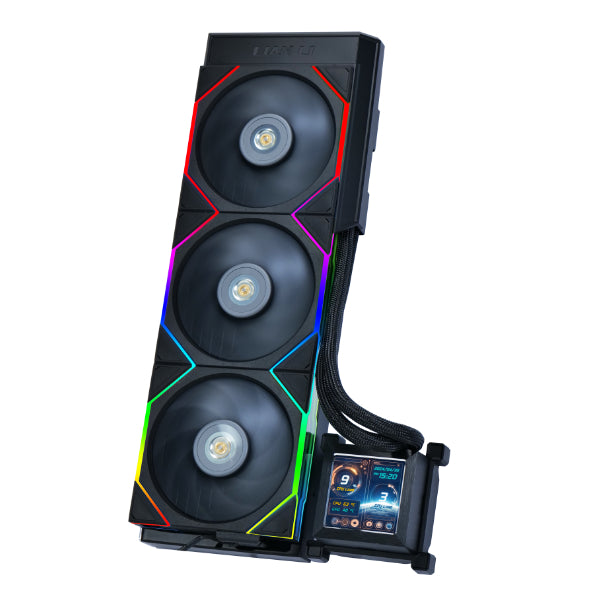

black 360TL
For users who prioritize aesthetics, the 360TL version with modular TL fans is the option. This model not only boasts an eye-catching design with a side infinity mirror and dual ARGB light strips but also excels in performance thanks to its LCP blades, achieving a maximum speed of 2600 RPM. Additionally, the included controller allows for seamless connection with TL LCD fans.
SIDE-MOUNTED DESIGN
The HydroShift AIO features an innovative side-mounted design for its cooling tubes, which are snugly attached to the side of the radiator. Combined with several thoughtful design elements, this ensures a clean and streamlined appearance for the entire cooling setup once installed.
Note: The Hydroshift AIO is designed to achieve optimal performance when the tubes on the pump are oriented upwards.
Pre-Installed Mounting Brackets
Fixed brackets on the radiator ensure the coolant tubes stay securely in place, with an additional bracket included for cases with limited top-mount space.
Note: Ensure there is a width of 140mm x 2 and a compatibility length of 403mm for the radiator before installation to accommodate the extra space required for the radiator and cooling tubes.
Server-Grade Ribbed Tubes
These highly durable and flexible tubes allow tight bends without compromising internal diameter or flow rate.
Cable Clips
Used to organize the cooling tubes and cables extending from the pump, ensuring a smooth and cohesive overall appearance.
Pump cover
Used to conceal the pump bracket, maintaining a sleek and clean aesthetic throughout.
Dual Direction L-Shaped Shrouds
Customizable for either side of the radiator to maintain a consistent and stylish appearance.
Compared to the GA II LCD that uses Asetek’s 8th Gen solution, the HydroShift AIO is quieter and more efficient. Our tests indicate that when benchmarking the Intel® Core™ i9 processor 14900K at 280W, the CPU temperature for the HydroShift AIO is reduced by 2.5°C compared to the GA II LCD. At the same time, acoustic noise is lowered by 3dbA.
ACOUSTIC NOISE
3 dBA ↓
CPU TEMPERATURE
2.5°c ↓
ENHANCED DISPLAY
Featuring a 480×480 resolution, 500 nits brightness, and 24-bit full color, customizable via L-Connect 3.
- 2.88”LCD Screen
- 480×480 Resolution
- 500 nits Brightness
- IPS Type Display
- 24-bit Full Color
LIAN LI chassis compatible list:
Top installation without issue
O11D EVO RGB
O11D EVO
O11D EVO XL
O11D
O11DXL
O11D MINI (3 slots mode)
Top installation with mounting the 3rd tube clamp to help tube organizing
(due to limited space between the motherboard and the fan)
LANCOOL 216
LANCOOL III
Side installation with tubes on the pump bottom oriented
Note: The AIO performance will not be as optimal.
O11 Vision
Remove the L-shape cover and all the tube clamps to install
SUP01
Not compatible
✘ O11D MINI (5&7 slots mode)
✘ O11 AIR MINI
✘ A3-mATX
✘ LANCOOL II
SPECIFICATIONS
|
PRODUCT NAME |
HydroShift LCD 360S |
|
|
MODEL |
HSLCD36SB BLACK |
HSLCD36SW WHITE |
|
TYPE |
360 |
|
|
COLOR |
Black |
White |
|
PUMP SPEED |
3800RPM (Max.) |
|
|
WATER BLOCK DIMENSION |
72 x 72 x 59mm |
|
|
WATER BLOCK TYPE |
LCD DISPLAY TYPE: 2.88” IPS LCD DISPLAY RESOLUTION: 480 × 480 pixels SCREEN BRIGHTNESS: 500 nits |
|
|
RADIATOR DIMENSION |
403 x 124.5 x 27mm |
|
|
RADIATOR MATERIAL |
Aluminum |
|
|
RADIATOR FINS |
Single wave |
|
|
TUBE LENGTH |
475mm |
|
|
FAN DIMENSION |
124 x 120 x 28 mm |
|
|
FAN SPEED |
200~2500 RPM |
|
|
STATIC PRESSURE |
5 mm H2O（Max.） |
|
|
AIRFLOW |
73.14 CFM（Max.） |
|
|
ACOUSTIC NOISE |
29.8 db(A) |
|
|
BEARING TYPE |
FDB Bearing |
|
|
COMPATIBLE CPU SOCKETS |
Intel: LGA 1700 AMD: AM5 / AM4 |
|
|
PRODUCT NAME |
HydroShift LCD 360RGB |
|
|
MODEL |
HSLCD36RB BLACK |
HSLCD36RW WHITE |
|
TYPE |
360 |
|
|
COLOR |
Black |
White |
|
PUMP SPEED |
3200RPM (Max.) |
|
|
WATER BLOCK DIMENSION |
73.2 x 73.2 x 58.6mm LCD DISPLAY TYPE：2.88” IPS |
|
|
WATER BLOCK TYPE |
LCD DISPLAY RESOLUTION：480 × 480 SCREEN BRIGHTNESS：500 nits |
|
|
RADIATOR DIMENSION |
403 x 124.5 x 31mm |
|
|
RADIATOR MATERIAL |
Aluminum |
|
|
RADIATOR FINS |
Single wave |
|
|
TUBE LENGTH |
475mm |
|
|
FAN DIMENSION |
124 x 120 x 28 mm |
|
|
FAN SPEED |
300~2400 RPM |
|
|
STATIC PRESSURE |
3.26mm H2O（Max.） |
|
|
AIRFLOW |
79.9 CFM（Max.） |
|
|
ACOUSTIC NOISE |
30 db(A) |
|
|
BEARING TYPE |
FDB Bearing |
|
|
COMPATIBLE CPU SOCKETS |
Intel: LGA 1700 AMD: AM5 / AM4 |
|
|
PRODUCT NAME |
HydroShift LCD 360TL |
|
|
MODEL |
HSLCD36TB BLACK |
HSLCD36TW WHITE |
|
TYPE |
360 |
|
|
COLOR |
Black |
White |
|
PUMP SPEED |
3200RPM (Max.) |
|
|
WATER BLOCK DIMENSION |
73.2 x 73.2 x 58.6mm LCD DISPLAY TYPE：2.88” IPS |
|
|
WATER BLOCK TYPE |
LCD DISPLAY RESOLUTION：480 × 480 SCREEN BRIGHTNESS：500 nits |
|
|
RADIATOR DIMENSION |
403 x 124.5 x 31mm |
|
|
RADIATOR MATERIAL |
Aluminum |
|
|
RADIATOR FINS |
Single wave |
|
|
TUBE LENGTH |
475mm |
|
|
FAN DIMENSION |
124 x 120 x 28 mm |
|
|
FAN SPEED |
200~2600 RPM |
|
|
STATIC PRESSURE |
3.97mm H2O（Max.） |
|
|
AIRFLOW |
90.1CFM（Max.） |
|
|
ACOUSTIC NOISE |
33 db(A) |
|
|
BEARING TYPE |
FDB Bearing |
|
|
COMPATIBLE CPU SOCKETS |
Intel: LGA 1700 AMD: AM5 / AM4 |
|
