SSI-EEB(Width Max 330mm) / E-ATX（Width Max 280mm） ATX / Micro-ATX/Mini-ITX

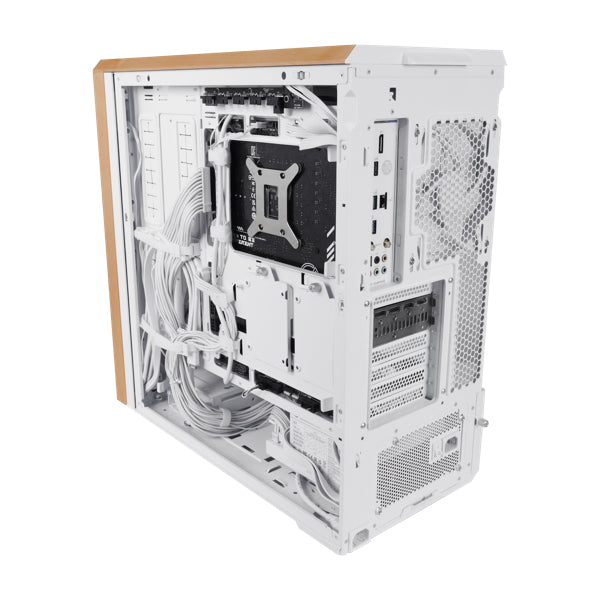

BACK CONNECT MOTHERBOARD SUPPORT
ATX / Micro-ATX
PSU SUPPORT LENGTH
Standard Mode：ATX（Under 220mm）
Rotated Mode：ATX（Under 180mm）
FAN SUPPORT

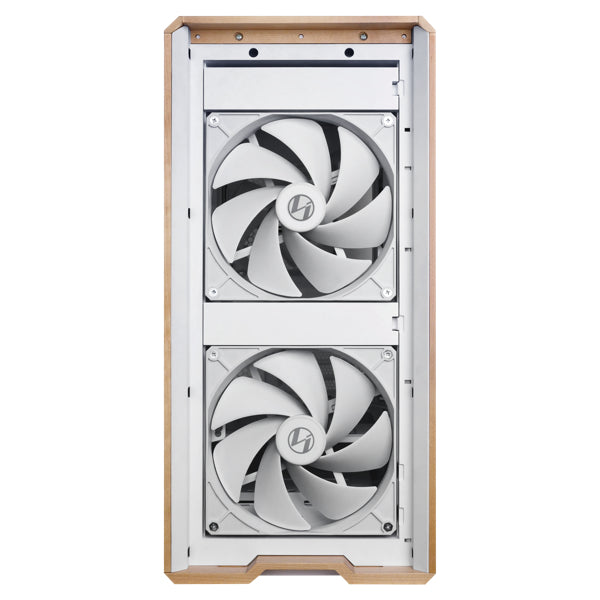

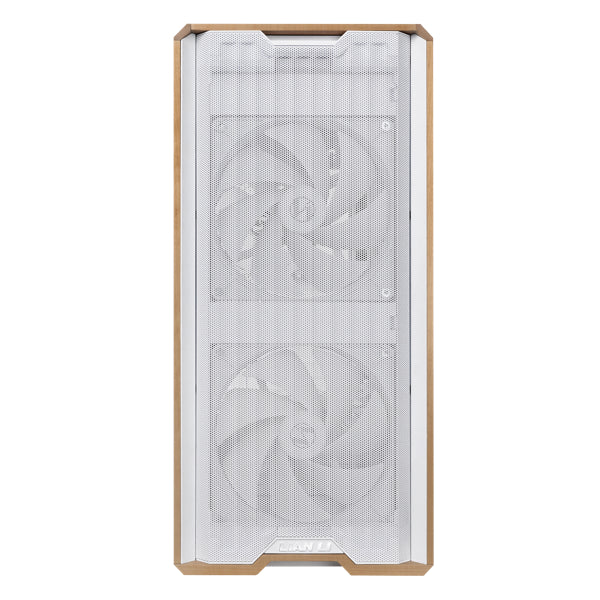

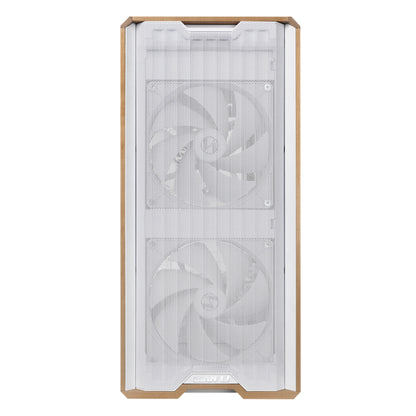

Front: 170mm x 2 (Included) / 140mm x 3 / 120mm x 3 Top: 3 x 120mm / 2 x 140mm Above PSU Shroud: 3 x 120mm (2 Included) Under the PSU shroud: 2 x 120mm Rear: 1x 140mm(Included) / 1x 120mm
RADIATOR SUPPORT
Top: 360 / 280 / 240mm
DRIVE SUPPORT
Back Connect Motherboard: 2 x 2.5″ SSD / 1 x 2.5″ SSD(behind MB) 2 x Drive Cage: 1 x 3.5″HDD+ 1 x 2.5″ SSD+(1 x 3.5″ HDD or 1 x 2.5″ SSD) PSU Shroud: 1 x 2.5″ SSD
GPU LENGTH CLEARANCE
380mm (Max.)
CPU HEIGHT CLEARANCE
180mm (Max.)
EXPANSION SLOT
7
I/O PORTS
2 x Power Button 2 x USB 3.0 1 x USB Type-C 1 x Audio
