Description
DETAILS

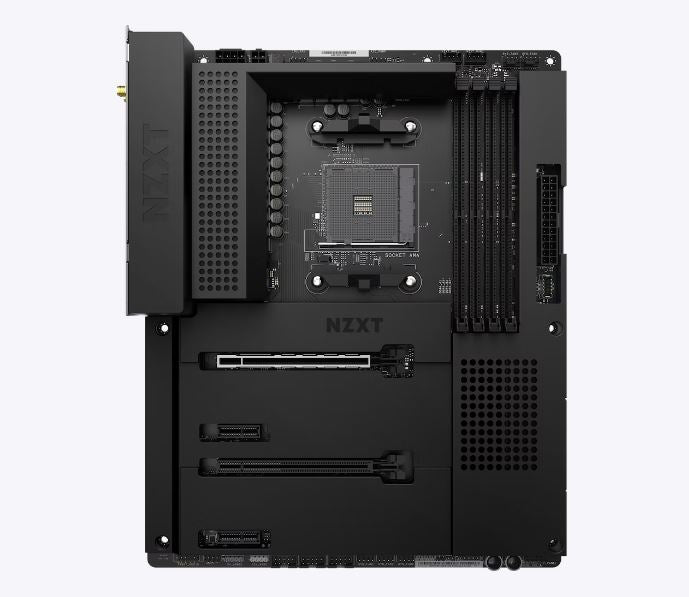

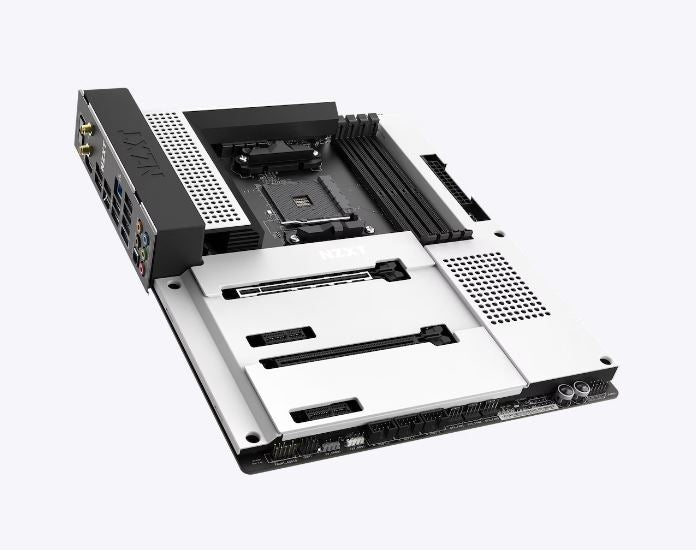

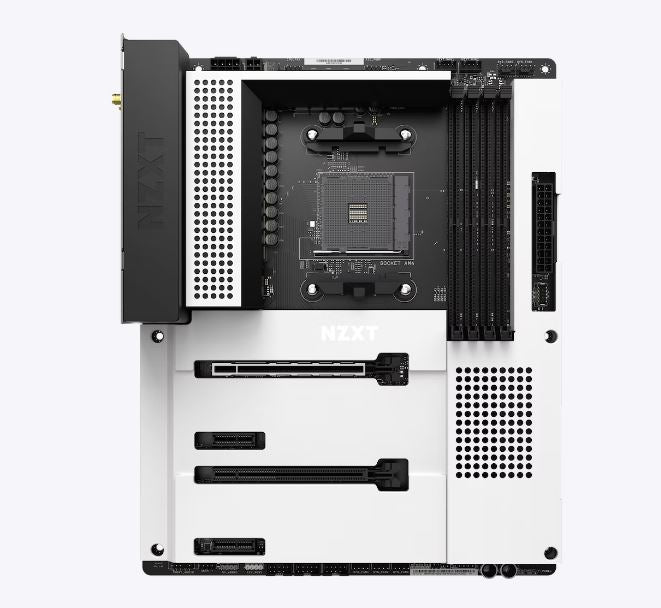

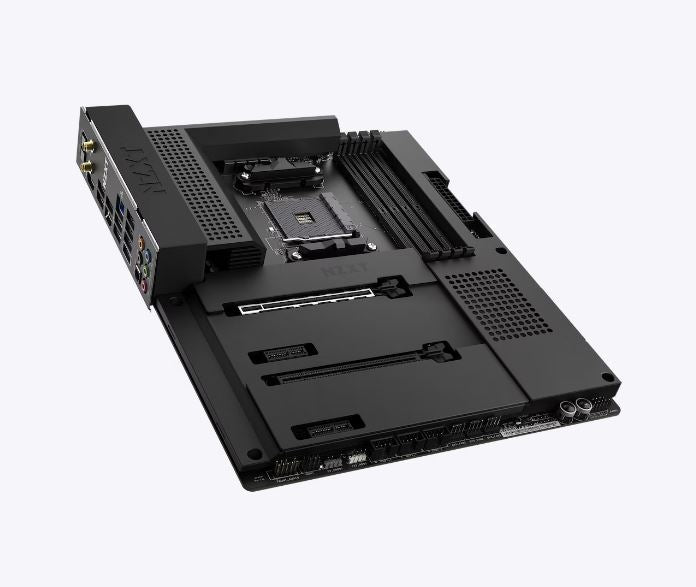

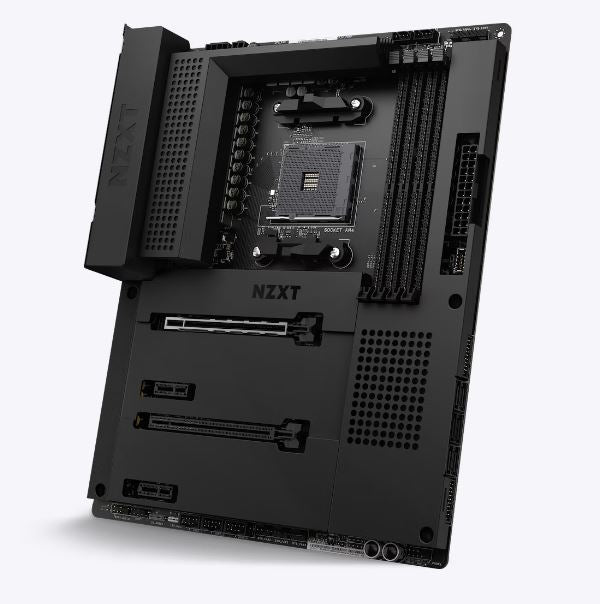

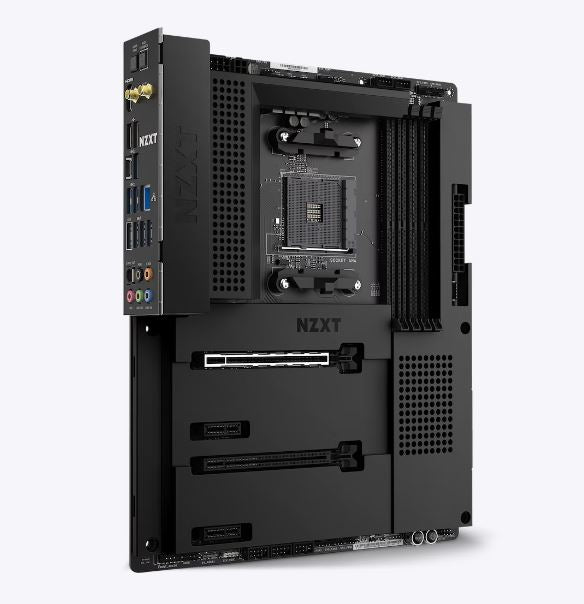

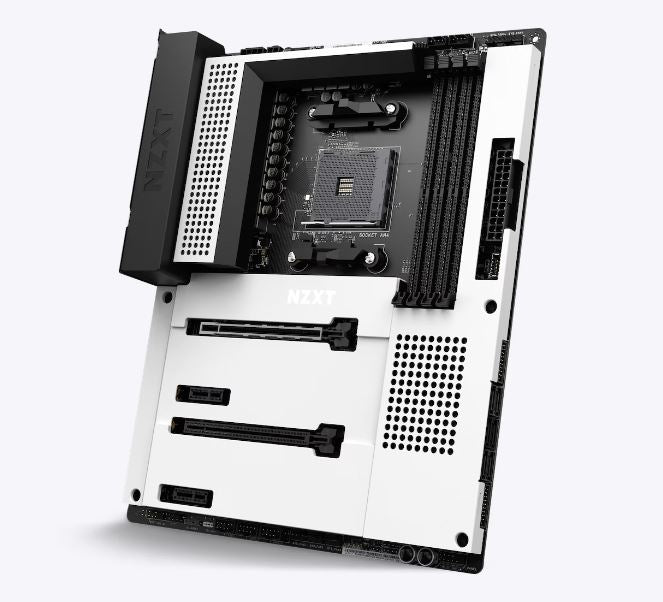

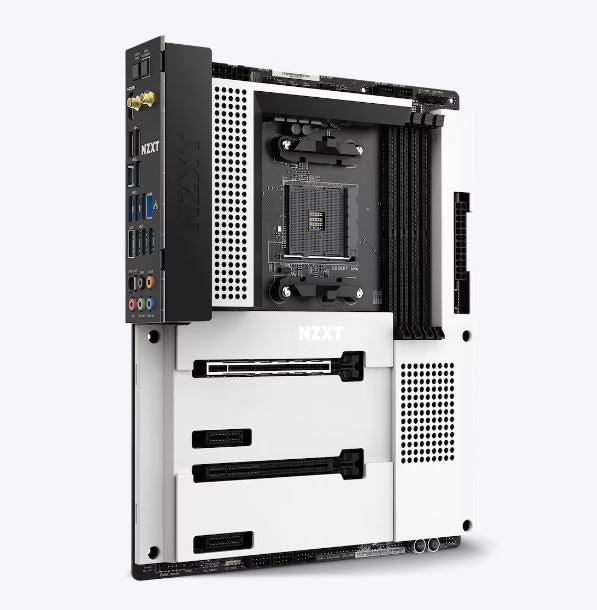

This motherboard enables a visually seamless backdrop for any build with all the features of the reliable AMD B550 chipset.
- Intel® Wi-Fi 6E wireless connectivity and Bluetooth V5.2
- Digital RGB lighting control through NZXT CAM
- Digital fan control for fan profiles within NZXT CAM for seven independent fan channels

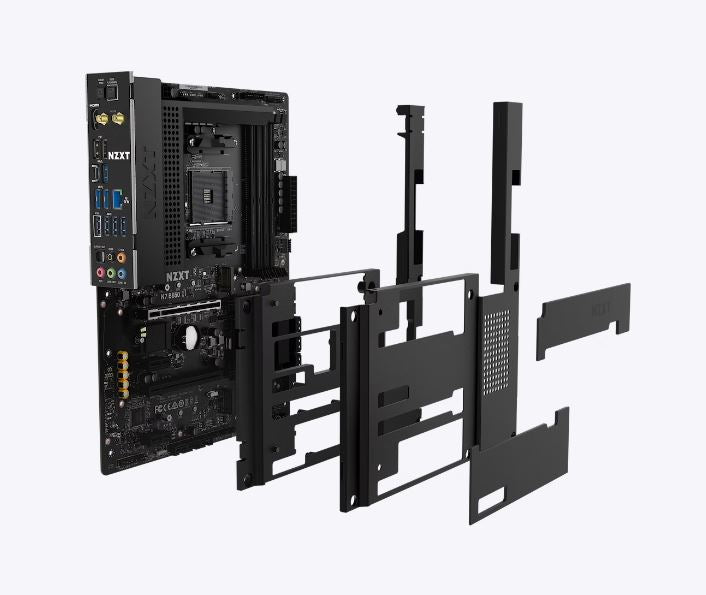

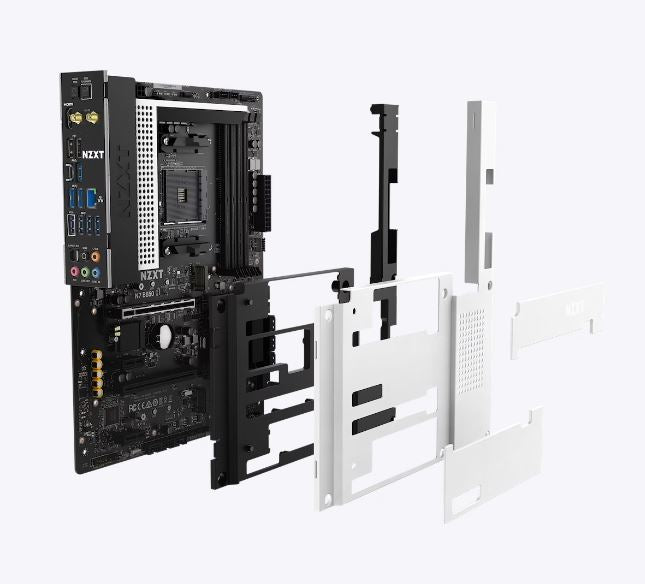

- Integrated rear I/O shield and efficient layout
- Compatible with 3rd Gen AMD™ Ryzen™ processors (3000, 4000, and 5000 Series Processors)
- Two M.2 connectors for storage devices
- Multi-GPU support with AMD CrossFireX™ Technology
- Supports memory overclocking up to 4600+ MHz and XMP
- 8-channel high-definition audio
INSIDE THE BOX
-
N7 B550 Motherboard 1
-
SATA Cables (90 degree) 2
-
SATA Cables (180 degree) 2
-
Wireless Antenna 2
-
M.2 Screws 2
-
Manual 1
KEY SPECS
-
Chipset:AMD Socket AM4 Ryzen™ Processors
-
DIMM Slots:DIMM Slots: 4
-
Max Memory Support:Max Memory: 128GB
-
Wireless:WiFi 6E connectivity
CPU
-
AMD Socket AM4 Ryzen™ Processors (3000, 4000, and 5000 Series Processors):Supported
-
AMD Ryzen™ 5 3400G and Ryzen™ 3200G:Not Supported
CHIPSET
-
AMD®:B550
MEMORY
-
DIMM Slots:4, DDR4 only
-
Max Memory Support:128GB
-
Memory Architecture:Dual-Channel
-
OC Frequency (Vermeer CPUs):4666+ MHz
-
OC Frequency (Matisse CPUs):4666+ MHz
-
OC Frequency (Renoir APUs):4733+ MHz
-
Base Frequency:3200/ 2933/ 2667/ 2400/ 2133
-
Type:ECC & non-ECC, un-buffered memory
-
XMP Support:Supported
INTEGRATED GRAPHICS
-
AMD Radeon™ Vega Series Graphics in Ryzen Series APU:HDMI
-
HDMI Max Resolution:4096x2160@60Hz
-
Max Shared Memory:16GB with 32GB installed
-
Microsoft PlayReady®:Supported
MULTI-GPU SUPPORT
-
AMD 2-Way CrossFireX™ Technology:Supported
EXPANSION SLOTS
-
PCIe x16 (x16 mode):1 (Vermeer & Matisse - PCIe 4.0, Renoir - PCIe 3.0)
-
PCIe x16 (x4 mode):1
-
PCIe 3.0 x1:2
STORAGE (CHIPSET)
-
M.2 Type 2242/2260/2280 (x4 mode):1 (Vermeer & Matisse - PCIe 4.0, Renoir - PCIe 3.0)
-
M.2 Type 2242/2260/2280 (PCIe 3.0 x2 & SATA mode):1
-
SATA 6Gb/s:6* (M2_2 and SATA3_5_6 share lanes)
-
RAID 0/1/5/10 Support:Supported
LAN
-
Realtek®:RTL8125BG 2.5G
WIRELESS
-
Intel® Dual-Band Wireless:AX210 Wi-Fi 6E
-
Protocol:802.11 a/b/g/n/ac/ax
-
Frequency Bands:2.4 / 5 / 6GHz
-
MU-MIMO Support:Supported
-
Bluetooth:V5.2
AUDIO
-
Realtek®:ALC1220 Codec
-
Channels:8-Channel High Definition Audio
-
Playback:32-bit / 192kHz DAC
-
Capacitors:Nichicon Fine Gold Series

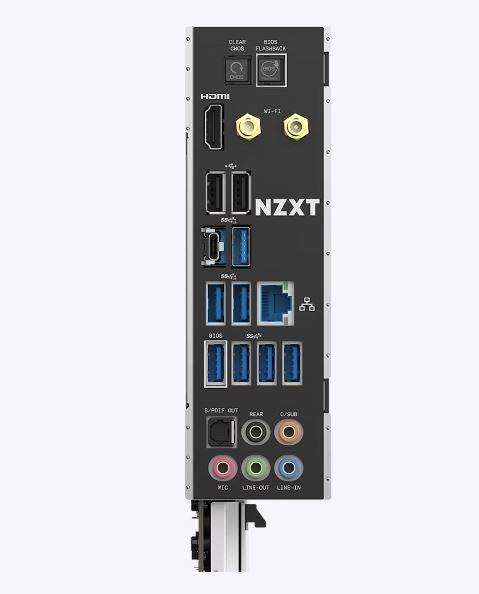

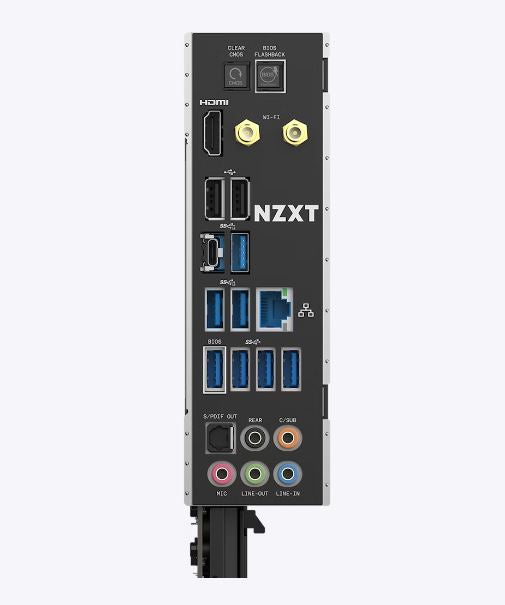

REAR I/O
-
USB 3.2 Gen 2 (Type-C):1
-
USB 3.2 Gen 2 (Type-A):3
-
USB 3.2 Gen 1 (Type-A):4
-
USB 2.0:2
-
HDMI™ 2.1:1
-
Wireless Antenna:2 (2T2R)
-
LAN (RJ45) Port:1
-
5.1-Channel Audio Jacks:1
-
Optical S/PDIF:1
-
BIOS Flashback Button:1
-
Clear CMOS Button:1
INTERNAL I/O
-
M.2 (M Key), Type 2242/2260/2280:1 (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x2 & SATA mode)
-
M.2 (E Key) (For wireless cards):1
-
SATA 6Gbps Ports:6
-
USB 3.2 Gen 2 Header (Type-C):1
-
USB 3.2 Gen 1 Header:1 (Up to 2 ports)
-
USB 2.0 Header:3 (Up to 6 ports)
-
Front Panel Audio:1
-
CPU_FAN Connector:1 (Up to 24W)
-
AIO_PUMP Connector:1 (Up to 24W)
-
SYS_FAN Connector:5 (Up to 24W)
-
NZXT RGB LED Header:2
-
5V ARGB Header:1
-
12V RGB Header:1
-
24-pin EATX Power:1
-
8-pin ATX 12V Power:1
-
4-pin ATX 12V Power:1
-
Power Button:1
-
Reset Button:1
-
POST LEDs:4
GENERAL
-
Operating System:Windows® 10 64-bit
-
Form Factor:ATX
-
Warranty:3 years
-
Model Number:N7-B55XT-W1
-
UPC:815671015235
-
EAN:5060301696680
