Space optimization chassis, The O11 DYNAMIC is the combination of modern design and art. Through years of researching, collecting feedback and redesigning; We have successfully craft the best edition of the dual chamber chassis. Experience the full view seamless front and side tempered glasses like a show room. The two bolt on the steel pieces adhering on the glass secure the panel with ease.Top/Bottom/Side can be mounted for up to three 360 Radiators without interference. Support up to 6 SSD and 3 HDD. E-ATX

O11 DYNAMIC-SPACE OPTIMIZATION CHASSIS-

The O11 DYNAMIC is the combination of modern design and art. Through years of researching,collecting feedback and redesigning; We have successfully craft the best edition of the dual chamber chassis.

USB3.1 Type-C, Test the limit of transferring Speed

Type-C(USB 3.1) 1280MB/

Patented Designed Glass Mounting Mechanism

The two bolt on the steel pieces adhering on the glass secure the panel with ease

The potential of housing Multiple Radiators

Top/Bottom/Side can be mounted for up to three 360 Radiators without interference

Dual PSUs Capability for efficiency

The drive caddy can be swapped for second PSUs or can be switched to the lower position.

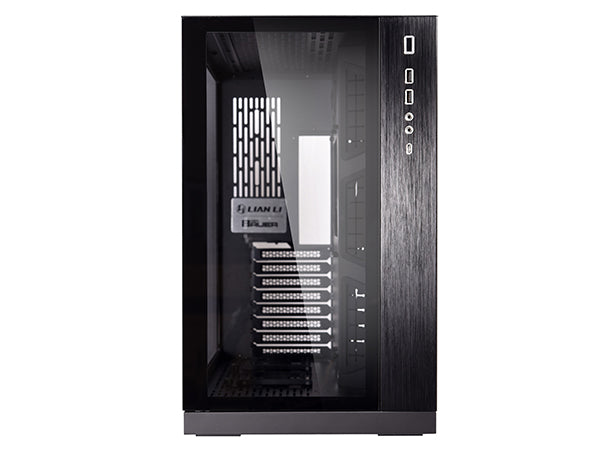

The Combination of the glass and aluminum,

Wide front glass combines with brush aluminum in proper proportion

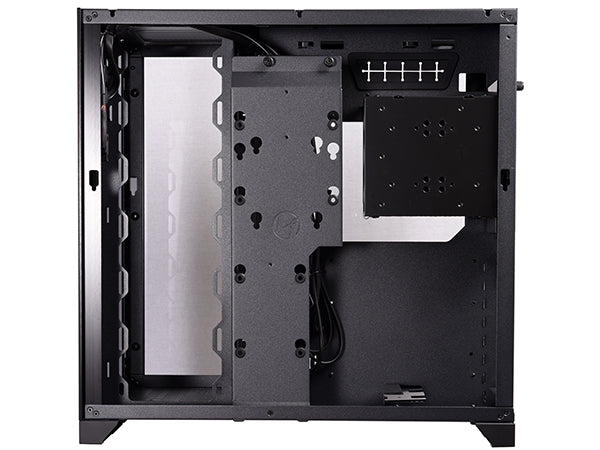

Double Layer Cable Management Design

The angled motherboard tray and the back side cable management bar seal the and exclude any cable mess

6 Hard Drive Capability

Support up to 6 SSD, and 3 HDD

4 x Dust Filter, Complete Dust Protection

Bottom/top/ Side panels are all equipped with magnetic dust filters to prevent any dust infiltration

0.8mm SECC, Sturdy Build Construction

The Chassis’ body Structure is made out of 0.8mm thick SECC; Offer Sturdy and Strong Foundation

German Engineering Approved

The O11 Dynamic series from LIAN LI is developed in collaboration with DER8AUR, a world-renowned German overclocking, water cooling, and gaming evangelist. Always looking for ways to improve computer design and performance, DER8AUER volunteered his time to review and test the design concepts of the O11D series.

Starting with the first O11 Dynamic and up until the most recent models of the O11D series, LIAN LI appreciates the input from DER8AUER which helped make the O11D series exceptional cases, especially in terms of custom water cooling compatibility, ease of build, and features offered. As a result, DER8AUER’s seal of approval is elegantly displayed beside the LIAN LI logo, standing as a statement of quality and reliability.

COMPATIBILITY

SPECIFICATIONS

Model	PC-O11DX	PC-O11DW
Color	BLACK	WHITE
Dimensions	(W)272mm x(H)446mm x(D)445mm
Case Type	Tower Chassis
Structure	Dual chamber
Materials	(Front)Tempered Glass+Aluminum (Side)Tempered Glass (Body)Steel
Expansion Slot	8
Drive Support	6 x 2.5″SSD or 3 x 2.5″SSD+ 3 x 3.5″ HDD
I/O Ports	USB3.0 x2 , HD Audio USB3.1 Type-C x1 , HD Audio
M/B Type	E-ATX / ATX / Micro-ATX / Mini-itx
Fan	(Top) 120mm x3 / 140mm x2(Option) (Side) 120mm x3(Option) (Bottom) 120mm x3 (Option)
Radiator	120x 360mm / 120x 240mm / 140x 280mm
VGA Card	length ≤420mm , height ≤159mm
CPU Cooling	≤155mm
PSU	2，(L)210mm~255mm(max)
Filter	(Top) x1，(Side) x2, (Bottom) x1
