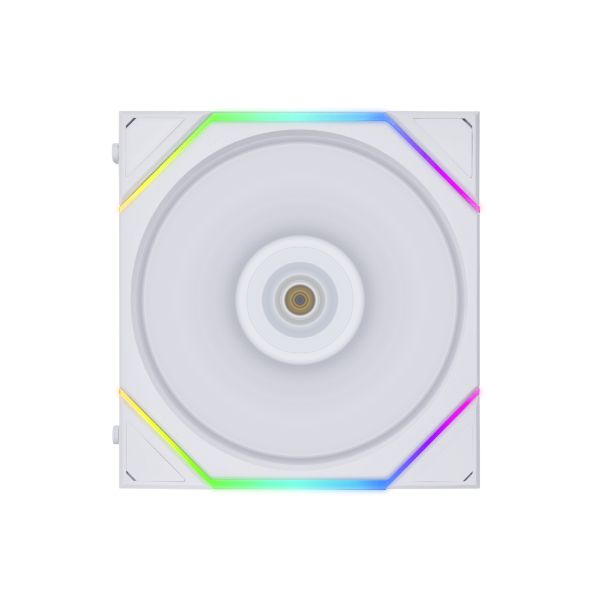

Lian Li Reverse UNI FAN TL140 Chassis Fan (14RTL1B.00/14RTL1W.00)

• Noise-optimized and performance-oriented fan.
• LCP (liquid crystal polymer) fan blades are used for tight tolerance.
• FDB bearing with copper shielding to ensure stable rotation of the impeller.
• Enlarged infinity mirror around the frame with a longer light guide for a unified daisy-chained look.
• Features two light zones for increased lighting customizability.
• UNIFAN interlocking system for ease of cable management.
• Cable connection is supported on both sides of the fan.
• Support up to 10 fans per controller port via a daisy-chain POGO cable.
• LED lighting and fan speed controller shared with UNIFAN TL LCD.
• Complete software control with L-Connect 3.

AVAILABLE IN TWO COLORS/ TWO SIZES/ TWO ORIENTATIONS
Elevate the PC setup with UNI FAN TL black and white fans, available in 120mm and 140mm sizes with normal and reverse blades.

NEXT GENERATION OF UNI FAN
Building on the design success of the UNI FAN series, the UNI FAN TL series takes clutter-free setups to the next level.

Durable Daisy-Chain Solution
Experience a hassle-free setup with the slide-in daisy-chaining mechanism, securely holding the fans in place and ensuring a snug fit for easy configuration.

Seamless Connection
Featuring both male and female ends, the cable can be connected to both sides of the fan, providing enhanced flexibility and ease of installation.
Note: To ensure the correct lighting effect direction, set the orientation

Well-Adapted for all Configuration
Besides the removing interlocking key, the TL fans includes connection covers the exposed connections at the end to prevent short circuits while improving compatibility.

10 fans in a Row and up to 16 fans
Enable connection of up to 10 fans to a controller port using the extension cable, which offers ability to create up to 4 clusters in a chain, with each cluster support a maximum of 4 fans for individual customization of fan RPM and lighting, allowing a truly personalized build setup such as having 3 fans on the top, 3 on the side, 3 on the bottom, and 1 on the rear.

Power till the end
Offering an extra power adapter in triple pack to connect to SATA for consistent fan speed and LED color throughout.

ENGINEERED MOTOR, STURDY STRUCTURE
UNI FAN TL is engineered for high performance with minimal friction and vibration, ensuring quiet operation even at high speeds.

ULTIMATE COOLING
Crafted with LCP material, the UNI FAN TL has a larger 9-blade impeller, with tight clearance to the fan frame, which ensures efficient airflow while minimizing acoustic levels for cooling.

CUSTOMISABLE FAN SPEED
Able to set different fan speeds for each fan cluster to optimize different scenarios of use providing flexibility for radiator or case fan needs with L-Connect 3.

SOPHISTICATED CONTINUOUS RGB LIGHTING
Each UNI FAN TL fan has 26 LEDs with an elegant side diffuser on the 2 sides of the fan frame that wraps around the edges of the anti-vibration pad.

DAZZLE WITH INFINITY MIRROR
Illuminate your setup with the UNI FAN TL’s enlarged infinity mirror (30% larger than UNI FAN SL-INF on the side) on both sides of the frame, showcasing clear and 0.7mm gap multi-layer lighting effects.

INDIVIDUAL LIGHTING EFFECTS
Easily customize different lighting effects on the two sides of the LED strips using L-Connect 3 for a unique setup. You can also sync your TL fans and apply the same lighting effect you like across all of them.

SMOOTH APPEARANCE
Cover the screws with anti-vibrate rubber pads for a seamless and uninterrupted aesthetic appeal.

SEAMLESS SOFTWARE
L-Connect 3 offers complete control over the UNI FAN TL series, including the lighting effects, fan speed, and LCD screen.

TWO FANS, ONE CONTROLLER
UNI FAN TL and TL LCD share the same controller, enabling the connection of up to 16 TL and TL LCD fans simultaneously, with a maximum of 6 TL LCD fans.

PRODUCT NAME	UNI FAN TL 120 Reverse Blade			UNI FAN TL 140 Reverse Blade
MODEL	12RTL3B	12RTL3W	12RTL1B	12RTL1W	14RTL1B	14RTL1W
COLOR	Black	White	Black	White	Black	White
NUMBER OF FANS	3	3	1	1	1	1
CONTROLLER	Yes		No		NO
CONNECTOR TYPE	UNI FAN Controller Cable x 1 (P-7P) Extension Cable x 1 (P-P) Power Adapter Cable x 1 (P-SA)		UNI FAN Controller Cable x 1 (P-7P) Extension Cable x 1 (P-P)		UNI FAN Controller Cable x 1 (P-7P) Extension Cable x 1 (P-P)
FAN DIMENSION	124 x 120 x 28 mm				144 X 140 X 28 (mm)
FAN SPEED	0, 200~2300 RPM				0, 200~1800 RPM
MAX. AIR PRESSURE	2.66 mmH2O (Maximum)				2.27 mmH2O (Maximum)
MAX. AIRFLOW	83.4 CFM (Maximum)				101.6 CFM (Maximum)
ACOUSTIC NOISE	34 dB(A) Max				31 dB(A) Max
INPUT POWER	4.5W				4.6W
MATERIAL	PA66 / LCP
RATED VOLTAGE	DC 12V (FAN) & 5V (LED)
BEARING TYPE	Fluid Dynamic Bearing (FDB)
OPERATE VOLTAGE	DC12V & 5V
WARRANTY	3 years
