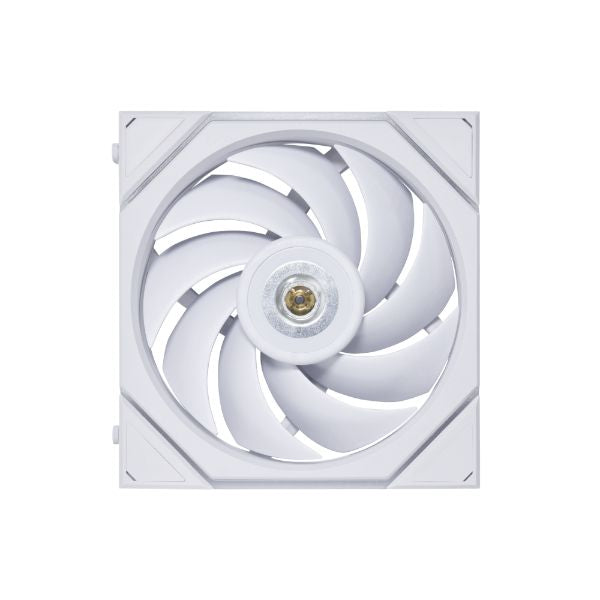

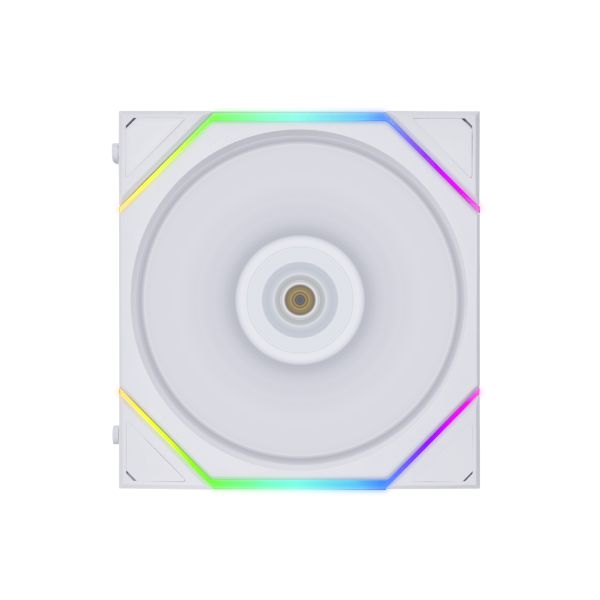

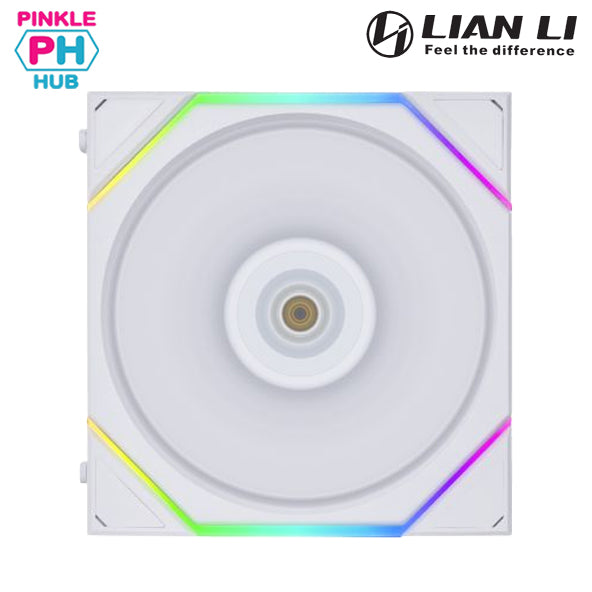

LIAN LI Reverse TL 120mm-1 White
LIAN LI Reverse TL 120mm-1 White
Brand : LIAN LI
SKU: SKU: 12RTL1W.00
6 in stock
Couldn't load pickup availability
UNI FAN TL
- Noise-optimized and performance-oriented fan.
- LCP (liquid crystal polymer) fan blades are used for tight tolerance.
- FDB bearing with copper shielding to ensure stable rotation of the impeller.
- Enlarged infinity mirror around the frame with a longer light guide for a unified daisy-chained look.
- Features two light zones for increased lighting customizability.
- UNIFAN interlocking system for ease of cable management.
- Cable connection is supported on both sides of the fan.
- Support up to 10 fans per controller port via a daisy-chain POGO cable.
- LED lighting and fan speed controller shared with UNIFAN TL LCD.
- Complete software control with L-Connect 3.
- The controller is required to use the fans.
AVAILABLE IN TWO COLORS/ TWO SIZES/ TWO ORIENTATIONS
Elevate the PC setup with UNI FAN TL black and white fans, available in 120mm and 140mm sizes with normal and reverse blades.
NEXT GENERATION OF UNI FAN
Building on the design success of the UNI FAN series, the UNI FAN TL series takes clutter-free setups to the next level.
ENGINEERED MOTOR, STURDY STRUCTURE
UNI FAN TL is engineered for high performance with minimal friction and vibration, ensuring quiet operation even at high speeds.
ULTIMATE COOLING
Crafted with LCP material, the UNI FAN TL has a larger 9-blade impeller, with tight clearance to the fan frame, which ensures efficient airflow while minimizing acoustic levels for cooling.
CUSTOMISABLE FAN SPEED
Able to set different fan speeds for each fan cluster to optimize different scenarios of use providing flexibility for radiator or case fan needs with L-Connect 3.
COMBINATION OF PERFORMANCE AND AESTHETICS
Redefining the visual appeal of high-performance cooling, the UNI FAN TL fans integrate the elements of SL-INF and P28, ensuring a striking look without compromising on performance.
| MODEL | AIRFLOW | STATIC PRESSURE | NOISE | Speed |
|---|---|---|---|---|
| 120 TL | 90.1 CFM | 3.97 mmH20 | 33 dB(A) | 0, 200-2600 RPM |
| P28 120 | 92 CFM | 4.79 mmH2O | 32.1 dB(A) | 300~2600 RPM |
| SLIN120 | 61.3 CFM | 2.66 mmH2O | 29.0 dB(A) |
0, 200-2100 RPM |
SOPHISTICATED CONTINUOUS RGB LIGHTING
Each UNI FAN TL fan has 26 LEDs with an elegant side diffuser on the 2 sides of the fan frame that wraps around the edges of the anti-vibration pad.
DAZZLE WITH INFINITY MIRROR
Illuminate your setup with the UNI FAN TL’s enlarged infinity mirror (30% larger than UNI FAN SL-INF on the side) on both sides of the frame, showcasing clear and 0.7mm gap multi-layer lighting effects.
INDIVIDUAL LIGHTING EFFECTS
Easily customize different lighting effects on the two sides of the LED strips using L-Connect 3 for a unique setup. You can also sync your TL fans and apply the same lighting effect you like across all of them.
SMOOTH APPEARANCE
Cover the screws with anti-vibrate rubber pads for a seamless and uninterrupted aesthetic appeal.
SEAMLESS SOFTWARE
L-Connect 3 offers complete control over the UNI FAN TL series, including the lighting effects, fan speed, and LCD screen.
SPECIFICATIONS
| MODEL NAME | UNI FAN TL 120 | UNI FAN TL 140 | ||||
|---|---|---|---|---|---|---|
| MODEL NO. | 12TL3B | 12TL3W | 12TL1B | 12TL1W | 14TL1B | 14TL1W |
| COLOR | BLACK | WHITE | BLACK | WHITE | BLACK | WHITE |
| NUMBER OF FANS | 3 | 3 | 1 | 1 | 1 | 1 |
| CONTROLLER | Yes | No | NO | |||

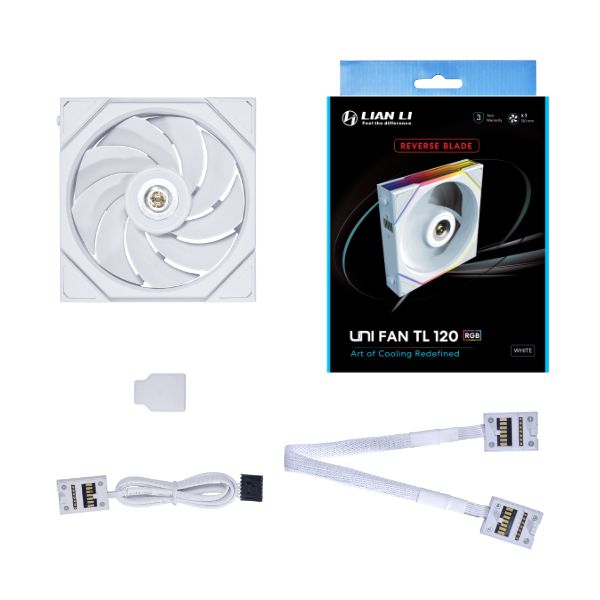

| CONNECTOR TYPE | UNI FAN Controller Cable x 1 (P-7P) Extension Cable x 1 (P-P) Power Adapter Cable x 1 (P-SA) |
UNI FAN Controller Cable x 1 (P-7P) Extension Cable x 1 (P-P) |
UNI FAN Controller Cable x 1 (P-7P) Extension Cable x 1 (P-P) |
|||
| FAN DIMENSION | 124 x 120 x 28 mm | 144 X 140 X 28 (mm) | ||||
| FAN SPEED | 0, 200~2600 RPM | 0, 200~1800 RPM | ||||
| MAX. AIR PRESSURE | 3.97 mmH2O (Maximum) | 2.34 mmH2O (Maximum) | ||||
| MAX. AIRFLOW | 90.1 CFM (Maximum) | 103.9 CFM (Maximum) | ||||
| ACOUSTIC NOISE | 33 dB(A) Max | 29 dB(A) Max | ||||
| INPUT POWER | 5.8W | 4.6W | ||||
| MATERIAL | PA66 / LCP | |||||
| RATED VOLTAGE | DC 12V (FAN) & 5V (LED) | |||||
| BEARING TYPE | Fluid Dynamic Bearing (FDB) | |||||
| OPERATE VOLTAGE | DC12V & 5V | |||||
| WARRANTY | 3 years | |||||
| MODEL NAME | UNI FAN TL 120 REVERSE BLADE | UNI FAN TL 140 REVERSE BLADE | ||||
|---|---|---|---|---|---|---|
| MODEL NO. | 12RTL3B | 12RTL3W | 12RTL1B | 12RTL1W | 14RTL1B | 14RTL1W |
| COLOR | BLACK | WHITE | BLACK | WHITE | BLACK | WHITE |
| NUMBER OF FANS | 3 | 3 | 1 | 1 | 1 | 1 |
| CONTROLLER | Yes | No | NO | |||
| CONNECTOR TYPE | UNI FAN Controller Cable x 1 (P-7P) Extension Cable x 1 (P-P) Power Adapter Cable x 1 (P-SA) |
UNI FAN Controller Cable x 1 (P-7P) Extension Cable x 1 (P-P) |
UNI FAN Controller Cable x 1 (P-7P) Extension Cable x 1 (P-P) |
|||
| FAN DIMENSION | 124 x 120 x 28 mm | 144 X 140 X 28 (mm) | ||||
| FAN SPEED | 0, 200~2300 RPM | 0, 200~1800 RPM | ||||
| MAX. AIR PRESSURE | 2.66 mmH2O (Maximum) | 2.27 mmH2O (Maximum) | ||||
| MAX. AIRFLOW | 83.4 CFM (Maximum) | 101.6 CFM (Maximum) | ||||
| ACOUSTIC NOISE | 34 dB(A) Max | 31 dB(A) Max | ||||
| INPUT POWER | 4.5W | 4.6W | ||||
| MATERIAL | PA66 / LCP | |||||
| RATED VOLTAGE | DC 12V (FAN) & 5V (LED) | |||||
| BEARING TYPE | Fluid Dynamic Bearing (FDB) | |||||
| OPERATE VOLTAGE | DC12V & 5V | |||||
| WARRANTY | 3 years | |||||
