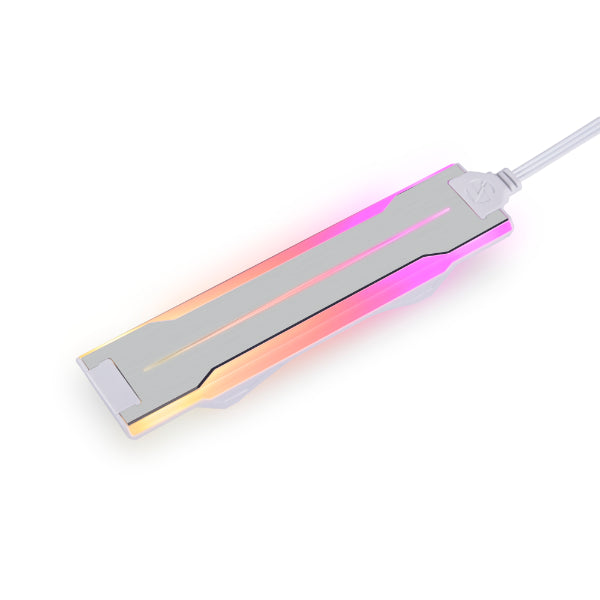

Lian Li Side ARGB Kit for Lian Li Performance Fan
Lian Li Side ARGB Kit for Lian Li Performance Fan
Brand : Lian Li
Regular price
Couldn't load pickup availability
Lian Li Side ARGB Kit for Lian Li Performance Fan
- Adds LED side strips to LIAN LI performance fans – UNI FAN P28
- GA ll Trinity Performance 360 AIO fans.
- Daisy-chain design
- Compatible with L-Connect 3 (via UNI HUB) or motherboard sync.
Total supported number of strips varies by the number of strips used, the strips’ brightness, and color. The chart below shows the possible scenarios to give you a better understanding (static white is used as the example because it requires the highest amount of power of all colors).
| SCENARIO | Connect to a MB with 2 × 5V ARGB header | Connect to a UNI HUB (Compatible with all versions, but will present different lighting effects due to difference F/W. Please manually adjust the number of fans on L-Connect 3.) | |
|---|---|---|---|
| CONTROL SOFTWARE | MB software | L-Connect 3 | |
| BRIGHTNESS OF STATIC WHITE | 100% | 50% | 100% |
| MAXIMUM SUPPORT | 8 strips in total Each port supports up to 6 strips |
12 strips in total Each port supports up to 9 strips |
12 strips in total Each port supports up to 6 strips |
EXTRA SPACE NEEDED
After adding the side ARGB strip, the width of a one-side installation is 129mm, and 136mm for a two-side installation. Please make sure that there is enough clearance for the side ARGB strips when configuring your build.
AVAILABLE IN TWO COLORS
Available in packs of three in black and white to match the color of the fans.
SPECIFICATIONS
| PRODUCT NAME | SIDE ARGB Kit for LIAN LI Performance Fan | |
|---|---|---|
| MODEL | P28ARGB-B BLACK | P28ARGB-W WHITE |
| COLOR | Black | White |
| DIMENSION | Each Side ARGB strip : 119.6(L) X 13.05(H) X 27.85(D) | |
| MATERIAL | PC /ABS/ Aluminum | |
| RATED VOLTAGE | DC 5V | |
| CONNECTOR | 3-PIN SM type (include an adaptor to MB 5V ARGB) | |
| WARRANTY | 1 year | |
