Lian Li SP850 850Watt, SFX 80 Plus Gold Fully Modular Power Supply - WHITE

Lian Li SP850 850Watt, SFX 80 Plus Gold Fully Modular Power Supply - WHITE

Brand : Lian Li

SKU:  SP850-W

₱7,620.00
₱8,382.00 ₱7,620.00
Sale! Sold out
Taxes included.

Out of stock

SP850 WHITE

  • 80 PLUS GOLD Efficiency
  • Fully modular braided cables for a clean look
  • High durability Japanese electrolytic capacitors
  • ZERO RPM mode under 40% load for silent operation
  • Sleek and classic exterior with brushed aluminum housing
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • 12VHPWR connector cable that is compatible with 40 series graphic card



SP850

Performance SFX Form Factor Power Supply

The SP850 is a stylish high-performance PSU that perfectly fits small-form-factor PCs while supporting power-hungry components.




AVAILABLE IN TWO COLORS

The fully modular small PSU is offered in a sleek black aluminum housing, or in a completely white design.

Black

White



80 PLUS GOLD CERTIFICATE

SP850 achieves 91.55% efficiency 115VAC at 50% load, which edges close to the 80PLUS PLATINIUM a requirement at 92% efficiency 115VAC at 50%, ensuring less power wastage.




SP850 COMPOSITION


● Aesthetic – Aluminum Housing

● Silent – Zero RPM mode

● Powerful – 850 Watts

● Perfect Size – SFX Form

● Practical – Fully Modular Design

● Longevity – Japanese Electrolytic Capacitors



COOLING IN SILENCE

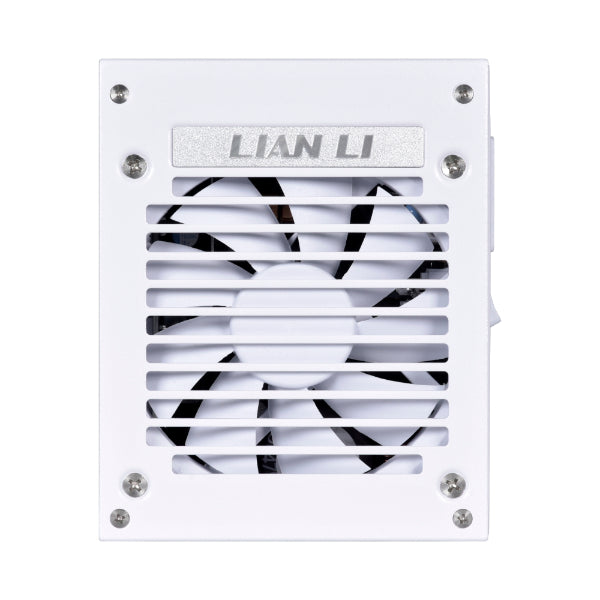

To achieve minimal acoustic levels, the SP850 features a 92mm hydraulic bearing fan that operates at zero RPM mode until the PSU reaches 40% load or once the ambient temperature reaches 60°C.





JAPANESE ELECTROLYTIC CAPACITORS

Premium Japanese electrolytic capacitors provide great durability and long-term reliability, as well as offer the highest stability.




UPGRADE 12VHPWR CABLE

The new PCIe 5.0 12+4-pin cable is 16 AWG size to transfer 600W and doesn’t need the use of an adaptor for the latest GPUs.





NOTES FOR THE USE OF CABLE


  • Make sure that all components (inluding GPU/ CPU/RAM…) shouldn’t exceed the waltage of the PSU.
  • All connectors shall be insert tightly.
  • Do not bend the cable near the connector.

BUY UPGRADE CABLE



FULLY MODULAR BRAIDED CABLES

All necessary braided cables are included right out of the box, ensuring reduced cable clutter and a better aesthetic.


Motherboard Connector x1

CPU / ATX12V Connector x2

1 x 8 PIN PCIe Connector

2 x 8 PIN PCIe Connector x1

SATA Connector x2

Peripheral Connector x1

12VHPWR Connector x1



MULTI POWER CORD TYPES


SUFFICIENT PROTECTION

Features OCP (Over Current Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), UVP (Over Voltage Protection), OTP (Over Temperature Protection) and inrush current limiter that make the PSU operating in stable condition.



FIVE YEARS WARRANTY

LIAN LI offers a 5-year limited warranty for the SP850, reflecting our confidence in the quality of our performance SFX PSU.



SPECIFICATIONS

MODEL NAME SP850
MODEL NO. SP850 BLACK / SP850 WHITE
DIMENSIONS (D)100 mm X (W)63.5mm X (H)125 mm
POWER SUPPLY DESIGN Fully modular
COLOR Black / White
MATERIAL Steel/brushed aluminum housing
FORM FACTOR SFX
CERTIFICATION 80 PLUS Gold
POWER SUPPLY DESIGN Fully modular
MAX. DC OUTPUT 850W
COMBINED +3.3V & +5V 100W
COMBINED +12V 840W
INPUT VOLTAGE 100-240Vrms
INPUT FREQUENCY RANGE 50Hz-60Hz
PFC Active PFC(PF)>0.90 at full load
EFFICIENCY 93.53% MAX
PROTECTIVE CIRCUIT OCP OVP OTP OPP SCP UVP
CONNECTORS 1 x 24/20-Pin motherboard connector (300mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (600mm) x2pcs 1 x 8/6+2 Pin PCle connector (400mm) x1pcs 2 x 8/6+2 Pin PCle connector (400mm-120mm) x1pcs 4 x SATA connector (120mm120mm-120mm-120mm) x2pcs 4 x 4-Pin Peripheral connector (120mm-120mm-120mm- 120mm) x1pcs 12VHPWR connector (400mm) × 1pcs
NOISE LEVEL 17.1-40.6DBA
FAN RPM 1000-2800 RPM
BEARING TYPE HYB
WARRANTY 5 years
