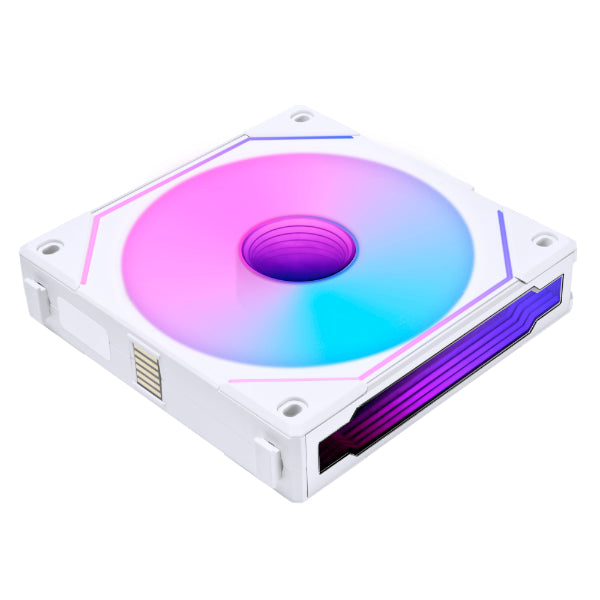

Lian Li UNI FAN SL-INF 140 REVERSE BLADE (Black/White)

Lian Li UNI FAN SL-INF 140 REVERSE BLADE (Black/White)

Brand : Lian Li

SKU:

₱0.00
₱0.00
Sale! Sold out
Taxes included.

Out of stock

Color

UNI FAN SL-INF REVERSE BLADE

• Infinity mirror look all around
• Reversed Blade fan that intakes air while seeing the infinity effect
• Only one cable is required for a cluster of fans
• Embedded magnetic Fluid Dynamic Bearing to provide stability, durability, and longevity
• 40 LEDs in each fan
• Quick PIN connection to provide ease of installation
• Optimized for mounting at the bottom of the case or on top of the radiator



CONSISTENT APPEARANCE

No matter intake or exhaust SL-INF fans



UNPRECEDENTED MODULARITY

The 2nd generation of UNI FAN SL revisits the interlocking style that can connect up to 4 fans in a cluster and makes cable management simpler and improves compatibility with radiators fittings.





DAISY CHAIN FAN

A pin-to-pad contact point passes the signal and power through the fan cluster.





REMOVABLE KEYLOCK

The interlocking key on each fan is now removable to improve compatibility with radiators fittings.





REVERSIBLE CABLE MODULE

The cable module is now placed at the center of the fan and can switch orientation to reduce clearance issues with the radiator inlet and outlet.







UNCOMPROMISED PERFORMANCE

The UNI FAN SL-INF Reverse blade operates with a slightly higher noise level with a better airflow (63.6 CFM Max) comparing to the original UNI FAN SL-INF.







LOWER WIND NOISE

When installed as intake fan with the reverse blade, the wind noise is lower than the regular blade.

Note: More obvious when installed on a radiator







DAZZLING AT ALL ANGLE





SPECIFICATIONS

PRODUCT NAME

UNI FAN SL Infinity 140 Reverse Blade

MODEL

14RSLIN1B

14RSLIN1W

COLOR

Black

White

NUMBER OF FANS

1

1

CONTROLLER

No

No

MATERIAL

PBT/PC/Aluminum

FAN DIMENSION

140 X 142 X 25 ( mm )

RATED VOLTAGE

DC 12V (FAN) & 5V (LED)

FAN SPEED

0, 200-1600 RPM

AIR PRESSURE

2.95 mmH2O (Maximum)

AIRFLOW

71.6 CFM (Maximum)

ACOUSTIC NOISE

28.6 dB(A)

LOCKED CURRENT

≦390mA

BEARING TYPE

Fluid Dynamic Bearing (FDB)

OPERATION VOLTAGE

DC 12V & 5V

START-UP VOLTAGE

≦6V

INPUT CURRENT

130mA (FAN) /600mA (LED)

IINPUT POWER

4.56W

WARRANTY

2 years
