Lian Li Upright GPU Bracket for O11D Evo XL
Lian Li Upright GPU Bracket for O11D Evo XL
Brand : Lian Li
Regular price
Couldn't load pickup availability
Lian Li Upright GPU Black for O11D Evo XL

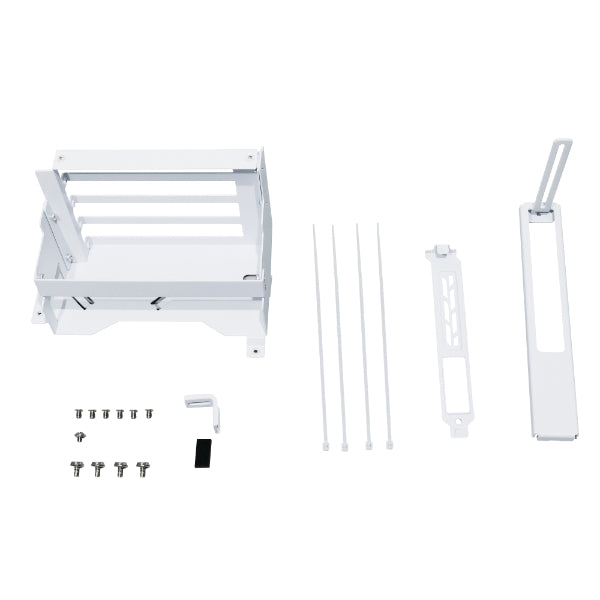

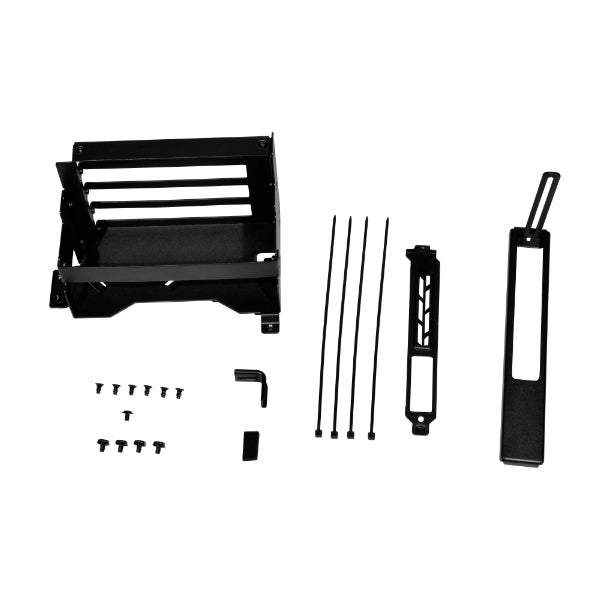

O11D EVO XL Upright GPU Bracket
- Upright graphics card accessories for O11D EVO XL
- New mounting angle for GPU opens room for unrestricted chimney-style configuration.
- Designed for large GPUs such as 40 series GPUs
O11D EVO XL
UPRIGHT GPU BRACKET
Mount large graphics cards in a unique way for better cooling performance with the upright GPU bracket.
OPTIMIZED FOR DIRECT COOLING
The GPU standing upright next to the motherboard creates a chimney-style airflow, moreover the ability to mount intake fans behind the GPU effectively controls the GPU temperature.
SIMPLE INSTALLATION
The upright GPU kit mounts directly to the side fan bracket, which makes the installation easier.

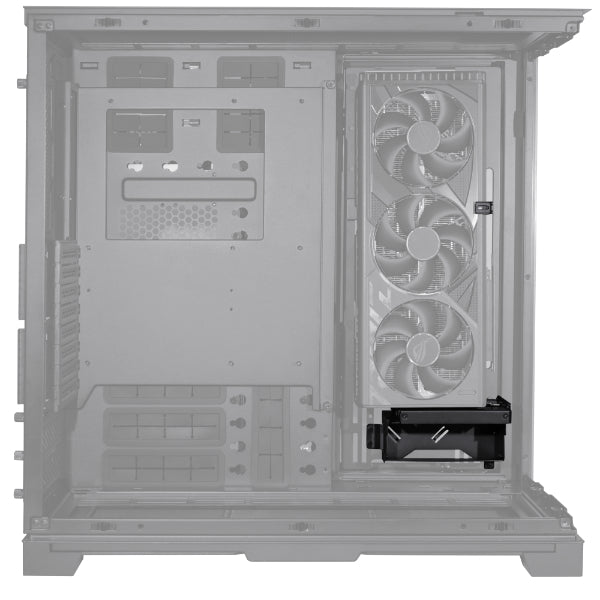

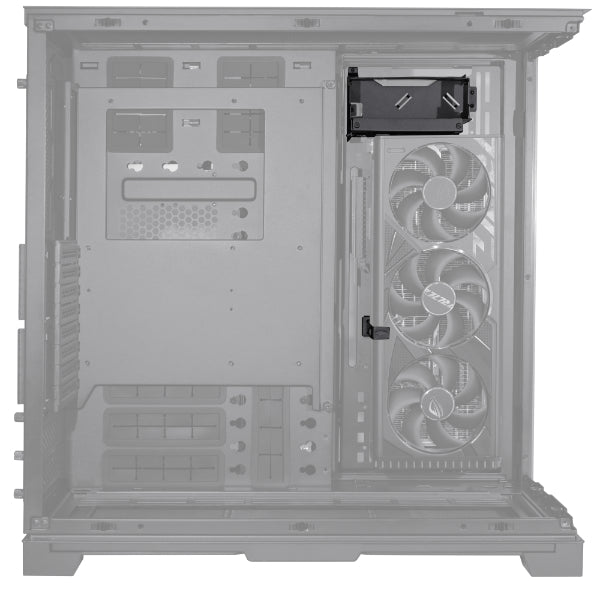

TWO DIRECTION INSTALLATION
The GPU can be flipped with the side bracket, letting you decide to have the GPU ports at the top or bottom.
Due to GPU cooler design, some GPUs have been found to perform significantly better with GPU IO facing down when mounting the GPU at an upright position.
Test results are as follows:
| GPU MODEL | SUGGEST ORIENTATION | |
|---|---|---|
| ASUS TUF 4090 | GPU I/O facing downwards | ⇣ |
| ROG STRIX 4080 | GPU I/O facing downwards | ⇣ |
| GIGABYTE GAMING OC 4080 | GPU I/O facing downwards | ⇣ |
| GIGABYTE WINDFORCE 4090 | GPU I/O facing downwards | ⇣ |
| AORUS MASTER 4090 | GPU I/O facing downwards | ⇣ |
| MSI SUPRIM 4090 | GPU I/O facing downwards | ⇣ |
| MSI GAMING X 4080 | GPU I/O facing downwards | ⇣ |
| PALIT GAMEROCK 4090 | Doesn’t Matter | ⇡ |
| ZOTAC TRINITY 4090 | GPU I/O facing upwards | ⇣⇡ |
| NVIDIA 4090 | Doesn’t Matter | ⇡ |
SPECIFICATIONS
| PRODUCT NAME | O11D EVO XL Upright GPU Bracket | |
|---|---|---|
| MODEL | O11DEXL-1X | O11DEXL-1W |
| COLOR | Black | White |
| BRACKET DIMENSION | Mounting frame: 93.5mm(L) x 145mm(D) x 80mm(H) Support frame: 87.5mm(L) x 152mm(D) x 25mm(H) |
|
| MATERIAL | 1mm STEEL | |
| EXPANSION SLOT | 4 slots | |
| GPU COMPATIBILITY | Length:358 mm Thickness: 80 mm Width: 150mm |
|
