Description

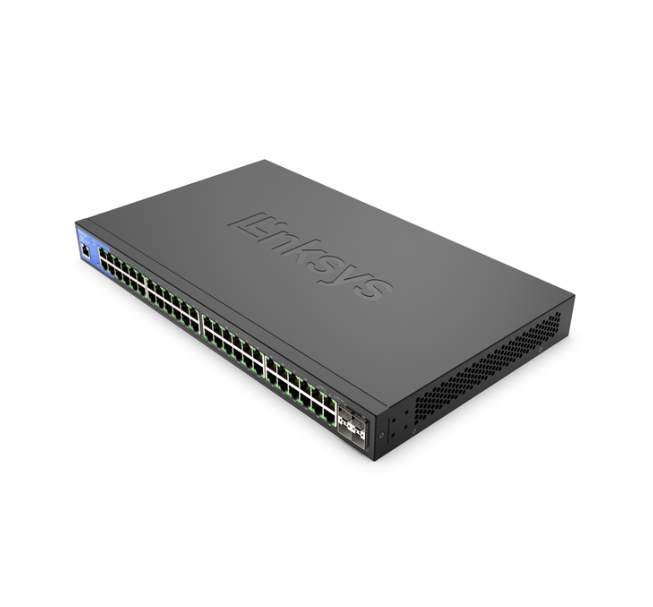

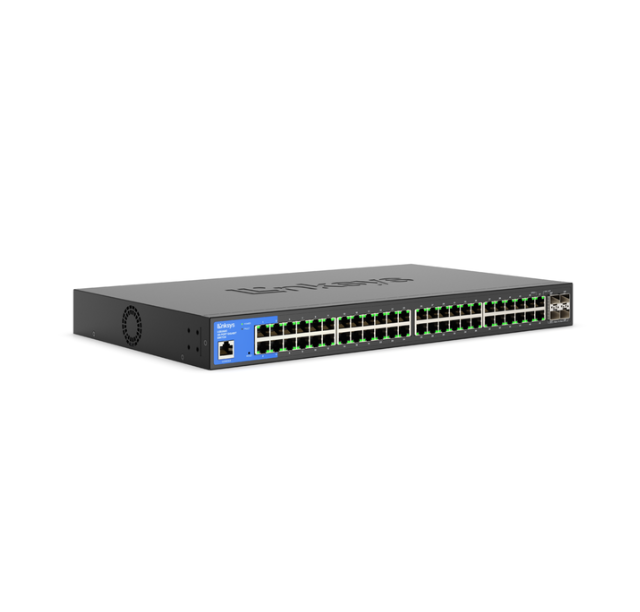

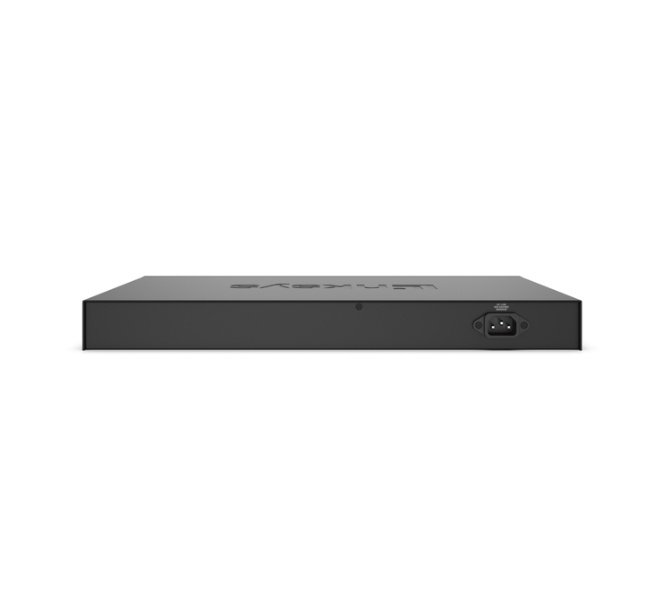

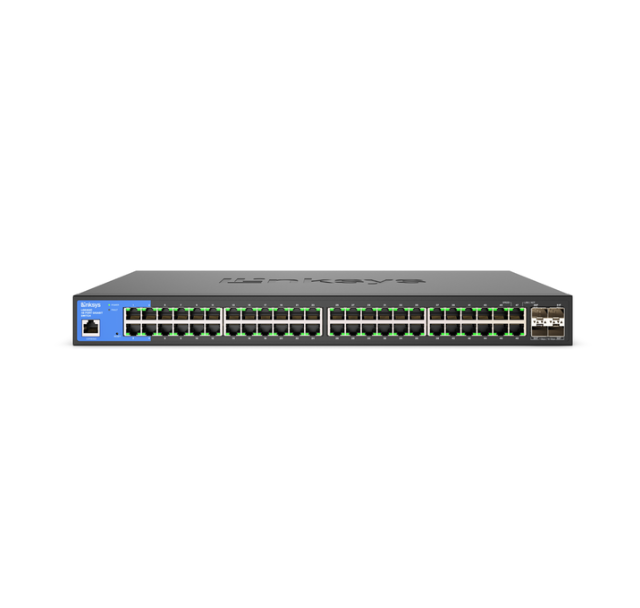

Business Switch - 48 Port (LGS352MPC) 48-Port Managed Gigabit PoE+ Switch with 4 10G SFP+ Uplinks 740W TAA Compliant
48-Port Managed Gigabit PoE+ Switch is designed for business-class management, security, speed, and quality of service with 48 Gigabit Ethernet PoE+ ports, 4 10G SFP+ uplinks and 740W of total PoE power budget.
- Integrated Power over Ethernet Plus (740W)
- 10G SFP+ Uplink Ports (4)
- Advanced Network Security and QoS
- TAA Compliant
Switch Type
- Managed
Switch Ports
- 48
PoE+ Budget
- 251W - 410W
PoE Support
- Yes
Power Consumption
- 885W
Jumbo Frame (FE, GE)
- 12Kbytes
LEDs
- Power, Fault, PoE Max, LAN Mode, PoE Mod
VLAN
- Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support
Memory
- 512MB
Forwarding Rate
- 130.95 Mpps
Dimensions (LxWxH)
- 17.32 x 16.14 x 1.73 in
- 440 x 410 x 44 mm
Weight
- 4707 g (10.38 lb)
Number of VLANs Supported
- 256 active VLANs (4,096 range)
Operating Humidity
- 10 to 90% RH
Operating Temperature
- 0 to 50°C (32 to 122°F)
Ports
- 4 10G SFP+
- 48 Gigabit Ethernet
Power Dedicated to PoE+
- 740W
Security Features
- 802.1x Radius authentication
- DHCP snooping
- IP-MAC binding
- Port Security (256 max entries per port)
Rate Limiting
- Rate limit according to network speed, 12kbps~1000Mbps: in steps of 16kbps
Power Input
- 100–240V
- 12A
- 50–60 Hz
Spanning Tree
- IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances) IGMP, MLD
Quality Of Service
- 8 hardware queues
- Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
- Strict, Weighted Round Robin (WRR)
Storage Temperature
- -20 to 70°C (-4 to 158°F)
Warranty and Support
- 2 Year Warranty (Australia and New Zealand)
- 5 Year Warranty (most countries)
RMON
- Embedded remote monitoring (RMON 1, 2, 3, 9) software agent support for enhanced traffic management, monitoring, and analysis
MAC Address Table Size
- 32K
Switching Capacity
- 176 Gbps
HOL Blocking Prevention
- Head of line (HOL) blocking prevention
Auto Voice VLAN
- Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
Other Management
- Telnet, SSH, DHCP client, system log, configuration upload and backup via HTTP or TFTP, PING, Traceroute, dual images, SNTP
Link Aggregation
- IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group
Access Control
- Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny
Storm Control
- Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps
Management Interface
- HTTP
- HTTPS
Routing
- Static Routing, IPv4 (63 max entries), IPv6 (21 max entries)
SNMP
- Version 1
- Version 2c
- Version 3
Fans
- 3, 8200 rpm (at full speed)
Storage Humidity
- 5 to 95% RH (non-condensing)
IGMP Snooping
- IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
Power Saving
- EEE
Port Mirroring
- Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer
Firmware Upgrade
- TFTP
- Web Browser (HTTP/HTTPS)
