Linksys Business Switch - 8 Port (LGS310MPC) 8-Port Managed Gigabit PoE+ Switch with 2 1G SFP Uplinks 110W TAA Compliant

Linksys Business Switch - 8 Port (LGS310MPC) 8-Port Managed Gigabit PoE+ Switch with 2 1G SFP Uplinks 110W TAA Compliant

Brand : Linksys

Regular price ₱15,615.00
Sale price ₱15,615.00
Regular price ₱18,125.00 -14%
Sale! Sold out

Business Switch - 8 Port (LGS310MPC) 8-Port Managed Gigabit PoE+ Switch with 2 1G SFP Uplinks 110W TAA Compliant

The Linksys LGS310MPC 8-Port Managed Gigabit PoE+ Switch is designed for business-class management, security, speed, and quality of service with 8 Gigabit Ethernet PoE+ ports, 2 Gigabit SFP uplinks and 110W of total PoE power budget.

  • Integrated Power over Ethernet Plus (110W)
  • Gigabit SFP Uplink Ports (2)
  • Advanced Network Security and QoS
  • TAA Compliant
Switch Type
  • Managed
Switch Ports
  • 8
PoE+ Budget
  • 111W - 250W
PoE Support
  • Yes
Power Consumption
  • 133.77W
Jumbo Frame (FE, GE)
  • 10Kbytes
LEDs

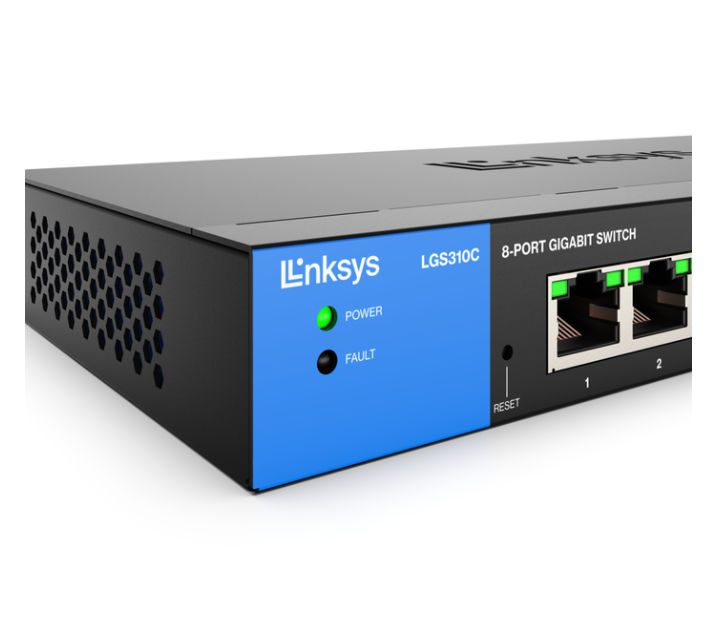

  • Power, Fault, PoE Max, LAN Mode, PoE Mode
VLAN
  • Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support
Memory
  • 256MB
Forwarding Rate
  • 14.88 Mpps
Dimensions (LxWxH)
  • 240 x 105 x 27 mm
  • 9.45 x 4.13 x 1.06 in
Weight
  • 636 g (1.40 lb)
Number of VLANs Supported
  • 256 active VLANs (4,096 range)
Operating Humidity
  • 10 to 90% RH
Operating Temperature
  • 0 to 40°C (32 to 104°F)
Ports
  • 2 Gigabit SFP
  • 8 Gigabit Ethernet
Power Dedicated to PoE+
  • 110W
Security Features
  • 802.1x Radius authentication
  • DHCP snooping
  • DOS Attack Prevention
  • IP-MAC binding
  • Port Isolation (Protected Ports)
  • Port Security (256 max entries per port)
Rate Limiting
  • Rate limit according to network speed, 12kbps~1000Mbps: in steps of 16kbps
Power Input
  • 100–240V
  • 2.2A
  • 50–60 Hz
Spanning Tree
  • IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances)
Quality Of Service
  • 8 hardware queues
  • Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
  • Strict, Weighted Round Robin (WRR)
Storage Temperature
  • -20 to 70°C (-4 to 158°F)
Warranty and Support
  • 2 Year Warranty (Australia and New Zealand)
  • 5 Year Warranty (most countries)
RMON
  • Embedded remote monitoring (RMON 1, 2, 3, 9) software agent support for enhanced traffic management, monitoring, and analysis
MAC Address Table Size
  • 8K
Switching Capacity
  • 20 Gbps
HOL Blocking Prevention
  • Head of line (HOL) blocking prevention
Auto Voice VLAN
  • Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
Other Management
  • Telnet, SSH, DHCP client, system log, configuration upload and backup via HTTP or TFTP, PING, Traceroute, dual images, SNTP
Link Aggregation
  • IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group
Access Control
  • Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny
Storm Control
  • Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps
Management Interface
  • HTTP
  • HTTPS
Routing
  • Static Routing, IPv4 (63 max entries), IPv6 (21 max entries)
SNMP
  • Version 1
  • Version 2c
  • Version 3
Storage Humidity
  • 5 to 95% RH (non-condensing)
IGMP Snooping
  • IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
Power Saving
  • EEE
Port Mirroring
  • Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer
Firmware Upgrade
  • Web Browser (HTTP/HTTPS)
View full details

Description

Business Switch - 8 Port (LGS310MPC) 8-Port Managed Gigabit PoE+ Switch with 2 1G SFP Uplinks 110W TAA Compliant

The Linksys LGS310MPC 8-Port Managed Gigabit PoE+ Switch is designed for business-class management, security, speed, and quality of service with 8 Gigabit Ethernet PoE+ ports, 2 Gigabit SFP uplinks and 110W of total PoE power budget.

  • Integrated Power over Ethernet Plus (110W)
  • Gigabit SFP Uplink Ports (2)
  • Advanced Network Security and QoS
  • TAA Compliant
Switch Type
  • Managed
Switch Ports
  • 8
PoE+ Budget
  • 111W - 250W
PoE Support
  • Yes
Power Consumption
  • 133.77W
Jumbo Frame (FE, GE)
  • 10Kbytes
LEDs
  • Power, Fault, PoE Max, LAN Mode, PoE Mode
VLAN
  • Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support
Memory
  • 256MB
Forwarding Rate
  • 14.88 Mpps
Dimensions (LxWxH)
  • 240 x 105 x 27 mm
  • 9.45 x 4.13 x 1.06 in
Weight
  • 636 g (1.40 lb)
Number of VLANs Supported
  • 256 active VLANs (4,096 range)
Operating Humidity
  • 10 to 90% RH
Operating Temperature
  • 0 to 40°C (32 to 104°F)
Ports
  • 2 Gigabit SFP
  • 8 Gigabit Ethernet
Power Dedicated to PoE+
  • 110W
Security Features
  • 802.1x Radius authentication
  • DHCP snooping
  • DOS Attack Prevention
  • IP-MAC binding
  • Port Isolation (Protected Ports)
  • Port Security (256 max entries per port)
Rate Limiting
  • Rate limit according to network speed, 12kbps~1000Mbps: in steps of 16kbps
Power Input
  • 100–240V
  • 2.2A
  • 50–60 Hz
Spanning Tree
  • IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances)
Quality Of Service
  • 8 hardware queues
  • Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
  • Strict, Weighted Round Robin (WRR)
Storage Temperature
  • -20 to 70°C (-4 to 158°F)
Warranty and Support
  • 2 Year Warranty (Australia and New Zealand)
  • 5 Year Warranty (most countries)
RMON
  • Embedded remote monitoring (RMON 1, 2, 3, 9) software agent support for enhanced traffic management, monitoring, and analysis
MAC Address Table Size
  • 8K
Switching Capacity
  • 20 Gbps
HOL Blocking Prevention
  • Head of line (HOL) blocking prevention
Auto Voice VLAN
  • Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
Other Management
  • Telnet, SSH, DHCP client, system log, configuration upload and backup via HTTP or TFTP, PING, Traceroute, dual images, SNTP
Link Aggregation
  • IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group
Access Control
  • Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny
Storm Control
  • Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps
Management Interface
  • HTTP
  • HTTPS
Routing
  • Static Routing, IPv4 (63 max entries), IPv6 (21 max entries)
SNMP
  • Version 1
  • Version 2c
  • Version 3
Storage Humidity
  • 5 to 95% RH (non-condensing)
IGMP Snooping
  • IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
Power Saving
  • EEE
Port Mirroring
  • Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer
Firmware Upgrade
  • Web Browser (HTTP/HTTPS)
