Description

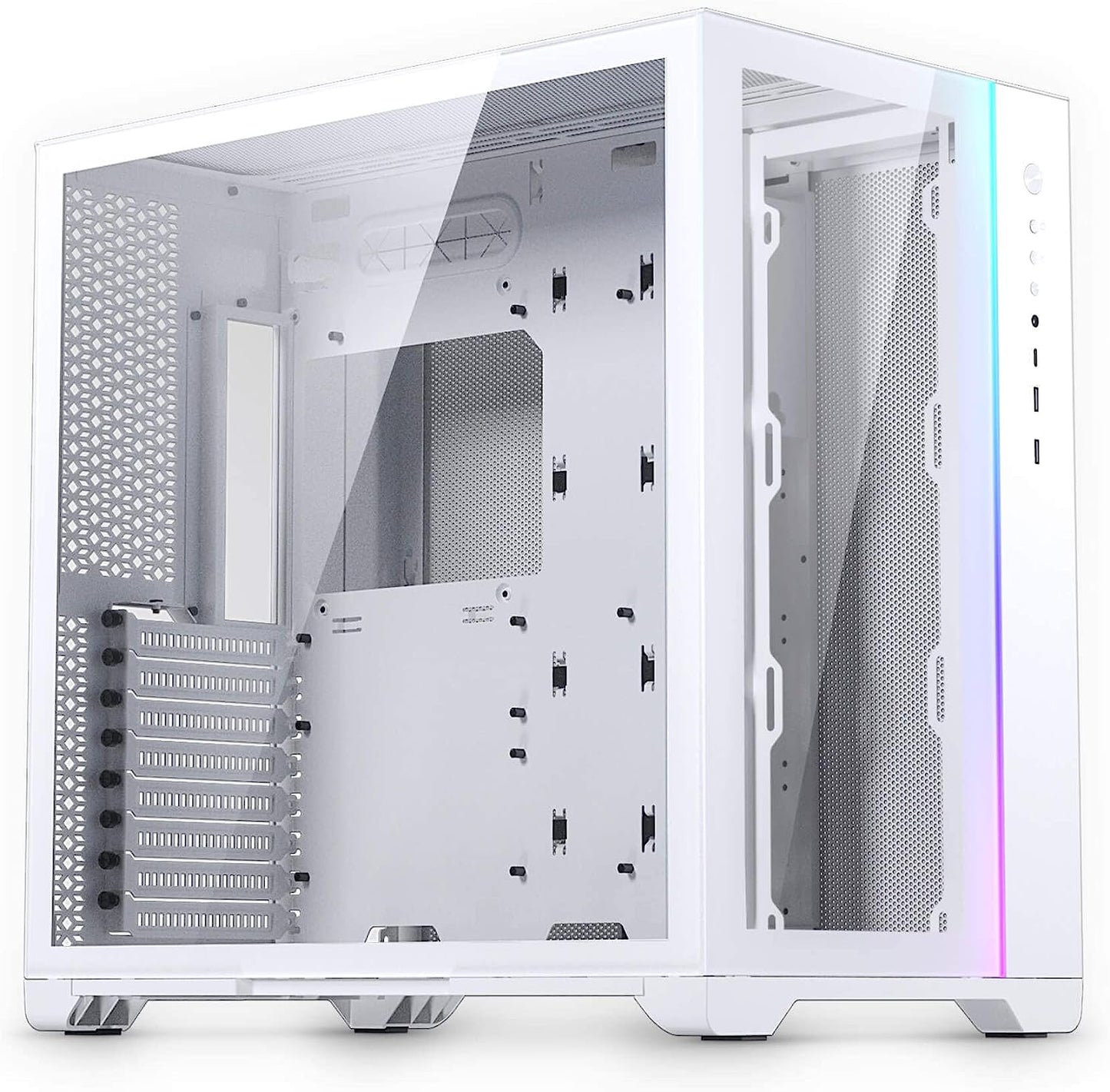

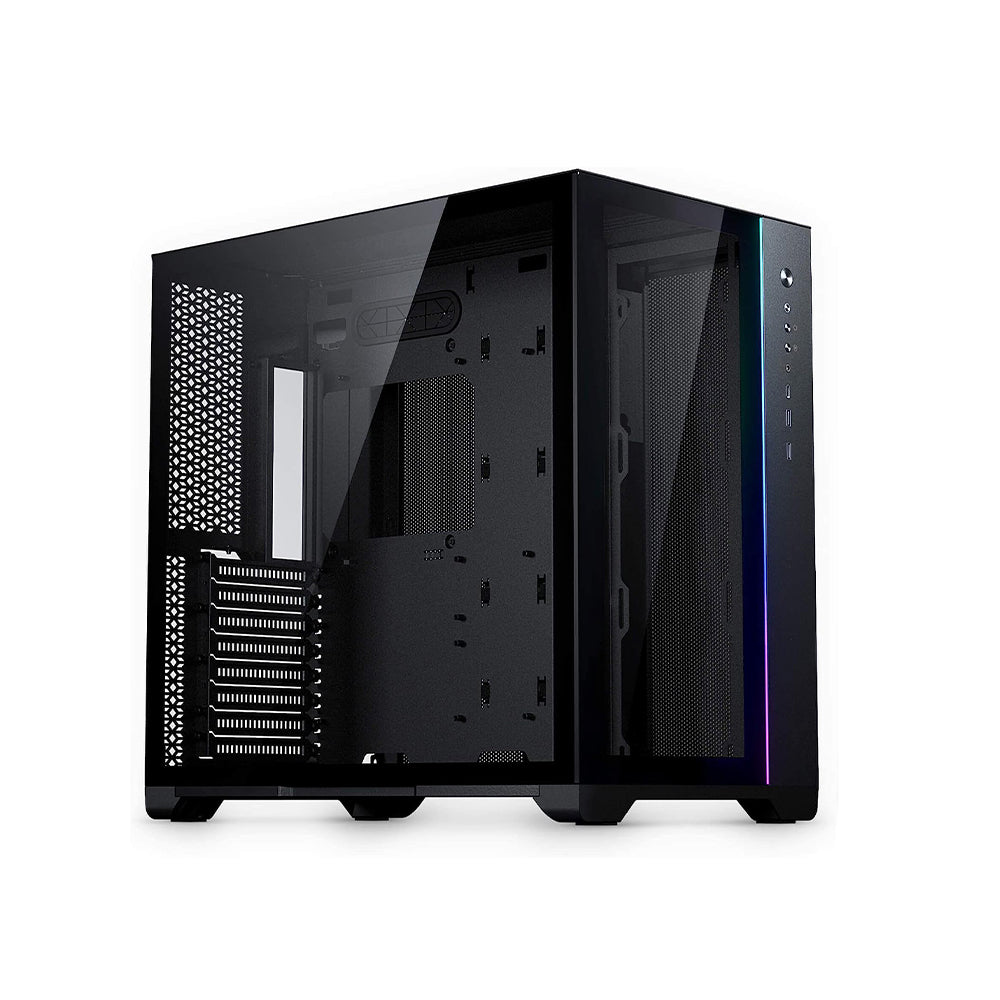

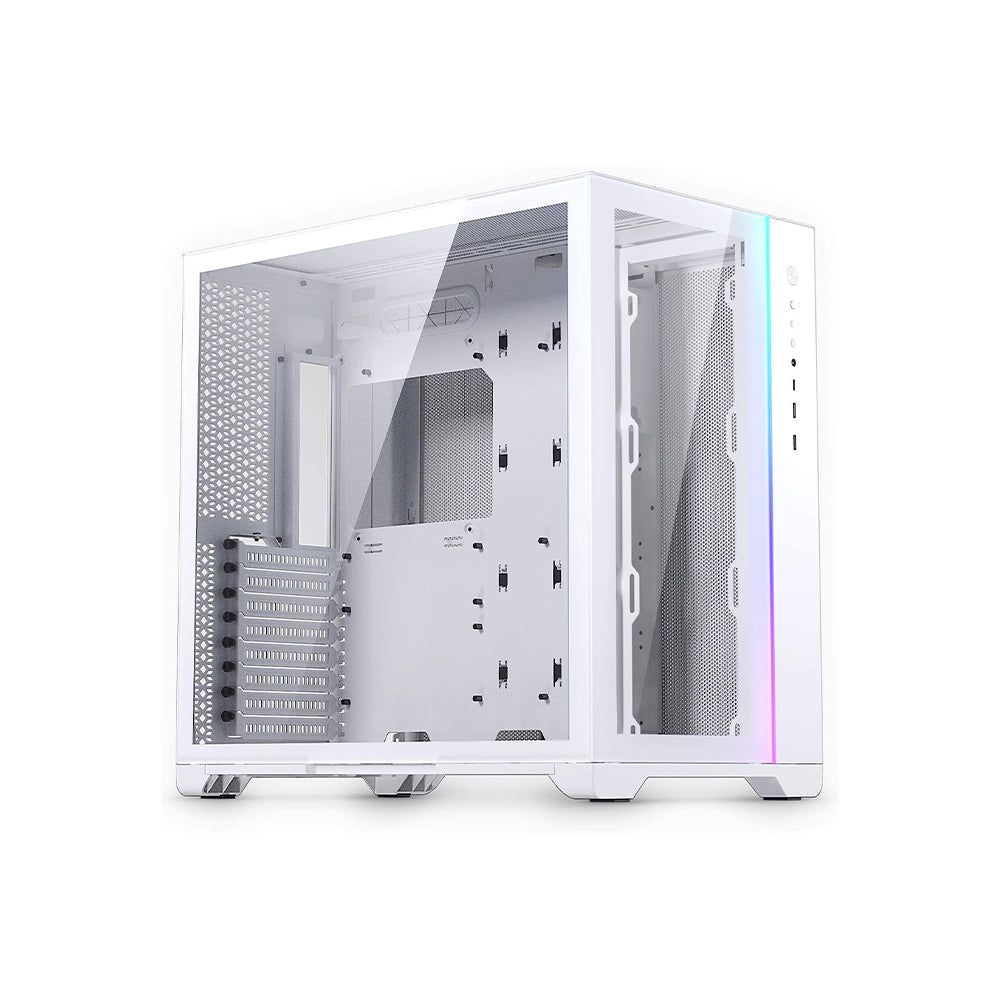

NEO QUBE 2
The NEO Qube 2 is a true showcase mid-tower chassis without compromise. Its dual chamber design makes installation and cable management a breeze while all system components are highlighted through the double tempered glass panels. Available in Black, White, and infinity mirror editions.
INTEGRATED LIGHTINGAND INFINITY MIRROR
- Available with infinity mirror or light strip
- Build-in D-RGB controller with manual control
- Expand and sync with compatible D-RGB lighting products
DUAL CHAMBER DESIGN WITHOUT COMPROMISE
- Highlights all system components with glass exterior
- High airflow mesh panels and bottom dust filter
- Spacious interior makes cable management a breeze
STORAGE SUPPORT
- Triple SSD bracket
- Dual HDD cage (removable)
- Velcro-tie cable management
HARDWARE SUPPORT
- Up to 280mm wide E-ATX motherboards
- Supports GPUs up to 410 mm long
- Support for tower CPU coolers up to 148 mm tall
COOLING SUPPORT
- Up to nine 120 mm fan locations
- Up to four 140 mm fan locations
- 360 Radiator support in the Top, Side, and Bottom
TECHNICAL SPECIFICATIONS
OPTIONS | ||||
---|---|---|---|---|
MODEL NO. | MG-NE620Q_DBK02 | MG-NE620Q_DWT02 | MG-NE620QI_DBK02 | MG-NE620QI_DWT02 |
UPC | 886523900672 | 886523900689 | 886523900696 | 886523900702 |
VARIANTS | Black | White | Infinity Mirror Black | Infinity Mirror White |
CONTENTS | |
---|---|
DIMENSIONS | 270 x 450 x 460 mm | 10.7 x 17.9 x 18.3 in |
FORM FACTOR | Mid Tower |
MATERIALS | Steel Chassis, Tempered Glass Windows |
MB SUPPORT | E-ATX, ATX, micro-ATX, mini-ITX |
FRONT I/O | USB 3.1 gen 2 type-C, 2x USB 3.0, Microphone/Headphone, D-RGB Mode Button, D-RGB Color Button, Power Button, Reset Button |
SIDE WINDOW | Yes, Tempered Glass front and left-side window |
NET WEIGHT | 8.80 kg | 19.4 lbs |
GROSS WEIGHT | 10.50 kg | 23.15 lbs |
PACKAGE DIMENSIONS | 510 x 358 x 554mm | 20.1 x 14.1 x 21.8 in |
FAN SUPPORT | 120 MM | 140 MM |
---|---|---|
SIDE | 3x | - |
TOP | 3x | 2x |
BOTTOM | 3x | 2x |
RADIATOR SUPPORT | ||
---|---|---|
SIDE | Up to 360 | - |
TOP | Up to 360 | Up to 280 |
BOTTOM | Up to 360 | - |
PCI SLOTS & DRIVE BAYS | |
---|---|
PCI SLOTS | 8 slots |
Vertical GPU | Yes, with optional Vertical GPU Bracket |
INTERNTAL 3.5" | 2 (2x included) |
INTERNTAL 2.5" | 5 Included (3x if 3.5" bays are used) |
CLEARANCE | |
---|---|
GPU LENGTH | 410 mm | 16.1 in |
MOTHERBOARD WIDTH | 280 mm | 11.0 in |
CPU COOLER HEIGHT | 148 mm | 5.9 in |
PSU (INCLUDING CABLE) | 275 mm | 10.9 in (155 mm if lower SSD’s installed) |
SIDE RADIATOR | 128 x 400 mm |
SIDE RADIATOR THICKNESS | 50mm (behind MB tray) |
TOP RADIATOR | 140 x 430 x 75 mm |
BOTTOM RADIATOR | 130 x 410 mm |
SCOPE OF DELIVERY | |
---|---|
NEO QUBE 2 CHASSIS | |
ACCESSORY BAG/BOX | |
ZIP TIES | 6x |
MB/SSD Screw | 33x |
PSU Screw | 4x |
HDD Cage Screw | 8x |
MB stand-off | 5x |
