Meshroom S Mini, compact SFF PC case, Mini-ITX, Mini-DTX, M-ATX, ATX Compatible
Meshroom S Mini, compact SFF PC case, Mini-ITX, Mini-DTX, M-ATX, ATX Compatible
Brand : SSUPD
Regular price
₱9,999.95
Sale price
₱9,999.95
Regular price
₱11,000.00
-9%
Unit price
per
Regular price
Couldn't load pickup availability

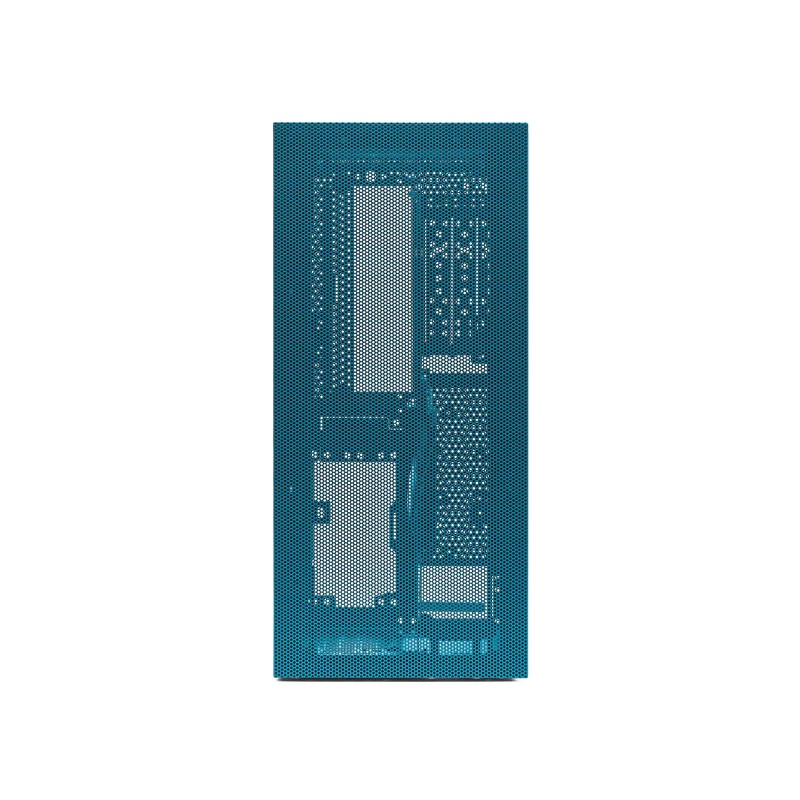

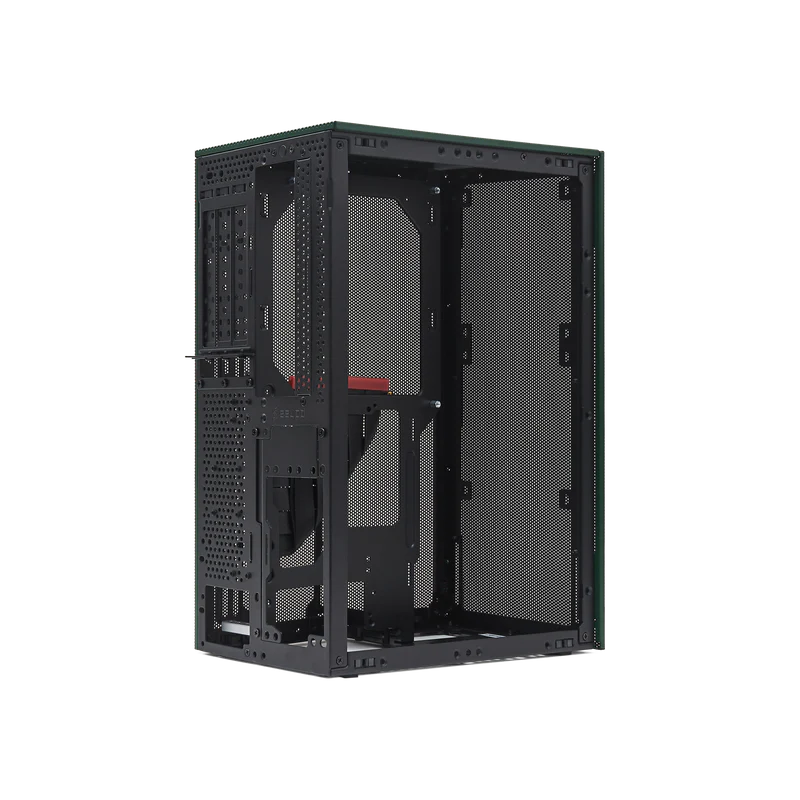

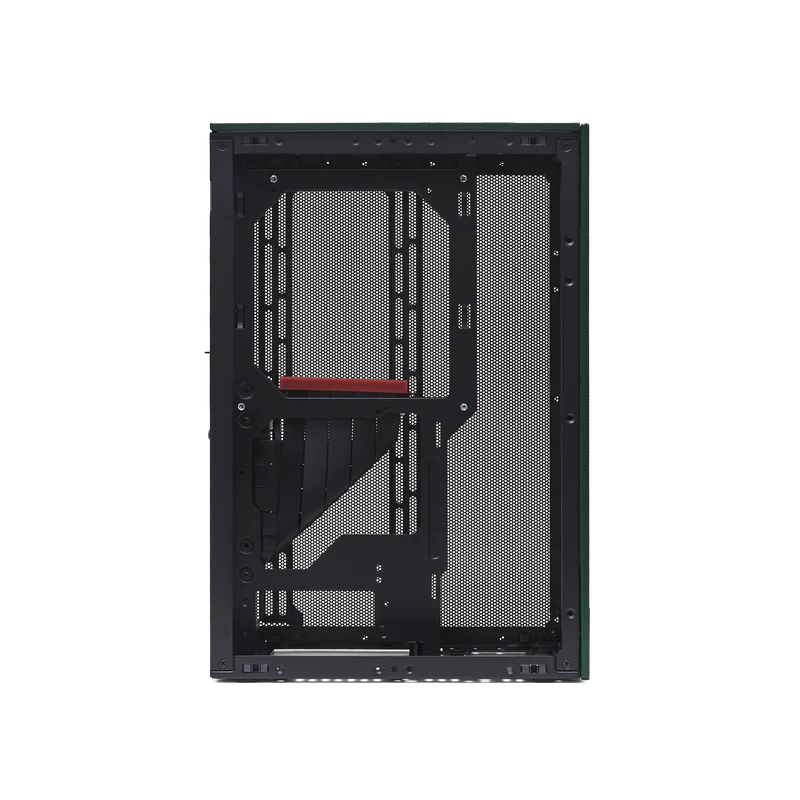

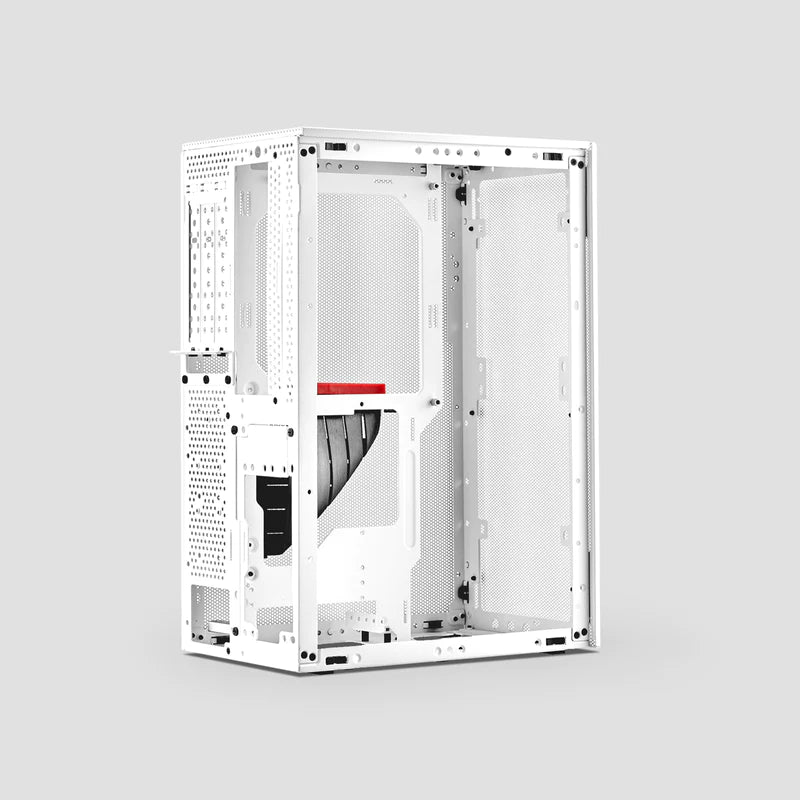

Meshroom S is a highly versatile and compact SFF PC case with only 14.9L volume and full mesh design, which provides excellent ventilation and cooling for even the most demanding components. Despite of its small size, Meshroom S features multiple installation layouts cater to the needs for ATX/MATX motherboard, GPU up to 353mm length (extra 3cm feet needed). For custom loop enthusiasts, the pre-arranged space designed to meet the requirements of a dual radiator configuration, along with a DDC pump.
Specifications
Top and front panel
Front fan mounts
Right side fan mounts
PCIe standard
Rear IO ports
3.5” drive max support
Side panel
Top fan mounts
Tool-less push-to-lock
GPU max length in ITX build
-
Supports large GPU up to 4 slots
- Fully equipped to accommodate a dual radiator along with a DDC pump
- Compatibility with ITX, MATX, and ATX motherboards
- Features an extreme fine mesh panel with 1.5mm apertures on four sides of the case
Specifications
Expansion slots
Vertical GPU: up to 4 slots (82mm); horizontal SFF GPU: 3 slots (63mm)
Front IO ports
1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0
2.5” drive max support
Vertical GPU: 4 x 2.5” SSD; horizontal SFF GPU: 8 x 2.5” SSD
Top and front panel
Two fine mesh panels
Front fan mounts
2 x 120/140 mm (not included)
Right side fan mounts
2 x 120/140 mm fans with 2.5 slot (52mm) GPU in 4 slots GPU mode
PCIe standard
PCIe Gen 4.0 x 16
Rear IO ports
Power Botton
3.5” drive max support
Vertical GPU: 2 x 3.5” HDD; horizontal SFF GPU: 4 x 3.5” HDD
Side panel
Two fine mesh panels
Top fan mounts
1 x 120 mm x 15 mm thick (not included)
Tool-less push-to-lock
Both side, top, and front panels
Compatibility
Motherboard compatibility
Mini-ITX, Mini-DTX, M-ATX, ATX
CPU cooler max height
3 slots GPU mode : max 74 mm height
4 slots GPU mode : max 54 mm height"
4 slots GPU mode : max 54 mm height"
GPU max length in ITX build
Vertical rear GPU in 4 slots (82mm):
332 mm length and 152 mm width;
353 mm length and 152 mm width with extra feet
Horizontal SFF GPU 3 slots (61 mm):
239 mm length and 160 mm width;
212 mm length and 160 mm width with front fan only
*GPU baffle not included in length and PCIe power connectors need 15-20 mm space"
332 mm length and 152 mm width;
353 mm length and 152 mm width with extra feet
Horizontal SFF GPU 3 slots (61 mm):
239 mm length and 160 mm width;
212 mm length and 160 mm width with front fan only
*GPU baffle not included in length and PCIe power connectors need 15-20 mm space"
Front radiator in ITX build
240/280 mm support max 332 mm length, 144 mm width, 63 mm thickness with fans
Right side radiator in ITX build
4 slots custom loop:
55 mm thickness of 240/280 mm radiator + fans allow GPU in 22 mm thick;
50 mm thickness of 240/280 mm radiator + fans allow GPU in 27 mm thick;
45 mm thickness of 240/280 mm radiator + fans allow GPU in 32 mm thick;
45 mm thickness of 240/280 mm radiator + fans allow GPU in 32 mm thick
55 mm thickness of 240/280 mm radiator + fans allow GPU in 22 mm thick;
50 mm thickness of 240/280 mm radiator + fans allow GPU in 27 mm thick;
45 mm thickness of 240/280 mm radiator + fans allow GPU in 32 mm thick;
45 mm thickness of 240/280 mm radiator + fans allow GPU in 32 mm thick
Power supply type
SFX, SFX-L, ATX
PSU max length
170 mm ATX PSU with front fan only;
160 mm ATX PSU with upward tubing AIO;
150 mm ATX PSU with downward tubing AIO"
160 mm ATX PSU with upward tubing AIO;
150 mm ATX PSU with downward tubing AIO"
GPU max length in ATX/MATX build
Vertical front GPU in 3 slots (62 mm):
314 mm length and 120 mm width;
325 mm length and 120 mm width with extra feet
Vertical front GPU in 2.8 slots (57mm):
314 mm length and 124 mm width;
335 mm length and 124 mm width with extra feet
Vertical rear GPU in 3 slots (63mm):
332 mm length and 152 mm width;
353 mm length and 152 mm width with extra feet
*GPU baffle not included in length and PCIe power connectors need 15-20 mm space
314 mm length and 120 mm width;
325 mm length and 120 mm width with extra feet
Vertical front GPU in 2.8 slots (57mm):
314 mm length and 124 mm width;
335 mm length and 124 mm width with extra feet
Vertical rear GPU in 3 slots (63mm):
332 mm length and 152 mm width;
353 mm length and 152 mm width with extra feet
*GPU baffle not included in length and PCIe power connectors need 15-20 mm space
Right side radiator in ATX/MATX build
240 mm support max 120 mm width, 53 mm thickness with fans
General
Case dimensions (L x W x H)
247 mm x 167 mm x 362 mm / 9.72 inch x 6.57 inch x 14.25 inch
Net weigh
3.2 kg / 7.05 lb
Volume
14.93 liters
Package contents
Meshroom S, accessory box included screws and parts, user manual, PCIe cable, monitor connecting cable
Package dimensions (L x W x H)
415 mm x 220 mm x 310 mm / 16.34 inch x 8.66 inch x 12.2 inch
Gross weight
3.75 kg / 8.27 lb
Case material
SGCC powder coated steel, plastic
Warranty
1 year on case, PCIe riser cable, monitor connecting cable, pc case parts, and front / rear IO ports
