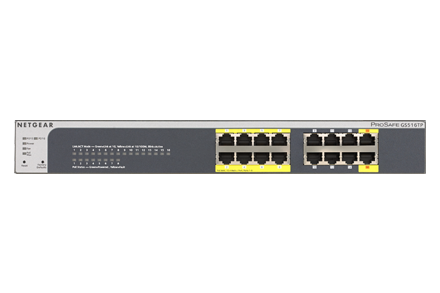

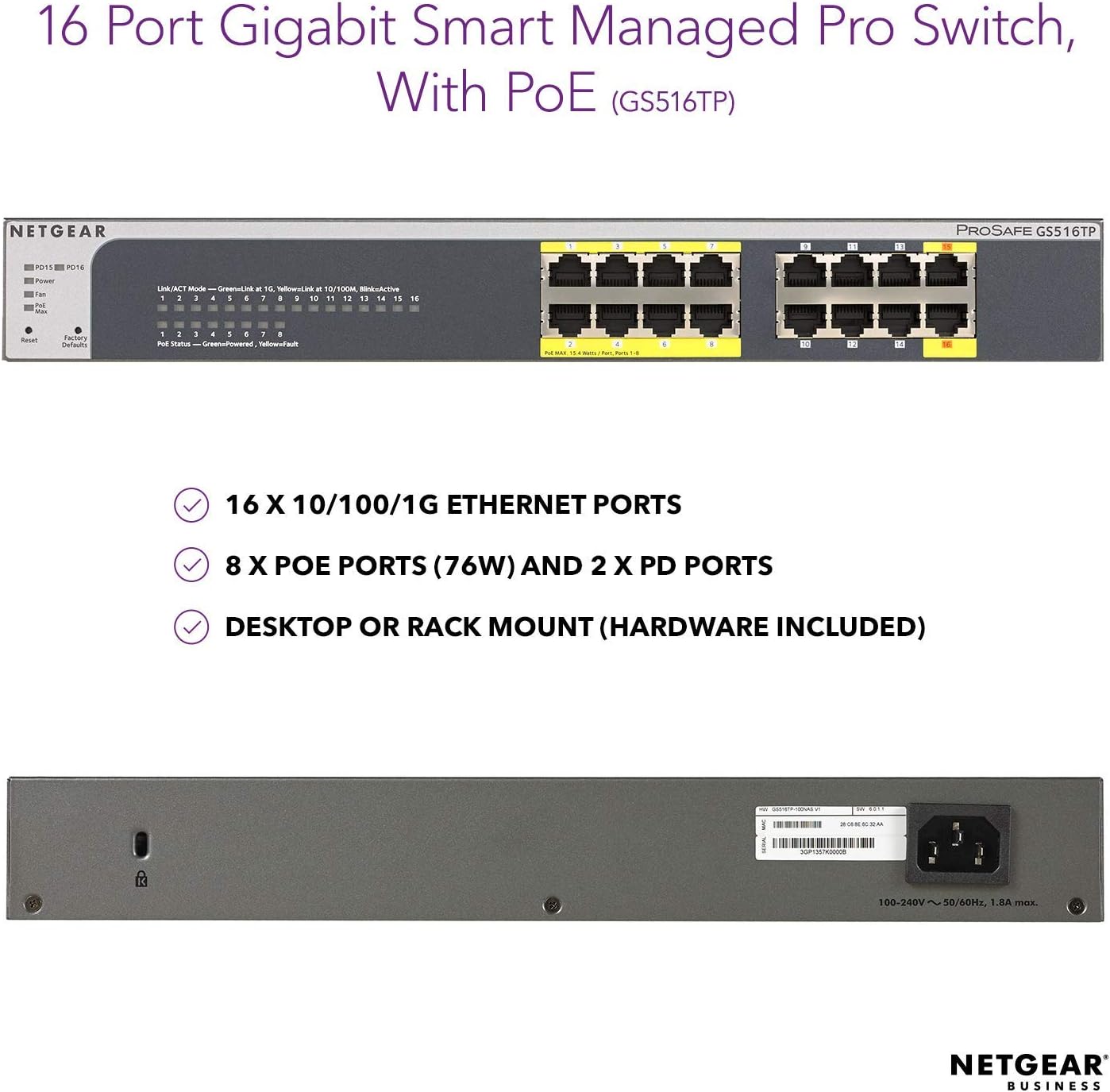

NETGEAR  16-Port Gigabit Ethernet Smart Switch with 8 PoE Ports and 2 PD Ports (GS516TP-100EUS)

HIGHLIGHTS

Designed for Converged Network,
Big or Small

• Gigabit Speed with all ports capable of support either PoE or PoE+
• Auto Voice VLAN for fast and reliable deployment of VoIP
• Auto Video VLAN, following the same concept of Auto Voice, help speed
• up your deployment of IP-based surveilliance system
• Static routing, helps to route internal traffic for more efficient use of network resources
• GMP and MLD snooping, providingadvanced multicast filtering
• Build a future-proof network with NETGEAR
• Solid performance with non-blocking architecture, 8K MAC addresses, 256 VLANs, 480 shared ACL entries, 32static routes, and 1,024 Multicast Groups
• Comprehensive IPv6 supporting management, QoS and ACL, ensuring
• investment protection and a smooth migration to IPv6-based network
• PoE+ support on all models with GS728TPP support PoE+ on all ports, providing flexibility in the future to add power-hungry devices such as video phone, PTZ camera and 11ac Wireless APs into the network
• 4 Dedicated SFPs, not only providing fiber uplinks, but also uplink redundancy and failover, improving reliability and availability for network virtualization
• Energy Efficient Ethernet (IEEE802.3az) support for more energy saving in the future when more EEE-compliant end devices come to market
• Advanced QoS with IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - DiffServ)
• Dynamic VLAN assignment for easy user authentication and location-independent access to network

Network Development Made Easy

• Auto Voice VLAN for easy development of VoIP
• Auto Video for simple deployment of IP Surveillaince
• ACL Wizard for a guided tour to set up your network access control
• Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrade
• PoE Timer for scheduling on/off time of your PoE powered devices.

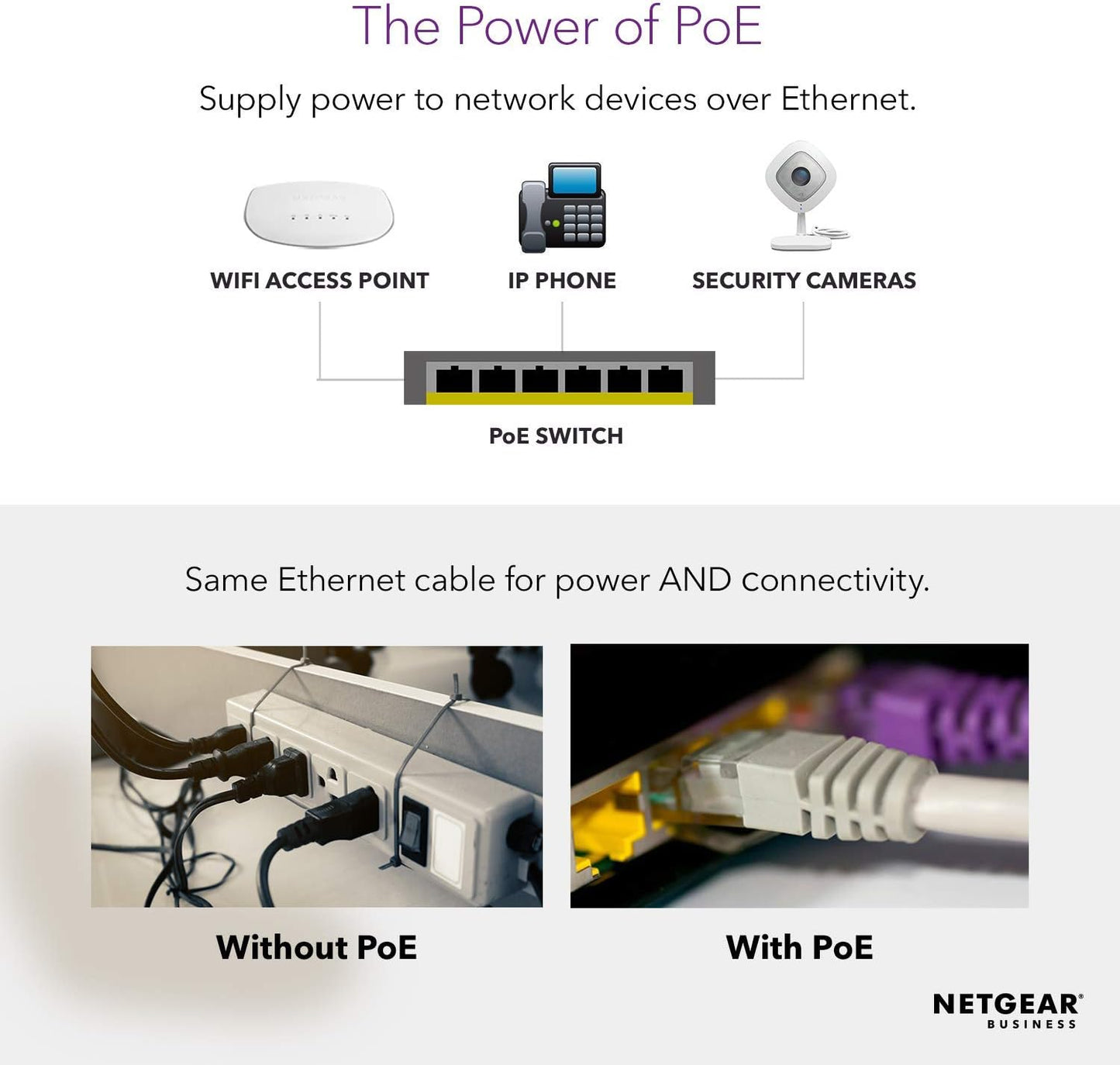

• With PD and PoE capability on the same device, GS516TP make network switch deployment truly free from AC power outlet. It provides maximum flexibility for network build-up, modifications and re-layout.
• Smart IT, not Big IT

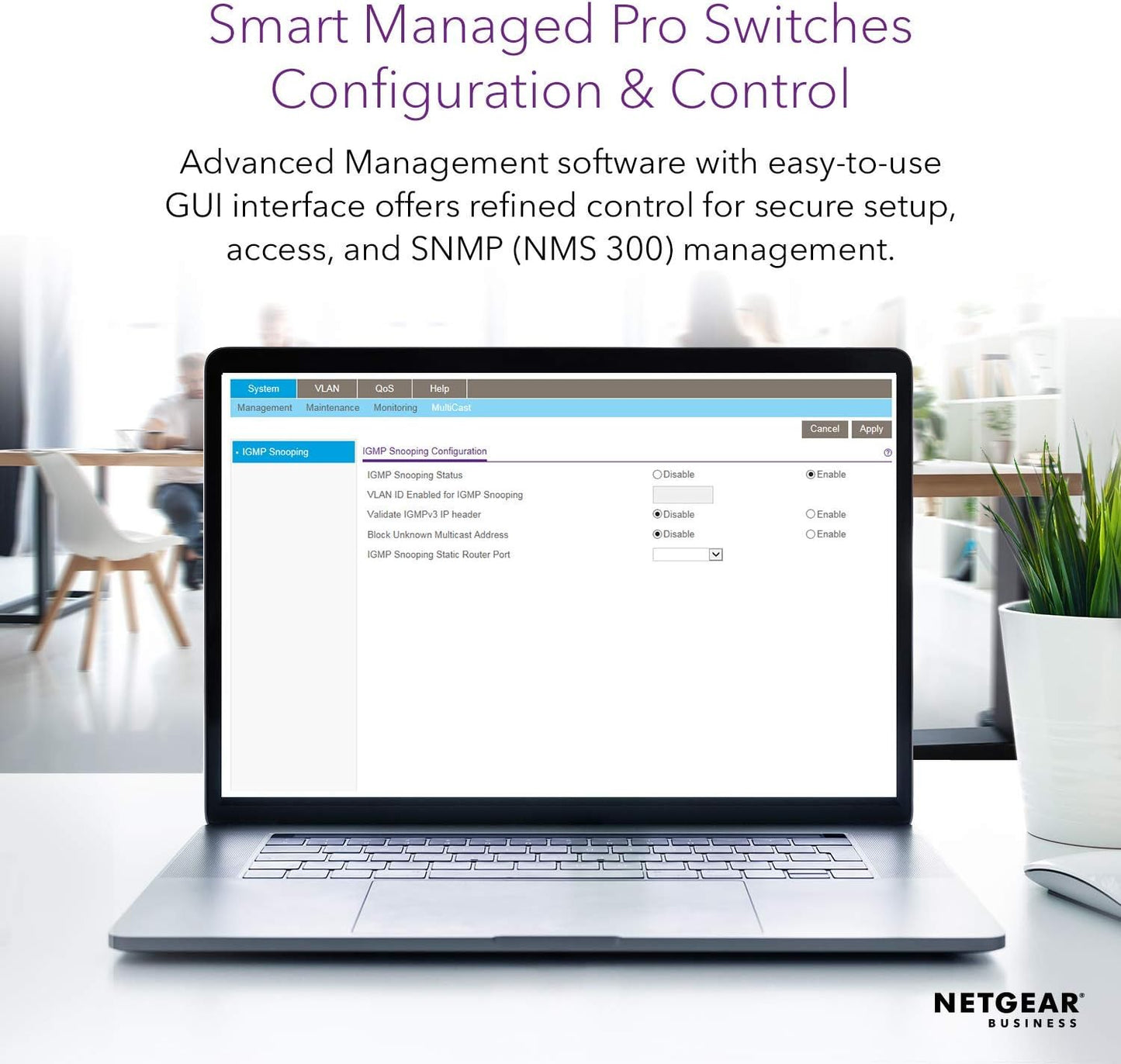

• Easy to manage via web-Based Management GUI or Smart Control Center (Windows PC required) for multi-switch deployment
• Standard-based technology, ensuring interoperability with any standard-based devices in the existing network
• Dual firmware images, improving reliability and uptime to your network
• LIFETIME Hardware Warranty*
• LIFETIME 24/7 Technical Support
• LIFETIME Next Business Day Replacement

Technical Specifications

• Performance Specification

Forwarding modes

• Store-and-forward
• 4 Priority queues

Priority queuing

• Weighted Round Robin (WRR)

MAC Address database size

• 8,000 media access control (MAC) addresses
• Addressing 48-bit MAC address
• 1K Multicast groups
• 32 Static Routes
• 15 Routed VLANs
• 1024 ARP Cache entries
• 8K DHCP snooping bindings
• 1024 DHCP static entries
• 480 rules shared for MAC, IP and IPv6 ACLs
• Packet size of 9k for Jumbo frame support

Network Security

• IEEE 802.1x
• Guest VLAN
• RADIUS based VLAN assignment via .1x
• MAC-based .1x
• Network Storm Protection
• Broadcast, Unicast, Multicast Protection

L2 Services - VLANs

• IEEE 802.1Q VLAN Tagging
• Video VLAN
• Voice VLAN - Based on phones OUI bytes (internal database, or usermaintained) or protocols (SIP, H323 and SCCP)

L2 Services - Availability

• IEEE 802.3ad - LAGs
• LACP ( (8 LAGS with max. of
• 8 members in each LAG))
• Broadcast Storm Control
• IEEE 802.3x (Full Duplex and flow control)
• IEEE 802.1D Spanning Tree Protocol
• IEEE 802.1w Rapid Spanning Tree
• IEEE 802.1s Multiple Spanning Tree

L2 Services - Multicast Filtering

• IGMP Snooping (v1, v2 and v3)
• MLD Snooping Support (v1 and v2)
• IGMP Snooping queriers
• Block unknown Multicast

L3 Services - DHCP

• DHCP Client
• DHCP Snooping

L3 Services - IPv4 Routing

• Static Routing
• VLAN Routing

Network Monitoring and Discovery Services

• 802.1ab LLDP
• SNMP V1, V2, V3
• RMON 1,2,3,9

Network Traffic

• Access Control Lists (ACLs)
• L2 / L3 / L4
• IP-based ACLs (IPv4 and IPv6)
• MAC-based ACL
• TCP/UDP-based ACL
• MAC lockdown
• MAC lockdown by the number of MACs
• IEEE 802.1x Radius Port Access

Authentication

• Port Security
• DHCP Snooping
• PoE Timer

Quality of Service (QoS)

• Access Lists
• L2 MAC, L3 IP and L4 Port ACLs
• Ingress rate limiting
• Egress rate limiting
• Support for IPv6 fields
• DiffServ QoS
• IEEE 802.1p COS
• Dst MAC and IP
• IPv4 and v6 DSCP
• IPv4 and v6 TOS
• WRR (Weighted Round Robin)
• Strict Priority queue technology
• Auto-VoIP

Yes, based on protocols (SIP, H323 and SCCP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address

Auto Video
Port Mirroring
