Description

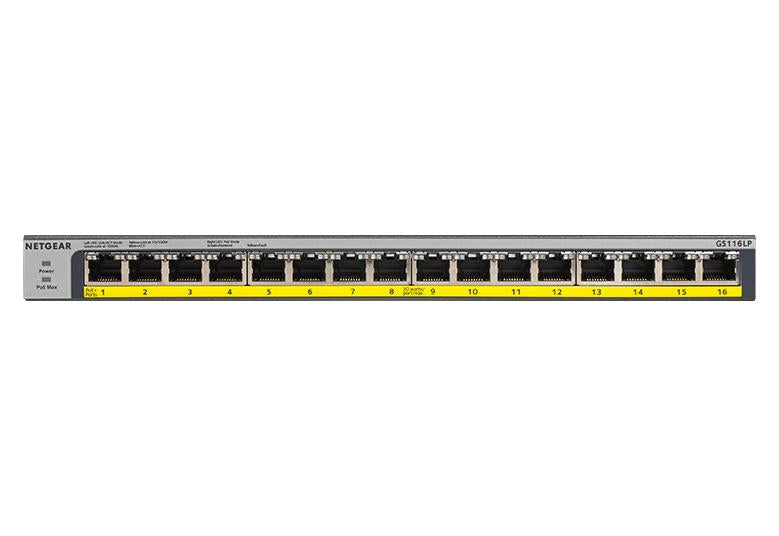

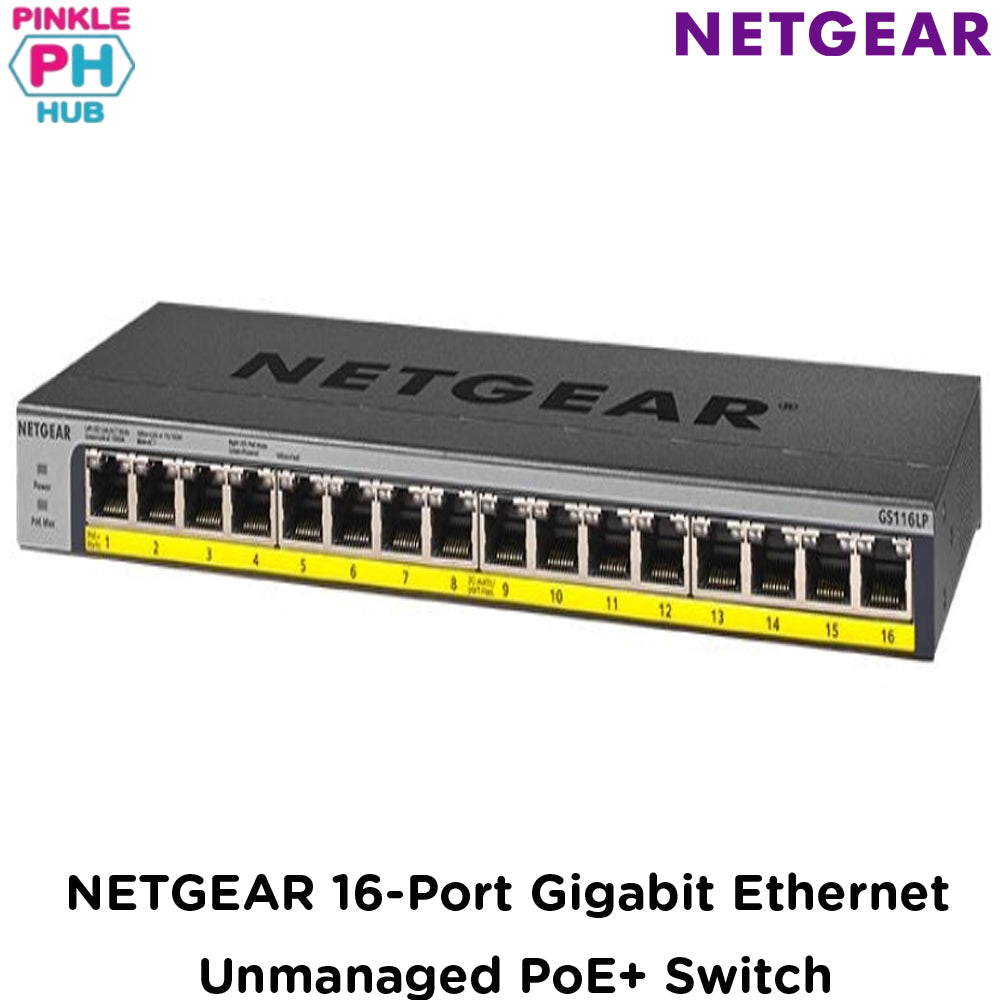

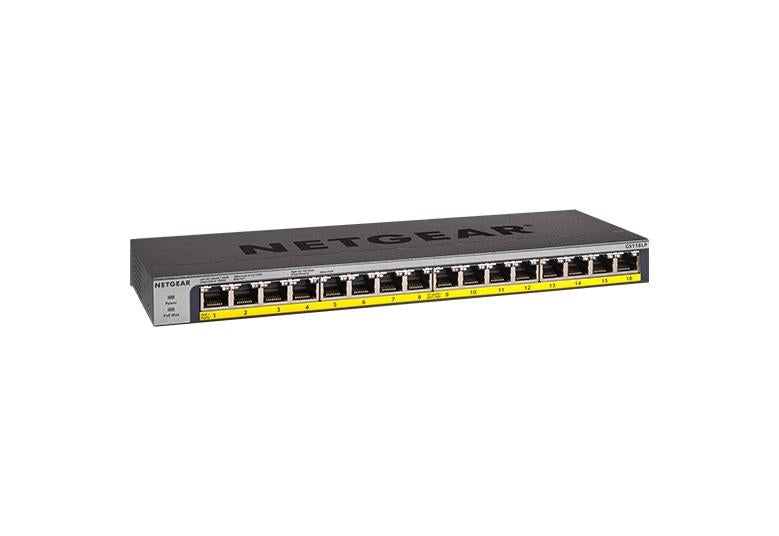

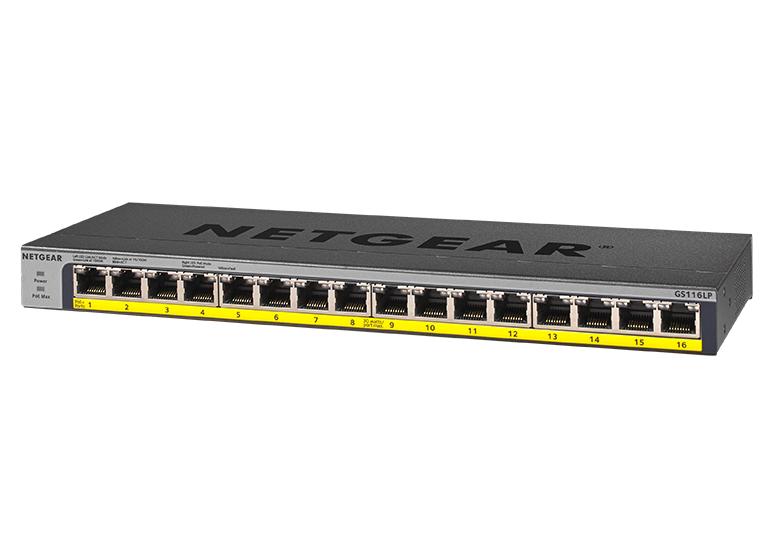

NETGEAR 16-Port Gigabit Ethernet Unmanaged PoE+ Switch with FlexPoE 76W (GS116LP-100AJS)
16 PoE+ ports with 76W total power budget, and includes NETGEAR FlexPoE making it expandable to 115W or even 183W (w/separately purchased power supply modules)
Features
GS116LP FEATURES

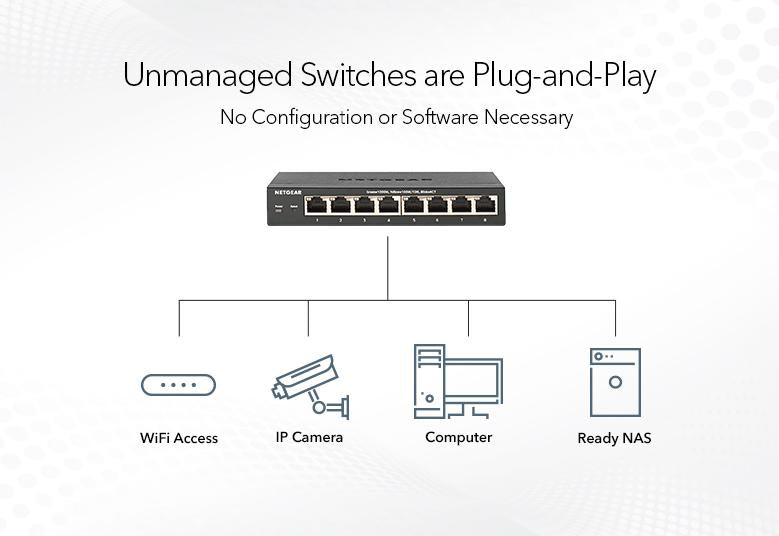

PLUG AND PLAY: Simple setup with no software or configuration needed.
POWER-OVER-ETHERNET: 16 PoE+ ports with 183W total power budget, and includes NETGEAR FlexPoE allowing to reduce the power budget to 155W or even 76W (w/separately purchased power supply modules)
FLEXIBLE MOUNTING: Mount on rack, desktop, or wall.
SMALL SIZE, METAL CASE AND SILENT OPERATION: Durable quality, space saver, and quietness for peace of mind.
LIFETIME LIMITED WARRANTY & NEXT BUSINESS DAY REPLACEMENT: NETGEAR has your back to ensure your network is up and running.
STURDY METAL CASE, DESKTOP/RACKMOUNT FORM FACTOR WITH QUIET FANS: Can be placed on desk or on mounted rack and will operate quietly with assured durability.
EXTENDED FEATURES
Choice of Fast Ethernet and Gigabit Ethernet connectivity
Energy-efficient technology for power savings
PoE power auto-balance - the switch automatically balances the PoE power based on the device needs independent of PoE class detected, at a very granular level.
Auto-MDI/MDIX eliminates the need for crossover cables
Non-blocking switching architecture for maximum throughput at wire speed
Auto-negotiation for automatic connection at the highest common speed between switch and an end device
Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
Desktop or rackmountable
POE+ FEATURES

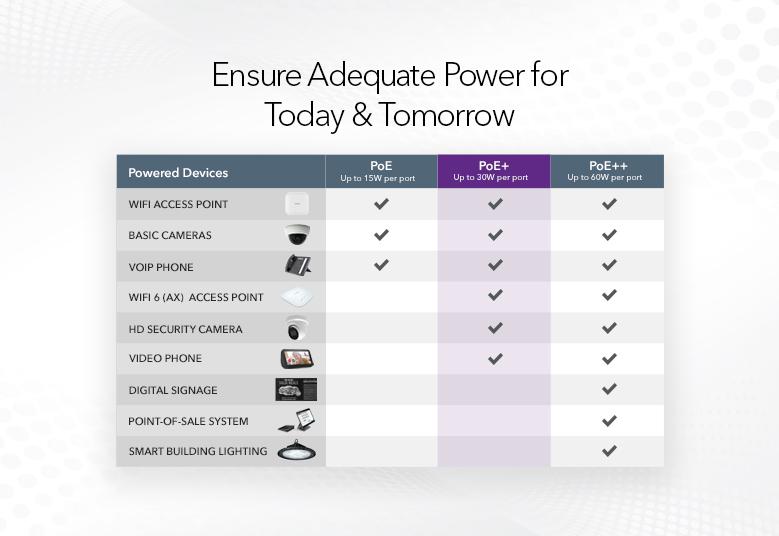

Power-Over-Ethernet (PoE) and PoE+ options available for powering IP Security Cameras, VoIP phones, wireless access points, and other PoE-powered devices
These PoE+ Switches are not just flexible in terms of placement they are also flexible in terms of PoE power

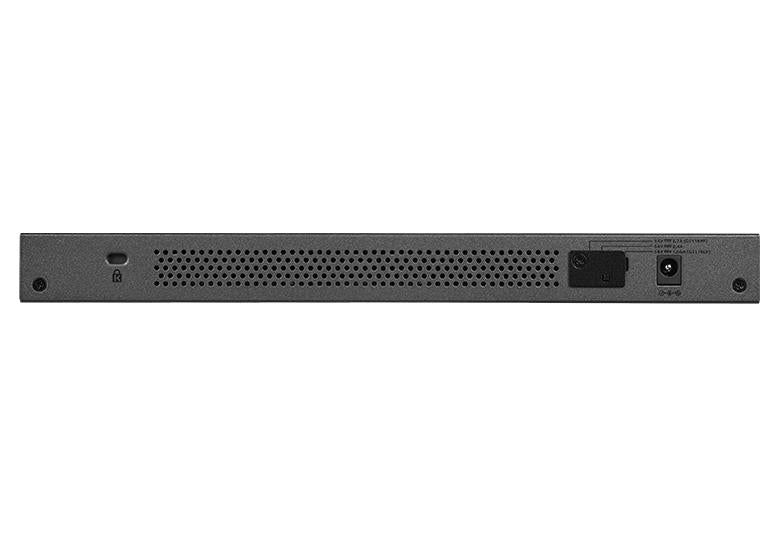

Built-in PoE power selector switch that allow for optional / interchangeable power adapters* (sold separately) that can be used to increase (or decrease) the PoE power available on the switch
The flexible mounting system gives you the flexibility to place them in a desktop environment, wall mount them, or even rack-mount (accessories included)
PHYSICAL SPECIFICATION
- Dimensions (WxDxH) @mm : 286 x 102 x 27 mm
- Weight (kg) : 0.88 kg
- MTBF (hours) : 2,088,514 hours
TECHNICAL SPECS
- Speed : 10/100/1000Mbps Gigabit Ethernet
- Number of Ports : 16
- PoE ports : 16 PoE+ ports , up to 30W per port
- Total PoE Budget : 76W
- Loop Detection : n/a
- Short cable power saving : Yes
- Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
- Jumbo Frame Support : Yes
- Queue WRR Ratio : 1:3:5:7:8:10:12:15
- MAC Table Size : 4K
- Packet buffer size : 1MB
- IEEE 802.1p QoS : Yes
- Max Power Consumption : 90W
- FCC Class : B
