Technical specifications
Interface
-
24 x 10M/100M/1G PoE+ ports (190W PoE budget)
-
2 x Dedicated 1G SFP (fibre) ports
Performance specification
CPU
-
500 Mhz MIPS-4KEc CPU
-
128MB RAM 32MB SPI FLASH
Packet buffer memory (Dynamically shared across only used ports)
-
0.5 MB
Forwarding modes
-
Store-and-forward
Bandwidth
-
52 Gbps
Priority queues
-
8
Priority queuing
-
Weighted Round Robin (WRR) and Strict Priority
MAC Address database size (48-bit MAC addresses)
-
8K
Multicast groups
-
128
Number of VLANs
-
64
Number of DHCP snooping bindings
-
256
Access Control Lists (ACLs)
-
100 shared for MAC, IP and UDP/TCP ACLs (ingress)
Packet forwarding rate (64 byte packet size) (Mpps)
-
38.68
Jumbo frame support
-
Up to 9K packet size
Acoustic noise level @ 25°C (dBA) (ANSI-S10.12)
-
32.4 dBA
Mean Time Between Failures (MTBF) @ 25°C
-
1,051,375 hours
100M Copper Latency(64-byte; 1518-byte; 9216-byte frames)
-
6.38µs ; 6.267µs ; 6.059µs
1G Copper Latency(64-byte; 1518-byte; 9216-byte frames)
-
3.749µs ; 4.675µs ; 3.762µs
1G Fiber Latency (64-byte; 1518-byte; 9216-byte frames)
-
3.129µs ; 4.213µs ; 4.197µs
L2 Services - VLANs
IEEE 802.1Q VLAN tagging
-
Yes
Auto-VoIP VLAN / Auto-Voice VLAN
-
Yes, manual or automatic assignment of VoIP phone traffic based on OUI bytes (default database and user-based OUIs) in the phone source MAC address to Voice VLAN associated with high priority QoS parameters
L2 Services - Availability
Broadcast, multicast, unknown unicast storm control
-
Yes
IEEE 802.3ad - LAGs (LACP)
-
Yes
IEEE 802.3x (full duplex and flow control)
-
Yes
IEEE 802.1D Spanning Tree Protocol
-
Yes
IEEE 802.1w Rapid Spanning Tree Protocol
-
Yes
IEEE 802.1s Multiple Spanning Tree Protocol
-
Yes
L2 Services - Multicast Filtering
IGMP snooping (v1, v2 and v3)
-
Yes
IGMP snooping querier
-
Yes
DHCP Services
DHCP client
-
Yes
DHCP snooping
-
Yes
Link Aggregation
IEEE 802.3ad - LAGs (LACP)
-
Yes
Manual Static LAG
-
Yes
# of Static or LACP LAGs/ # of Members in each LAG
-
8 LAGs with max 8 members in each LAG
Network Monitoring and Discovery Services
802.1ab LLDP
-
Yes
SNMP
-
v1, v2c, v3
RMON group 1,2,3,9
-
Yes
Network security
IEEE 802.1x
-
Yes (EAP)
Guest VLAN
-
Yes
RADIUS-based VLAN assignment via .1x
-
Yes
RADIUS accounting
-
Yes
Access Control Lists (ACLs)
-
L2 / L3 / L4 ingress
IP-based ACLs (IPv4)
-
Yes
MAC-based ACLs
-
Yes
TCP/UDP-based ACLs
-
Yes
MAC lockdown
-
Yes
MAC lockdown by the number of MACs
-
Yes
Control MAC # Dynamic learned entries
-
600
Control MAC # Static entries
-
20
IEEE 802.1x RADIUS port access authentication
-
Yes
Port-based security by locked MAC addresses
-
Yes
Broadcast, multicast, unknown unicast storm control
-
Yes
DoS attacks prevention
-
Yes
Quality of Service (QoS)
Port-based rate limiting
-
Yes egress
Port-based QoS
-
Yes
DiffServ QoS
-
Yes ingress
IEEE 802.1p COS
-
Yes
Destination MAC and IP
-
Yes
IPv4 DSCP
-
Yes
IPv4 ToS
-
Yes
TCP/UDP-based
-
Yes
Weighted Round Robin (WRR)
-
Yes
Strict priority queue technology
-
Yes
Auto-VoIP VLAN / Auto-Voice VLAN
-
Yes, manual or automatic assignment of VoIP phone traffic based on OUI bytes (default database and user-based OUIs) in the phone source MAC address to Voice VLAN associated with high priority QoS parameters
IEEE Network Protocols
-
IEEE 802.3 Ethernet
-
IEEE 802.3u 100BASE-T
-
IEEE 802.1Q VLAN Tagging
-
IEEE 802.3ab 1000BASE-T
-
IEEE 802.3af PoE
-
IEEE 802.3at PoE+
-
IEEE 802.3az Energy Efficient Ethernet (EEE)
-
IEEE 802.3ad Trunking (LACP)
-
IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
-
IEEE 802.3x Full-Duplex Flow Control
-
IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)
-
IEEE 802.1p Class of Service
-
IEEE 802.1D Spanning Tree (STP)
-
IEEE 802.1s Multiple Spanning Tree (MSTP)
-
IEEE 802.1w Rapid Spanning Tree (RSTP)
-
IEEE 802.1x RADIUS Network Access Control
Management
Password management
-
Yes
Configurable management VLAN
-
Yes
Admin access control via RADIUS and TACACS+
-
Yes
SNTP client over UDP port 123
-
Yes
SNMP v1/v2c
-
Yes
SNMP v3 with multiple IP addresses
-
Yes
RMON group 1,2,3,9
-
Yes
Port mirroring
-
Yes
Many-to-one port mirroring
-
25
Web browser-based graphical user interface (GUI)
-
Yes
Smart Control Centre (SCC) for multi-switch management
-
Yes
Dual software (firmware) image
-
Yes
Cable test utility
-
Yes
HTTPS/TLS Web-based access (version)
-
Yes (v1.0)
File transfers (uploads, downloads) TFTP / HTTP
HTTP upload/download (firmware)
-
Yes
Syslog (RFC 3164)
-
Yes
LEDs
Per port
-
Speed, Link, Activity
Per device
-
Power and Fan
Physical specifications
Dimensions (W x D x H)
-
440 x 257 x 43.2 mm (17.3 x 10.1 x 1.7 in)
Weight
-
3.15 kg (6.96 lb)
Power consumption
Max power (worst case, all ports used, full PoE, line-rate traffic) (Watts)
-
228.53 W
Max power without PoE (worst case, all ports used, line-rate traffic) (Watts)
-
21.62 W
Heat Dissipation (worst case, all ports used, full PoE, line-rate traffic) (BTU/hr)
-
780.20 BTU/hr
Heat Dissipation without PoE (worst case, all ports used, line-rate traffic) (BTU/hr)
-
73.8 BTU/hr
Energy Efficient Ethernet (EEE) IEEE 802.3az
-
Yes (deactivated by default)
Short Cable Power Reduction
-
Yes (deactivated by default)
Auto Power Down
-
Yes (deactivated by default)
Fan
-
2
Environmental specifications
Operating
Power Internal
-
100-240VAC 50-60Hz
Operating temperature
-
0 to 50C (32 to 122F)
Humidity (relative)
-
90% maximum relative humidity (RH), non-condensing
Altitude
-
10,000ft (3,000m) maximum
Storage
Storage temperature
-
–20 to 70C (– 4 to 158F)
Humidity (relative)
-
95% maximum relative humidity, non-condensing
Altitude
-
10,000ft (3,000m) maximum
Electromagnetic Emissions and Immunity
Certifications
-
CE: EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-
-
3-2:2014, Class A, EN 61000-3-3:2013, EN 55024:2010
-
VCCI : VCCI-CISPR 32:2016, Class A
-
RCM: AS/NZS CISPR 32:2013 Class A
-
CCC: GB4943.1-2011; YD/T993-1998; GB/T9254-2008 (Class A)
-
FCC: 47 CFR FCC Part 15, Class A, ANSI C63.4:2014
-
ISED: ICES-003:2016 Issue 6, Class A, ANSI C63.4:2014
-
BSMI: CNS 13438 Class A
Safety
Certifications
-
CB report / certificate IEC 60950-1:2005
-
(ed.2)+A1:2009+A2:2013
-
UL listed (UL 1950)/cUL IEC 950/EN 60950
-
CE LVD: EN 60950-1: 2006 + A11:2009 + A1:2010 +
-
A12:2011 + A2:2013
-
RCM (AS/NZS) 60950.1:2015
-
CCC (China Compulsory Certificate): GB4943.1-2011; YD/
-
T993-1998; GB/T9254-2008 (Class A)
-
BSMI: CNS 14336-1
Package contents
-

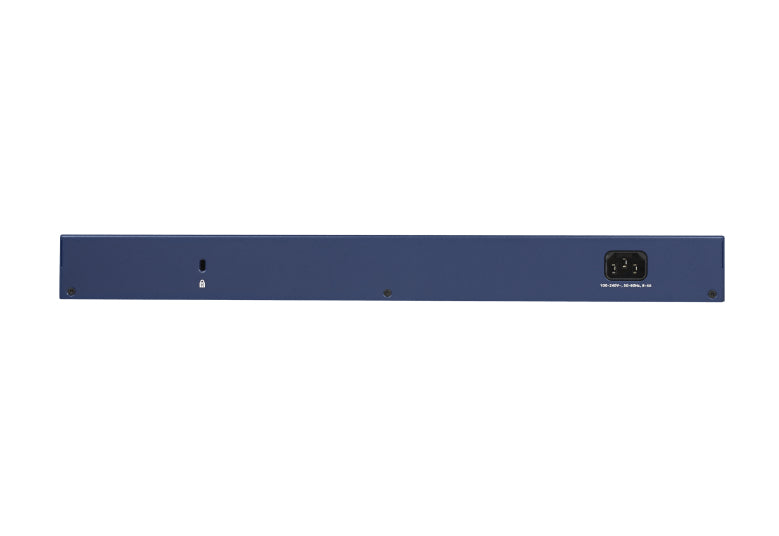

1 x GS724TPv3 Switch
-
1 x Power Cord
-
1 x Set of Rubber Footpads
-
1 x Set of Rackmount Screws
-
1 x Installation Guide
