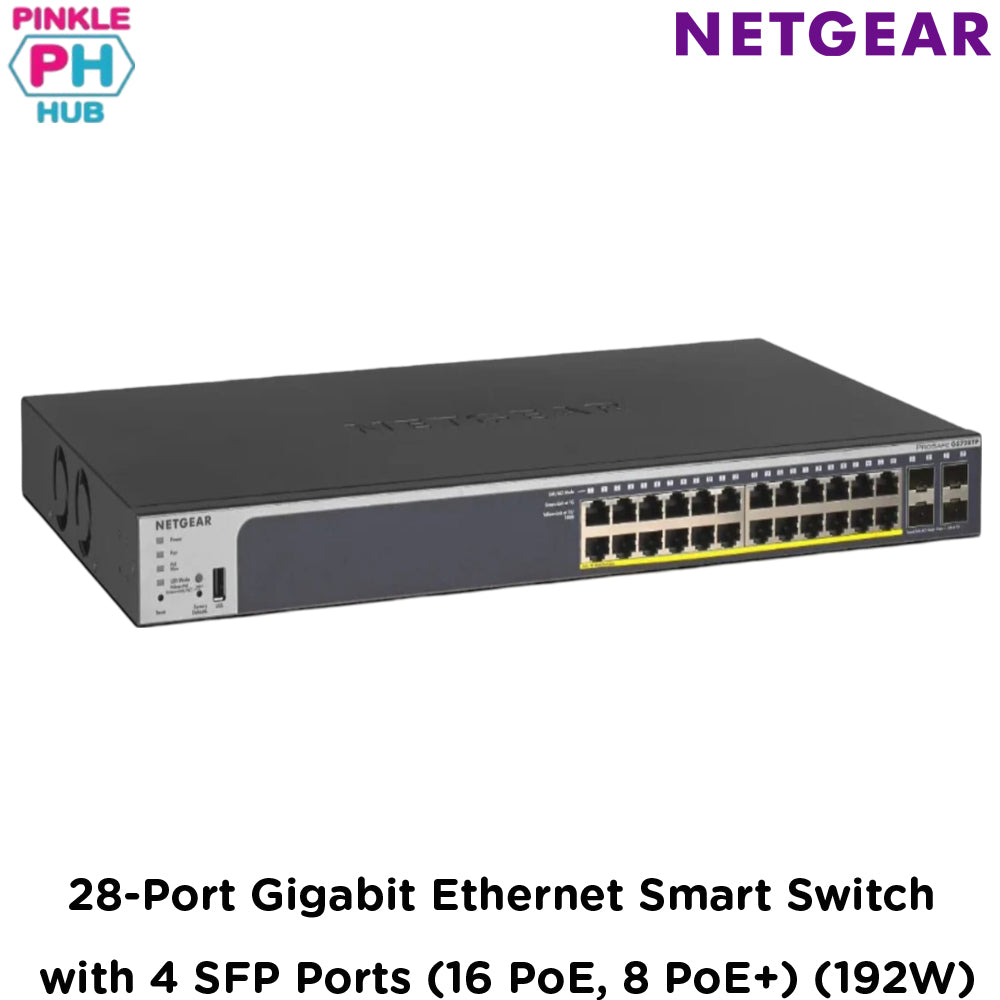

NETGEAR  24-Port Gigabit Ethernet PoE+ Smart Switch with 4 SFP Ports and Cloud Management (GS728TP-200EUS)

As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business’ needs, whether in the hospitality, catering, education or retail domains.

The GS728TP, GS728TPP, GS752TP, and GS752TPP Gigabit Ethernet switches with
PoE+ and 4 SFP ports join the NETGEAR standalone Smart switches family, adding full 24 and 48 port PoE+ support for deployment of modern high-power PoE devices. Cautious  spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom.

Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TP supports quiet rack mounting operation with a maximum of 27.08dB even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the GS728TPP is rated at 33.42dB, the GS752TP at 36.94dB and the GS752TPP at 39.74dB

Highlights
The NETGEAR PoE+ Gigabit Smart switches with Remote/Cloud management provides a great value, with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoEbased VoIP phones, IP cameras, videoover-IP endpoints and wireless access points simply and securely. Advanced features such as IPv4/IPv6 Layer 3 static routing, LACP link aggregation, DiffServ QoS, Private VLANs, Multicast VLAN Registration and Spanning Tree will satisfy even the most advanced small business networks.

Key features include:

• Quiet rack mounting operation with 27.08dB to 39.74dB at 25°C (77°F) ambient
• Layer 3 static routing with 32 routes (IPv4 and IPv6) for interVLAN local routing
• Advanced VLAN and Private VLAN support for better network segmentation
• L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
• Advanced per port PoE controls for remote power management of PoE connected devices including operation scheduling (e.g. Wireless APs, IP security cameras, LED lighting, secure access door locks, IoT devices…)
• Advanced QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based
• Auto DoS (Denial of Service) prevention
• IGMP Snooping and Querier for multicast optimization
• Multicast VLAN Registration (MVR) for larger L2 multicast networks and AV over IP deployment
• Dynamic ARP for increased security targeting a class of Man in the Middle attack
• Rate limiting and priority queuing for better bandwidth allocation Port mirroring for network monitoring
• Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
• Cable test to troubleshoot connection issues
• SNMP v1, v2c, v3 and RMON remote monitoring

Build a future-proof network with NETGEAR:

• Solid performance with non-blocking architecture, 16K MAC addresses, 256 VLANs, 100 shared (ingress) ACLs and 512 Multicast groups
• Comprehensive IPv6 supporting management, QoS, ACL and routing, ensuring investment protection and smooth migration to IPv6-based network
• PoE+ support on all models and on all ports
• 4 Dedicated SFPs, not only providing fiber uplinks, but also uplink redundancy and failover, improving reliability and availability for the network

Fully-integrated Cloud-manageable Devices

• Remote/Cloud management capability with NETGEAR Insight. Instantly activate NETGEAR Insight Cloud management from the web GUI, for simpler configuration and deployment from anywhere using the NETGEAR Insight app on mobile devices or the Insight Cloud portal through a web browser

Smart IT, not Big IT

• Easy-to-use Web browser-based management GUI
• Network Management System (NMS300), allowing all NETGEAR business products to be deployed and managed through this single interface
• Dual firmware images improve reliability and uptime to your network

NETGEAR Quality and Reliability

• Worry-free NETGEAR limited lifetime warranty*, online technical chat support and Next Business Day (NBD) replacement.
• 90-days Free 24x7 advanced Technical phone support**

Features and Benefits

1000BASE-T Copper Ethernet PoE+ connections

Support high-density VoIP, Surveillance and Wi-Fi AP deployments, scalable for future growth. Never face the risk of running out of PoE ports.

1000BASE-X Fiber SFP ports
Four dedicated Gigabit SFP ports for aggregation to the network core. Support for Fiber and Copper modules. Can also build dual redundancy by a trunked uplink with link aggregation and failover.

Great choice of PoE port counts and PoE power budgets that can adapt to the business’s needs
190W, 380W or 760W PoE budget available across 24 or 48 Gigabit PoE+ ports (802.3at) –Connect multiple power demanding devices to your network with a single wire for power and connectivity.

Low Acoustics
Temperature-based fan-speed control minimizes system acoustic noise in any environment starting at 27.08dB at 25°C (77°F) ambient.

Energy Efficient Ethernet (IEEE 802.3az)
Maximum power reduction for onging operational cost savings.

Software Features
Fully-integrated Cloud-manageable Devices

• Require no additional hardware (cloud keys, network portals, local servers, VPN or proxy appliances etc) to directly connect to the cloud and allow remote management. No additional hardware or software. Just switch to Insight Cloud management mode through Web browser-based user interface and go.
• Comprehensive IPv6 Support for Management, ACL and QoS Build current network with future in mind. Ensure investment protection and a smooth migration to an IPv6-based network without switch replacement.

IPv4 & IPv6 Static Routing
A simple way to provide segmentation of the network with internal routing
through the switch – reserving the router for external traffic routing only,
making the entire network more efficient.

Robust security features:

• 802.1x authentication (EAP)
• Port-based security by locked MAC
• ACL filtering to permit or deny traffic based on

MAC and IP addresses
Build a secured, converged network with all types of traffic by preventing
external attacks and blocking malware while allowing secure access for
authorized users.

Comprehensive QoS features:

• Port-based or 802.1p-based prioritization
• Layer 3-based (DSCP) prioritization
• Port-based ingress and egress rate limiting
• Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video.

Auto-VoIP, Auto-Voice VLAN, and Auto-Video VLAN
Automatic Voice over IP prioritization (Auto-VoIP) simplifies most complex
multi-vendor IP telephone deployments either based on protocols (SIP) or
on OUI bytes (default database and user-based OUIs) in the phone source
MAC address, providing the best class of service to VoIP streams (both data
and signaling) over other ordinary traffic by classifying traffic, and enabling
correct egress queue configuration. Similarly, Auto-Video VLAN enables
IGMP snooping to minimize broadcast streams.

IGMP (IPv4) and MLD (IPv6) Snooping and Querier modes with Fast Leave
Facilitate fast receiver joins and leaves for multicast streams. Save cost and
improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast route
