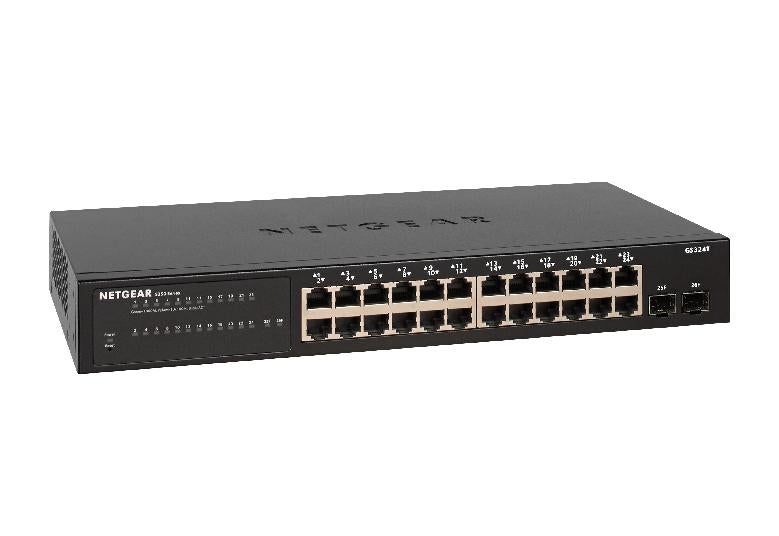

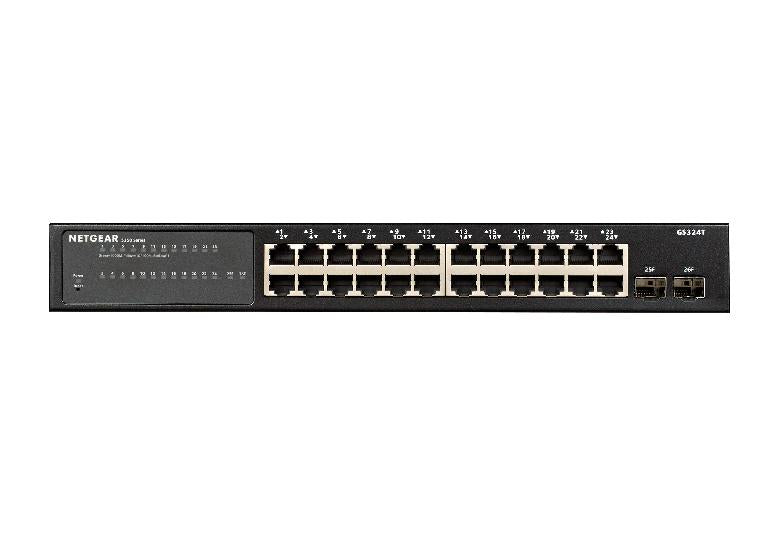

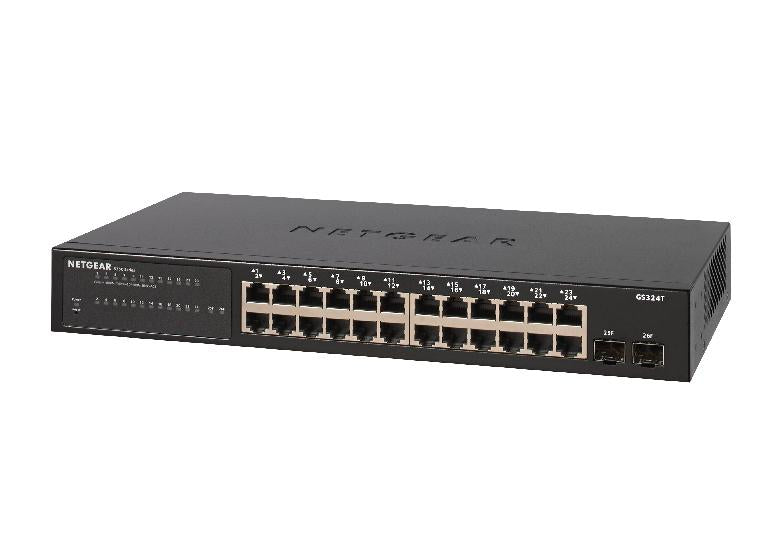

NETGEAR 24-Port Gigabit Ethernet Smart Switch with 2 Dedicated SFP Ports (GS324T-100EUS)

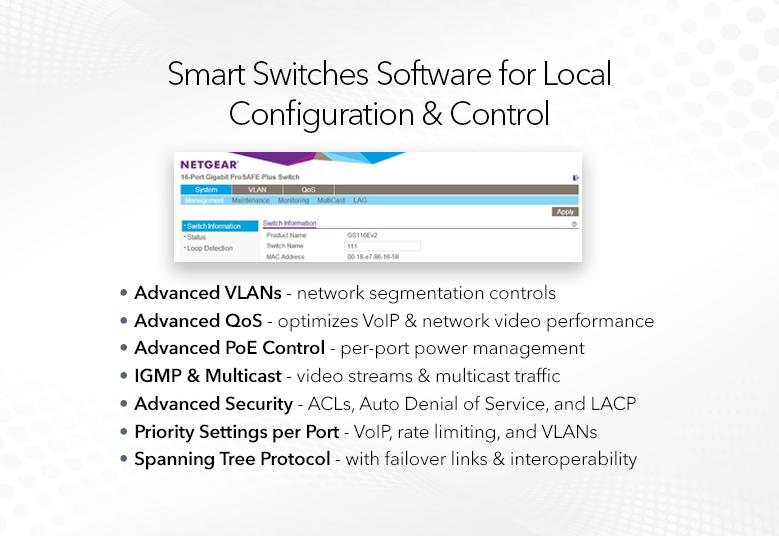

Experience advanced configuration & control with an easy-to-use GUI interface that offers refined control for secure setup, access, and SNMP management. Comes with a modern desktop design for simple and stylish for use in any room or office. Built to last: every NETGEAR network switch is rigorously tested for reliability, quality, and performance.

Features
MANAGEMENT

Traffic Management

• Auto Negotiation of speed and duplex modes
• IEEE 802.3x Flow Control
• Dynamic MAC address management
• IEEE 802.1Q-based VLAN
• Auto Voice VLAN
• Auto Video VLAN
• QoS based on WRR, strict priority, or both
• Port-based and IEEE 801.2p-based QoS
• TCP/UDP-based QoS
• DiffServ
• DSCP Support
• Rate Limiting (ingress, or egress)
• Link Aggregation and LACP

Switch Management

• Web browser-based management GUI
• Smart Control Center Software for multi-switch management
• IP Access List
• Configurable Management VLAN
• SNMP v1/v2c and v3
• Standard MIBs (RFC1213, RFC1643, and RFC1493)
• RMON group 1, 2, 3, 9
• Firmware Upgrade through Smart Control Center (TFTP)
• Firmware download (to switch) and upload (to server) through TFTP/HTTP
• Configuration and Image Upload (to PC) through HTTP
• Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
• Memory & FLASH log
• Syslog (server)
• System password protection
• Registration through NETGEAT Insight App

MULTICAST EFFICIENCY

IGMP snooping, v1, v2 and v3

• IGMP Snooping querier
• Blocking of unknown multicast traffic

Spanning Tree, Routing and Stacking

• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

Security

• MAC lockdown
• MAC lockdown by number of MACs
• IEEE 802.1x port authentication EAP
• Dynamic VLAN Assignment
• Guest VLAN
• TACACS+
• 3 HTTPS /SSL versions (Selected models)
• TLS session
• Trusted MAC
• IPv4, L4-based Access Control List (ACL)

RELIABILITY

Reliability, Performance and Troubleshooting
Port mirroring both on ingress and egress traffic

• Jumbo frame support
• Broadcast Storm control
• Cable diagnostics
• Loop Detection
• DoS Prevention
• IEEE 802.1ab LLDP
• LLDP-MED
• Dual Image
• SNTP

Option to enable/disable the flooding of EAPOL when 802.1x is disabled

• Protected ports
• DNS client
• DHCP clients
• DHCP snooping
• Ping and traceroute client
• Energy Efficient Ethernet (IEEE 802.3az) compliant

PHYSICAL SPECIFICATION

• Dimensions (WxDxH) : 328 x 169 x 43 mm(12.9 x 6.7 x 1.7 in)
• Weight : 1.62kg (3.57 lb)

TECHNICAL SPECS

• Model Description : NETGEAR® S350 Series 24-Port Gigabit Ethernet Smart Managed Pro Switch with 2 SFP Ports
• Gigabit ports : 24
• SFP ports : 2 (dedicated)
• PoE+ (802.3at) ports : N/A
• Total PoE Power budget (Watts) : N/A
• Max MAC entries : 16K
• Buffer size : 512 KB
• VLAN (Number Supported) : 256
• VLAN routing : N/A
• Dynamic VLAN assignment : Yes
• MLD Snooping : N/A
• Static route : N/A
• Host ARP table : Yes
• EEE : Yes
• DoS Prevention : Yes

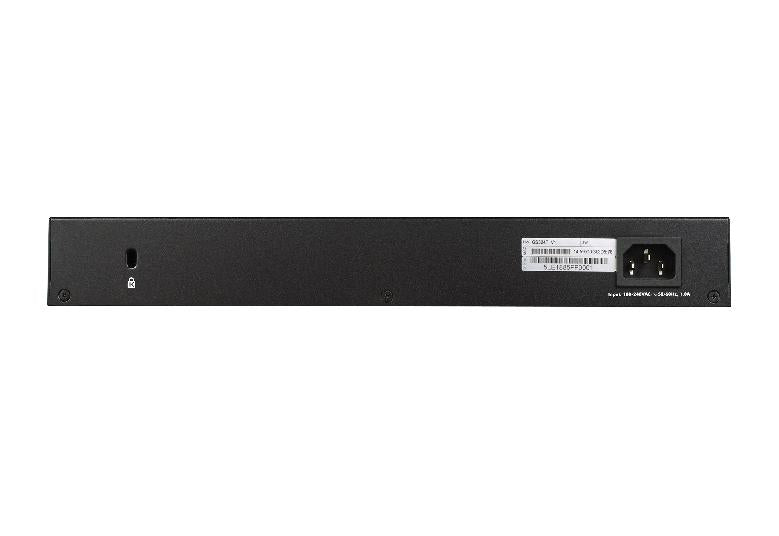

• Internal/External Power Supply : Internal 100-240VAC ~ 50-60Hz, 5A Max
• Max consumption (Watts) : 13.5W
• FAN : Fan-less
• Acoustic Noise Level @25C (dBA) : N/A
• Operating Temperature : 0° to 40° C (32° to 104° F)
• MTBF : 1,999,947 hrs(228 yrs)
