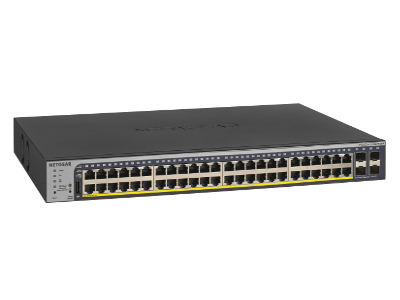

NETGEAR 52-Port Gigabit Ethernet Smart Switch with 4 SFP Ports 40 PoE, 8 PoE+ (384W) Version 2 (GS752TP-200EUS / GS752TP-200NAS)

As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business’ needs, whether in the hospitality, catering, education or retail domains.

The GS728TP, GS728TPP, GS752TP, and GS752TPP Gigabit Ethernet switches with
PoE+ and 4 SFP ports join the NETGEAR standalone Smart switches family, adding full 24 and 48 port PoE+ support for deployment of modern high-power PoE devices. Cautious  spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom.

Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TP supports quiet rack mounting operation with a maximum of 27.08dB even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the GS728TPP is rated at 33.42dB, the GS752TP at 36.94dB and the GS752TPP at 39.74dB

Designed for Converged Network, Big or Small

• Gigabit Speed with all ports capable of support either PoE or PoE+
• Auto Voice VLAN for fast and reliable deployment of VoIP
• Auto Video VLAN, following the same concept of Auto Voice, help speed up your deployment of IP-based surveilliance system
• Static routing, helps to route internal traffic for more efficient use of network resources
• IGMP and MLD snooping, providing advanced multicast filtering

Build a future-proof network with NETGEAR

• Solid performance with non-blocking architecture, 8K MAC addresses, 256 VLANs, 480 shared ACL entries, 32static routes, and 1,024 Multicast Groups
• Comprehensive IPv6 supporting management, QoS and ACL, ensuring investment protection and a smooth migration to IPv6-based network
• PoE+ support on all models with GS728TPP support PoE+ on all ports, providing flexibility in the future to add power-hungry devices such as video phone, PTZ camera and 11ac Wireless APs into the network
• 4 Dedicated SFPs, not only providing fiber uplinks, but also uplink redundancy and failover, improving reliability and availability for network virtualization
• Energy Efficient Ethernet (IEEE802.3az) support for more energy saving in the future when more EEE-compliant end devices come to market
• Advanced QoS with IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - DiffServ)
• Dynamic VLAN assignment for easy user authentication and location-independent access to network

Network Development Made Easy

• Auto Voice VLAN for easy development of VoIP
• Auto Video for simple deployment of IP Surveillaince
• ACL Wizard for a guided tour to set up your network access control
• Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrade
• PoE Timer for scheduling on/off time of your PoE powered devices.
• With PD and PoE capability on the same device, GS516TP make network switch deployment truly free from AC power outlet. It provides maximum flexibility for network build-up, modifications and re-layout.

Smart IT, not Big IT

• Easy to manage via web-Based Management GUI or Smart Control Center (Windows PC required) for multi-switch deployment
• Standard-based technology, ensuring interoperability with any standard-based devices in the existing network
• Dual firmware images, improving reliability and uptime to your network
• LIFETIME Hardware Warranty*
• LIFETIME 24/7 Technical Support
• LIFETIME Next Business Day Replacement

Features and Benefits

1000BASE-T Copper Ethernet PoE+ connections

Support high-density VoIP, Surveillance and Wi-Fi AP deployments, scalable for future growth. Never face the risk of running out of PoE ports.

1000BASE-X Fiber SFP ports
Four dedicated Gigabit SFP ports for aggregation to the network core. Support for Fiber and Copper modules. Can also build dual redundancy by a trunked uplink with link aggregation and failover.

Great choice of PoE port counts and PoE power budgets that can adapt to the business’s needs
190W, 380W or 760W PoE budget available across 24 or 48 Gigabit PoE+ ports (802.3at) –Connect multiple power demanding devices to your network with a single wire for power and connectivity.

Low Acoustics
Temperature-based fan-speed control minimizes system acoustic noise in any environment starting at 27.08dB at 25°C (77°F) ambient.

Energy Efficient Ethernet (IEEE 802.3az)
Maximum power reduction for onging operational cost savings.

Software Features
Fully-integrated Cloud-manageable Devices

• Require no additional hardware (cloud keys, network portals, local servers, VPN or proxy appliances etc) to directly connect to the cloud and allow remote management. No additional hardware or software. Just switch to Insight Cloud management mode through Web browser-based user interface and go.
• Comprehensive IPv6 Support for Management, ACL and QoS Build current network with future in mind. Ensure investment protection and a smooth migration to an IPv6-based network without switch replacement.

IPv4 & IPv6 Static Routing
A simple way to provide segmentation of the network with internal routing
through the switch – reserving the router for external traffic routing only,
making the entire network more efficient.

Robust security features:

• 802.1x authentication (EAP)
• Port-based security by locked MAC
• ACL filtering to permit or deny traffic based on

MAC and IP addresses
Build a secured, converged network with all types of traffic by preventing
external attacks and blocking malware while allowing secure access for
authorized users.

Comprehensive QoS features:

• Port-based or 802.1p-based prioritization
• Layer 3-based (DSCP) prioritization
• Port-based ingress and egress rate limiting
• Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video.

Auto-VoIP, Auto-Voice VLAN, and Auto-Video VLAN
Automatic Voice over IP prioritization (Auto-VoIP) simplifies most complex
multi-vendor IP telephone deployments either based on protocols (SIP) or
on OUI bytes (default database and user-based OUIs) in the phone source
MAC address, providing the best class of service to VoIP streams (both data
and signaling) over other ordinary traffic by classifying traffic, and enabling
correct egress queue configuration. Similarly, Auto-Video VLAN enables
IGMP snooping to minimize broadcast streams.

IGMP (IPv4) and MLD (IPv6) Snooping and Querier modes with Fast Leave
Facilitate fast receiver joins and leaves for multicast streams. Save cost and
improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast route
