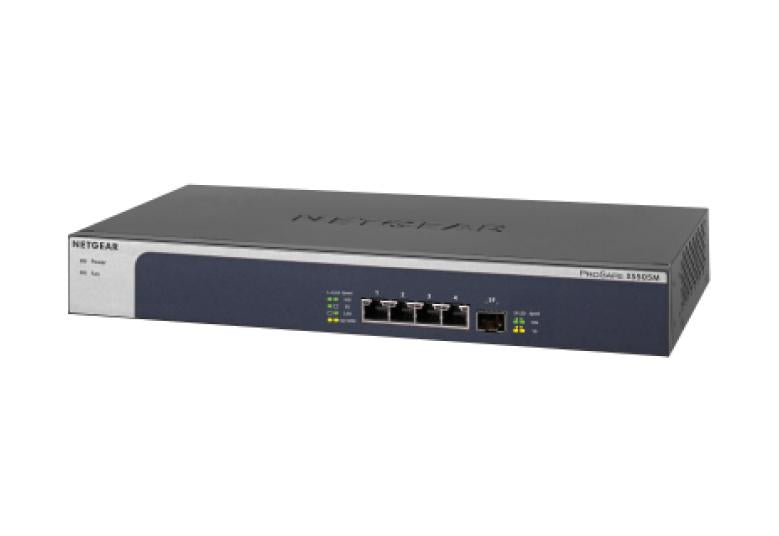

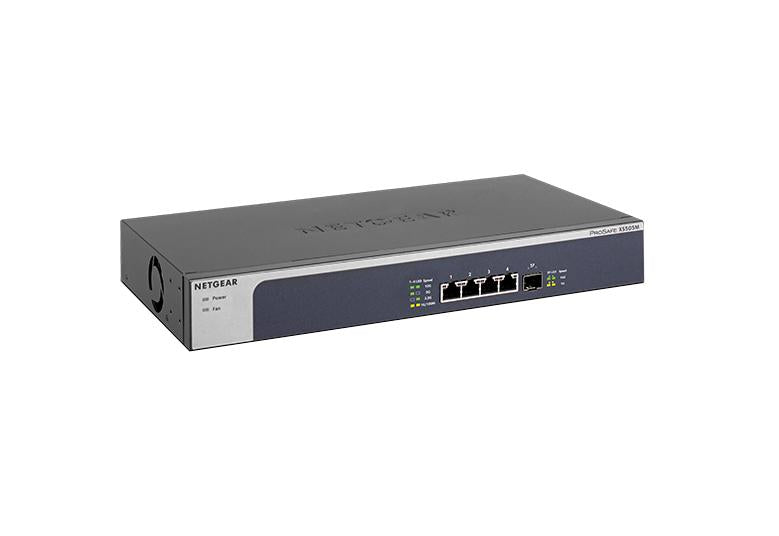

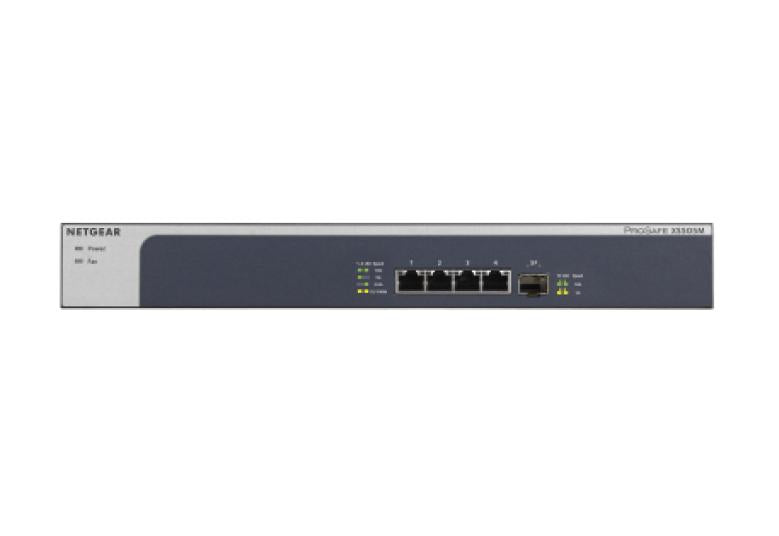

NETGEAR 5-port, 5-speed Unmanaged Switch 10-Gigabit/Multi-Gigabit (XS505M-100EUS)

The XS505M and XS508M come with copper Ethernet 5-speed ports that provide either FastEthernet, 1-Gigabit, 2.5-Gigabit, 5-Gigabit or 10-Gigabit connectivity, as well as 1 SFP+ Fiber port with 1-Gigabit or 10-Gigabit connectivity.

 Features

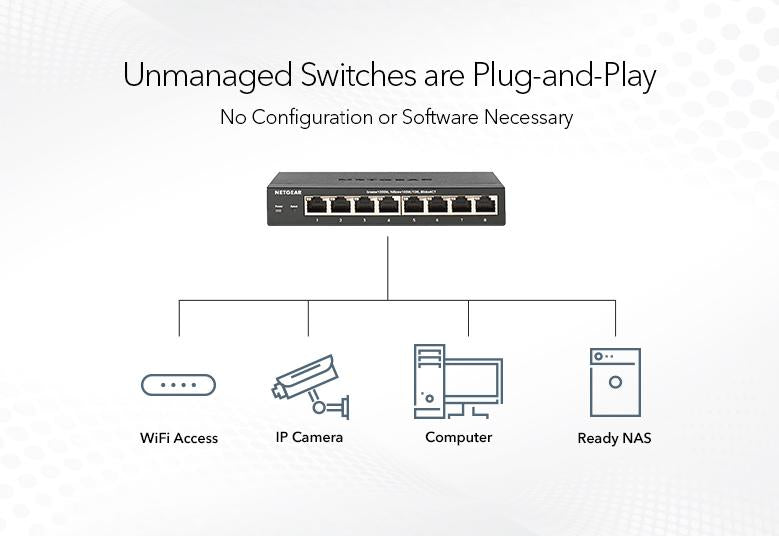

Plug-and-play
Automatic connectivity to your router or modem of 4 or 7 additional wired connections. No need for an IT expert!
All speeds welcome
Expand your network instantly, and give your devices either 100Mb, 1, 2.5, 5 or 10-Gigabit, automatically
Mounting flexibility
Small and silent desktop or rackmount form factor for quiet operation – Adapts to your needs and configuration in any environment
Industry leading support
ProSAFE LIFETIME Warranty, Next Business Day replacement and 24/7 chat with a NETGEAR expert
Energy efficient
Switches automatically adjust power consumption according to the link status and cable length.

PHYSICAL SPECIFICATION

• Dimensions (W x D x H) : 328 x 169 x 43.2 mm (12.91 x 6.65 x 1.7 in)
• Weight : 1.38Kg

TECHNICAL SPECS

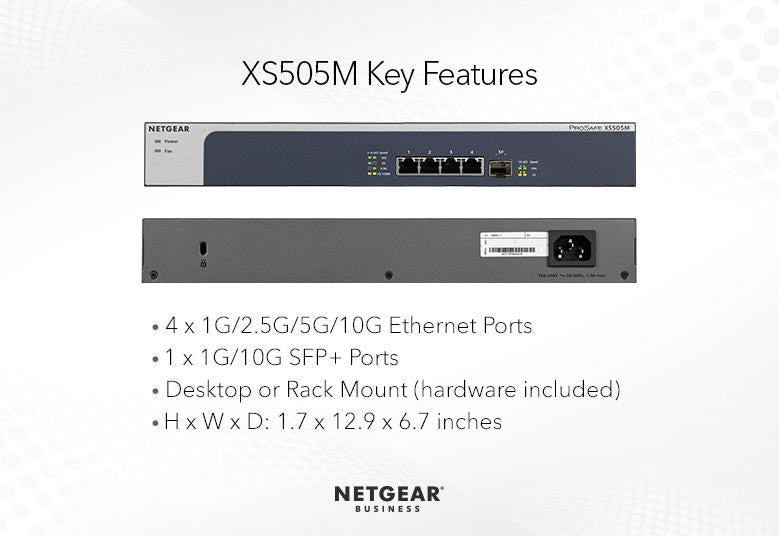

• 100M/1G/2.5G/5G/10G RJ-45 copper ports : 4
• 10G SFP+ ports : 1
• Form Factor : Desktop/Rackmount
• Packet buffer memory : 128KB
• Bandwidth : 100Gbps
• MAC Address database size : 2K
• Number of priority queues : 8
• Jumbo frame support : Up to 9K packet size
• Fan(s) : 1 Low-Noise Active Fan
• Jumbo frame support : Up to 9K packets
• IEEE 802.3az (Energy Efficient Ethernet) : Yes
• Max power consumption (Watts) : 22.5W
• LEDs : Power,Fan, Speed, Link/Activity
• Acoustic noise level @ 25° C (dBA) : 28.8dB
• Operating temperature : 0° to 40° C
• MTBF (@ 25° C) : 22.5dBA
• Electromagnetic compliance (A or B) : B
