Description

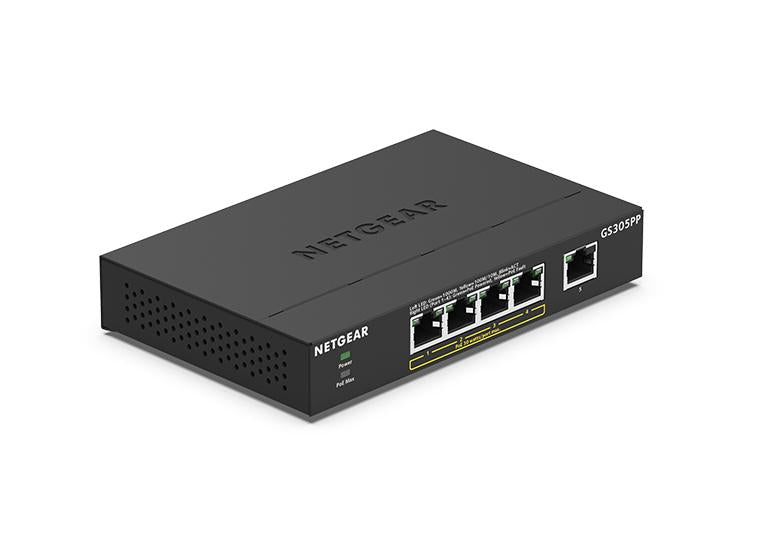

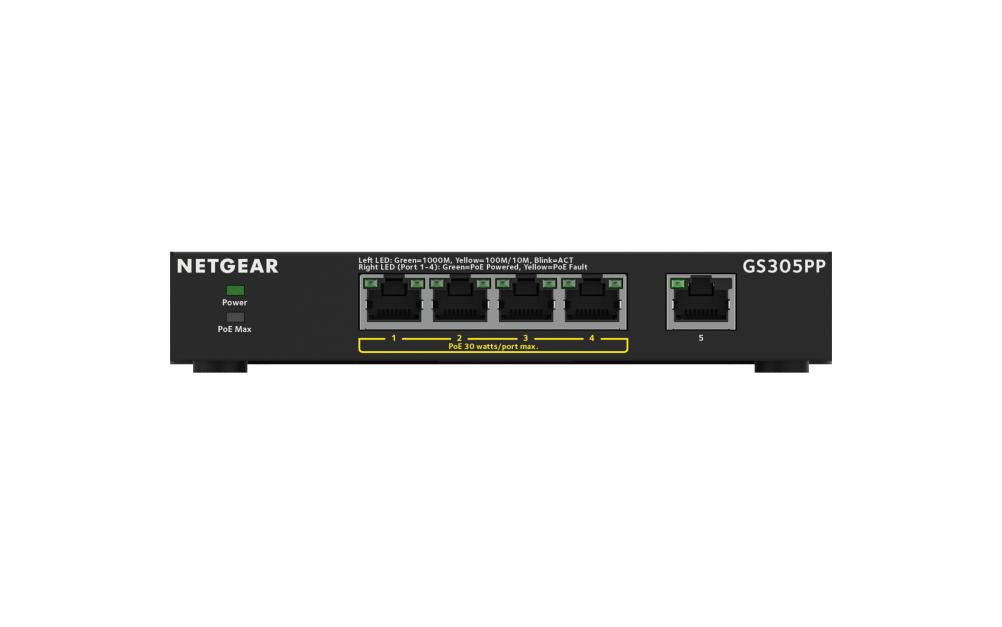

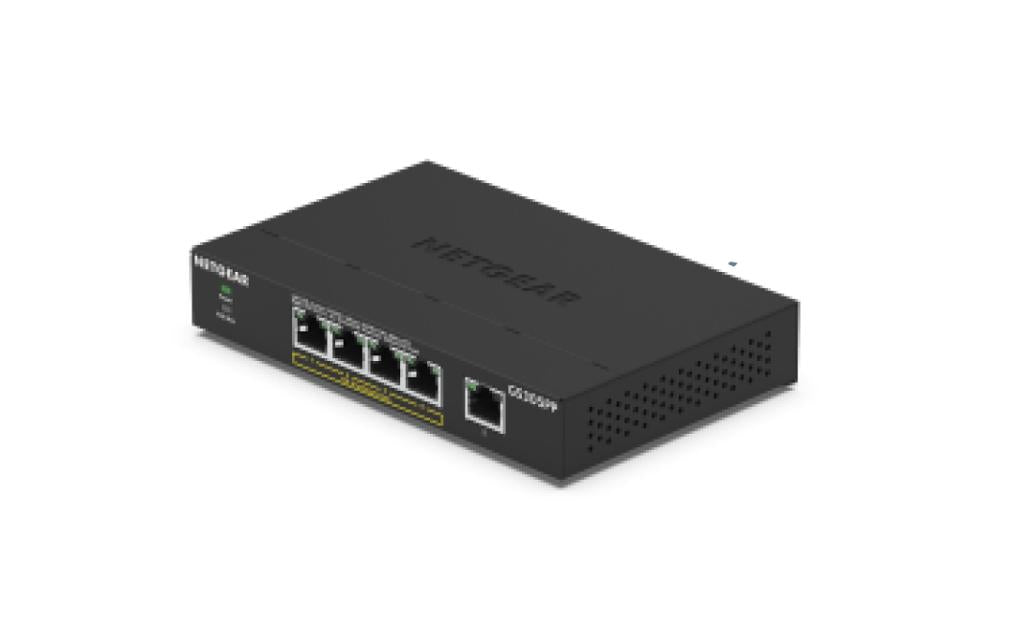

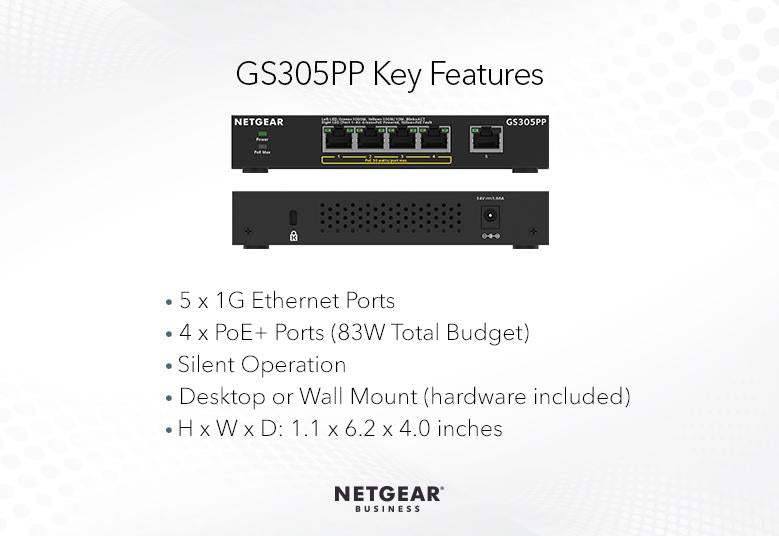

NETGEAR 5-Port Gigabit Ethernet SOHO Unmanaged Switch with 4-Ports PoE+ (83W) (GS305PP-100PES)
5-Port Gigabit Unmanaged switch with 4 PoE+ ports and 83W power budget to power Wireless AP, IP Cameras, IP Phones and mor
Features
PERFORMANCE
ETHERNET PORT CONFIGURATION
5 Gigabit ports

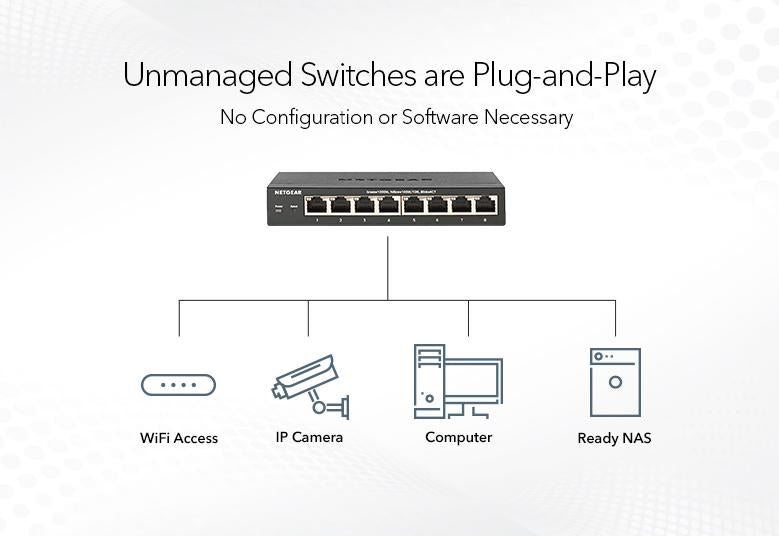

PLUG-AND-PLAY
Simple set up with no software to install or configuration needed and zero maintenance
FULL PERFORMANCE
Non-blocking switching architecture for maximum throughput at wire speed
POWER OVER ETHERNET
POWER-OVER-ETHERNET
4 PoE ports with 83W total power budget to power wireless AP, IP Cameras, IP Phones and much more
PoE POWER AUTO-BALANCE AND ALLOCATION
NETGEAR's unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs.
HARDWARE
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
ENERGY EFFICIENT
Designed to optimize power usage lowering its cost to operate.
Metal Case
Durable and Rugged
VERSATILE MOUNTING OPTIONS
Supports desktop and wall placement. Includes wall mount kit in the box
STANDARDS-BASED DESIGN
Ensure interoperability with any standards-based PDs
PHYSICAL SPECIFICATION
- Dimensions : 158 x 101 x 29 mm (6.2 x 4.0 x 1.1 in)
- Weight : 0.46 kg (1.02 lb)
TECHNICAL SPECS
- Product name : 5-Port Gigabit Ethernet SOHO Unmanaged Switch with 4-Ports PoE+ (83W)
- Speed : Gigabit
- Number of Ports : 4 PoE ports

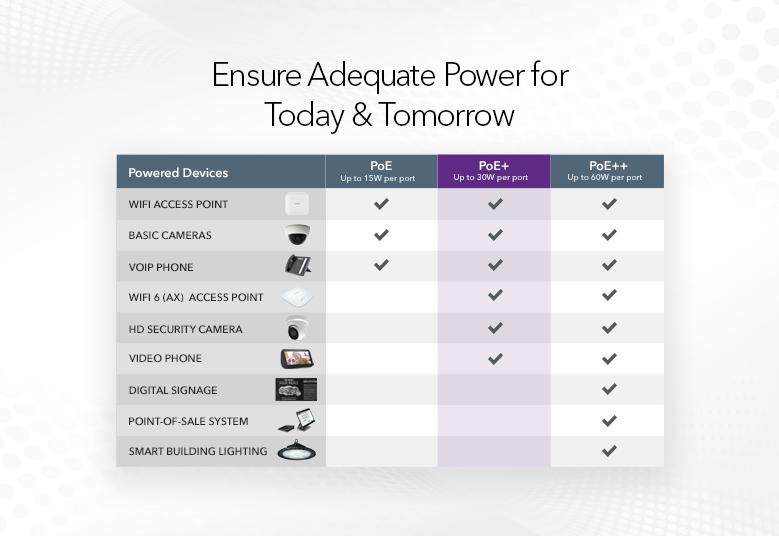

- 4 PoE+ @ 30W each until budget is met
- PoE budget : Up to 83W Total
- Energy Efficient Ethernet support : Yes - Compliant with IEEE802.3az Energy Efficient Ethernet mode
- Jumbo frame support : 9,216 bytes
- MAC table size : 2k
- Packet buffer size : 128K
- PoE Auto balance : Yes - Balances the PoE power per port based on the device needs independent of PoE class detected

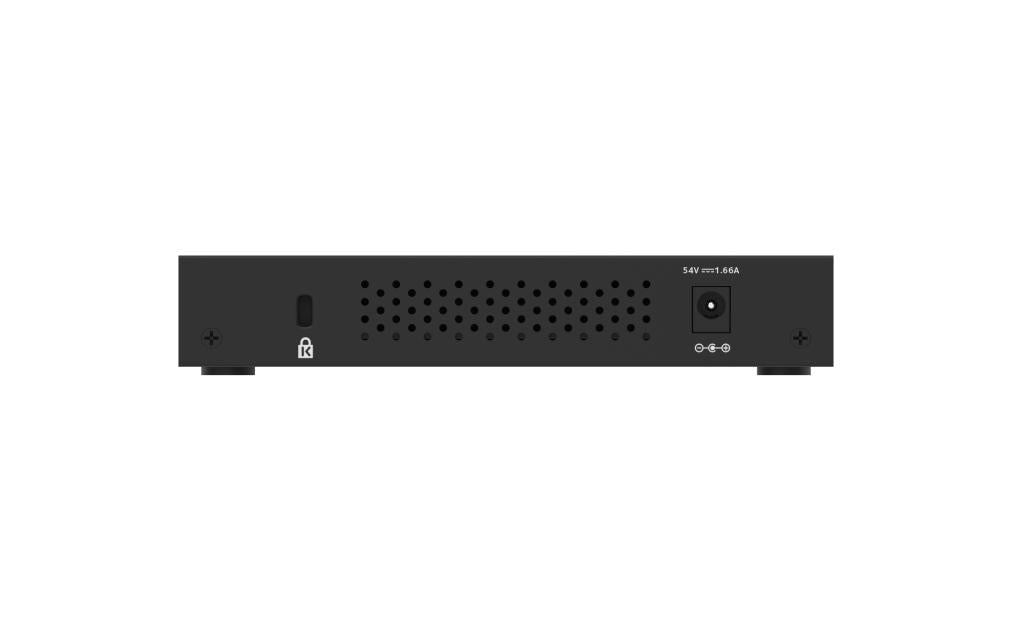

- Optional Modules and Accessories : EPS130W 130W External Power Adapter (Included)
- EPS200W 200W External Power Adapter (Optional, up to 183W PoE+ Budget)
- EPS90W 90W External Power Adapter (Optional, lower to 76W PoE+ Budget)
- Protocols : IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3i 10BASE-T Ethernet
- IEEE 802.3x Flow Control
- IEEE 802.1p Priority QoS (all models)
- IEEE 802.3 CSMA/CD
- 802.3az Energy Efficient Ethernet
